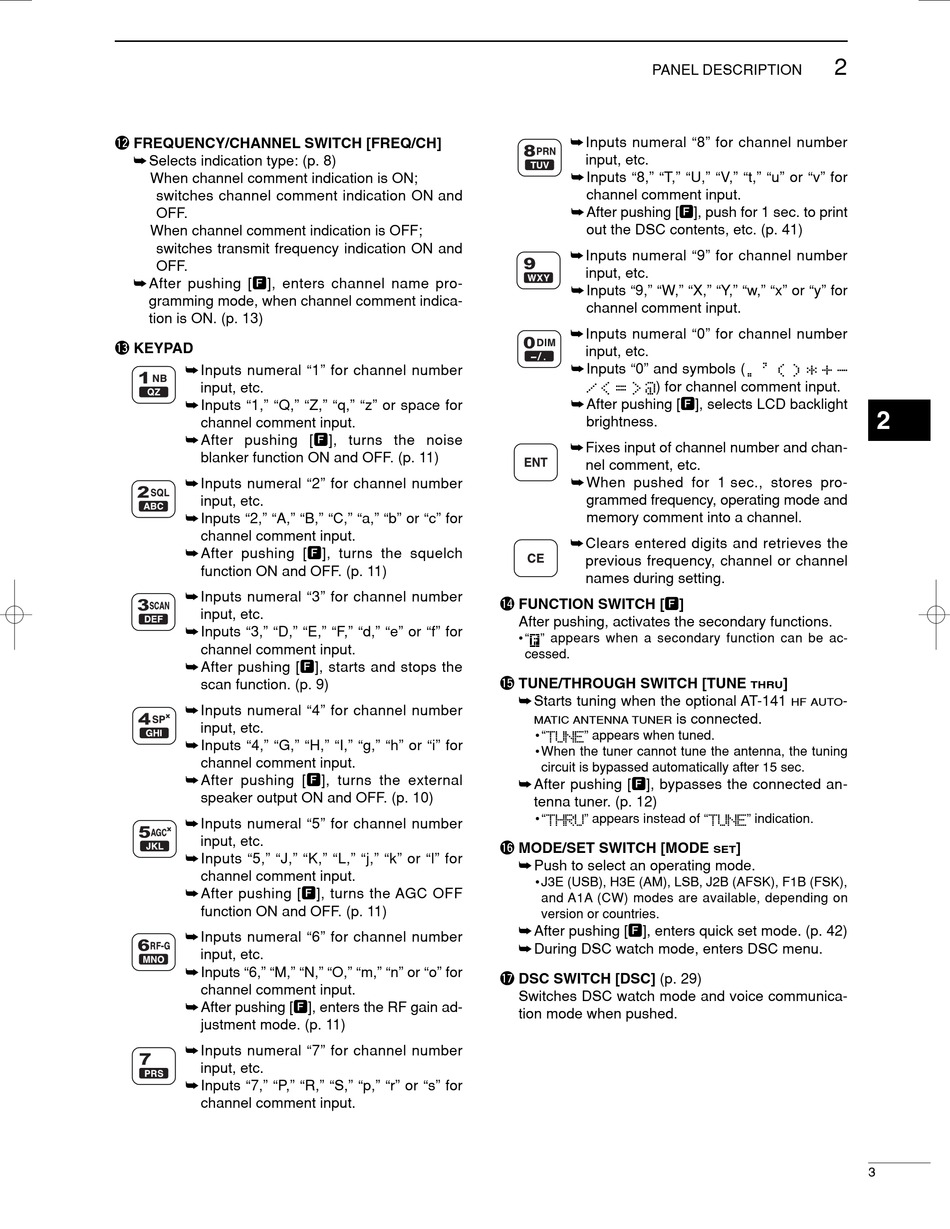

Icom IC-M801E Instruction Manual page 11

!2 FREQUENCY/CHANNEL SWITCH [FREQ/CH]
➥ Selects indication type: (p. 8)
When channel comment indication is ON;
switches channel comment indication ON and
OFF.
When channel comment indication is OFF;
switches transmit frequency indication ON and
OFF.
➥ After pushing [F], enters channel name pro-
gramming mode, when channel comment indica-
tion is ON. (p. 13)
!3 KEYPAD
➥ Inputs numeral "1" for channel number
input, etc.
➥ Inputs "1," "Q," "Z," "q," "z" or space for
channel comment input.
➥ After pushing [F], turns the noise
blanker function ON and OFF. (p. 11)
➥ Inputs numeral "2" for channel number
input, etc.
➥ Inputs "2," "A," "B," "C," "a," "b" or "c" for
channel comment input.
➥ After pushing [F], turns the squelch
function ON and OFF. (p. 11)
➥ Inputs numeral "3" for channel number
input, etc.
➥ Inputs "3," "D," "E," "F," "d," "e" or "f" for
channel comment input.
➥ After pushing [F], starts and stops the
scan function. (p. 9)
➥ Inputs numeral "4" for channel number
input, etc.
➥ Inputs "4," "G," "H," "I," "g," "h" or "i" for
channel comment input.
➥ After pushing [F], turns the external
speaker output ON and OFF. (p. 10)
➥ Inputs numeral "5" for channel number
input, etc.
➥ Inputs "5," "J," "K," "L," "j," "k" or "l" for
channel comment input.
➥ After pushing [F], turns the AGC OFF
function ON and OFF. (p. 11)
➥ Inputs numeral "6" for channel number
input, etc.
➥ Inputs "6," "M," "N," "O," "m," "n" or "o" for
channel comment input.
➥ After pushing [F], enters the RF gain ad-
justment mode. (p. 11)
➥ Inputs numeral "7" for channel number
input, etc.
➥ Inputs "7," "P," "R," "S," "p," "r" or "s" for
channel comment input.
PANEL DESCRIPTION
➥ Inputs numeral "8" for channel number
input, etc.
➥ Inputs "8," "T," "U," "V," "t," "u" or "v" for
channel comment input.
➥ After pushing [F], push for 1 sec. to print
out the DSC contents, etc. (p. 41)
➥ Inputs numeral "9" for channel number
input, etc.
➥ Inputs "9," "W," "X," "Y," "w," "x" or "y" for
channel comment input.
➥ Inputs numeral "0" for channel number
input, etc.
➥ Inputs "0" and symbols (
) for channel comment input.
➥ After pushing [F], selects LCD backlight
brightness.
➥ Fixes input of channel number and chan-
nel comment, etc.
➥ When pushed for 1 sec., stores pro-
grammed frequency, operating mode and
memory comment into a channel.
➥ Clears entered digits and retrieves the
previous frequency, channel or channel
names during setting.
!4 FUNCTION SWITCH [F]
After pushing, activates the secondary functions.
• " " appears when a secondary function can be ac-
cessed.
!5 TUNE/THROUGH SWITCH [TUNE
➥ Starts tuning when the optional AT-141
MATIC ANTENNA TUNER
• " " appears when tuned.
• When the tuner cannot tune the antenna, the tuning
circuit is bypassed automatically after 15 sec.
➥ After pushing [F], bypasses the connected an-
tenna tuner. (p. 12)
• " " appears instead of "
!6 MODE/SET SWITCH [MODE
➥ Push to select an operating mode.
• J3E (USB), H3E (AM), LSB, J2B (AFSK), F1B (FSK),
and A1A (CW) modes are available, depending on
version or countries.
➥ After pushing [F], enters quick set mode. (p. 42)
➥ During DSC watch mode, enters DSC menu.
!7 DSC SWITCH [DSC] (p. 29)
Switches DSC watch mode and voice communica-
tion mode when pushed.
