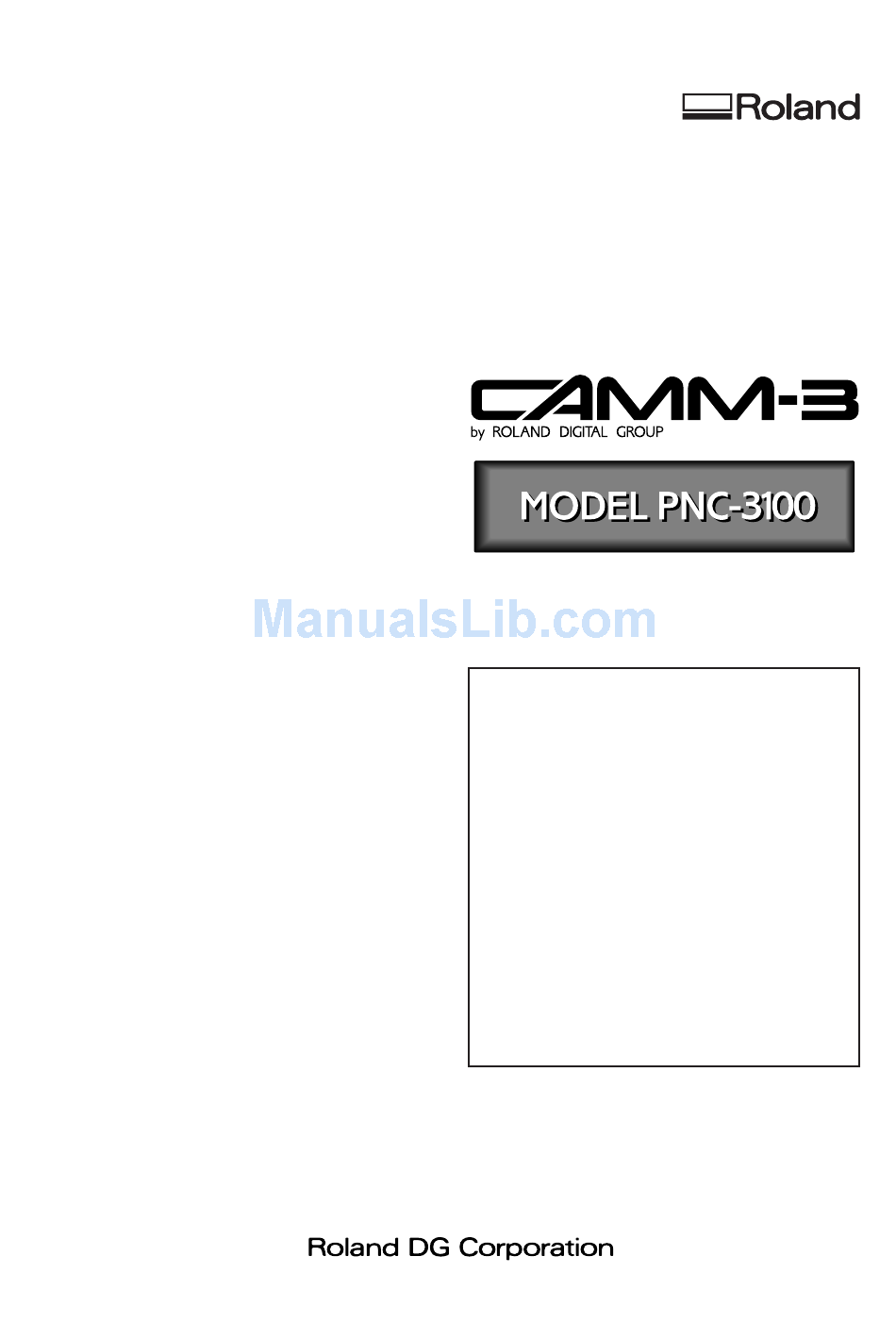

User's Manual
Thank you very much for purchasing the CAMM-3
Model PNC-3100.
• To ensure correct and safe usage with a full under-
standing of this product's performance, please be sure
to read through this manual completely and store it in
a safe location.
• Unauthorized copying or transferral, in whole or in
part, of this manual is prohibited.
• The contents of this operation manual and the
specifications of this product are subject to change
without notice.
• The operation manual and the product have been
prepared and tested as much as possible. If you find
any misprint or error, please inform us.

Advertisement

Table of Contents
loading

Related Manuals for Roland CAMM-3 PNC-3100

Summary of Contents for Roland CAMM-3 PNC-3100

  • Page 1 User's Manual Thank you very much for purchasing the CAMM-3 Model PNC-3100. • To ensure correct and safe usage with a full under- standing of this product's performance, please be sure to read through this manual completely and store it in a safe location.
  • Page 2 For the USA For Canada FEDERAL COMMUNICATIONS COMMISSION CLASS A NOTICE RADIO FREQUENCY INTERFERENCE This digital apparatus does not exceed the Class A limits for radio noise emissions set out in the Radio Interference STATEMENT Regulations of the Canadian Department of Communica- This equipment has been tested and found to comply with the tions.

  • Page 3: Table Of Contents

    To Ensure Safe Use ..................Part 1 Startup 1. Conditions for Installation .................. 2. Removing the PNC-3100 from the Carton ............3. Checking Accessories ..................4. Names of Parts ...................... 5. Connecting to a Computer ................. Connecting the Main Unit, Controller, and Switch Panel ............7 Connecting to a Computer ......................

  • Page 4: How To Read This Manual

    PNC-3100 for the first time. Part 2 User's Reference Usage of the PNC-3100’s functions, daily care, and an overview if instruction sets sent from the computer are explained here. Copyright © 1993 ROLAND DG CORPORATION...

  • Page 5: Typographic Conventions

    Typographic Conventions This manual uses certain typographic symbols, outlined below. This indicates a point requiring particular care to ensure safe use of the product. DANGER : Failure to heed this message will result in serious injury or death. WARNING : Failure to heed this message may result in serious injury or death.

  • Page 6: To Ensure Safe Use

    To Ensure Safe Use WARNING WARNING Keep hands away from Do not wear gloves, a necktie moving spindle. or wide-sleeved clothing. Such items may become caught in machine. WARNING WARNING Switch off spindle before Do not insert the fingers between attempting to access it.
  • Page 7 WARNING WARNING P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q  P Q ...
  • Page 8 CAUTION CAUTION Do not block the ventilation Handle the power cord with holes. care. Blocking the ventilation holes at the Do not step on or damage the power rear of the controller may prevent heat cord, or allow heavy objects to be radiation and cause fire.
  • Page 9 About the Warning Labels Affixed to the Unit Four warning labels are affixed to the body of this product. The following figure describes the location and content of these warning messages. Do not insert fingers between the head and Z Handle tool with care.
  • Page 10 To Ensure Correct Use NOTICE Never pile things up on head of the PNC-3100. This can be very dangerous because of the possibility of vibration during operation.

  • Page 11: Part 1 Startup

    Use within a temperature range of 5 to 40 C (41 to 104 F) and within a humidity range of 35 to 80%. Avoid installing the PNC-3100 in the following locations, as this may result in damage to the machine.

  • Page 12: Removing The Pnc-3100 From The Carton

    2. Removing the PNC-3100 from the Carton CAUTION Two or more people are needed to take the PNC-3100 out of the carton. The main unit weighs 52 kg (114.6 lb.), and the controller weighs 9 kg (19.8 lb.). For this reason, extreme care should be taken to avoid injury when installing.

  • Page 13: Names Of Parts

    Part 1 4. Names of Parts Head Front of Unit Spindle RPM display Bellows cover Spindle switch Bellows cover XY Table Rear of Unit Controller connection terminal (control signal) Connection terminal for Z-axis origin (Z0) Controller connection setting-use sensor terminal (spindle motor) (option) Controller connection terminal (XYZ motor control)
  • Page 14 CONTINUE PAUSE Switch 8 allows the operator to select CONTINUE or Not used (always OFF) PAUSE in the cutting operation when PNC-3100 movement has exceeded the coordinates set for the specified cutting range. Switches 9 and 10 These switches are not used. Make sure they are set...
  • Page 15 Coordinate Display. REPLOT Key This keys carries out replotting (recutting) when cutting data is present in the PNC-3100 data buffer. ENTER Key In combination with the [Z0] , [Z1] , [Z2] and [HOME] keys, the key designates the positions of Z0, Z1, Z2 and HOME. Also, if this key is pressed when PAUSE is ON, the moving speeds in each axis direction are shown on the XYZ coordinate display.
  • Page 16 PAUSE LED This LED comes ON when the PNC-3100 enters the temporary stop condition as a result of the [PAUSE ON] key being pressed. This LED goes OFF when the temporary stop condition is cancelled by pressing the [OFF] key.

  • Page 17: Connecting To A Computer

    Connecting the Main Unit, Controller, and Switch Panel NOTICE Connect the cables only when the PNC-3100 and the computer power sources are OFF. Ensure that the power supply voltage is within 10% of the machine's rated voltage. Securely connect the power cord and cables for computer input and output to prevent them from coming loose or causing poor contact during use.

  • Page 18: Connecting To A Computer

    When connecting to a computer for the first time, be sure to perform an operation check to make sure the unit is operating correctly. Connect the PNC-3100 to the computer using the cable. The cable for computer connection is optional. Please purchase the appropriate cable for the type of computer and software used .

  • Page 19: Communication Protocol Setting

    Communication Protocol Setting In the PNC-3100, the interface type (Parallel or Serial) is differentiated automatically. The distinguished interface is memorized until the power is turned OFF. It can not be varied while the power is ON. When changing the differentiated interface, turn the power OFF and then ON again, then transmit data.

  • Page 20: Workpiece Set Side

    Part 1 6. Workpiece Set Side WARNING Detachment of the material during operation is extremely dangerous. Follow the procedure described below to fasten the material in place securely. NOTICE Do not place anything on the XY table except material to be cut. This section is an explanation of the cutting workpiece attachment method when an optional machine vice ZV-1 is used.

  • Page 21: Cutting Tool Attachment

    NOTICE Use the correct tool for the material to be cut and the cutting method. Set the SPINDLE switch on the front of the PNC-3100 to OFF. • The LED lamp in the SPINDLE switch flashes. (When power is applied.)
  • Page 22 Part 1 If the collet chuck has not been installed, Collet chuck removal install it. Fit the collet chuck in the collet cap as shown in the figure, and tighten provisionally on the spindle. • Lightly tighten the collet cap to prevent it from falling off.

  • Page 23: Power On

    Press the POWER switch on the front of the controller setting the power to ON. (In the PNC-3100 after setting the power to ON, proceed to turn on power to the computer.)

  • Page 24: Setting The Cutting Origin

    9. Setting the Cutting Origin The PNC-3100 are suitable for use with a versatile range of workpiece shapes and a wide variety of tools, so determine the standard points for cutting each time a new workpiece is set. Set the home position (origin point for X an Y axes) and Z0 (Z axis origin point).

  • Page 25: Setting The Z0 Position

    If an error occurs, stop the transmission of data from the computer and cancel the error by clearing the buffer or by switching the power to the PNC-3100 off and on again (see page 32). The home position is the point that becomes the origin point in the X and Y directions. Usually, this point is set at the front left corner of the fixed workpiece.

  • Page 26: Cutting Condition Setting

    3. The cutting-in amount (depth of one cutting operation) Note : When settings have been made with both the software and the PNC-3100, the last settings made have priority. In this manual, these three conditions are called the cutting conditions. The characteristics and points to consider for each of these conditions are as follows.
  • Page 27 Part 1 Spindle Motor Revolution Speed HIGH The spindle motor revolution speed can be set by turning the spindle control knob on the controller. Monitor the speed indicated on the Spindle RPM Display while making this setting. Spindle Speed Ranges 3,000 to 8,000 rpm Cutting-in Amount The cutting-in amount is set by setting Z1.

  • Page 28: Downloading Cutting Data

    Software Setting In cases where cutting is controlled by generally available application software, select PNC-3100 as the output equipment setting. In cases where it is not possible to select PNC-3100 , select PNC-3000 or PNC-2700 or PNC-2500R/ 2500. Identification of the interface type (connected with computer) is done automatically in the PNC- 3100.

  • Page 29: Finishing

    • Be especially careful to remove the cutting waste from around the pleated part of the bellows cover. • Keep the PNC-3100 and its accessories in neat and proper order and use care to ensure normal work operations are carried out safely.

  • Page 30: Part 2 User's Reference

    1. Cutting Area The maximum cutting area of the PNC-3100 is 250 mm 150 mm 150 mm (9-13/16" 5-7/8" 5-7/8"). Converting this into coordinate values based on the machine's step number (1 step = 1/100 mm (0.00039")), we obtain the coordinate system;...

  • Page 31: Coordinate System

    Part 2 2. Coordinate System The PNC-3100 employs three separate coordinate systems (described below) according to the application or purpose of use. Machine Coordinate Under the machine coordinate system, the coordinates are determined mechanically against the PNC-3100. This system forms the basis of the "work coordinates"...

  • Page 32: Operating Each Function

    Replotting (Recutting) Pressing the [REPLOT] key calls up the cutting data stored in the PNC-3100's data buffer and executes the replotting procedure. The data buffer is the place where data received from the computer is stored temporarily. (The data in the data buffer can be erased by switching off the power or holding down the [BUFFER CLEAR] key for at least 0.5 sec.)

  • Page 33: Feeding Speed Manual Setting

    Part 2 Feeding Speed Manual Setting At times when speed cannot be set with the software or when adjusting the speed during an ongoing cutting operation use the panel switch keys to set cutting tool movement speed. Press the [PAUSE ON] key. •...

  • Page 34: Operation Check

    Part 2 Operation Check If the PNC-3100 operates abnormally, perform an operation check according to the instructions below. If, as a result of the check, no abnormality is found, check for abnormalities in the computer, software or cable. WARNING Remove the tool, workpiece and vice before beginning the operation check.
  • Page 35 Part 2 Press the [SPINDLE TEST ON/OFF] key for at least 0.5 seconds. At least • The spindle starts to rotate. 0.5 seconds. Turn the Spindle Control knob to the left and right. • Rotating the control clockwise raises spindle speed (rpm). HIGH •...
  • Page 36 Turn the Spindle switch ON. • The spindle lights up after flashing. Turn the power OFF. • The POWER/ERROR LED turns off. This completes the operation check. If no abnormalities are detected in the course of this check, the PNC-3100 is normal.

  • Page 37: Stopping The Cutting Process Immediately

    Press the [PAUSE ON] key. • PAUSE LED comes ON. • The unit stops after completing the cut- ting operation in progress. Stop the transfer of data to the PNC-3100 by operating software of computer. Download Data Device Name Protocol •...

  • Page 38: Setting The Tool Up/Down Position Manually

    Part 2 Setting the Tool Up/Down Position Manually The cutting tool up position (Z2 point) and down position (Z1 point) are normally set with the software. If they cannot be set with your current software then set them manually using the keys on the switch panel. Setting is done by determining the cutting tool up position Z2 and down position Z1.

  • Page 39: Maintenance

    XY table to the front and rear, and clean the entire cover. Except when moving the XY table, carry out all cleaning work with the PNC-3100's power OFF. Also, if the PNC-3100 is used in a room equipped with a ventilation fan, rapid clogging by filing may occur.
  • Page 40 Display of Spindle Rotation Time The PNC-3100 has a function for the displaying the total rotation time of the spindle. Because the brushes and other components of the spindle motor are parts that wear out and require inspection at periodic intervals. This display is designed to serve as a guide for such inspection.

  • Page 41: Troubleshooting

    See page 24 "Operation Check" and perform the operation check procedure. When the Pause LED is ON, the main unit is in the temporary stop Is the PNC-3100 in the temporary stop condition? condition. Press the [OFF] key to cancel the temporary stop condition.
  • Page 42 POWER/ERROR LED of error; namely instruction-related errors and communi- cation-related (RS-232C) errors. After the error occurs, there is a danger that the PNC-3100 will make unexpected abnormal movements. If such a movement occurs, turn the power OFF immediately. The error may be caused by one of the following items.

  • Page 43: List Of Camm-Gli Instructions

    6. List of CAMM-GLI Instructions A "CAMM-GL I Programmer's Manual" is available for separate purchase for those wishing to create their own programs for this machine. For further information, please contact the nearest Roland DG Corp. dealer or distributor. * 1 : -(2 -1)—+(2...
  • Page 44 Part 2 • mode2 Instruction Com. Format Parameter Range [Default] Arc Absolute AA x, y, Øc(, Ød); x, y Center coordinate Øc Center angle Ød Chord tolerance * 1 [5 ] Arc Relative AA x, y, Øc(, Ød); x, y Center coordinate Øc Center angle...

  • Page 45: Device Control Instructions

    -1) —+(2 7. Device Control Instructions The Device Control instructions determine how communication between the PNC-3100 and the computer will be handled using the RS-232C interface; and also are employed when relaying to the computer the status of the PNC- 3100.
  • Page 46 Output Status Word pause. This value is shown in the table below. Code Status of buffer and pause Buffer contains data. Buffer empty. Buffer contains data. PNC-3100 paused (PAUSE On displayed). Buffer empty. PNC-3100 paused (PAUSE On displayed). ESC .E [ESC].E...

  • Page 47: Appendix

    Appendix APPENDIX APPENDIX Supplies < Tools> Name Product No. Specifications Conventional steel ZHS-100 3 l x 6d x 45L x 2NT straight end mill ZHS-200 5 l x 6d x 50L x 2NT ZHS-300 8 l x 6d x 50L x 2NT ZHS-400 8 l x 6d x 60L x 2NT ZHS-500...
  • Page 48 Appendix Collet chuck The collet chuck and collet cap included with the PNC-3100 are the EDC-0624 (diameter 6 mm (1/4") collet chuck) and KDP-2422 (collet cap) made by NT Tool Co., Ltd. Please see the chart below for collet chucks with diameters other than 6 mm (1/4").

  • Page 49: Specifications

    Appendix Specifications PNC-3100 XY table size 560 mm x 170 mm (22-1/16" x 6-11/16") Max. cutting area 250 mm(X) x 150 mm(Y) x 150 mm(Z) (9-13/16"(X) x 5-7/8"(Y) x 5-7/8"(Z)) Software resolution 0.01 mm/step (0.00039") Mechanical resolution 0.00125 mm/step (micro-step control) Feed rate X, Y-axis : Max.
  • Page 50 Appendix • Parallel connector HIGH *** HIGH * HIGH * HIGH ** BUSY STROBE 3.3K 1.2K • Serial connector Terminal No. Signal Pin connection...
  • Page 51 Appendix • Option connector SPINDLE ON/OFF Connector : JAE Co. (TX20A-36R-D2LT1-A1LH) (paired connector : TX20A-36PHI-1-D2PI-D1) Terminals : 36 pins Spindle ON/OFF signal level : TTL level (H : ON, L : OFF)

  • Page 52: Index

    Appendix Index ], [ ], [ ], [ ], [ ], [ ] key ..6, 14, 15 Cutting condition [BUFFER CLEAR] key ......... 6, 22, 27 -(manual setting) ..........16, 17 [ENTER] key ..........5, 14, 15, 28 -(setting example) ........... 17 [HOME] key ............
  • Page 53 Appendix Operation check ............24 User coordinate system ..........21 Option connector ............4 Option connector specification ......... 41 Origin of the machine coordinate ......21 Work coordinate system ........... 21 Origin of the work coordinate ........21 Over area ..............4 XY Table ..............
  • Page 54 Appendix MEMO...
  • Page 55 PNC-3100 Printed in JAPAN R9-980216...
