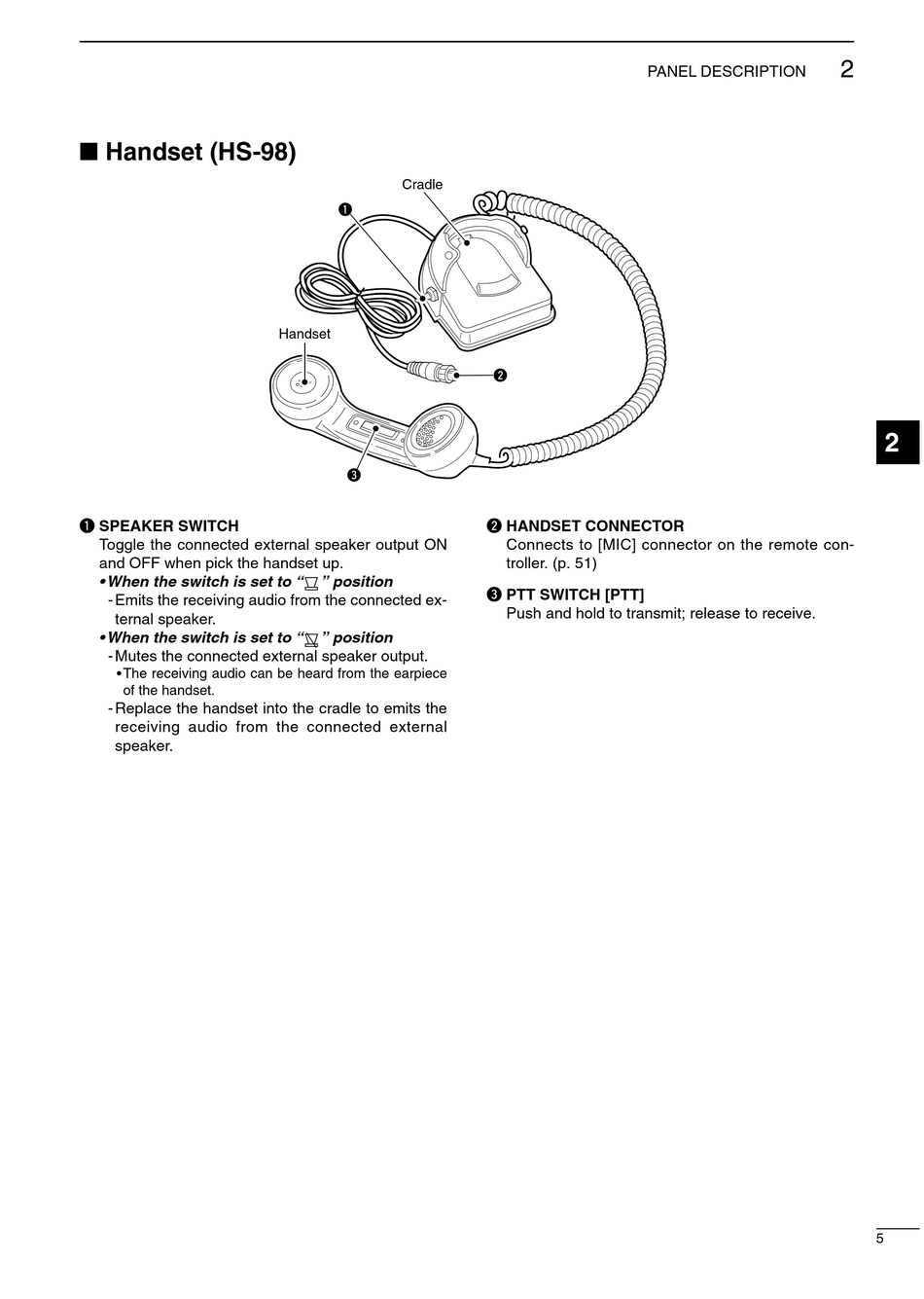

I Handset (HS-98)

q SPEAKER SWITCH
Toggle the connected external speaker output ON
and OFF when pick the handset up.
• When the switch is set to "
- Emits the receiving audio from the connected ex-
ternal speaker.
• When the switch is set to "
- Mutes the connected external speaker output.
• The receiving audio can be heard from the earpiece
of the handset.
- Replace the handset into the cradle to emits the
receiving audio from the connected external
speaker.
Cradle
q
Handset
e
" position
" position
PANEL DESCRIPTION
w
w HANDSET CONNECTOR
Connects to [MIC] connector on the remote con-
troller. (p. 51)
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
