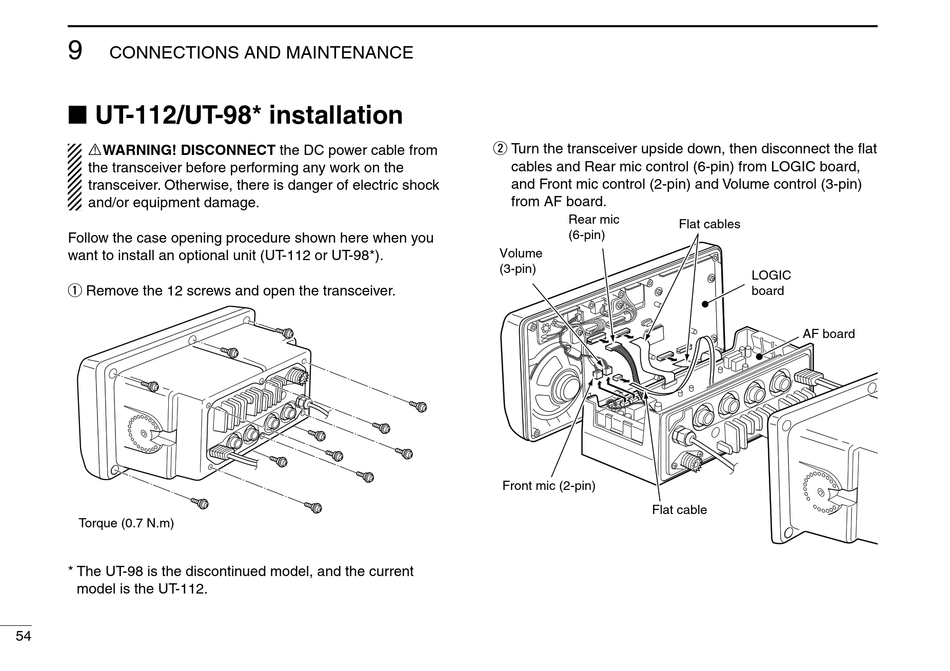

CONNECTIONS AND MAINTENANCE
■ UT-112/UT-98* installation
RWARNING! DISCONNECT the DC power cable from
the transceiver before performing any work on the
transceiver. Otherwise, there is danger of electric shock
and/or equipment damage.
Follow the case opening procedure shown here when you
want to install an optional unit (UT-112 or UT-98*).
q Remove the 12 screws and open the transceiver.
Torque (0.7 N.m)
* The UT-98 is the discontinued model, and the current
model is the UT-112.
54
w Turn the transceiver upside down, then disconnect the flat
cables and Rear mic control (6-pin) from LOGIC board,
and Front mic control (2-pin) and Volume control (3-pin)
from AF board.
Rear mic
(6-pin)
Volume
(3-pin)
Front mic (2-pin)
Flat cable
Flat cables
LOGIC
board
AF board
