Page 9: About This Guide
Audience This guide is designed for network administrators who are installing and maintaining a Juniper Networks SRX3400 Services Gateway or preparing a site for services gateway installation. To use this guide, you need a broad understanding of networks in general and the Internet in particular, networking principles, and network configuration.
Page 10 SRX3400 Services Gateway Hardware Guide Table 1: Notice Icons Icon Meaning Description Informational note Indicates important features or instructions. Caution Indicates a situation that might result in loss of data or hardware damage. Warning Alerts you to the risk of personal injury or death.
Page 11: Srx Series Documentation And Release Notes
SRX Series Release Notes differs from the information in the documentation, follow the SRX Series Release Notes. Obtaining Documentation To obtain the most current version of all Juniper Networks technical documentation, see the products documentation page on the Juniper Networks website at www.juniper.net/techpubs/ To order printed copies of this guide and other Juniper Networks technical documents, contact your sales representative.
Page 12: Documentation Feedback
7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: www.juniper.net/customers/support...
Page 13 About This Guide Join and participate in the Juniper Networks Community Forum: www.juniper.net/company/communities Open a case online in the CSC Case Manager: www.juniper.net/cm To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool located at https://tools.juniper.net/SerialNumberEntitlementSearch...
Page 15: Srx3400 Services Gateway Overview
PART 1 SRX3400 Services Gateway Overview Introduction to the SRX3400 Services Gateway on page 3 SRX3400 Services Gateway Hardware Components on page 7 Copyright © 2013, Juniper Networks, Inc.
Page 17: Introduction To The Srx3400 Services Gateway
SRX3400 Services Gateway Physical Specifications on page 4 SRX3400 Services Gateway Description The SRX3400 Services Gateway is a high-performance, scalable, carrier-class security device with multi-processor architecture. The services gateway has a capacity of up to 20 gigabits per second (Gbps) in full duplex and is three rack units (U) tall. Sixteen services gateways can be stacked in a single floor-to-ceiling rack, for increased port density per unit of floor space.
Page 18: Srx3400 Services Gateway Performance And Features
Power supplies 1 for nonredundant configuration 2 for redundant configuration Related Available Components for the SRX3400 Services Gateway on page 9 Documentation SRX3400 Services Gateway Physical Specifications on page 4 SRX3400 Services Gateway Chassis on page 7 SRX3400 Services Gateway Physical Specifications...
Page 19 3.1 lb (1.4 kg) Related Available Components for the SRX3400 Services Gateway on page 9 Documentation Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 SRX3400 Services Gateway Chassis on page 7 Copyright © 2013, Juniper Networks, Inc.
Page 21: Srx3400 Services Gateway Hardware Components
CHAPTER 2 SRX3400 Services Gateway Hardware Components Nearly all components of the SRX3400 Services Gateway are field-replaceable units (FRUs), including the Switch Fabric Board (SFB), Routing Engine, Network Processing Cards (NPCs), Service Processing Cards (SPCs), and I/O cards (IOCs), power supply, fan tray, filter, and air deflector kits.
Page 22 SRX3400 Services Gateway Common Form-Factor Modules on page 9 Available Components for the SRX3400 Services Gateway on page 9 Grounding the SRX3400 Services Gateway on page 76 SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Copyright © 2013, Juniper Networks, Inc.
Page 23: Srx3400 Services Gateway Component Basics
This section describes the card form factors, the services gateway components available, and where they can be installed in the SRX3400 Services Gateway. It also describes the flow of data through the services gateway. This section includes the following topics:...
Page 24: Srx3400 Services Gateway Midplane
SRX3400 Services Gateway Hardware Guide Table 5: Available SRX3400 Services Gateway Hardware Components (continued) Hardware Component Minimum/Maximum Network Processing I/O Cards (NP-IOCs) Up to 6 allowed (see note below) Network Processing Cards (NPCs) 1 required, 2 allowed Services Processing Cards (SPCs)
Page 25: Hardware Component Locations In The Srx3400 Services Gateway
Table 6 on page 11 shows the supported combinations of SPCs, NPCs, and IOCs that can be installed in the SRX3400 Services Gateway. The support is different between standard and enhanced DC-powered services gateways because the standard DC power supplies have a lower power rating.
Page 26 SRX3400 Services Gateway Hardware Guide Table 7: Allowed Slot Locations for the SRX3400 Services Gateway Components Module Name Allowed Slot Locations Front slot labeled Routing Engine Rear slot labeled Rear slot labeled IOCs Front slots labeled NP-IOCs Front slots labeled and rear slots labeled .
Page 27: Data Flow In The Srx3400 Services Gateway
Installation Overview for the SRX3400 Services Gateway on page 49 SRX3400 Services Gateway Midplane The midplane in the SRX3400 Services Gateway is in the center of the chassis and provides connections for installing up to four common form-factor modules (CFMs) through the front of the chassis and up to three CFMs through the rear of the chassis.
Page 28: Srx3400 Services Gateway Switch Fabric Board
Related SRX3400 Services Gateway Chassis on page 7 Documentation Available Components for the SRX3400 Services Gateway on page 9 SRX3400 Services Gateway Switch Fabric Board on page 14 SRX3400 Services Gateway Network Processing Cards on page 20 SRX3400 Services Gateway Services Processing Cards on page 20 SRX3400 Services Gateway Switch Fabric Board The Switch Fabric Board (SFB) is the data plane for the subsystems in the chassis.
Page 29 Chapter 2: SRX3400 Services Gateway Hardware Components Figure 7: Switch Fabric Board Table 8 on page 15 describes the behavior of the Power button near the left end of the SFB front panel. Table 8: Power Button Behavior Condition Action...
Page 30 SRX3400 Services Gateway Hardware Guide Table 9: Switch Fabric Board LED Indicators (continued) Label Color Status Indicated Behavior Critical On steadily A critical alarm is present in the system. A hardware (Bottom) component or software module has failed, or the network management interface is down.
Page 31 Chapter 2: SRX3400 Services Gateway Hardware Components Table 9: Switch Fabric Board LED Indicators (continued) Label Color Status Indicated Behavior Green On steadily The SFB and all installed CFM cards are operating SERVICE (top) normally. The LEDs on all installed CFM SERVICE cards are green.
Page 32 SRX3400 Services Gateway Hardware Guide Table 9: Switch Fabric Board LED Indicators (continued) Label Color Status Indicated Behavior (top) Green On steadily The services gateway is receiving power. The Power Good signal for all installed power supplies has been received after Routing Engine initialization.
Page 33: Related Srx3400 Services Gateway Chassis
Related SRX3400 Services Gateway Chassis on page 7 Documentation Available Components for the SRX3400 Services Gateway on page 9 SRX3400 Services Gateway Network Processing Cards on page 20 SRX3400 Services Gateway Services Processing Cards on page 20 SRX3400 Services Gateway NP-IOCs on page 22...
Page 34: Srx3400 Services Gateway Npcs
Related SRX3400 Services Gateway Chassis on page 7 Documentation Installing CFM Cards in the SRX3400 Services Gateway on page 59 Available Components for the SRX3400 Services Gateway on page 9 SRX3400 Services Gateway Switch Fabric Board on page 14 SRX3400 Services Gateway Services Processing Cards on page 20...
Page 35: Srx3400 Services Gateway Iocs
Network Processing Card (NPC) and to forward data packets out the physical ports after services processing. The SRX3400 Services Gateway has four slots in the front of the chassis where you can install IOCs. You can install any combination of IOCs in the slots.
Page 36: Srx3400 Services Gateway Np-Iocs
Related SRX3400 Services Gateway Chassis on page 7 Documentation Installing CFM Cards in the SRX3400 Services Gateway on page 59 Available Components for the SRX3400 Services Gateway on page 9 SRX3400 Services Gateway Switch Fabric Board on page 14 SRX3400 Services Gateway Network Processing Cards on page 20...
Page 37: Srx3400 Services Gateway Routing Engine
Related SRX3400 Services Gateway Chassis on page 7 Documentation Installing CFM Cards in the SRX3400 Services Gateway on page 59 Available Components for the SRX3400 Services Gateway on page 9 SRX3400 Services Gateway Switch Fabric Board on page 14 SRX3400 Services Gateway Network Processing Cards on page 20...
Page 38: Srx3400 Services Gateway Srx Clustering Module
Documentation Available Components for the SRX3400 Services Gateway on page 9 Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 SRX3400 Services Gateway SRX Clustering Module The SRX Clustering Module (SCM) is a card that you can install in the services gateway to enable the dual control link feature for chassis cluster supported in Junos OS Release 10.2 and later.
Page 39: Srx3400 Services Gateway Power Supplies
Documentation SRX3400 Services Gateway Power Supplies The SRX3400 Services Gateway uses either one AC or one DC power supply. A second AC or DC power supply can be used with its matching type of power supply to offer redundancy. The power supplies connect to the midplane, which distributes the different output voltages produced by the power supplies to the services gateway components, depending on their voltage requirements.
Page 40: Srx3400 Services Gateway Ac Power Supply Electrical Specifications
Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 SRX3400 Services Gateway AC Power Supply Electrical Specifications on page 26 Installing an AC Power Supply in the SRX3400 Services Gateway on page 66 SRX3400 Services Gateway AC Power Supply Electrical Specifications Table 11 on page 26 lists the AC power supply electrical specifications.
Page 41: Srx3400 Services Gateway Dc Power Supply Overview
SRX3400 Services Gateway AC Power Supply Overview on page 25 SRX3400 Services Gateway DC Power Supply Overview In a DC power configuration, the SRX3400 Services Gateway contains one or two DC power supplies, located at the rear of the chassis in slots PEM0 and PEM1. Each power supply provides power to all components in the services gateway.
Page 42: Srx3400 Services Gateway Dc Power Supply Electrical Specifications
Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 SRX3400 Services Gateway DC Power Supply Electrical Specifications on page 28 Installing a DC Power Supply in the SRX3400 Services Gateway on page 69 SRX3400 Services Gateway DC Power Supply Electrical Specifications Two types of DC power supply are available.
Page 43: Srx3400 Services Gateway Fan Tray
Related SRX3400 Services Gateway Chassis on page 7 Documentation Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 SRX3400 Services Gateway DC Power Supply Overview on page 27 SRX3400 Services Gateway Fan Tray The cooling system consists of a fan tray containing four fans and an air filter. These components work together to keep all services gateway components within the acceptable temperature range.
Page 44 SRX3400 Services Gateway Hardware Guide Figure 16: Fan Tray From the front of the chassis, there is a single air intake on the left side of the services gateway. Air is pushed from the fan tray through the air filter and then to the card cage.
Page 45: Srx3400 And Srx5600 Services Gateways Air Deflector Kits
SRX3400 Services Gateway Chassis on page 7 Documentation Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 Available Components for the SRX3400 Services Gateway on page 9 Replacing the Fan Tray on the SRX3400 Services Gateway on page 112...
Page 46 Figure 19 on page 33 show the SRX3400 and SRX5600 Services Gateways, respectively, installed in typical four-post mounting racks with the air deflector kit parts in place. Figure 18: SRX3400 Services Gateway Air Deflector Kit Copyright © 2013, Juniper Networks, Inc.
Page 47 Chapter 2: SRX3400 Services Gateway Hardware Components Figure 19: SRX5600 Services Gateway Air Deflector Kit (Services Gateway Chassis Contents Omitted for Clarity) Related SRX3400 Services Gateway Chassis on page 7 Documentation SRX5600 Services Gateway Chassis Copyright © 2013, Juniper Networks, Inc.
Page 49: Setting Up The Srx3400 Services Gateway
Installing Additional Components in the SRX3400 Services Gateway on page 59 Connecting the SRX3400 Services Gateway on page 71 Grounding and Providing Power to the SRX3400 Services Gateway on page 75 Performing Initial Software Configuration on the SRX3400 Services Gateway on page 85...
Page 51: Preparing The Site For Srx3400 Services Gateway Installation
Preparing the Site for SRX3400 Services Gateway Installation This section includes the following topics: Site Preparation Checklist for the SRX3400 Services Gateway on page 37 SRX3400 Services Gateway Cabinet Requirements on page 38 SRX3400 Services Gateway Rack Requirements on page 39...
Page 52: Srx3400 Services Gateway Cabinet Requirements
The services gateway can be installed in an enclosed cabinet. The cabinet requirements are described in the following topics: SRX3400 Services Gateway Cabinet Size and Clearance Requirements on page 38 SRX3400 Services Gateway Cabinet Airflow Requirements on page 39 SRX3400 Services Gateway Cabinet Size and Clearance Requirements The minimum size cabinet that can accommodate the services gateway is 27.5 in.
Page 53: Srx3400 Services Gateway Cabinet Airflow Requirements
SRX3400 Services Gateway Spacing of Mounting Bracket Holes on page 41 SRX3400 Services Gateway Rack Requirements The SRX3400 Services Gateway can be installed in a rack. Many types of racks are acceptable, including four-post (telco) racks and open-frame racks. The rack requirements...
Page 54: Srx3400 Services Gateway Rack Size And Strength Requirements
Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) published by the Electronics Industry Association. You can stack eight SRX3400 Services Gateways in a rack that has at least 40 U (70 in. or 1.78 m) of usable vertical space.
Page 55: Srx3400 Services Gateway Spacing Of Mounting Bracket Holes
Clearance Requirements for Airflow and Hardware Maintenance of the SRX3400 Services Gateway on page 42 Connecting the SRX3400 Services Gateway to the Building Structure on page 42 SRX3400 Services Gateway Spacing of Mounting Bracket Holes The services gateway can be mounted in any rack that provides holes or hole patterns spaced at 1 U (1.75 in.) increments.
Page 56: Connecting The Srx3400 Services Gateway To The Building Structure
Related Rack-Mounting Requirements and Warnings on page 149 Documentation SRX3400 Services Gateway Rack Size and Strength Requirements on page 40 Clearance Requirements for Airflow and Hardware Maintenance of the SRX3400 Services Gateway on page 42 SRX3400 Services Gateway Spacing of Mounting Bracket Holes on page 41...
Page 57 SRX3400 Services Gateway Rack Size and Strength Requirements on page 40 Documentation Connecting the SRX3400 Services Gateway to the Building Structure on page 42 SRX3400 Services Gateway Spacing of Mounting Bracket Holes on page 41 Copyright © 2013, Juniper Networks, Inc.
Page 59: Unpacking The Srx3400 Services Gateway
Unpacking the SRX3400 Services Gateway This section includes the following topics: Required Tools and Parts for Unpacking the SRX3400 Services Gateway on page 45 Unpacking the SRX3400 Services Gateway on page 45 Verifying Parts Received with the SRX3400 Services Gateway on page 47...
Page 60 Remove the plastic handle inserts and lift the cardboard cover off the services gateway. Remove the foam covering the top of the services gateway. Remove the accessory box, the mounting shelf, and the SRX3400 Services Gateway Getting Started Guide. Figure 22: Unpacking the SRX3400 Services Gateway With a person on each side of the carton, carefully lift the services gateway from the carton and place on lift.
Page 61: Verifying Parts Received With The Srx3400 Services Gateway
“Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift” on page Related Required Tools and Parts for Unpacking the SRX3400 Services Gateway on page 45 Documentation Verifying Parts Received with the SRX3400 Services Gateway on page 47 Verifying Parts Received with the SRX3400 Services Gateway A packing list is included in each shipment.
Page 62 Juniper Compliance Form Letter; RoHS Declaration of Conformity Document sleeve ESD wrist strap with cable Related Required Tools and Parts for Unpacking the SRX3400 Services Gateway on page 45 Documentation Unpacking the SRX3400 Services Gateway on page 45 Copyright © 2013, Juniper Networks, Inc.
Page 63: Installing The Srx3400 Services Gateway
Installation on page 51 Installing the Mounting Hardware for the SRX3400 Services Gateway on page 51 Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift on page 53 Installing the SRX3400 Services Gateway in a Rack or Cabinet Without a Mechanical...
Page 64: Srx3400 Services Gateway Safety Requirements, Warnings, And Guidelines
Preparing the SRX3400 Services Gateway for Rack-Mount or Cabinet Installation on Documentation page 51 Installing the Mounting Hardware for the SRX3400 Services Gateway on page 51 Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift on page 53 Copyright © 2013, Juniper Networks, Inc.
Page 65: Installation
SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 Documentation Installing the Mounting Hardware for the SRX3400 Services Gateway on page 51 Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift on page 53 Installing the Mounting Hardware for the SRX3400 Services Gateway The specific mounting hardware used depends on the type of rack being utilized.
Page 66 SRX3400 Services Gateway Hardware Guide Figure 23: Attaching Mounting Hardware for Two-Post Rack For a four-post rack, mount the brackets near the front edge of the chassis, as shown Figure 24 on page Figure 24: Attaching Mounting Hardware for Cabinet or Four-Post Rack...
Page 67: Mechanical Lift
Preparing the SRX3400 Services Gateway for Rack-Mount or Cabinet Installation on page 51 Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift on page 53 Installing the SRX3400 Services Gateway in a Rack or Cabinet Using a Mechanical Lift Ensure the rack is in its permanent location and is secured to the building.
Page 68 Related SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 Documentation Preparing the SRX3400 Services Gateway for Rack-Mount or Cabinet Installation on page 51 Copyright ©...
Page 69: Mechanical Lift
Chapter 5: Installing the SRX3400 Services Gateway Installing the SRX3400 Services Gateway in a Rack or Cabinet Without a Mechanical Lift If you cannot use a mechanical lift to install the services gateway (the preferred method), you can install it manually. Before installing the services gateway manually, you must first remove components from the chassis, and you must reinstall the components once the services gateway is installed in the rack.
Page 70 Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis. For more information about ESD, see “Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway” on page 145. If you have not already done so, power off the services gateway by pressing the Power button on the front panel of the SFB for three to five seconds.
Page 71: Lifting The Srx3400 Services Gateway Chassis Into The Rack
Required Tools for Installing the SRX3400 Services Gateway Without a Mechanical Documentation Lift on page 55 Lifting the SRX3400 Services Gateway Chassis into the Rack on page 57 Reinstalling Components in the SRX3400 Services Gateway Chassis on page 58 Lifting the SRX3400 Services Gateway Chassis into the Rack Lifting the chassis and mounting it in a rack requires two people.
Page 72: Reinstalling Components In The Srx3400 Services Gateway Chassis
Related Installing the Mounting Hardware for the SRX3400 Services Gateway on page 51 Documentation Required Tools for Installing the SRX3400 Services Gateway Without a Mechanical...
Page 73: Installing Additional Components In The Srx3400 Services Gateway
This section includes the following topics: Installing CFM Cards in the SRX3400 Services Gateway on page 59 Installing SPCs in an Operating SRX3400 Services Gateway Chassis Cluster on page 62 Installing an SCM in the SRX3400 Services Gateway on page 65...
Page 74 (CFM slots 1 through 4). You can install SPCs side by side in the CFM slots in the rear of the chassis (CFM slots 5 through 7). “SRX3400 Services Gateway NEBS and ETSI Compliance” on page 176 for more information.
Page 75 Chapter 6: Installing Additional Components in the SRX3400 Services Gateway Tighten the screws on either side of the card (Figure 32 on page 61). Figure 32: Installing a CFM (SPC Shown, Other CFMs Similar) SRX 3 K -SP C -1 -10 -4 If you are installing additional CFMs at this time, repeat steps 4 through 7, and then continue with the following steps to connect the appropriate cables.
Page 76: Installing Spcs In An Operating Srx3400 Services Gateway Chassis Cluster
SRX3400 Services Gateway Hardware Guide Hardware Component Locations in the SRX3400 Services Gateway Chassis on page 11 Installing SPCs in an Operating SRX3400 Services Gateway Chassis Cluster If your SRX3600 Services Gateway is part of a chassis cluster, you can install additional SPCs in the services gateways in the cluster without incurring downtime on your network.
Page 77 Chapter 6: Installing Additional Components in the SRX3400 Services Gateway To install SPCs in an SRX3400 Services Gateway cluster without incurring downtime: Use the console port on the Routing Engine to establish a command-line interface (CLI) session with one of the devices in the cluster.
Page 78 In the example below, the second column shows that all of the cards are online. This example is for an SRX3400 Services Gateway; for other devices the output will be similar. admin@node1_device> show chassis fpc pic-status...
Page 79: Installing An Scm In The Srx3400 Services Gateway
Use the show chassis cluster status command to make sure that the priority for all redundancy groups is greater than zero. Related Installing CFM Cards in the SRX3400 Services Gateway on page 59 Documentation Installing an SCM in the SRX3400 Services Gateway...
Page 80: Installing An Ac Power Supply In The Srx3400 Services Gateway
Related SRX3400 Services Gateway SRX Clustering Module on page 24 Documentation Replacing an SRX Clustering Module on the SRX3400 Services Gateway on page 120 Installing an AC Power Supply in the SRX3400 Services Gateway NOTE: For the services gateway to meet NEBS and ETSI standards, both AC power supplies must be Revision 09 or later.
Page 81 Services Gateways. However, this power supply is not interchangeable with that used in the SRX1400 Services Gateway. The SRX1400 Services Gateway power supply will fit into the SRX3400 Services Gateway, but will not work properly. You can identify the SRX1400 Services Gateway power supply by...
Page 82 The power supply faceplate should be flush with any adjacent power supply faceplate or blank installed in the power supply slot. “Connecting the SRX3400 Services Gateway to an AC Power Source” on page 77 for information on connecting the power supply to AC power.
Page 83: Installing A Dc Power Supply In The Srx3400 Services Gateway
Services Gateways. However, this power supply is not interchangeable with that used in the SRX1400 Services Gateway. The SRX1400 Services Gateway power supply will fit into the SRX3400 Services Gateway, but will not work properly. You can identify the SRX1400 Services Gateway power supply by...
Page 84 The power supply faceplate should be flush with any adjacent power supply faceplate. “Connecting the SRX3400 Services Gateway to a DC Power Source” on page 79 information on connecting the power supply to DC power.
Page 85: Connecting The Srx3400 Services Gateway
Gateway This section includes the following topics: Required Tools and Parts for Connecting the SRX3400 Services Gateway on page 71 Connecting the SRX3400 Services Gateway to Management Devices on page 71 Required Tools and Parts for Connecting the SRX3400 Services Gateway...
Page 86: Management
One Ethernet cable is provided with the services gateway. Plug the other end of the cable into the network device. Related Required Tools and Parts for Connecting the SRX3400 Services Gateway on page 71 Documentation Connecting the SRX3400 Services Gateway to a Management Console or an Auxiliary...
Page 87 Data bits—8 Stop bits—1 Flow control—none Related Required Tools and Parts for Connecting the SRX3400 Services Gateway on page 71 Documentation Connecting the SRX3400 Services Gateway to a Network for Out-of-Band Management on page 72 Grounding the SRX3400 Services Gateway on page 76...
Page 89: Grounding And Providing Power To The Srx3400 Services Gateway
Grounding and Providing Power to the SRX3400 Services Gateway This section includes the following topics: Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Gateway on page 75 Grounding the SRX3400 Services Gateway on page 76...
Page 90: Grounding The Srx3400 Services Gateway
Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis. For more information about ESD, see “Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway” on page 145. Place the grounding cable lug over the grounding point—a pair of M5 holes to the left of the power supply slots.
Page 91: Connecting The Srx3400 Services Gateway To An Ac Power Source
Dress the grounding cable and verify that it does not touch or block access to services gateway components, and that it does not drape where people could trip on it. Related Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Documentation Gateway on page 75...
Page 92 For example, if the services gateway loses power while the services gateway is on, when power returns, it will still be in the On state. Related Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Documentation Gateway on page 75...
Page 93: Connecting The Srx3400 Services Gateway To A Dc Power Source
Chapter 8: Grounding and Providing Power to the SRX3400 Services Gateway Powering Off the SRX3400 Services Gateway on page 82 Connecting the SRX3400 Services Gateway to a DC Power Source You connect DC power to the services gateway by attaching power cables from the external DC power sources to the terminal studs on the power supply faceplates.
Page 94 SRX3400 Services Gateway Hardware Guide CAUTION: You must ensure that power connections maintain the proper polarity. The power source cables might be labeled to indicate (–) their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site determines the color coding for the leads on the power cables that attach to the terminal studs on each power supply.
Page 95: Powering On The Srx3400 Services Gateway
For example, if the services gateway loses power while the services gateway is on, when power returns, it will still be in the On state. Related Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Documentation Gateway on page 75...
Page 96: Powering Off The Srx3400 Services Gateway
On state. Related Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Documentation Gateway on page 75 Grounding the SRX3400 Services Gateway on page 76...
Page 97 On state. Related Required Tools and Parts for Grounding and Providing Power to the SRX3400 Services Documentation Gateway on page 75 Grounding the SRX3400 Services Gateway on page 76...
Page 99: Srx3400 Services Gateway Software Configuration Overview
This section includes the following topics: SRX3400 Services Gateway Software Configuration Overview on page 85 Performing Initial Software Configuration on the SRX3400 Services Gateway on page 86 SRX3400 Services Gateway Software Configuration Overview The services gateway is shipped with the Junos operating system (Junos OS) preinstalled and ready to be configured when the services gateway is powered on.
Page 100: Gateway
SRX3400 Services Gateway Hardware Guide Related Performing Initial Software Configuration on the SRX3400 Services Gateway on page 86 Documentation SRX3400 Services Gateway Switch Fabric Board on page 14 Performing Initial Software Configuration on the SRX3400 Services Gateway This procedure connects the services gateway to the network but does not enable it to forward traffic.
Page 101 Chapter 9: Performing Initial Software Configuration on the SRX3400 Services Gateway Configure the traffic interface. [edit] admin@# set interfaces ge-0/0/0 unit 0 family inet address address/prefix-length admin@# set interfaces ge-0/0/1 unit 0 family inet address address/prefix-length Configure the default route.
Page 102 SRX3400 Services Gateway Hardware Guide any emergency; file messages { any any; authorization info; file interactive-commands { interactive-commands any; license { autoupdate { url https://ae1.juniper.net/junos/key_retrieval; interfaces { ge-0/0/0 { unit 0 { family inet { address 192.1.1.1/24; ge-0/0/1 { unit 0 { family inet { address 5.1.1.1/24;...
Page 103 Chapter 9: Performing Initial Software Configuration on the SRX3400 Services Gateway source-address any; destination-address any; application any; then { permit; Commit the configuration to activate it on the services gateway. [edit] admin@# commit Optionally, configure additional properties by adding the necessary configuration statements.
Page 105 Maintenance, Replacement, and Troubleshooting Procedures Maintaining the SRX3400 Services Gateway Hardware Components on page 93 Troubleshooting the SRX3400 Services Gateway on page 99 Replacing Hardware Components on the SRX3400 Services Gateway on page 109 Copyright © 2013, Juniper Networks, Inc.
Page 107: Maintaining The Srx3400 Services Gateway Hardware Components
Components on page 93 Routine Maintenance Procedures for the SRX3400 Services Gateway on page 94 Maintaining the Air Filter on the SRX3400 Services Gateway on page 94 Maintaining the Fan Tray on the SRX3400 Services Gateway on page 95 Maintaining the Routing Engine on the SRX3400 Services Gateway on page 96...
Page 108: Routine Maintenance Procedures For The Srx3400 Services Gateway
Do not run the services gateway for more than a few minutes without the air filter in place. Related Maintaining the Air Filter on the SRX3400 Services Gateway on page 94 Documentation Maintaining the Fan Tray on the SRX3400 Services Gateway on page 95...
Page 109: Maintaining The Fan Tray On The Srx3400 Services Gateway
Components on page 93 Routine Maintenance Procedures for the SRX3400 Services Gateway on page 94 Maintaining the Air Filter on the SRX3400 Services Gateway on page 94 Maintaining the Routing Engine on the SRX3400 Services Gateway on page 96 Maintaining the Power Supplies on the SRX3400 Services Gateway on page 97...
Page 110: Maintaining The Routing Engine On The Srx3400 Services Gateway
11640 mV Bus Revision FPGA Revision For more information about using the CLI, see the Junos OS manuals. Related Required Tools and Parts for Maintaining the SRX3400 Services Gateway Hardware Documentation Components on page 93 Copyright © 2013, Juniper Networks, Inc.
Page 111: Maintaining The Power Supplies On The Srx3400 Services Gateway
SRX3400 Services Gateway Routing Engine on page 23 Routine Maintenance Procedures for the SRX3400 Services Gateway on page 94 Maintaining the Air Filter on the SRX3400 Services Gateway on page 94 Maintaining the Fan Tray on the SRX3400 Services Gateway on page 95...
Page 113: Troubleshooting The Srx3400 Services Gateway
This section includes the following topics: Troubleshooting Hardware Components on the SRX3400 Services Gateway on page 99 Troubleshooting the Cooling System on the SRX3400 Services Gateway on page 101 Troubleshooting IOCs and NP-IOCs on the SRX3400 Services Gateway on page 102...
Page 114: Troubleshooting With Leds On The Srx3400 Services Gateway
SRX3400 Services Gateway AC Power Supply Overview on page 25 SRX3400 Services Gateway DC Power Supply Overview on page 27 Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99 Troubleshooting with Chassis and Interface Alarm Messages on the SRX3400 Services Gateway on page 101 Copyright ©...
Page 115: Troubleshooting With Chassis And Interface Alarm Messages On The Srx3400 Services Gateway
Chapter 11: Troubleshooting the SRX3400 Services Gateway Troubleshooting with Chassis and Interface Alarm Messages on the SRX3400 Services Gateway When the Routing Engine detects an alarm condition, it lights the red or yellow alarm LED on the SFB as appropriate. To view a more detailed description of the alarm cause,...
Page 116: Troubleshooting Iocs And Np-Iocs On The Srx3400 Services Gateway
If all power supplies have failed, the system temperature might have exceeded the threshold, causing the system to shut down. Related Replacing the Fan Tray on the SRX3400 Services Gateway on page 112 Documentation Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99...
Page 117 Chapter 11: Troubleshooting the SRX3400 Services Gateway Online 1024 Empty Empty Empty Online 1024 Online 1024 Empty Using a question mark (?) gives you a listing of the various options for the command: user@host> show chassis fpc ? Possible completions: <[Enter]>...
Page 118: Troubleshooting Npcs On The Srx3400 Services Gateway
For further description of the output from the commands, see the Junos System Basics and Services Command Reference. Related Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99 Documentation Troubleshooting the Cooling System on the SRX3400 Services Gateway on page 101...
Page 119: Troubleshooting Spcs On The Srx3400 Services Gateway
Chapter 11: Troubleshooting the SRX3400 Services Gateway Related Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99 Documentation Troubleshooting the Cooling System on the SRX3400 Services Gateway on page 101 Troubleshooting I/O Cards on the SRX3400 Services Gateway on page 102...
Page 120: Troubleshooting The Power System On The Srx3400 Services Gateway
For further description of the output from the commands, see the Junos System Basics and Services Command Reference. Related Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99 Documentation Troubleshooting the Cooling System on the SRX3400 Services Gateway on page 101...
Page 121 SRX3400 Services Gateway AC Power Supply Electrical Specifications on page 26 Documentation Troubleshooting with the CLI on the SRX3400 Services Gateway on page 99 Troubleshooting the Cooling System on the SRX3400 Services Gateway on page 101 Troubleshooting I/O Cards on the SRX3400 Services Gateway on page 102...
Page 123: Replacing Hardware Components On The Srx3400 Services Gateway
Required Tools and Parts for Replacing Hardware Components on the SRX3400 Services Gateway on page 110 Replacing Cooling System Components on the SRX3400 Services Gateway on page 111 Replacing Host Subsystem Components on the SRX3400 Services Gateway on page 115...
Page 124: Services Gateway
Replacing the Fan Tray on the SRX3400 Services Gateway on page 112 Replacing the Air Filter on the SRX3400 Services Gateway on page 114 Replacing the Switch Fabric Board on the SRX3400 Services Gateway on page 116 Replacing a Routing Engine on the SRX3400 Services Gateway on page 118...
Page 125: Replacing Cooling System Components On The Srx3400 Services Gateway
Replacing the Fan Tray on the SRX3400 Services Gateway on page 112 Replacing the Air Filter on the SRX3400 Services Gateway on page 114 Replacing the Switch Fabric Board on the SRX3400 Services Gateway on page 116 Replacing a Routing Engine on the SRX3400 Services Gateway on page 118...
Page 126: Replacing The Fan Tray On The Srx3400 Services Gateway
ESD points on the chassis. For more information about ESD, see “Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway” on page 145. Turn the screw to the left on the fan tray door. Open it to the right and remove it.
Page 127 Chapter 12: Replacing Hardware Components on the SRX3400 Services Gateway Figure 45: Removing the Fan Tray Grasp the fan tray and pull it out approximately 6 in. (15 cm). Place one hand under the fan tray to support it and pull the fan tray completely out of the chassis and set it aside.
Page 128: Replacing The Air Filter On The Srx3400 Services Gateway
Documentation Services Gateway on page 110 Replacing the Air Filter on the SRX3400 Services Gateway on page 114 Replacing the Air Filter on the SRX3400 Services Gateway The services gateway has one air filter that installs vertically in the rear of the chassis.
Page 129: Replacing Host Subsystem Components On The Srx3400 Services Gateway
Documentation Services Gateway on page 110 Replacing the Fan Tray on the SRX3400 Services Gateway on page 112 Replacing Host Subsystem Components on the SRX3400 Services Gateway To replace subsystem components of the services gateway, you must power down the services gateway.
Page 130: Replacing The Sfb On The Srx3400 Services Gateway
SRX3400 Services Gateway Hardware Guide Replacing a CFM Card on the SRX3400 Services Gateway on page 121 Replacing SFP, SFP+, and XFP Transceivers on the SRX3400 Services Gateway on page 124 Replacing the SFB on the SRX3400 Services Gateway The SFB is accessible from the front panel, in the topmost slot. It weighs approximately 5.1 lb (2.3 kg).
Page 131 Services Gateway on page 110 Replacing a Routing Engine on the SRX3400 Services Gateway on page 118 Replacing an SRX Clustering Module on the SRX3400 Services Gateway on page 120 Replacing a CFM Card on the SRX3400 Services Gateway on page 121 Replacing an AC Power Supply on the SRX3400 Services Gateway on page 128 Copyright ©...
Page 132: Replacing A Routing Engine On The Srx3400 Services Gateway
Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis. For more information about ESD, see “Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway” on page 145. If you have not already done so, power off the services gateway by pressing the Power button on the front panel of the SFB for three to five seconds.
Page 133 For more information about using the CLI, see the Junos OS manuals. Related Required Tools and Parts for Replacing Hardware Components on the SRX3400 Documentation Services Gateway on page 110 Replacing an SRX Clustering Module on the SRX3400 Services Gateway on page 120 Copyright © 2013, Juniper Networks, Inc.
Page 134: Replacing An Scm On The Srx3400 Services Gateway
SRX3400 Services Gateway Hardware Guide Replacing the Switch Fabric Board on the SRX3400 Services Gateway on page 116 Replacing a CFM Card on the SRX3400 Services Gateway on page 121 Replacing an AC Power Supply on the SRX3400 Services Gateway on page 128...
Page 135: Replacing A Cfm Card On The Srx3400 Services Gateway
SRX3400 Services Gateway SRX Clustering Module on page 24 Documentation Installing an SRX Clustering Module in the SRX3400 Services Gateway on page 65 Replacing a CFM Card on the SRX3400 Services Gateway The most common modules for the services gateway use theCFM format:...
Page 136 Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis. For more information about ESD, see “Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway” on page 145. If you are replacing a cold-swap-only CFM, power off the services gateway. See “Field-Replaceable Units on the SRX3400 Services Gateway”...
Page 137 Chapter 12: Replacing Hardware Components on the SRX3400 Services Gateway Place one hand underneath the CFM to support it and slide it completely out of the chassis. Figure 56: Removing a CFM (IOC Shown, Other CFMs Similar) Place the CFM on the antistatic mat. If you are not reinstalling a replacement CFM into the emptied slot within 30 minutes, install a blank panel over the slot to maintain proper airflow in the card cage.
Page 138: Gateway
Documentation Services Gateway on page 110 Replacing the Switch Fabric Board on the SRX3400 Services Gateway on page 116 Replacing a Routing Engine on the SRX3400 Services Gateway on page 118 Replacing an SRX Clustering Module on the SRX3400 Services Gateway on page 120...
Page 139 Chapter 12: Replacing Hardware Components on the SRX3400 Services Gateway hot-removable. Removing a transceiver does not interrupt the functioning of the card or module, but the removed transceiver no longer receives or transmits data. NOTE: We strongly recommend the use of Juniper Networks transceivers.
Page 140 SRX3400 Services Gateway Hardware Guide Remove the cable connector plugged into the transceiver. Carefully drape the disconnected cables to prevent the cable from developing stress points. CAUTION: Avoid bending fiber-optic cable beyond its minimum bend radius. An arc smaller than a few inches in diameter can damage the cable and cause problems that are difficult to diagnose.
Page 141: Replacing Power System Components On The Srx3400 Services Gateway
The following topics provide instructions on how to replace power system components: Replacing an AC Power Supply on the SRX3400 Services Gateway on page 128 Replacing AC Power Supply Cables on the SRX3400 Services Gateway on page 130...
Page 142: Replacing An Ac Power Supply On The Srx3400 Services Gateway
Services Gateways. However, this power supply is not interchangeable with that used in the SRX1400 Services Gateway. The SRX1400 Services Gateway power supply will fit into the SRX3400 Services Gateway, but will not work properly. You can identify the SRX1400 Services Gateway power supply by...
Page 143 Chapter 12: Replacing Hardware Components on the SRX3400 Services Gateway Figure 60: Removing an AC Power Supply Orient the replacement power supply so that the tab is on the left side, as shown in Figure 61 on page 129. Figure 61: Inserting an AC Power Supply Using both hands, slide the replacement power supply straight into the chassis until the power supply is fully seated in the chassis slot.
Page 144: Replacing Ac Power Supply Cables On The Srx3400 Services Gateway
Required Tools and Parts for Replacing Hardware Components on the SRX3400 Documentation Services Gateway on page 110 Replacing AC Power Supply Cables on the SRX3400 Services Gateway on page 130 Replacing AC Power Supply Cables on the SRX3400 Services Gateway WARNING: Before working on an AC-powered services gateway or near power supplies, unplug the power cord.
Page 145 Related Required Tools and Parts for Replacing Hardware Components on the SRX3400 Documentation Services Gateway on page 110 Replacing an AC Power Supply on the SRX3400 Services Gateway on page 128 Copyright © 2013, Juniper Networks, Inc.
Page 146: Replacing A Dc Power Supply On The Srx3400 Services Gateway
Services Gateways. However, this power supply is not interchangeable with that used in the SRX1400 Services Gateway. The SRX1400 Services Gateway power supply will fit into the SRX3400 Services Gateway, but will not work properly. You can identify the SRX1400 Services Gateway power supply by...
Page 147 Chapter 12: Replacing Hardware Components on the SRX3400 Services Gateway Remove the cable lugs from the terminals. Carefully move the power cables out of the way. Push the tab on the left edge of the power supply to the right.
Page 148 A/B feed redundancy for the system. NOTE: For information about connecting to DC power sources, see “SRX3400 Services Gateway DC Power System Electrical Specifications” on page 183. Replace the clear plastic cover over the terminal studs on the faceplate.
Page 149: Replacing Dc Power Supply Cables On The Srx3400 Services Gateway
Documentation Services Gateway on page 110 Replacing DC Power Supply Cables on the SRX3400 Services Gateway on page 135 Replacing DC Power Supply Cables on the SRX3400 Services Gateway To replace a power supply cable connected to a DC power supply: Attach an ESD grounding strap to your bare wrist and connect the strap to an approved site ESD grounding point.
Page 150 LED on the power supply lights green steadily. Related Required Tools and Parts for Replacing Hardware Components on the SRX3400 Documentation Services Gateway on page 110 Replacing a DC Power Supply on the SRX3400 Services Gateway on page 132 Copyright © 2013, Juniper Networks, Inc.
Page 151: Appendixes
SRX3400 Services Gateway Environmental Specifications on page 179 SRX3400 Services Gateway Power Guidelines, Requirements, and Specifications on page 181 Cable and Wire Guidelines for the SRX3400 Services Gateway Hardware on page 195 Contacting Customer Support and Returning the SRX3400 Services Gateway Hardware on page 201 Product Recycling on page 209 Copyright ©...
Page 153: Appendix A Safety And Regulatory Compliance Information
Equipment on page 146 SRX3400 Services Gateway Installation Safety Guidelines and Warnings on page 148 SRX3400 Services Gateway Laser and LED Safety Guidelines and Warnings on page 153 SRX3400 Services Gateway Maintenance and Operational Safety Guidelines and Warnings on page 157...
Page 154 SRX3400 Services Gateway Hardware Guide WARNING: This symbol alerts you to the risk of personal injury from a laser. WARNING: This symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
Page 155: Srx3400 Services Gateway General Safety Guidelines And Warnings
Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway on...
Page 156: Additional Srx3400 Services Gateway Warnings
Avoid touching uninsulated electrical wires or terminals that have not been disconnected from their power source. Such an action could cause electrical shock. Related SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 Documentation Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway on...
Page 157: Restricted Access Area Warning
Restricted Access Area Warning on page 143 Documentation SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway on...
Page 158: Preventing Electrostatic Discharge Damage To The Srx3400 Services
Related Qualified Personnel Warning on page 142 Documentation SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 Preventing Electrostatic Discharge Damage to the SRX3400 Services Gateway on...
Page 159: Gateway
ESD strap is attached to one of the ESD points on the chassis, which are shown in Figure 67 on page 145 Figure 68 on page 146. Figure 67: ESD Point on Front of SRX3400 Services Gateway Management Ethernet port Console ports...
Page 160: Srx3400 Services Gateway Fire Safety Requirements And Fire Suppression
Figure 69: Placing a Component into an Electrostatic Bag Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation SRX3400 Services Gateway Definition of Safety Warning Levels on page 139 SRX3400 Services Gateway Fire Safety Requirements and Fire Suppression Equipment...
Page 161: Equipment
To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks services gateway. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.
Page 162: Srx3400 Services Gateway Installation Safety Guidelines And Warnings
(CFMs). The handles might break off and cause the chassis to fall and inflict injury. Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation Installation Instructions Warning on page 148 Rack-Mounting Requirements and Warnings on page 149...
Page 163: Rack-Mounting Requirements And Warnings
Varning! Läs installationsanvisningarna innan du kopplar systemet till dess strömförsörjningsenhet. Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation Chassis Lifting Guidelines on page 148 Rack-Mounting Requirements and Warnings on page 149...
Page 164 Les directives ci-dessous sont destinées à assurer la protection du personnel: Le rack sur lequel est monté le Juniper Networks services gateway doit être fixé à la structure du bâtiment. Si cette unité constitue la seule unité montée en casier, elle doit être placée dans le bas.
Page 165 Le seguenti direttive vengono fornite per garantire la sicurezza personale: Il Juniper Networks services gateway deve essere installato in un telaio, il quale deve essere fissato alla struttura dell'edificio. Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità...
Page 166 Om ställningen är försedd med stabiliseringsdon skall dessa monteras fast innan enheten installeras eller underhålls på ställningen. Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation Copyright © 2013, Juniper Networks, Inc.
Page 167: Ramp Warning
¡Atención! No usar una rampa inclinada más de 10 grados Varning! Använd inte ramp med en lutning på mer än 10 grader. Related SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 Documentation Chassis Lifting Guidelines on page 148...
Page 168: General Laser Safety Guidelines
SRX3400 Services Gateway Hardware Guide General Laser Safety Guidelines When working around the services gateway, observe the following safety guidelines to prevent eye injury: Do not look into unterminated ports or at fibers that connect to unknown sources. Do not examine unterminated optical ports with optical instruments.
Page 169: Class 1 Led Product Warning
Varoitus Älä katso säteeseen äläkä tarkastele sitä suoraan optisen laitteen avulla. Attention Ne pas fixer le faisceau des yeux, ni l'observer directement à l'aide d'instruments optiques. Warnung Nicht direkt in den Strahl blicken und ihn nicht direkt mit optischen Geräten prüfen. Copyright © 2013, Juniper Networks, Inc.
Page 170: Radiation From Open Port Apertures Warning
SRX3400 Services Gateway Hardware Guide Avvertenza Non fissare il raggio con gli occhi né usare strumenti ottici per osservarlo direttamente. Advarsel Stirr eller se ikke direkte p strlen med optiske instrumenter. Aviso Não olhe fixamente para o raio, nem olhe para ele directamente com instrumentos ópticos.
Page 171: And Warnings
Class 1 Laser Product Warning on page 154 Class 1 LED Product Warning on page 155 Laser Beam Warning on page 155 SRX3400 Services Gateway Maintenance and Operational Safety Guidelines and Warnings This section includes the following topics: Battery Handling Warning on page 157...
Page 172: Jewelry Removal Warning
SRX3400 Services Gateway Hardware Guide Varoitus Räjähdyksen vaara, jos akku on vaihdettu väärään akkuun. Käytä vaihtamiseen ainoastaan saman- tai vastaavantyyppistä akkua, joka on valmistajan suosittelema. Hävitä käytetyt akut valmistajan ohjeiden mukaan. Attention Danger d'explosion si la pile n'est pas remplacée correctement.
Page 173 (incluidos anillos, collares y relojes). Los objetos de metal se calientan cuando se conectan a la alimentación y a tierra, lo que puede ocasionar quemaduras graves o que los objetos metálicos queden soldados a los bornes. Copyright © 2013, Juniper Networks, Inc.
Page 174: Lightning Activity Warning
SRX3400 Services Gateway Hardware Guide Varning! Tag av alla smycken (inklusive ringar, halsband och armbandsur) innan du arbetar på utrustning som är kopplad till kraftledningar. Metallobjekt hettas upp när de kopplas ihop med ström och jord och kan förorsaka allvarliga brännskador; metallobjekt kan också sammansvetsas med kontakterna.
Page 175: Operating Temperature Warning
104°F (40°C). To prevent airflow restriction, allow at least 6 in. (15.2 cm) of clearance around the ventilation openings. Waarschuwing Om te voorkomen dat welke services gateway van de Juniper Networks services gateway dan ook oververhit raakt, dient u deze niet te bedienen op een plaats waar de maximale aanbevolen omgevingstemperatuur van 40°C wordt overschreden.
Page 176: Product Disposal Warning
15,2 cm à volta das aberturas de ventilação. ¡Atención! Para impedir que un encaminador de la serie Juniper Networks services gateway se recaliente, no lo haga funcionar en un área en la que se supere la temperatura ambiente máxima recomendada de 40°C.
Page 177: Srx3400 Services Gateway Electrical Safety Guidelines And Warnings
Jewelry Removal Warning on page 158 Lightning Activity Warning on page 160 Operating Temperature Warning on page 161 SRX3400 Services Gateway Electrical Safety Guidelines and Warnings This section includes the following topics: In Case of Electrical Accident on page 163...
Page 178 SRX3400 Services Gateway Hardware Guide Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part 7 Evaluated to the TN power system Locate the emergency power-off switch for the room in which you are working so that if an electrical accident occurs, you can quickly turn off the power.
Page 179 ¡Atención! Esta unidad tiene más de una conexión de suministros de alimentación; para eliminar la alimentación por completo, deben desconectarse completamente todas las conexiones. Copyright © 2013, Juniper Networks, Inc.
Page 180 SRX3400 Services Gateway Hardware Guide Varning! Denna enhet har mer än en strömförsörjningsanslutning; alla anslutningar måste vara helt avlägsnade innan strömtillförseln till enheten är fullständigt bruten. Power Disconnection Warning WARNING: Before working on the services gateway or near power supplies, unplug the power cord from an AC-powered services gateway;...
Page 181 Varoitus Käytä vain kuparijohtimia. Attention Utilisez uniquement des conducteurs en cuivre. Warnung Verwenden Sie ausschließlich Kupferleiter. Avvertenza Usate unicamente dei conduttori di rame. Advarsel Bruk bare kobberledninger. Aviso Utilize apenas fios condutores de cobre. Copyright © 2013, Juniper Networks, Inc.
Page 182: Dc Power Electrical Safety Guidelines And Warnings
In Case of Electrical Accident on page 163 Documentation DC Power Electrical Safety Guidelines and Warnings on page 168 SRX3400 Services Gateway Agency Approvals on page 174 DC Power Electrical Safety Guidelines and Warnings When working with DC-powered equipment, observe the following guidelines and...
Page 183 OFF. Warnung Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß die Gleichstromschaltung keinen Strom erhält. Um sicherzustellen, daß sämtlicher Strom abgestellt ist, machen Sie auf der Schalttafel den Copyright © 2013, Juniper Networks, Inc.
Page 184 SRX3400 Services Gateway Hardware Guide Unterbrecher für die Gleichstromschaltung ausfindig, stellen Sie den Unterbrecher auf AUS, und kleben Sie den Schaltergriff des Unterbrechers mit Klebeband in der AUS-Stellung fest. Avvertenza Prima di svolgere una qualsiasi delle procedure seguenti, verificare che il circuito CC non sia alimentato. Per verificare che tutta l'alimentazione...
Page 185 à -48 V, +RTN à +RTN, a alors rectifié pour rectifier. Notez que le fil de masse devrait toujours être relié d'abord et débranché pour la dernière fois. Notez que le fil de masse devrait toujours être relié d'abord et débranché pour la dernière fois. Copyright © 2013, Juniper Networks, Inc.
Page 186 SRX3400 Services Gateway Hardware Guide Warnung Die Stromzufuhr ist nur mit geeigneten Ringösen an das DC Netzteil anzuschliessen. Die richtige Anschlusssequenz ist: Erdanschluss zu Erdanschluss, +RTN zu +RTN und dann -48V zu -48V. Die richtige Sequenz zum Abtrennen der Stromversorgung ist -48V zu -48V, +RTN zu +RTN und dann Erdanschluss zu Erdanschluss.
Page 187 Varning! När flertrådiga ledningar krävs måste godkända ledningskontakter användas, t.ex. kabelsko av sluten eller öppen typ med uppåtvänd tapp. Storleken på dessa kontakter måste vara avpassad till ledningarna och måste kunna hålla både isoleringen och ledaren fastklämda. Copyright © 2013, Juniper Networks, Inc.
Page 188: Srx3400 Services Gateway Agency Approvals
In Case of Electrical Accident on page 163 Documentation General Electrical Safety Guidelines and Warnings on page 163 SRX3400 Services Gateway Agency Approvals on page 174 SRX3400 Services Gateway Agency Approvals The services gateway complies with the following standards: Safety...
Page 189: Srx3400 Services Gateway Compliance Statements For Emc Requirements
Appendix A: Safety and Regulatory Compliance Information DC Power Electrical Safety Guidelines and Warnings on page 168 SRX3400 Services Gateway Compliance Statements for EMC Requirements This section includes the following topics: Canada on page 175 European Community on page 175...
Page 190: Srx3400 Services Gateway Nebs And Etsi Compliance
SRX3400 Services Gateway NEBS and ETSI Configuration Requirements on page 176 SRX3400 Services Gateway NEBS and ETSI Standards The SRX3400 Services Gateway, when it is installed and configured as described in this section, meets the following NEBS and ETSI standards:...
Page 191 1000BASE-SX SFP optical transceiver SRX-SFP-1GE-T-ET 1000BASE-T SFP copper transceiver SRX-XFP-10GE-ER-ET 10GBASE-ER XFP optical transceiver SRX-XFP-10GE-LR-ET 10GBASE-LR XFP optical transceiver SRX-XFP-10GE-SR-ET 10GBASE-SR XFP optical transceiver SRX-SFP-10GE-ER 10GBASE-ER SFP+ optical transceiver SRX-SFP-10GE-LR 10GBASE-LR SFP+ optical transceiver Copyright © 2013, Juniper Networks, Inc.
Page 192 SRX3400 Services Gateway Hardware Guide Related SRX3400 Services Gateway Agency Approvals on page 174 Documentation In Case of Electrical Accident on page 163 General Electrical Safety Guidelines and Warnings on page 163 DC Power Electrical Safety Guidelines and Warnings on page 168...
Page 193: Requirements
APPENDIX B SRX3400 Services Gateway Environmental Specifications This section includes the following topic: SRX3400 Services Gateway Environmental Specifications on page 179 SRX3400 Services Gateway Environmental Specifications Table 24 on page 179 specifies the environmental specifications required for normal services gateway operation. In addition, the site should be as dust-free as possible. For more information, see “Site Preparation Checklist for the SRX3400 Services Gateway”...
Page 194 Related SRX3400 Services Gateway Agency Approvals on page 174 Documentation SRX3400 Services Gateway General Safety Guidelines and Warnings on page 141 SRX3400 Services Gateway Fire Safety Requirements and Fire Suppression Equipment on page 146 SRX3400 Services Gateway Definition of Safety Warning Levels on page 139...
Page 195: Srx3400 Services Gateway Power Guidelines, Requirements, And Specifications
This section includes the following topics: SRX3400 Services Gateway Grounding Specifications on page 181 SRX3400 Services Gateway DC Power Specifications and Requirements on page 183 SRX3400 Services Gateway AC Power Specifications and Requirements on page 188 SRX3400 Services Gateway Grounding Specifications...
Page 196: Srx3400 Services Gateway Grounding-Cable Lug Specification
M5 screws used to secure the grounding cable to the services gateway grounding point. Figure 71: Grounding Point on Rear of SRX3400 Services Gateway To ground the services gateway, you must connect a grounding cable to earth ground and then attach it to the chassis grounding point using the two screws provided.
Page 197: Srx3400 Services Gateway Grounding Cable Specification
SRX3400 Services Gateway DC Power Specifications and Requirements This section includes the following topics: SRX3400 Services Gateway DC Power System Electrical Specifications on page 183 SRX3400 Services Gateway DC Power Supply Electrical Specifications on page 184 Power Requirements for DC-Powered SRX3400 Services Gateways on page 184...
Page 198: Srx3400 Services Gateway Dc Power Supply Electrical Specifications
22.2 A @ -48 VDC Maximum DC input power 1063 W Related SRX3400 Services Gateway DC Power Supply Electrical Specifications on page 28 Documentation Power Requirements for DC-Powered SRX3400 Services Gateways on page 184 SRX3400 Services Gateway DC Power Cable Specifications on page 186...
Page 199 Appendix C: SRX3400 Services Gateway Power Guidelines, Requirements, and Specifications Table 28 on page 185 lists the power requirements for base DC-powered services gateways operating under typical voltage conditions. Table 28: DC-Powered Base System Requirements DC Power Supply Configuration Power Requirement, (Watts)
Page 200: Srx3400 Services Gateway Dc Power Cable Specifications
Watts DC * 3.41 = BTU/hr 1004 * 3.41 = 3424 BTU/hr Related SRX3400 Services Gateway DC Power System Electrical Specifications on page 183 Documentation SRX3400 Services Gateway DC Power Supply Electrical Specifications on page 28 SRX3400 Services Gateway DC Power Cable Specifications on page 186...
Page 201 “Connecting the SRX3400 Services Gateway to a DC Power Source” on page 79. For instructions on replacing a DC power cable, see “Replacing DC Power Supply Cables on the SRX3400 Services Gateway” on page 135. Copyright © 2013, Juniper Networks, Inc.
Page 202: Srx3400 Services Gateway Ac Power Specifications And Requirements
), minimum 60°C wire, or as permitted by the local code Related SRX3400 Services Gateway DC Power System Electrical Specifications on page 183 Documentation SRX3400 Services Gateway DC Power Supply Electrical Specifications on page 28 Power Requirements for DC-Powered SRX3400 Services Gateways on page 184...
Page 203: Power Requirements For Ac-Powered Srx3400 Services Gateways
AC input current rating 12.0 A @ 100-127 V / 7 A @ 200-240 V Related SRX3400 Services Gateway AC Power System Electrical Specifications on page 188 Documentation Power Requirements for AC-Powered SRX3400 Services Gateways on page 189 SRX3400 Services Gateway AC Power Cord Specifications on page 191...
Page 204 SRX3400 Services Gateway Hardware Guide NOTE: The power requirement values shown in Table 33 on page 189 are for a lightly loaded system. For a heavily loaded system, the contribution of the base system to the overall system power requirement is lower, because the power supply efficiency improves as the load increases.
Page 205: Srx3400 Services Gateway Ac Power Cord Specifications
Appendix C: SRX3400 Services Gateway Power Guidelines, Requirements, and Specifications Related SRX3400 Services Gateway AC Power System Electrical Specifications on page 188 Documentation SRX3400 Services Gateway AC Power Supply Electrical Specifications on page 188 SRX3400 Services Gateway AC Power Cord Specifications on page 191...
Page 206 SRX3400 Services Gateway Hardware Guide Table 35: AC Power Cord Specifications (continued) Country Electrical Specification Plug Type Model Number North America CBL-PWR-C19S-151-US15 C19 at 70-80 mm, 15 A/125 V, 2.5 m, Straight NEMA 5-15P CBL-PWR-C19S-162-US C19 at 70-80 mm, 16 A/250 V, 2.5 m,...
Page 207 “Replacing AC Power Supply Cables on the SRX3400 Services Gateway” on page 130. Related SRX3400 Services Gateway AC Power System Electrical Specifications on page 188 Documentation SRX3400 Services Gateway AC Power Supply Electrical Specifications on page 188 Power Requirements for AC-Powered SRX3400 Services Gateways on page 189...
Page 209: Hardware
SRX3400 Services Gateway Electrical Wiring Guidelines This section includes the following topics: Distance Limitations for Signaling for the SRX3400 Services Gateway on page 195 Radio Frequency Interference for the SRX3400 Services Gateway on page 195 Electromagnetic Compatibility for the SRX3400 Services Gateway on page 196 Distance Limitations for Signaling for the SRX3400 Services Gateway Improperly installed wires can emit radio interference.
Page 210: Electromagnetic Compatibility For The Srx3400 Services Gateway
Calculating the Power Margin for Fiber-Optic Cable for the SRX3400 Services Gateway on page 198 Signal Loss in Multimode and Single-Mode Fiber-Optic Cable for the SRX3400 Services Gateway Multimode fiber is large enough in diameter to allow rays of light to reflect internally (bounce off the walls of the fiber).
Page 211 Appendix D: Cable and Wire Guidelines for the SRX3400 Services Gateway Hardware generate a single wavelength of light, which travels in a straight line through the single-mode fiber. Compared with multimode fiber, single-mode fiber has higher bandwidth and can carry signals for longer distances. It is consequently more expensive.
Page 212: Calculating The Power Budget For Fiber-Optic Cable For The Srx3400 Services Gateway
SRX3400 Services Gateway Hardware Guide Calculating the Power Budget for Fiber-Optic Cable for the SRX3400 Services Gateway on page 198 Calculating the Power Margin for Fiber-Optic Cable for the SRX3400 Services Gateway on page 198 Calculating the Power Budget for Fiber-Optic Cable for the SRX3400 Services Gateway...
Page 213 Appendix D: Cable and Wire Guidelines for the SRX3400 Services Gateway Hardware Table 36: Estimated Values for Factors That Cause Link Loss Link-Loss Factor Estimated Link-Loss Value Higher-order mode losses Single-mode—None Multimode—0.5 dB Modal and chromatic dispersion Single-mode—None Multimode—None, if product of bandwidth and distance is less than 500 MHz–km...
Page 214: Gateway
Related Signal Loss in Multimode and Single-Mode Fiber-Optic Cable for the SRX3400 Services Documentation Gateway on page 196 Attenuation and Dispersion in Fiber-Optic Cable for the SRX3400 Services Gateway...
Page 215: Contacting Customer Support And Returning The Srx3400 Services
Contacting Customer Support to Obtain Return Materials Authorization for the SRX3400 Services Gateway on page 204 Packing an SRX3400 Services Gateway or a Component for Shipment on page 205 Return Procedure for the SRX3400 Services Gateway If a problem cannot be resolved by the JTAC technician, a Return Materials Authorization (RMA) is issued.
Page 216: Locating Srx3400 Services Gateway Component Serial Numbers
1-888-314-JTAC (within the United http://www.juniper.net/support/ States) or 1-408-745-9500 (outside the United States). Related Listing the SRX3400 Services Gateway Component Serial Numbers with the CLI on Documentation page 202 Locating the SRX3400 Services Gateway Chassis Serial Number Label on page 203...
Page 217: Locating The Srx3400 Services Gateway Chassis Serial Number Label
Appendix E: Contacting Customer Support and Returning the SRX3400 Services Gateway Hardware PIC 0 BUILTIN BUILTIN 8x 1GE-TX 4x 1GE-SFP Xcvr 8 REV 01 740-013111 8043260 SFP-T Xcvr 9 REV 01 740-013111 7303356 SFP-T Xcvr 10 REV 01 740-011782 PAQ2K79...
Page 218: Locating The Srx3400 Services Gateway Sfb Serial Number Label
Related Return Procedure for the SRX3400 Services Gateway on page 201 Documentation Listing the SRX3400 Services Gateway Component Serial Numbers with the CLI on page 202 Locating the SRX3400 Services Gateway Power-Supply Serial Number Label The serial number label for the AC and DC power supplies is located on the top of the...
Page 219: Information You Might Need To Supply To Jtac
Packing an SRX3400 Services Gateway or a Component for Shipment This section includes the following topics: Required Tools and Parts for Packing the SRX3400 Services Gateway on page 206 Packing the SRX3400 Services Gateway for Shipment on page 206 Packing SRX3400 Services Gateway Components for Shipment on page 207...
Page 220: Required Tools And Parts For Packing The Srx3400 Services Gateway
To pack the services gateway for shipment: Retrieve the shipping carton and packing materials in which the services gateway was originally shipped. If you do not have these materials, contact your Juniper Networks representative about approved packaging materials. Attach an ESD grounding strap to your bare wrist and connect the strap to the ESD point on the chassis or to an outside ESD point if the services gateway is disconnected from earth ground.
Page 221: Packing Srx3400 Services Gateway Components For Shipment
Return Procedure for the SRX3400 Services Gateway on page 201 Documentation Packing the SRX3400 Services Gateway for Shipment on page 206 Required Tools and Parts for Packing the SRX3400 Services Gateway on page 206 Copyright © 2013, Juniper Networks, Inc.
Page 223: Appendix F Product Recycling
APPENDIX F Product Recycling Removing the Battery from the Routing Engine of an SRX3400 Services Gateway for Recycling on page 209 Removing the Battery from the Routing Engine of an SRX3400 Services Gateway for Recycling The Routing Engine installed in the services gateway contains a CR2032 .3.0-volt lithium battery.
Page 224 Figure 78: Location of CR2032 Battery in a Routing Engine Battery Related Powering Off the SRX3400 Services Gateway on page 82 Documentation Replacing a Routing Engine on the SRX3400 Services Gateway on page 118 Copyright © 2013, Juniper Networks, Inc.
Page 228 SRX3400 Services Gateway Hardware Guide console port (for Routing Engine management) fan tray cable maintaining..............95 connection during initial installation....72 troubleshooting.............101 specifications............200 fan trays conventions notice icons................ix replacing................112 text and syntax..............x field-replaceable units listed.................109 cooling system fire safety requirements............147 troubleshooting.............101 font conventions................x...
Page 229 See cable, fiber-optic standards, EIA and ETSI..........40 rack requirements NEBS..................176 mounting.................149 Network Processing I/O Card See NP-IOC radiation from open port apertures warning....156 notice icons.................ix radio frequency interference, preventing.....195 NP-IOC..................22 relative humidity, acceptable..........179 repair policies.................202 Copyright © 2013, Juniper Networks, Inc.
Page 230 SRX3400 Services Gateway Hardware Guide replacing shipping container AC power supply cord..........130 unpacking.................45 filter................114 weight.................45 DC power supply cord..........135 show chassis alarms command......101, trays................112 show chassis IOC command..........102 Routing Engine...............118 show chassis IOC detail command.......102 SCM...................120 show chassis NPC command..........104 SFB..................116...
Page 231 1 laser..............154 class 1 LED...............155 electrical safety guidelines........163 installation instructions..........148 jewelry removal.............159 laser beam..............155 lightning activity............160 operating temperature..........161 product disposal............162 rack-mount requirements.........149 radiation from open apertures........156 wavelength ranges supported by fiber-optic cable..................196 installing................124 Copyright © 2013, Juniper Networks, Inc.

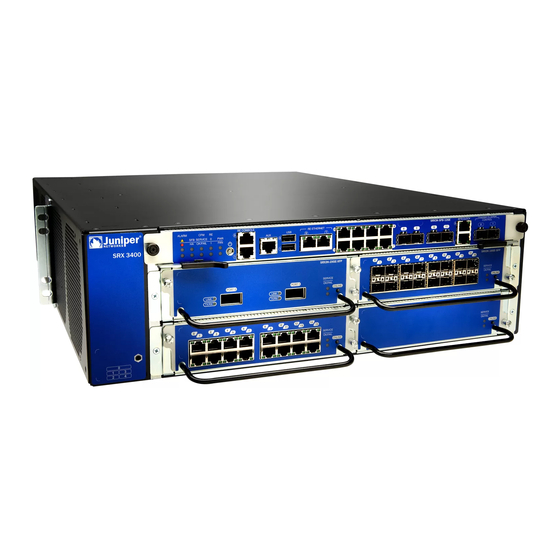

Juniper SRX3400 Services Hardware Manual

Table of Contents

Chapter 1 Introduction to the SRX3400 Services Gateway

Components

Chapter 2 SRX3400 Services Gateway Hardware Components

Data Flow in the Srx3400 Services Gateway/Srx3400 Services Gateway Midplane

Chapter 3 Preparing the Site for SRX3400 Services Gateway Installation

Chapter 4 Unpacking the SRX3400 Services Gateway

Chapter 5 Installing the SRX3400 Services Gateway

Chapter 6 Installing Additional Components in the SRX3400 Services Gateway

Chapter 7 Connecting the SRX3400 Services Gateway

Required Tools and Parts for Grounding and Providing Power to the Srx3400 Services Gateway

Chapter 8 Grounding and Providing Power to the SRX3400 Services Gateway

Chapter 9 Performinginitial Softwareconfigurationonthe Srx3400Services

Chapter 10 Maintaining the SRX3400 Services Gateway Hardware Components

Chapter 11 Troubleshooting the SRX3400 Services Gateway

Chapter 12 Replacing Hardware Components on the SRX3400 Services Gateway

Appendix A Safety and Regulatory Compliance Information

Appendix Bsrx3400 Services Gateway Environmental Specifications

Appendix F Product Recycling

Quick Links

SRX3400 Services Gateway

Hardware Guide

Chapters

Troubleshooting

Related Manuals for Juniper SRX3400 Services

Summary of Contents for Juniper SRX3400 Services
