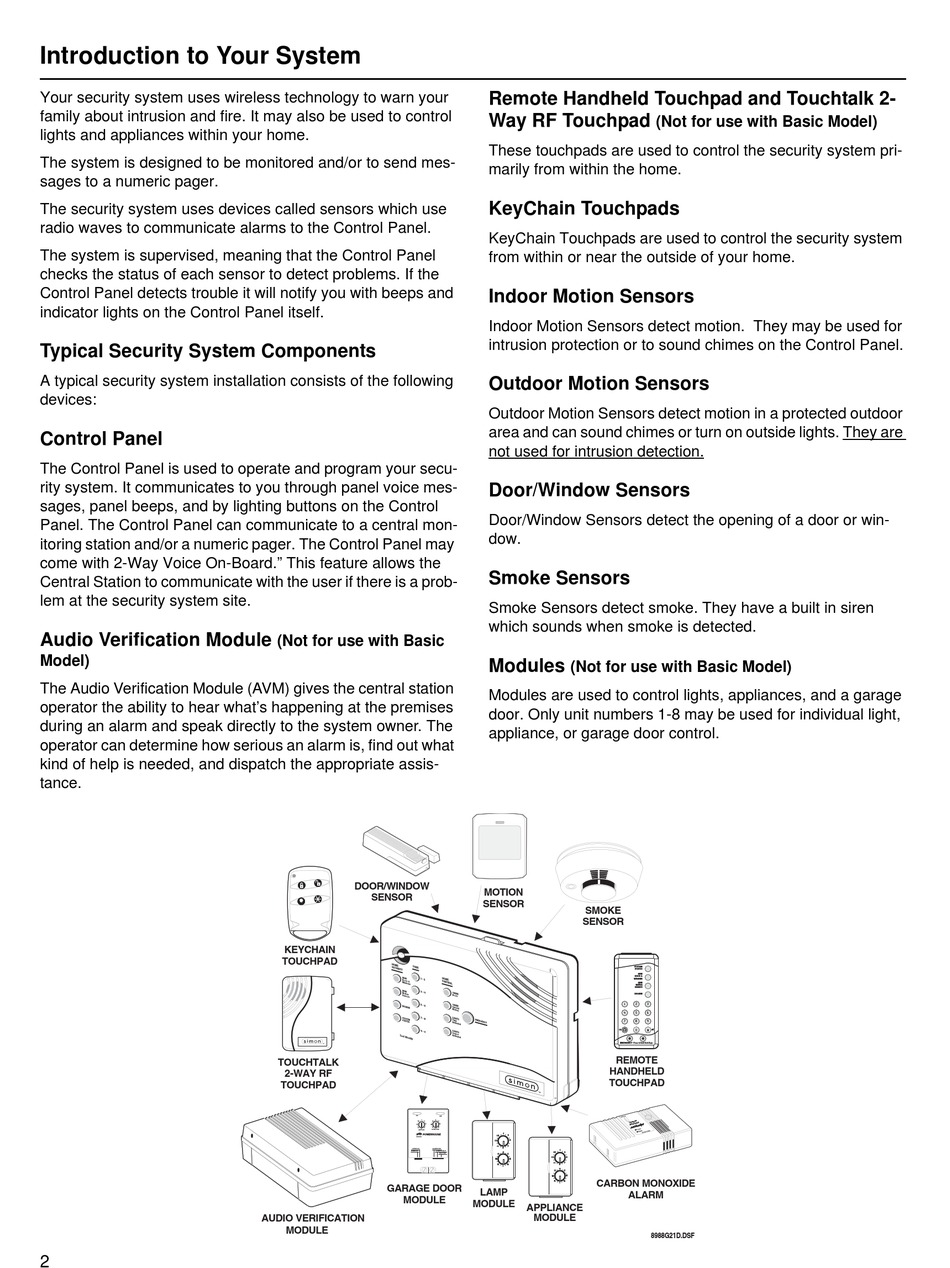

Introduction to Your System
Your security system uses wireless technology to warn your
family about intrusion and fire. It may also be used to control
lights and appliances within your home.
The system is designed to be monitored and/or to send mes-
sages to a numeric pager.
The security system uses devices called sensors which use
radio waves to communicate alarms to the Control Panel.
The system is supervised, meaning that the Control Panel
checks the status of each sensor to detect problems. If the
Control Panel detects trouble it will notify you with beeps and
indicator lights on the Control Panel itself.
Typical Security System Components
A typical security system installation consists of the following
devices:
Control Panel
The Control Panel is used to operate and program your secu-
rity system. It communicates to you through panel voice mes-
sages, panel beeps, and by lighting buttons on the Control
Panel. The Control Panel can communicate to a central mon-
itoring station and/or a numeric pager. The Control Panel may
come with 2-Way Voice On-Board." This feature allows the
Central Station to communicate with the user if there is a prob-
lem at the security system site.
Audio Verification Module
Model)
The Audio Verification Module (AVM) gives the central station
operator the ability to hear what's happening at the premises
during an alarm and speak directly to the system owner. The
operator can determine how serious an alarm is, find out what
kind of help is needed, and dispatch the appropriate assis-
tance.
2
(Not for use with Basic
DOOR/WINDOW
SENSOR
KEYCHAIN
TOUCHPAD
TOUCHTALK
2-WAY RF
TOUCHPAD
ON
OFF
1
A
15
3
O
C
13
5
M
E
11
7
K
G
9
I
UNIT CODE
HOUSE CODE
X-10 POWERHOUSE
CONTINUOUS
SOUNDER ONLY
MOMENTARY
SOUNDER & RELAY
RELAY ONLY
GARAGE DOOR
MODULE
AUDIO VERIFICATION
MODULE
Remote Handheld Touchpad and Touchtalk 2-
Way RF Touchpad
These touchpads are used to control the security system pri-
marily from within the home.
KeyChain Touchpads
KeyChain Touchpads are used to control the security system
from within or near the outside of your home.
Indoor Motion Sensors
Indoor Motion Sensors detect motion. They may be used for
intrusion protection or to sound chimes on the Control Panel.
Outdoor Motion Sensors
Outdoor Motion Sensors detect motion in a protected outdoor
area and can sound chimes or turn on outside lights. They are
not used for intrusion detection.
Door/Window Sensors
Door/Window Sensors detect the opening of a door or win-
dow.
Smoke Sensors
Smoke Sensors detect smoke. They have a built in siren
which sounds when smoke is detected.
Modules
(Not for use with Basic Model)
Modules are used to control lights, appliances, and a garage
door. Only unit numbers 1-8 may be used for individual light,
appliance, or garage door control.
MOTION
SENSOR
SMOKE
SENSOR
SYSTEM
STATUS
ARM
Doors &
Windows
ARM
Motion
Sensors
DISARM
1
2
3
4
5
6
7
8
9
On
Off
EMERGENCY
-
P
re s
s
&
Hol
d
B t o
h
K y
e
REMOTE
HANDHELD
TOUCHPAD
1
15
3
13
5
11
7
9
1
A
15
3
O
C
5
13
M
E
11
7
K
G
9
I
A
O
C
M
E
K
G
CARBON MONOXIDE
I
LAMP
ALARM
MODULE
APPLIANCE
MODULE
8988G21D.DSF
(Not for use with Basic Model)
