Onnections - Garmin Apollo SL30 COMM Installation Manual

SL30
Rslvr{H} 24
Rslvr{C} 25
Rslvr{D} 7
Rslvr{E} 26
Rslvr{F} 16
Rslvr{G} 34
+NAV Flag 10
-NAV Flag 29
+TO Flag 12
+FR Flag 11
CDI Left 14
CDI Right 13
Back Crse 15
ILS Enbl 33
NOTES: 1. Use shieled cable for resolver signals
2. Connect cable shields to the mounting frame: pigtails < 1.25 inches
3. Connect shields chassis ground at both ends of each shielded cable
4. Reference the ACU installation manual if installing NAV/GPS source selector

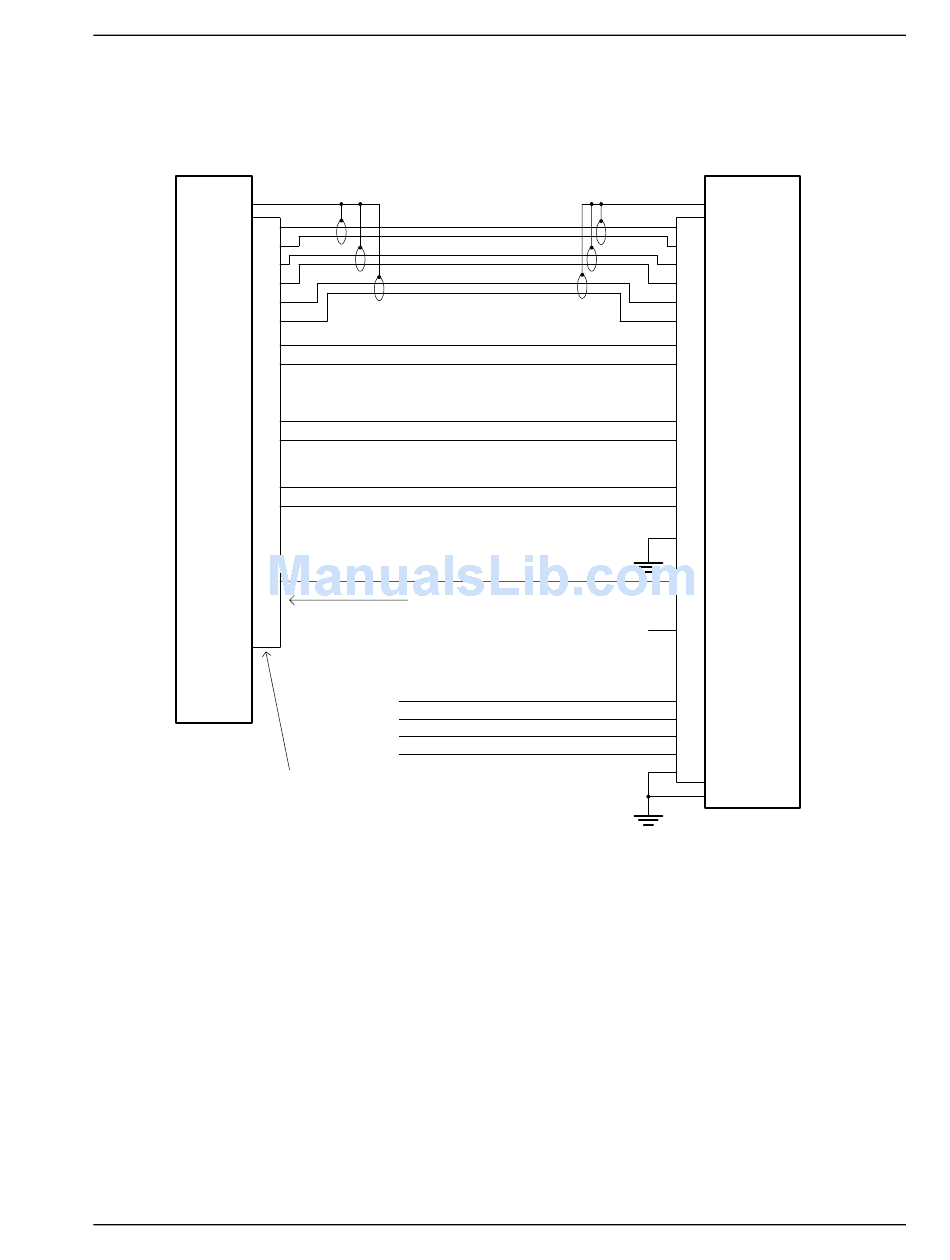

Figure 13 - SL30 NAV to Mid-Cont MD200-302/303 Connections
Apollo SL30 Installation Manual
To Auto-Pilot
High Sense
+13.8 VDC **
+28 VDC **
37-Pin Connector
N/C
Annunciator
Annunciator Power
Backlight Dimmer 14 V Systems
Backlight Dimmer 28 V Systems
* Ground for 14V lighting
**Appropriate Aircraft Bus
Installation
Mid Cont MD200-302/303
1 Rslvr{H}
2 Rslvr{C}
3 Rslvr{D}
5 Rslvr{E}
4 Rslvr{F}
6 Rslvr{G}
7 +NAV Flag
8 -NAV Flag
9 +TO Flag
10 +FR Flag
11 CDI Left
12 CDI Right
24 Nav Ann.
18
BC Ann.
17 GPS
19 Ann. Pwr - 14V
20 Ann. Pwr - 28V
14V Dimmer
23
22 28V Dimmer *
21 Ground
23
