INSTALLATION AND
OPERATION MANUAL

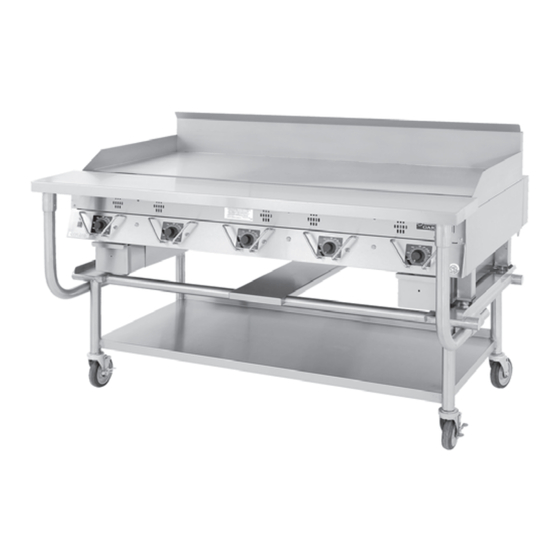

CG-48F, CG-60F AND CG-72F
PRODUCTION GRIDDLES
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,
or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
For a list of authorized service agents, please refer to the Garland web site at http://www .garland-group .com .
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice .
GARLAND COMMERCIAL INDUSTRIES
185 East South Street
Freeland, Pennsylvania 18224
Phone: (570) 66-1000
Fax: (570) 66-90
Part # 4520498 (01/08)
Part # 4520498 (01/08)
APPLIANCE
WARNING:
GARLAND COMMERCIAL RANGES, LTD .
1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: 905-624-0260
Fax: 905-624-5669
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE .
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED .
IN THE COMMONWEALTH OF MASSACHUSETTS
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBER OR GAS FITTER . APPROVAL
NUMBER: G-1-07-05-28
For Your Safety:
Post in a prominent location, instructions to be
followed in the event the user smells gas . This
information shall be obtained by consulting
your local gas supplier .
Enodis UK LTD .
Swallowfi eld Way, Hayes, Middlesex UB 1DQ ENGLAND
Telephone: 081-561-04
Fax: 081-848-0041
© 2005 Garland Commercial Industries, Inc .
Page 1
Advertisement
Table of Contents
Related Manuals for Garland CG-48F
Summary of Contents for Garland CG-48F
- Page 1 Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
-
Page 2: Important Information
IMPORTANT INFORMATION WARNING: This product contains chemicals known to the state of california to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of california to cause cancer. -
Page 3: Table Of Contents
Preparing A New Griddle . . . . . . . . . . . . . . . . . . -
Page 4: Dimensions And Specifications
ENTRY CLEARANCE Crated Uncrated 40" (1016mm) 8" (965mm) Model Number CG-48F CG-60F CG-72F INSTALLATION IMPORTANT: The installation must comply with local codes, or in the absence of local codes, with CAN/CSA - B149 Installation Code – latest edition or with the National Fuel Gas Code NFPA 54 ANSI Z22 .1 –... -
Page 5: General Information
. Garland/U .S . Range products are not approved or authorized for home or residential use, but are intended for commercial applications only . Garland / U .S . Range will not provide service, warranty, maintenance or support of any kind other than for commercial applications . -
Page 6: Electrical Connection
INSTALLATION Continued 4 . The appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG . ( .45 KPA) . -
Page 7: Operation Instructions
During idling periods, set thermostats to a low temperature setting . For example 175°F (79°C) to 200°F ( 9°C), to keep griddle warm . Set thermostats, as required, for periods of heavy load . Turning the small screw in the pilot adjusting valve clockwise reduces the amount of gas provided to the pilot(s) . -
Page 8: Thermostat Temperature Verification
NOTE: Make certain no electrical connections have been disturbed . Replace both panels and secure to body . The griddle thermostat is a precision instrument . It is carefully calibrated at the factory so that the dial setting matches the actual griddle temperature . -
Page 9: Maintenance & Cleaning
. Scrape off the caramelized oil with a standard spatula . 4 . Repeat step 1, and set the griddle thermostat to 15°C (275°F) . 5 . Repeat step 2 & . The griddle is now seasoned and ready for use . Cleaning Instructions (After Each Use) 1 . -
Page 10: Servicing
. If it is known or suspected that a fault exists on Page 10 . Do not use the griddle as a hot top . A large pan or pot will trap heat and can cause the griddle plate to warp . -
Page 11: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM 1 . No Heat Is cord set plugged into receptacle? Is Manual Gas Valve turned to “ON”? Is Main Power switch indicator illuminated? 2 . One Zone Not Hot Enough Is thermostat set to correct temperature? .
