INSTALLATION AND
OPERATION MANUAL

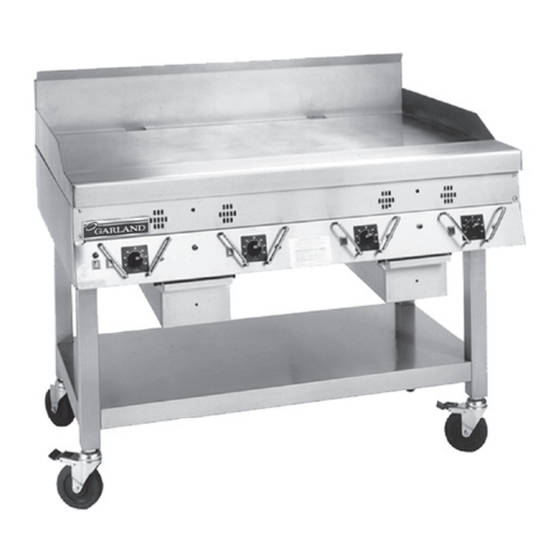

CG SERIES
PRODUCTION GRIDDLES
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,
or which has been modified or repaired using unauthorized parts or by unauthorized service agents.
For a list of authorized service agents, please refer to the Garland web site at http://www.garland-group.com.
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice.
GARLAND COMMERCIAL INDUSTRIES, LLC
185 East South Street
Freeland, Pennsylvania 18224
Phone: (570) 636-1000
Fax: (570) 636-3903
Part # P128 Rev 5 (05/29/09)
Part # P128 Rev 5 (05/29/09)
APPLIANCE
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE.
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED.
IN THE COMMONWEALTH OF MASSACHUSETTS
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBER OR GAS FITTER. APPROVAL
NUMBER: G-1-07-05-28
For Your Safety:
Post in a prominent location, instructions to be
followed in the event the user smells gas. This
information shall be obtained by consulting
your local gas supplier.
GARLAND COMMERCIAL RANGES, LTD.
1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: 905-624-0260
Fax: 905-624-5669
© 2005 Garland Commercial Industries, LLC
Page 1
Advertisement
Table of Contents
Related Manuals for Garland CG-36R
Summary of Contents for Garland CG-36R
- Page 1 Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents.
-
Page 2: Important Information
IMPORTANT INFORMATION WARNING: This product contains chemicals known to the state of california to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of california to cause cancer. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION......... . 2 DIMENSIONS AND SPECIFICATIONS . -
Page 4: Dimensions And Specifications
BTU/ Weight Number HOUR Inlet Lbs./Kgs. CG-24R 60,000 17.60 3/4" 335/152 Grease Drawer(s) 2' & 3' Units - One CG-36R 90,000 26.40 3/4" 485/220 4' , 5' & 6' Units - Two CG-48R 120,000 35.00 3/4" 625/284 CG-60R 150,000 44.00 3/4"... -
Page 5: Installation
Garland/U.S. Range products are not approved or Clearances authorized for home or residential use, but are intended for commercial applications only. Garland / U.S. Range will not This unit must be installed in accordance with the following provide service, warranty, maintenance or support of any clearances in order to provide proper operation and servicing of the appliance. -
Page 6: Electrical Connection
INSTALLATION Continued test spigot. Repeat this operation on each combination valve until each pressure regulator is set correctly. Turn each thermostat, zone power switch and main power unit, with no more than 1/2 inch (12 mm) water pressure switch to “OFF. disturbed before replacing front panels. -
Page 7: Operation Instructions
INSTALLATION Continued 2. Large objects should not be placed in front of the 3. Do not permit fans to blow directly at the appliance, and wherever possible, avoid open windows adjacent to the ventilation air. air crosscurrents within the room. OPERATION INSTRUCTIONS Lighting Instructions NOTE: Should pilot ignition fail after a few minutes turn the... -
Page 8: Adjustments
ADJUSTMENTS NOTE: Each griddle has been factory tested and adjusted 2. Place the surface temperature probe in the locations prior to shipment. It may be necessary to further adjust the indicated on Diagram A. Watch the amber indicator for unit as part of a proper installation. Such adjustments are the the zone being measured. -
Page 9: Maintenance & Cleaning
MAINTENANCE & CLEANING Stainless Steel Cleaning Instructions (After Each Use) Stainless steel should be cleaned using a mild detergent, 1. Using a traditional 64mm-76mm (2 ½”-3”) scraper or a soft cloth and hot water. If it is necessary to use a non- spatula scrape the griddle surface (to remove food metallic scouring pad, always rub in the direction of the grain particles and oil residues) towards the grease trough... -
Page 10: Griddle Do's & Don'ts
MAINTENANCE & CLEANING Continued Griddle Do’s & Don’ts Don’ts 1. Do not use salt to clean the griddle surface. Salt is Do’s corrosive and can cause pitting of the griddle. 2. Do not allow metal utensils (Spatula, scraper, etc.) to 2. -
Page 11: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM CHECKS REQUIRED ACTION REQUIRED 1. No Heat Is cord set plugged into receptacle? Is Manual Gas Valve turned to “ON”? Turn Manual Gas Valve to “ON” Is Main Power switch indicator Turn Main Power switch to “OFF” wait 5 illuminated but zone indicators “OFF”? minutes, then turn Main power switch to “ON”.
