Piece Backing Plate Installation - Regency Alterra CI1200 Owners & Installation Manual

INSTALLATION
An optional backing plate is available in either a standard or custom
size.

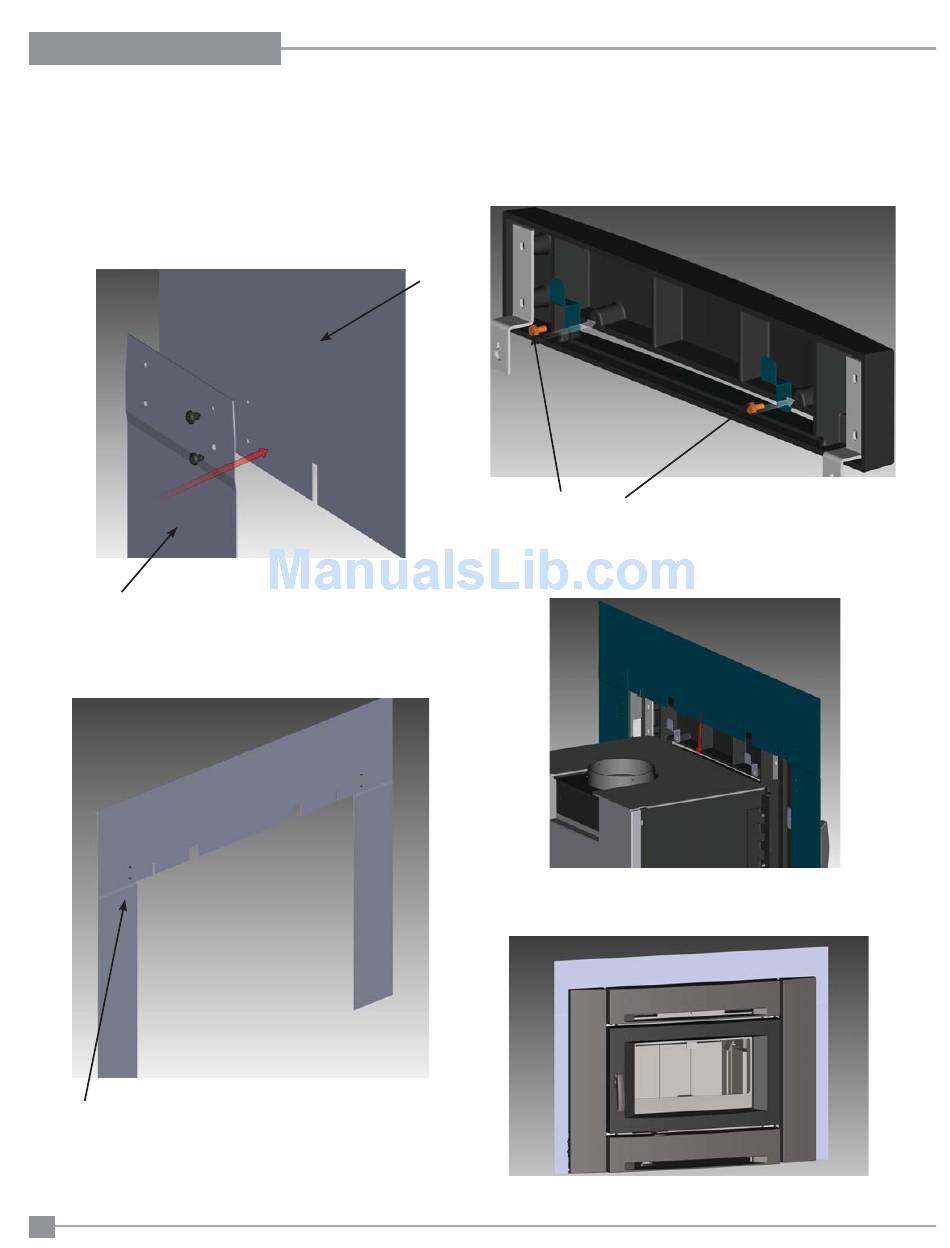

1) The backing plate is packaged in three pieces and requires assem-
bly. The legs of the backing plate are attached to the top plate with
2 screws on each side. See diagram 1 below.
Leg
2) The pointed end of the screws should be facing the front of the back-
ing plate.
Flush front face of
backing plate
18

3 PIECE BACKING PLATE INSTALLATION

Diagram 1
Diagram 2
3) Install 2 clips to the back of the top cast faceplate with hex bolts.
If the unit is already installed - remove the top cast faceplate from
the unit if access is too diffi cult - see 'Cast Faceplate Installation' in
the owners manual for instructions.
Top plate
Hex bolts
4) Slide the backing plate over the clips on the back of the cast top.
There are notches in the backing plate where it sits on the clips. If
the stove is installed - slide it out at least 6" to install the backing
plate.
5) Slide stove back into position after backing plate is installed.
Diagram 3
Diagram 4
Standard backing plate shown on the
Diagram 5
CI1250
Regency CI1200 / CI1250 Wood Cast Insert
