INSTALLATION
STAINLESS STEEL SMOKE DEFLECTOR INSTALLATION
The stainless smoke defl ector is located in the upper front area of the fi rebox. The defl ector is held in place with 2 bolts
Prior to the fi rst fi re, ensure defl ector is seated properly and secured with 2 hand tightened bolts.

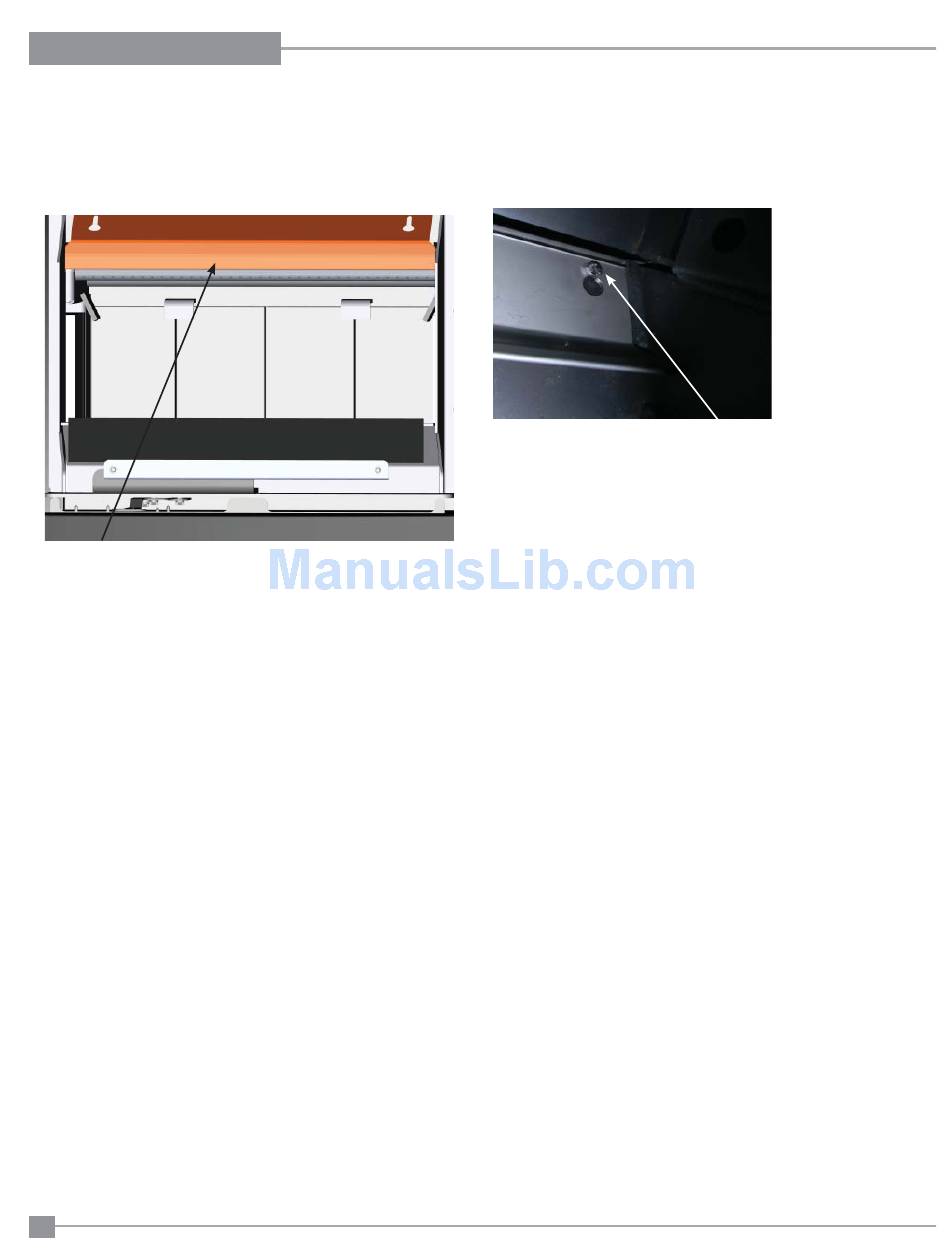

Smoke defl ector is installed through the door
Smoke defl ector
opening in location shown in diagram
To replace the defl ector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of
the defector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke defl ector will void warranty.
14
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.
