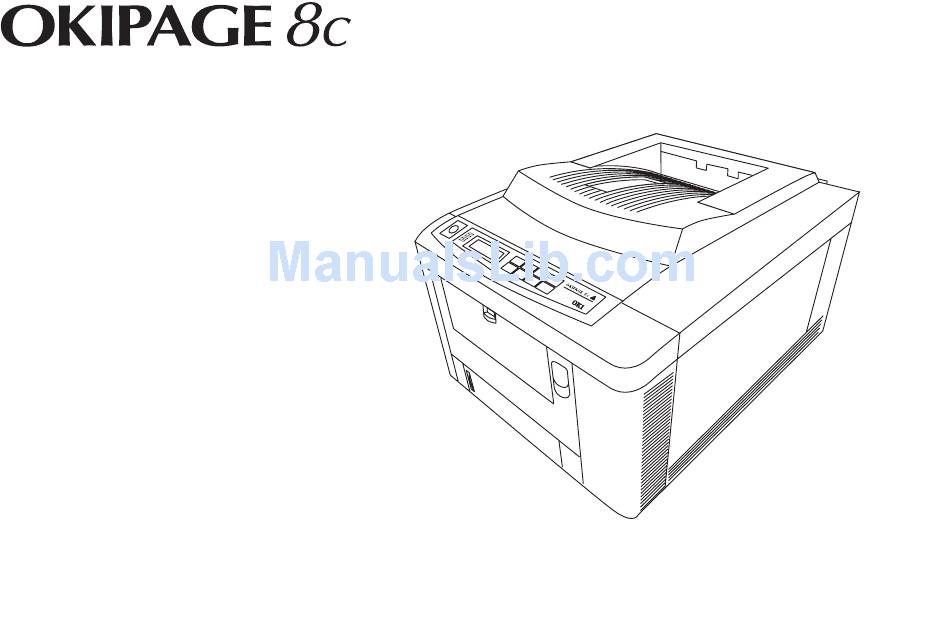

- Page 1 Setup Guide...
- Page 2 Copyright 1997 by Oki. All rights reserved. Apple and Macintosh are registered trademarks of the Apple Corporation. Written and produced by the Oki Documentation Dept. Oki is a registered trademark of Oki Electric Industry Company, Ltd. Oki Systems (UK) Ltd. Oki Systems (Ireland) Ltd.
-
Page 3: Table Of Contents
Contents Safety ..................4 Changing Display Language ..........15 Symbols in this Book .............. 5 Colour Registration .............. 16 Package Contents ..............6 Connecting to the PC ............17 Choosing a Location for Your Printer ........7 Installing Windows Printer Drivers ........18 Windows 3.1x .............. -
Page 4: Safety
Safety Your Oki printer has been carefully designed to give you years • Be certain that your power source matches the rating listed of safe, reliable performance. As with all electrical equipment, on the back of the printer. If you are not sure, check with however, there are a few basic precautions you should take to your dealer or with your local power company. -
Page 5: Symbols In This Book
This product complies with the requirements of the Council Energy Star Directives 89/336/EEC and 73/23/EEC on the approximation As an E Partner, Oki has of the laws of the member states relating to electromagnetic NERGY compatibility and low voltage. determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 6: Package Contents
” ” ” ” ” Fuser assembly (pre-installed). 2nd paper tray assembly (optional). CD-ROM, setup guide, user’s guide, colour guide. Check the contents carefully. If anything appears to be missing or damaged, contact your dealer as soon as possible. OKIPAGE 8c... -
Page 7: Choosing A Location For Your Printer
Locating the Printer & Optional Second Paper Choosing a Location for Your Printer Tray Your printer weighs approximately 52kg. It must be located safely on a stable, flat, level surface, capable of supporting at Lay the 2nd paper tray face up in the position where the least this weight for an extended period. -
Page 8: Installing Waste Toner Box
Each drum cartridge is marked with a coloured label. The colour corresponds with a similar coloured label at the left side of the printer. It is essential that the four drum cartridges are installed in their marked positions. OKIPAGE 8c... - Page 9 Press the OPEN button and raise the printer top cover to its Peel off the eight white protective tapes from the belt gears. fully upright position. Remove any plastic foam plugs from the tops of the four Pull the protective sheets of paper straight upwards out of image drum cartridges (1).
-
Page 10: Installing Toner Cartridges
Do not force the toner cartridge into position. It is fitted Identify the position of the corresponding image drum with a lock-out mechanism to prevent insertion into the cartridge inside the printer. wrong image drum cartridge. OKIPAGE 8c... -
Page 11: Installing Fuser Oil Roller
Push the coloured locking lever away from you (towards Remove the oil roller assembly from its wrapping. the back of the printer) to lock the cartridge home and release the toner supply. Remove the coloured spacer (1) from the new oil roller. 3. -
Page 12: Loading Paper
Tray 1 is the standard paper tray built into the printer. Tray 2 is the optional second paper tray located under the printer. Pull the paper tray all the way out of the machine. OKIPAGE 8c... -
Page 13: Connecting Power To The Printer
Adjust the rear paper guide (1) if necessary for the correct Connecting Power to the Printer paper length. Do this by squeezing the top of the guide and sliding it gently in the required direction. A suitable AC power cable was supplied with your printer, terminated with the appropriate plug for connection to a standard AC wall outlet. -
Page 14: Built-In Print Samples
Fonts Page Your printer can produce a colour sample of all its built in fonts. Press the ON LINE key if necessary to ensure that the display reads OFF LINE. OKIPAGE 8c... -
Page 15: Menu List
Press and hold the Print Fonts key for more than 2 seconds. Changing Display Language The display will read PRINT FONTS, and after a few seconds Your printer can display messages in any one of the following two pages will emerge face down from the top paper exit 12 languages: showing all of the printer’s resident fonts. -
Page 16: Colour Registration
If one cartridge, for example yellow, is slightly misaligned you will notice slight traces of yellow at the edges of other colours where yellow should not appear. This very precise alignment is known as colour registration. OKIPAGE 8c... -
Page 17: Connecting To The Pc
Connecting to the PC The printer comes with a standard high speed bidirectional IBM Centronics compatible parallel data interface as standard. This requires a IEEE1284 compliant parallel printer cable, not more than 1.8m in length. Such a cable has a 36-pin Centronics style plug at one end (the printer end) and a standard DB25 plug at the other (the PC end). -
Page 18: Installing Windows Printer Drivers
PC user should install the appropriate driver for their system. Follow the on-screen instructions to add the driver for the OKIPAGE 8c to your system. The CD may contain a README file, containing additional information too late to be included in the published printer When installation is complete, the new printer will be available guides. -
Page 19: Windows 95
Follow the on-screen instructions to add the driver for the Follow the on-screen instructions to add the driver for the OKIPAGE 8c to your system. OKIPAGE 8c to your system. When installation is complete, the new printer will be available When installation is complete, the new printer will be available from within your Windows applications. -
Page 20: Apple Macintosh
The CD also contains the Adobe Acrobat Readers for Windows 3.1x and Windows 95/Windows NT. This program may be installed from the CD, and will enable you to view the manuals on-screen. It may also be used to print spare copies if you wish. OKIPAGE 8c... -
Page 21: Index
