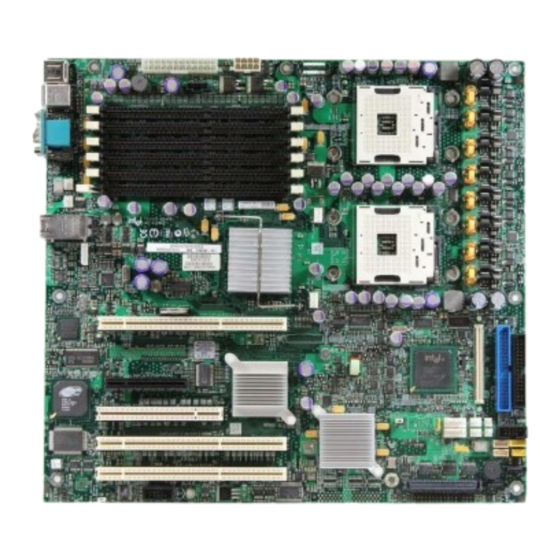

- Page 1 ® Intel Server Board SE7520BD2/SE7520BD2-D2 Tested Hardware and Operating System List Revision 2.0 May 12 ,2006 Enterprise Platforms and Services Marketing...
- Page 2 Added several cards and removed [ ] limitation from several cards that had 2004 limited testing. Removed Adaptec ASR 3410S, September 28 Added support for the Intel® SRCZCRX MROMB card. Removed reference 2004 to the unsupported Intel® SRCZCR MROMB card. October 14 Added support for 3 PCI-Express cards.
- Page 3 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.
-
Page 4: Table Of Contents
Basic Installation Testing ................... 1 1.1.2 Adapter / Peripheral Compatibility and Stress Testing..........2 Pass/Fail Test Criteria ..................... 3 2. Intel® Server Board SE7520BD2/SE7520BD2D2 Base System Configurations ..... 1 3. Supported Operating Systems.................... 2 Operating System Certifications ..................3 4. Adapters and Peripherals....................5 PCI RAID ......................... -
Page 5: Introduction
Intel® Server Board SE7520BD2/SE7520BD2-D2 Introduction Introduction This document is intended to provide users of the Intel® server board SE7520BD2 / SE7520BD2D2 with a guide to the different operating systems, adapter cards, and peripherals tested by Intel on this platform. This document will continue to be updated as new adapters, peripherals, and operating systems are tested or until the Intel®... -
Page 6: Adapter / Peripheral Compatibility And Stress Testing
Introduction Intel® Server Board SE7520BD2/SE7520BD2-D2 • Intel will NOT provide support for issues related to use of any add-in adapters or peripherals installed in the server system when an operating system that received basic installation testing only is in use. -
Page 7: Pass/Fail Test Criteria
Intel® Server Board SE7520BD2/SE7520BD2-D2 Introduction • Intel will go through some of the steps to achieve certification to ensure its customers do not run across any problems, but the actual certification is the responsibility of the individual customer. For operating systems, adapter cards, and peripherals not listed in this document, there is no support commitment. -
Page 9: Intel® Server Board Se7520Bd2/Se7520Bd2D2 Base System Configurations
The following table lists the base system configurations tested. Base system configurations will change as new revisions of the Intel® server board SE7520BD2/ SE7520BD2D2 are released and/or new system BIOS and BMC firmware are cut onto the board in the factory. Each base system configuration is assigned an identifier number that is referenced in the tables throughout this document. -
Page 10: Supported Operating Systems
Intel® Server Board SE7520BD2/SE7520BD2-D2 Supported Operating Systems The following table provides a list of supported operating systems for the Intel® server board SE7520BD2/ SE7520BD2D2. Each of the listed operating systems was tested for compatibility with Intel® server board SE7520BD2/ SE7520BD2D2 base system configuration listed in Section 2 of this document. -
Page 11: Operating System Certifications
Installation Operating System Certifications Listed below are the operating systems that Intel will certify with the Intel® server board SE7520BD2/ SE7520BD2D2. However, the customer is responsible for their own certification from the individual operating system vendors. In many cases, the customer may leverage their operating system certifications from Intel’s testing. - Page 12 Supported Operating Systems Intel® Server Board SE7520BD2/SE7520BD2-D2 Operating System Certification Listing Comments Red Hat checks Intel’s results, certifies (if appropriate), and posts the certificate on their web site. Red Hat Enterprise* Intel® SE7520BD2 Customer can leverage the Intel certification, if customer...
-
Page 13: Adapters And Peripherals
Note that not all adapter cards were tested under all operating systems. The following notation is used in the tested adapters and peripherals table below to indicate the support level that Intel provides for a particular adapter under a particular operating system: This adapter or peripheral has been tested and is supported under the specific Number (i.e. -
Page 14: Pci Raid
Adapters and Peripherals Intel® Server Board SE7520BD2/SE7520BD2-D2 Manufacturer Model Name Model Number Interface Comments PCI RAID Adaptec ASR-2110S U160 1,3,4,6 Adaptec ASR-2100S U160 1,3,4,6 1,2,3,4,5, 1,2,3,4,5, Adaptec ASR-2200S U320 1,2,4,5 Intel SRCU42L U320 1,2,3,4,5,6 1,3,4,6 PCI-Express 1,2,3,4,5, 1,2,3,4,5, Intel SRCU42E... -
Page 15: Pci Scsi
Intel® Server Board SE7520BD2/SE7520BD2-D2 Adapters and Peripherals Manufacturer Model Name Model Number Interface Comments MegaRAID 320- U320 1,2,4,5 1,2,4,5 2 (518) LSI22320-R Dual-channel 1,2,3,4,5, U320 1,2,4,5 1,2,4,5 Host Bus MegaRAID SCSI U320 PCI-Express 1,2,4,5 1,2,4,5 1,2,4,5 320-2E 2ch, U320, Adaptec... -
Page 16: Pci Fiber Channel
Adapters and Peripherals Intel® Server Board SE7520BD2/SE7520BD2-D2 Manufacturer Model Name Model Number Interface Comments ICP Vortex GDT8568RZ SATA 8-port 1,2,4,5 1,2,4,5 MegaRAID 150- SATA 2-port 1,2,4,5 1,2,4,5 MegaRAID 150- SATA 6-port 1,3,4,6 1,3,4,6 1,3,4,6 3Ware 8506-8 SATA 8-port 1,2,4,5 8 channel SATA 1.0,... -
Page 17: Pci Nic
Intel® Server Board SE7520BD2/SE7520BD2-D2 Adapters and Peripherals Manufacturer Model Name Model Number Interface Comments @Bg Singles channel PCI Qlogic 1,2,3,4,5, 1,2,3,4,5, QLE2360 QLE2360 Express HBA 1,2,3,4,5,6 Express – LC Multi- mode optic 2Gb Single channel PCI Qlogic QLE2362 QLE2362 Express HBA... -
Page 18: Modems
Adapters and Peripherals Intel® Server Board SE7520BD2/SE7520BD2-D2 Manufacturer Model Name Model Number Interface Comments Modems 3COM USR5610B 56K V.92 PCI-32/33 Internal USB/PS2 Devices E06101USB-C E06101USB-C Keytronic keyboard Keytronic ProPilot ProPilot PS/2 Keyboard PS/2 & LOGITECH Optical Mouse 930582-0403 Mouse Internet PS/2 &... -
Page 19: Dvd Drives
Intel® Server Board SE7520BD2/SE7520BD2-D2 Adapters and Peripherals Manufacturer Model Name Model Number Interface Comments Udma, 32x TEAC CD-232E CD-232E ATA33 slimline CDWF540/KIT CDWF540/KIT External – TEAC CD Writer TEAC CD-552E CD-552E CDROM 5.25X.05 TEAC CD-540E CD-540E ATA33 UDMA, 40X CD-RW-DVD- 32721 External –... -
Page 20: Tape Drives
Adapters and Peripherals Intel® Server Board SE7520BD2/SE7520BD2-D2 Manufacturer Model Name Model Number Interface Comments 5.25x1.6, Sony DRU-510A DRU-510A ATA33 24xCDR External,24x Sony DRX-510UL DRX-510L USB2.0 CDR, 15xCD-RW TEAC DV-28E-BP3 DV-28E-BP3 ATA33 Slimline.8x- Toshiba SD-C2312 SD-C2312 ATA33 DVDROM Toshiba SD-M1401 SD-M1401... -
Page 21: Removable Drives
Intel® Server Board SE7520BD2/SE7520BD2-D2 Adapters and Peripherals Manufacturer Model Name Model Number Interface Comments SDX- SCSI-U2 – Sony AIT-2 Desktop 3.5x1.6 SC500C/BM 50GB 4.11 Removable Drives Zip 750MB Iomega 32324 Internal External ATADRIVe 1,2,3,4,5, Maxtor 5000XT S01J250 External Mitsumi D353F3... -
Page 23: Hard Disk Drives
Note that not all hard drives were tested under all operating systems. The following notation is used in the tested hard drives table below to indicate the support level that Intel provides for a particular hard drive with a particular operating system: This hard drive has been tested and is supported under the operating system Number (i.e. - Page 24 Hard Disk Drives Intel® Server Board SE7520BD2/SE7520BD2-D2 Tested Product Drive size Manufacturer Model Number Interface Operating Notes Family (GB) Systems Ultrastar IC35L146UCDY Hitachi U320 10,000 146GB 1,2,4,5 146Z10 Ultrastar IC35L300UCDY Hitachi U320 10,000 300GB 1,2,4,5, 10K300 Ultrastar HUS157373EL3 Hitachi U320...
- Page 25 Intel® Server Board SE7520BD2/SE7520BD2-D2 Hard Disk Drives Tested Product Drive size Manufacturer Model Number Interface Operating Notes Family (GB) Systems Western Digital WD Raptor WD360GC SATA/150 10,000 36GB 2,3,5,6 Western Digital WD Raptor WE740GB SATA/150 10,00 74GB 2,3,5,6 Revision 2.0...
-
Page 26: Installation Guidelines
NetWare* 6.5 or Red Hat* Advanced Server 3.0. Status: Intel is currently working with Emulex and Qlogic to investigate a fix for this issue. Adapter is supported only with Intel Server Board SE7520BD2 with C4 or later stepping Intel® E7525 server chipset (i.e. - Page 27 Intel® Server Board SE7520BD2/SE7520BD2-D2 Installation Guidelines add-in cards. Adapter is supported only with Intel Server Board SE7520BD2 with C4 or later stepping Intel® E7525 server chipset Issue: This adapter has only been tested with Intel Server Board SE7520BD2 that utilize C4 or later stepping Intel® E7525 server chipsets (PBA # XXXXXX-XXX or later revisions).
