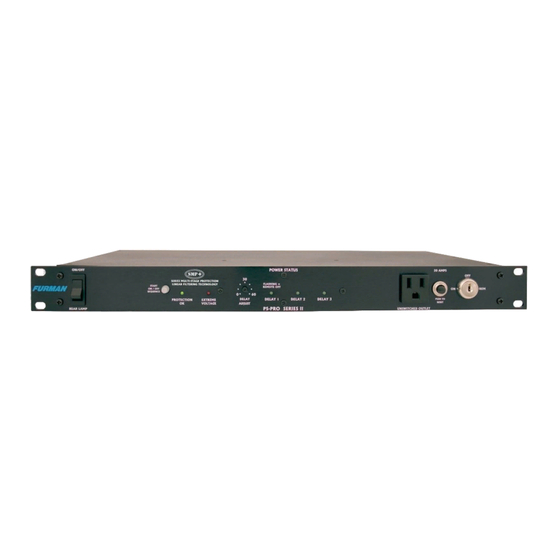

Furman PS-PRO II Owner's Manual

20 amp power conditioner/sequencer
Hide thumbs Also See for PS-PRO II:
Table of Contents

Advertisement

Quick Links

Download this manual
P S - P R O I I - P O W E R C O N D I T I O N E R / S E q u E N C E R

Advertisement

Table of Contents
loading

Related Manuals for Furman PS-PRO II

Summary of Contents for Furman PS-PRO II

  • Page 1 P S - P R O I I - P O W E R C O N D I T I O N E R / S E q u E N C E R...
  • Page 2 Three year limited warranty I N T R O D u C T I O N Thank you for purchasing the PS-PRO II, and congratulations on your choice. power conditioners feature Furman’s revolution- ary Series Multi-Stage Protection Plus (SMP+) circuit, as well as our exclusive Linear Filtering Technology (LiFT).

  • Page 3: Installation

    We suggest keeping the front panel's unswitched outlet free for equipment that is only in use temporarily. The overall capacity of the PS-PRO II is 20 amps. This refers to the combined steady-state current drawn by all devices plugged into all of its nine outlets.

  • Page 4: Local Control

    The front panel outlet is limited to 15 amp use. The PS-PRO II also uses a 20 amp line cord, identified by the perpendicular blades on the plug. In 20 amp products, use of a plug of this type is required for UL safety certification.

  • Page 5: Remote Control

    The PS-PRO II main circuit board has 5 pairs of terminals (PCB REV D and later) labeled as: JMP1 (Default) (MAINT ON) , when the REM and +12V terminals are tied together, the PS-PRO II will sequence OFF.

  • Page 6: Front Panel

    140V) and shuts the power down before damage can occur. Upon initially applying power to the PS-PRO II, this indicator will be lit if the unit is receiving below 80 volts or more than 140 volts, and power will not be applied to the PS-PRO II’s outlets.

  • Page 7: Rear Panel

    If this occurs, reduce the load by unplugging one or more units from the PS-PRO II, and reset it. you can reset the circuit breaker by simply pressing the button, which pops out when tripped. However, because it...

  • Page 8: Momentary Mode

    Disconnecting initiates an ON sequence. If the cable run is long, it is recommended that the REM wire be tied to the PS-PRO II’s GND terminal during ON operation rather than leaving it floating. This will require the use of a third conductor and a double-throw switch.

  • Page 9: Multiple Units

    +12V STATUS MOMENTARy MODE contact switch, the RS-1 is not an appropriate remote switch for the PS-PRO II when it is in momentary mode. The Furman RS-2 is the proper choice. Please contact Furman for RS-2 wiring diagrams. MULTIPLE UNITS you can use more than one PS-PRO II to handle loads that exceed 20 amps (16 amps PRO-E).
  • Page 10 (or switches), note that it is possible for this LED to flash even when the unit is ON. This could occur when the PS-PRO II is under local control (the key lock switch is in the ON position). In this case, DELAy 1 would flash and DELAy 2 and DELAy 3 would be steadily lit.
  • Page 11 Product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect. PS-PRO II SPecIfIcatIOnS Current Rating: 20 Amps (2400 Watts at 120 VAC) (16 Amps for "E" version)
  • Page 12 P S - P R O I I - P O W E R C O N D I T I O N E R / S E q u E N C E R Furman Sound, LLC. 1997 South McDowell Blvd.
