Stove Installation
Installation
①
Make sure the unit's Main On/
Off Switch is switched Off (refer to
operating instruction section).

Operation

To access the controls, go to the
back of the stove

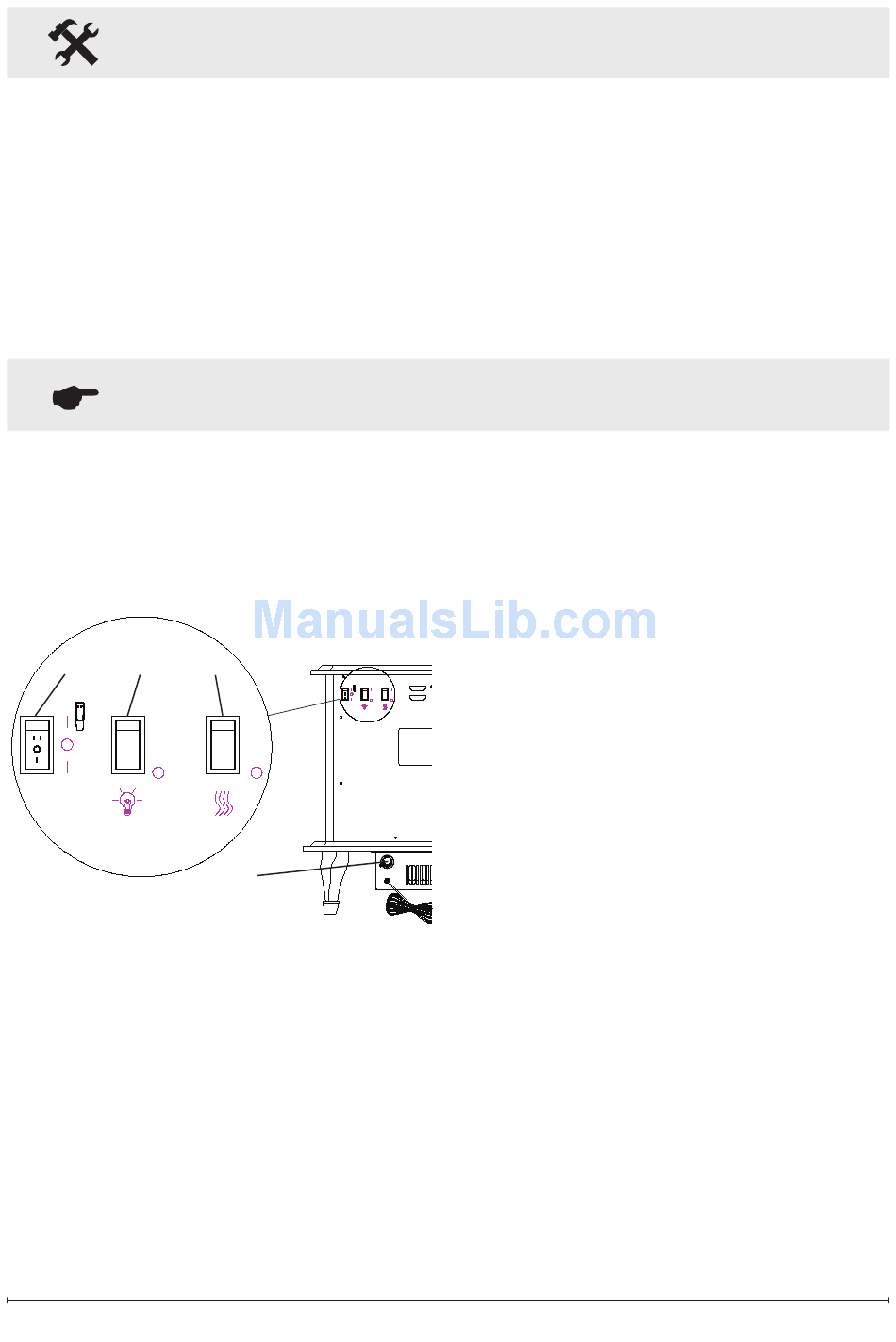

Figure 1
A b
A. Three Position On/Off
Switch
The switch has two On positions
marked with "I" and "II". The "I"
position is for manual operation.
In this position the built-in remote
control is bypassed.
The "II" position is for operating
the unit with the provided remote
(Figure 1).
C
D
②
Plug the unit into a 15 Amp/
120 vAC outlet. If the cord
does not reach, you may use
an extension cord rated for a
minimum of 1875 Watts.
control. When in "II" position
the unit is operated with the ON
and OFF buttons of the remote
control.
When the switch is in the center
position "O" the unit is off.
B. Light On/Off Switch
The Light On/Off Switch supplies
power to the upper light of the log
bed display area.
C. Heater On/Off Switch
The heater On/Off Switch
supplies power to the heater.
D. Heater Thermostat Control
To adjust the temperature to
your individual requirements,
turn the thermostat control
clockwise all the way to turn
on the heater. When the room
reaches the desired temperature,
7
