Dimplex DS7420 Owner's Manual page 10

Maintenance
Upper Bulb Replacement

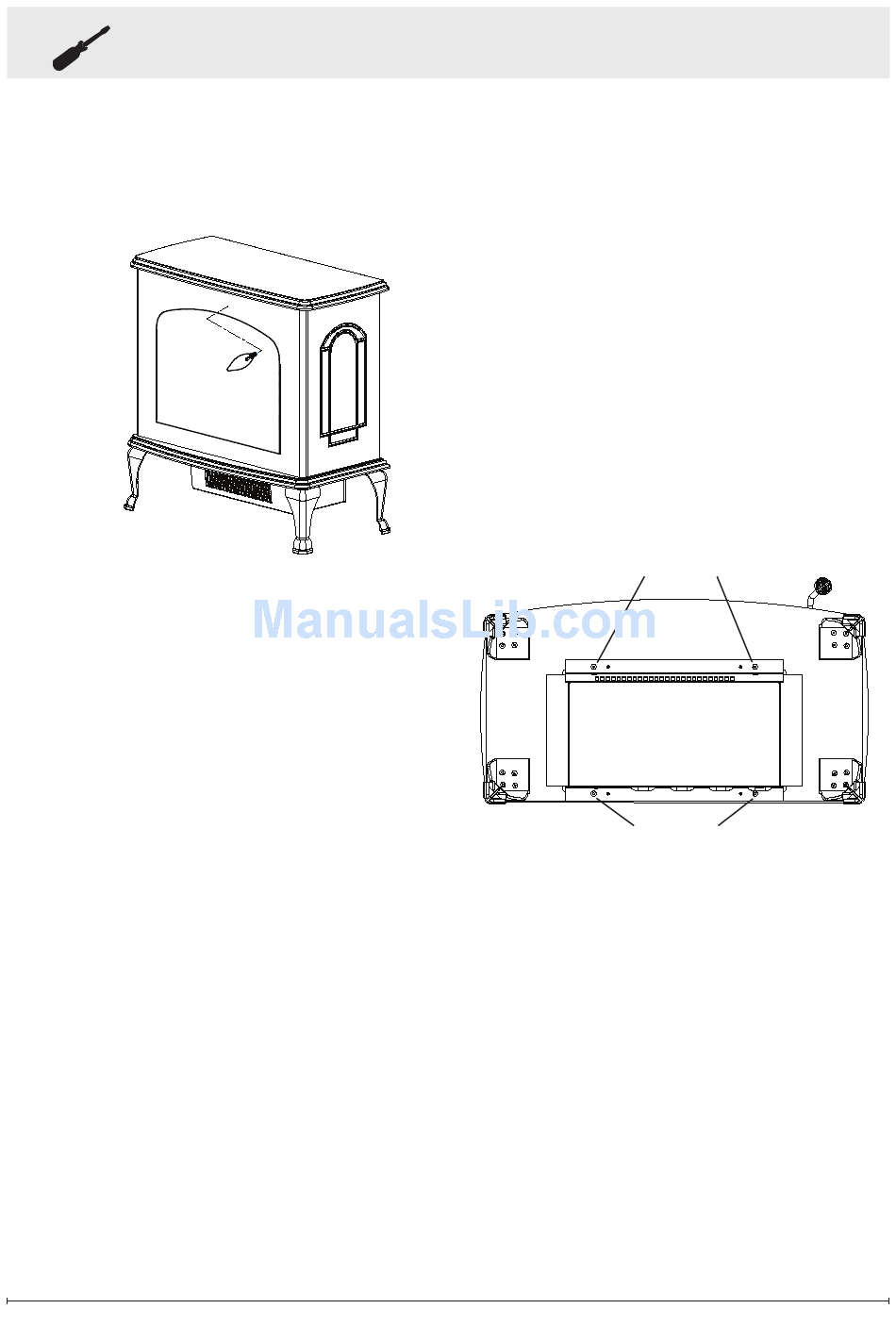

(Figure 3)
Figure 3
①
Open door by pulling the
handle.
②
Locate the upper bulb bracket.
③
bend light retainer bracket
down.
④
Locate and remove light bulb.
⑤
Insert and install new bulb.
⑥
bend light retainer bracket
back into its original position.
⑦
Close the door.
Lower Bulbs Requirement
Quantity of three (3) 35 Watt
halogen Quartz lamps, 120 volt,
G9 base.
Do not exceed 35 Watts per
bulb.
10
Lower Bulb Replacement
①
Remove the stove pipe kit (if
equipped).
②
Gently place stove on its back
on a flat surface.
③
Remove the heater cover
retaining screws located on the
bottom of the stove (Figure 4) and
lower heater and light assembly
out onto the floor.
Figure 4
④
Remove the burnt out bulb(s)
by pulling straight out of socket. If
bulbs are difficult to remove form
socket move the bulb from side
to side while pulling being careful
not to damage the light socket.
⑤
Replace the lower light bulbs.
⑥
Reassemble in the reverse
order as above.
Screws
Screws
