Fisher & Paykel OB60 Series Installation Instructions And User Manual

Electronic and pyrolytic models
Hide thumbs Also See for OB60 Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual and Installation Instructions , User Manual

Installation instructions

User guide

and
Built-in oven
OB60 electronic and pyrolytic models
NZ AU GB IE

Advertisement

Table of Contents
loading

Related Manuals for Fisher & Paykel OB60 Series

Summary of Contents for Fisher & Paykel OB60 Series

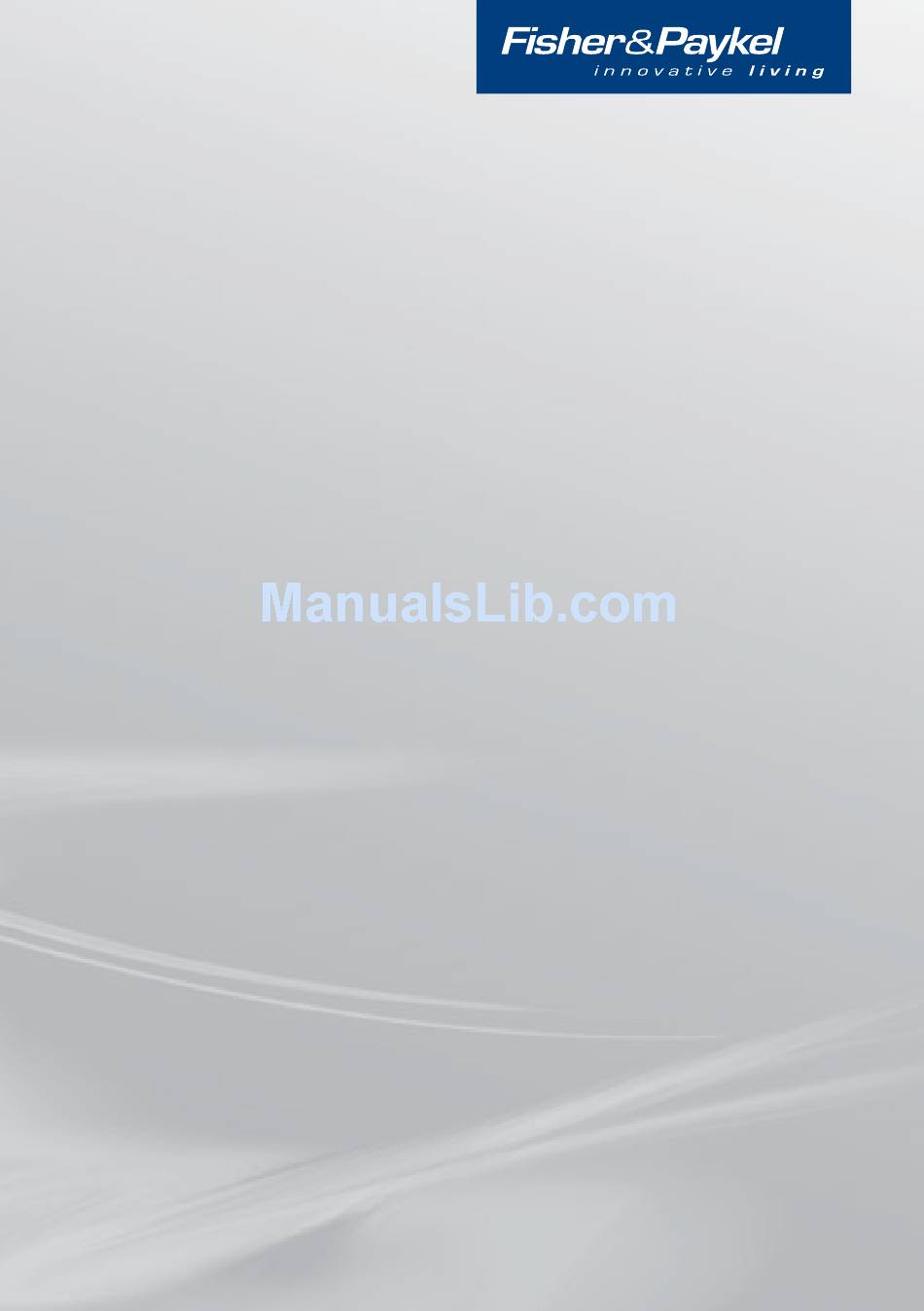

  • Page 1: Installation Instructions

    Installation instructions User guide Built-in oven OB60 electronic and pyrolytic models NZ AU GB IE...

  • Page 3: Table Of Contents

    Contents Safety and warnings Installation instructions ELECTRONIC MODELS Using your oven for the first time Using the control buttons Selecting the cooking functions Selecting the temperature Cooking functions Manual and automatic cooking Error codes Care and cleaning PYROLYTIC MODELS Using your oven for the first time...

  • Page 4: Safety And Warnings

    In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must be installed in the active (phase) conductor of the fixed wiring. The location of the oven connection socket (if fitted) is outside the cavity if the product is flush to the rear wall.
  • Page 5 When you install the oven Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing difficult. Fisher & Paykel will not cover the costs of removing the oven, or of damage caused by this removal.
  • Page 6 Safe food handling: leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.

  • Page 7: Installation Instructions

    Note: If installing a cooktop above the oven ensure adequate clearance is provided for the cooktop as per the cooktop manufacturer’s instructions. *All height measurements include mounted feet.
  • Page 8 The space between the bottom of the door and the lower trim is important for the correct air circulation into the oven. Ensure the oven sits on wooden blocks or similar supports when it is removed from the carton as shown in Fig. 3. This will prevent any damage to the lower trim.

  • Page 9: Replacing The Power Supply Cable

    Replacing the power supply cable Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (fig. 5). Open the cable crimp by unscrewing screw “F” (Fig. 6), unscrew the terminal screws and remove the cable. Connect the new supply cable, of suitable type and section, to the terminal board following the diagram in Fig.

  • Page 10: Electronic Models

    Wiring diagram Electronic models Filter Figure 7 Electronic oven wiring diagram...
  • Page 11 Pyrolytic oven NZ AU models Pyrolytic oven GB IE models Wiring diagram Figure 8a Pyrolytic oven wiring diagram Figure 8b Pyrolytic oven wiring diagram...

  • Page 13: Using Your Oven For The First Time

    Read this user guide, taking special note of the ‘Safety and warnings’ section. Remove all accessories and packaging. Set the clock. The oven will not work until the clock has been set. Condition the oven: Put in the shelves and trays. If you are not using the sliding shelf supports, then slide in the shelves and grill pan as shown in Fig 10.

  • Page 14: Using The Control Buttons

    Using the control buttons SYMBOL Lit = minute minder in operation Flashing = countdown completed by the minute minder SYMBOL Lit = operation of heating elements (cooking functions) Flashing = automatic cooking completed BUTTON ON/OFF or Childlock selection BUTTON Minute minder selection Cooking time selection Note: After using the control buttons, wait for three beeps to confirm that you can proceed.
  • Page 15 Note: Changing the time will delete any automatic program. Using the timer You can use the timer at any time, even when the oven is not in use. The timer does not turn the oven off. The timer can be set for up to 23 hours and 59 minutes.

  • Page 16: Selecting The Cooking Functions

    Selecting the cooking functions Oven lamp Oven lamp When the symbol is lit only the oven lamp When the symbol is lit only is on. the oven lamp is on. Function buttons Function control buttons You can use these buttons to choose the oven You can use these buttons to choose the oven function you want.

  • Page 17: Selecting The Temperature

    When the symbol is flashing the oven is preheating. When the symbol is flashing the oven is preheating. When the symbol is permanently lit the oven is at the set temperature. When the symbol is permanently lit the oven is at the set temperature.

  • Page 18: Cooking Functions

    GRILL The grill at the top of the oven comes on. Preheat for two minutes. Use with the oven door closed and the temperature knob between 50 °C and 225 °C max. Do not grill for longer than 30 minutes at any one time.
  • Page 19 Note: this function is not for cooking food. Important! Safe food handling: leave food in the oven for as short a time as possible before and after cooking or defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.

  • Page 20: Manual And Automatic Cooking

    Note: the cooling fan may remain on. If you are already at home to turn the oven on and only want the oven to turn off automatically, start cooking as normal, then follow step 4 or step 5 to set a time to stop the oven.

  • Page 21: Error Codes

    Error codes Error codes If there is a problem the oven is automatically switched off. Only the cooling fan motor operates and an error message appears on the display. The oven cannot be used. If the problem disappears the oven returns to the stand-by (OFF) condition.

  • Page 22: Care And Cleaning

    Cleaning the outside of the oven Important! Do not use abrasive cleaners, cloths or pads on the outside surfaces of the oven. Immediately wipe off any caustic cleaners if they are spilled onto the oven door handle. Wipe the oven’s outside surfaces often, using warm water and a mild household detergent. The stainless steel may also be cleaned with a suitable cleaner and polish.
  • Page 23 The arrows are pointing upwards The panel with the hole in it is on the left oven wall, so that there is a hole for the oven lamp. Do not put the catalytic panel without the hole over the oven lamp.
  • Page 24 Care and cleaning Cleaning the fat filter Clean the fat filter after every use. If the filter is not cleaned, it will block and shorten the life of the fan element. For normal soiling, place the filter in a dishwasher on normal wash. If the filter is very dirty, place in a saucepan with either two tablespoons of clothes washing powder, or one tablespoon of dishwashing powder.
  • Page 25 Sliding shelf supports (some models only) The telescopic sliding shelf supports make it safer and easier to insert and remove the oven shelves and trays. They stop when they are pulled out to the maximum position. Wipe the supports with a damp cloth and a mild detergent only. Do not wash them in the dishwasher, immerse them in soapy water, or use oven cleaner on them.
  • Page 26 The oven door has three panes of glass. To clean these, you need to remove the inner and middle panes.
  • Page 27 Remove the middle pane: Gently unlock the middle pane of glass from the bottom clamps by moving it as in Fig. 22b. Gently lift the bottom edge of the pane (arrow 1 in Fig. 22c) and remove it by pulling it out from the top clamps (arrow 2 in Fig.
  • Page 28 Care and cleaning Replacing the middle and inner panes of glass Make sure the door is locked open (see Figs 21a - 21c) Replace the middle pane: Check that the four rubber pads are in place (“M” in Fig. 23a) Check that you are holding the pane the correct way.
  • Page 29 Replace the seal “G” by hooking in the three fixing hooks. Make sure that you put it in the correct way. (Fig. 24e) Unlock the oven door by opening it completely and closing the lever “A” on the left and right hinges (Fig. 24d) Fig.24e...
  • Page 30 Care and cleaning Removing the oven door The oven door can easily be removed as follows: Open the door to the full extent (Fig. 25a). Open the lever “A” completely on the left and right hinges (Fig. 25b). Hold the door (fig. 25c).
  • Page 31 Important! Never use screwdrivers or other utensils to remove the cover A. This could damage the enamel of the oven or the lampholder. Only use your hands. Unscrew and replace the bulb B with a new one suitable for high temperatures (300°C) with the specifications: 230-240V 50 Hz, 25W, E14.

  • Page 32: Using Your Oven For The First Time

    Note: the oven cooling fan comes on automatically at different stages of the cooking cycle. It blows out warm air above the door. When the oven is turned off, the cooling fan may stay on until the oven cools down.

  • Page 33: Clock And Timer

    Note: Changing the time will delete any automatic program. Using the timer You can use the timer at any time, even when the oven is not in use. The timer does not turn the oven off. The timer can be set for up to 23 hours and 59 minutes.

  • Page 34: Selecting The Functions And Temperature

    The temperature knob is very sensitive and may feel loose to the touch. Do not force it beyond the ‘-’ and ‘+’ symbols. The value shown in the display shows the oven cavity temperature. To turn the oven off, turn the function knob to O.

  • Page 35: Cooking Functions

    30%. Note: this function is not for cooking food. Important! Safe food handling: leave food in the oven for as short a time as possible before and after cooking or defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.
  • Page 36 Call your Authorised Service Centre. Note: if ‘do•Lo’ appears during the pyrolytic self-clean cycle then you should be able to use your oven again once it has cooled down completely. See the ‘Care and cleaning’ section. Display OFF Oven not working properly.

  • Page 37: Automatic Cooking

    Note: the cooling fan may remain on. If you are already at home to turn the oven on and only want the oven to turn off automatically, start cooking as normal, then follow step 4 or step 5 to set a time to stop the oven.

  • Page 38: Care And Cleaning

    Cleaning the outside of the oven Important! Do not use abrasive cleaners, cloths or pads on the outside surfaces of the oven. Immediately wipe off any caustic cleaners if they are spilled onto the oven door handle. Wipe the oven’s outside surfaces often, using warm water and a mild household detergent. The stainless steel may also be cleaned with a suitable cleaner and polish.
  • Page 39 If there are cracks or flaws on the oven door glass (inside or outside), if the seals are ruined or worn, or if the door does not close properly, uplug the oven and contact your Authorised Service Centre.
  • Page 40 The self-clean cycle has been cancelled by turning the function knob to O. What to do: Wait for the door to unlock. This happens automatically when the temperature inside the oven drops below 300 Wait for the oven to cool down completely before using it again.
  • Page 41 ‘do•Lo’ appears during the pyrolytic cycle What to do: Turn the function knob to O Wait for the door to unlock. This happens automatically when the temperature inside the oven drops below 300 C. 12.00 will flash. Set the clock Wait for the oven to cool down completely before using it again.
  • Page 42 Care and cleaning Removing the oven door The oven door can easily be removed as follows: Open the door to the full extent (Fig. 33a). Open the lever “A” completely on the left and right hinges (Fig. 33b). Hold the door (fig. 33c).
  • Page 43 Replacing the oven lamp Let the oven cavity and the heating elements cool down; Switch off the electrical supply; Remove the protective cover (Fig. 34); Unscrew and replace the bulb with a new one suitable for high temperatures (300 °C) having the...

  • Page 44: Warranty And Service

    Authorised Service Centre, or contact us through our website: www.fisherpaykel.com This oven has been designed and constructed in accordance with the following codes and specifications: In New Zealand and Australia: AS/NZS 60335-1 General Requirements for Domestic electrical appliances AS/NZS 60335-2-6 Particular Requirements for Domestic electrical cooking appliances AS/NZS 1044 Electromagnetic Compatibility Requirements.
  • Page 48 You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available. www.fisherpaykel.com NZ AU GB IE Built-in oven user guide Published: 02/2007 Part No. 599352 A...
