7

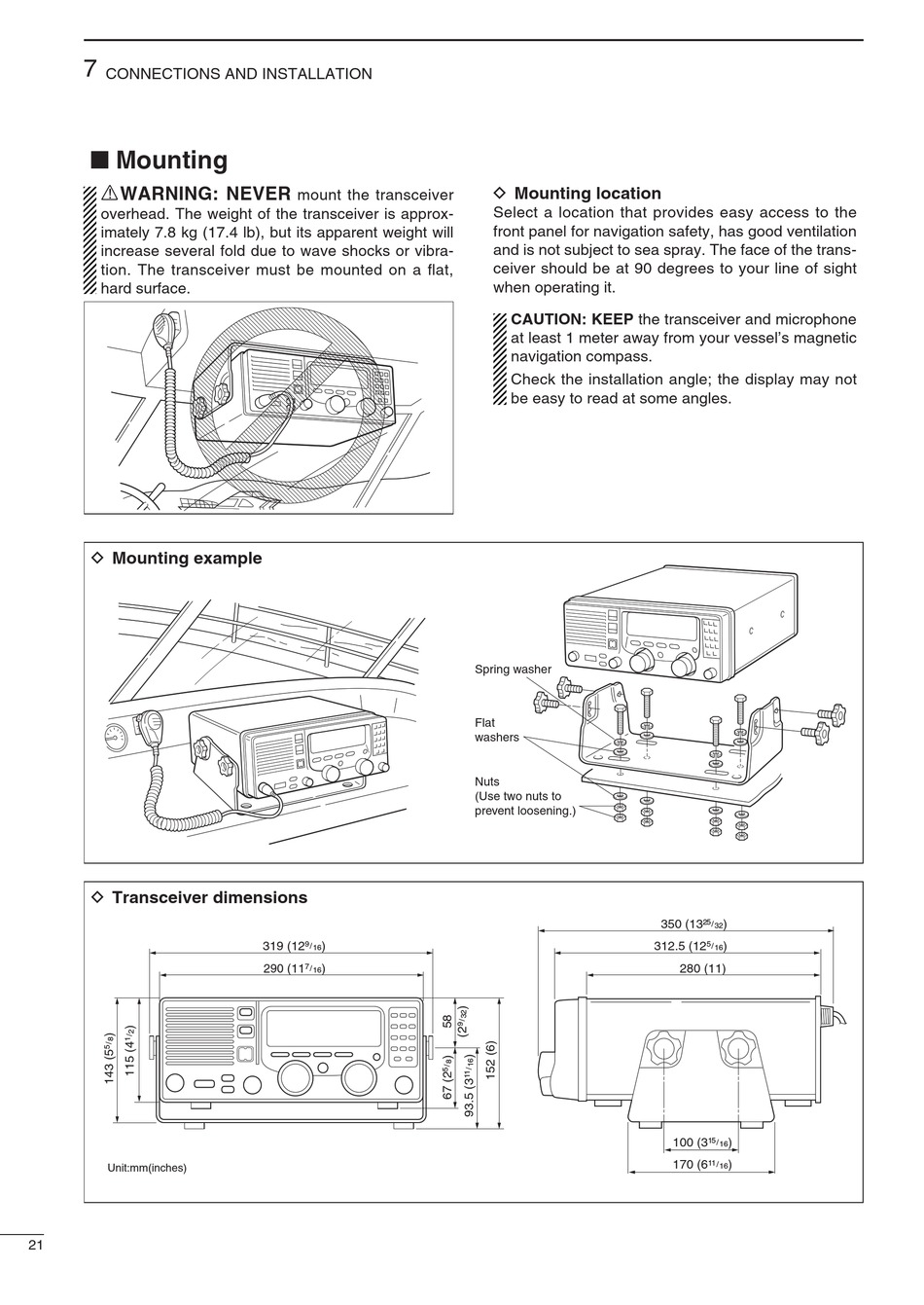

CONNECTIONS AND INSTALLATION
■ Mounting
RWARNING: NEVER
overhead. The weight of the transceiver is approx-
imately 7.8 kg (17.4 lb), but its apparent weight will
increase several fold due to wave shocks or vibra-
tion. The transceiver must be mounted on a flat,
hard surface.
D Mounting example
D Transceiver dimensions
Unit:mm(inches)
21
mount the transceiver
319 (12
)
9 / 16
290 (11
)
7 / 16
D Mounting location
Select a location that provides easy access to the
front panel for navigation safety, has good ventilation
and is not subject to sea spray. The face of the trans-
ceiver should be at 90 degrees to your line of sight
when operating it.
CAUTION: KEEP the transceiver and microphone
at least 1 meter away from your vessel's magnetic
navigation compass.
Check the installation angle; the display may not
be easy to read at some angles.
Spring washer
Flat
washers
Nuts
(Use two nuts to
prevent loosening.)
350 (13
)
25 / 32
312.5 (12
)
5 / 16
280 (11)
100 (3
)
15 / 16
170 (6
)
11 / 16
