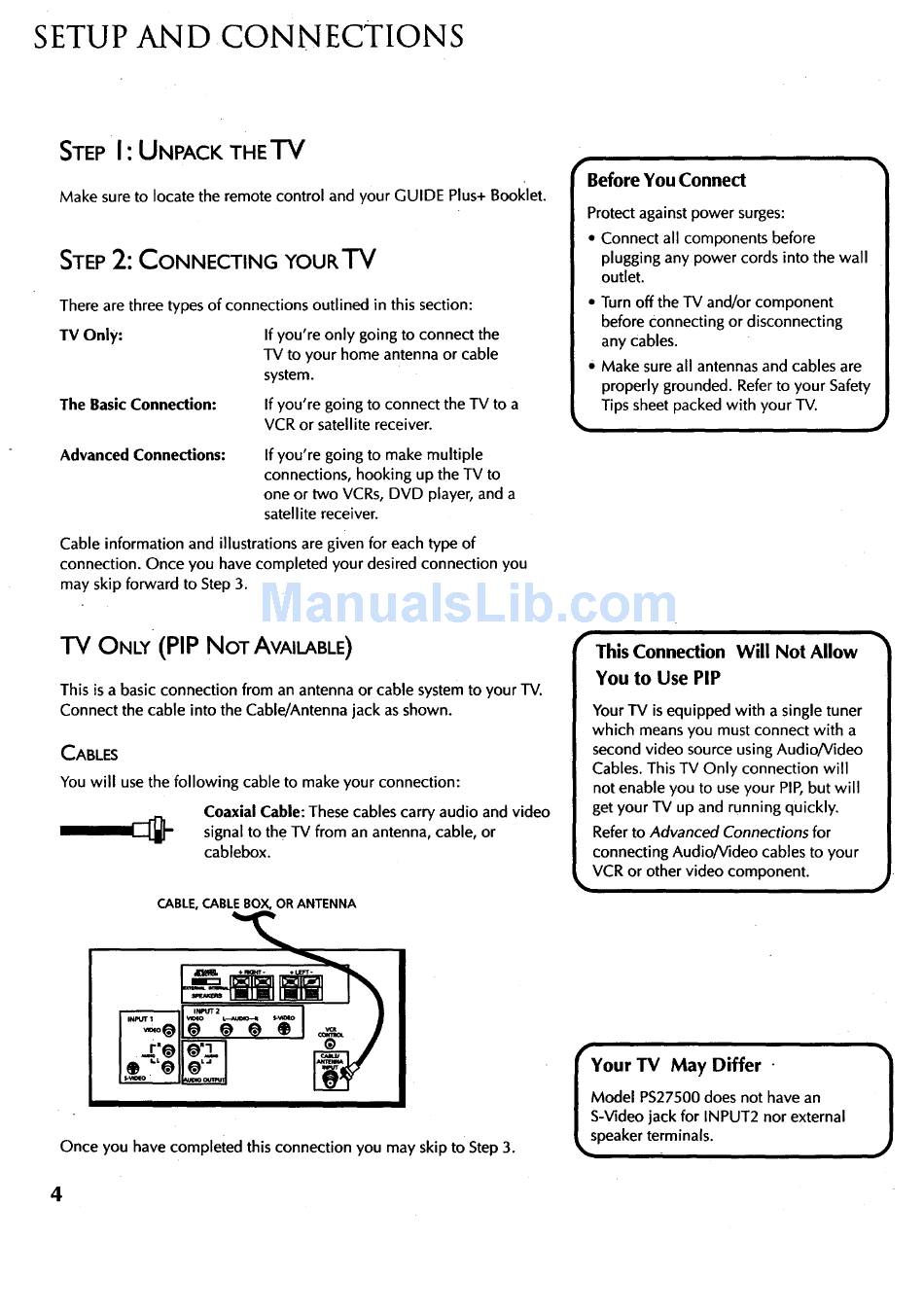

SETUP AND CONNECTIONS
STEP I:
UNPACK THETV
Make sure to locate the remote control and your GUIDE Plus+ Booklet.
STEP 2:
CONNECTING YOUR "l"Y
There are three types of connections outlined in this section:
TV Only: If you're only going to connect the
TV to your home antenna or cable
system.
The Basic Connection: If you're going to connect the TV to a
VCR or satellite receiver.
Advanced Connections:
If you're going to make multiple
connections, hooking up the TV to
one or two VCRs, DVD player, and a
satellite receiver.
Cable information and illustrations are given for each type of
connection. Once you have completed your desired connection you
may skip forward to Step 3.
i
r
Before You Connect
Protect against power surges:
• Connect all components before
plugging any power cords into the wall
outlet.
• Turn off the TV and/or component
before Connecting or disconnecting
any cables.
0 Make sure all antennas and cables are
properly grounded. Refer to your Safety
Tips sheet packed with your TV.
"1"% / ONLY
(PIP
NOT
AVAILABLE)
This is a basic connection from an antenna or cable system to your TV.
Connect the cable into the Cable/Antenna jack as shown.
CABLES
You will use the following cable to make your connection:
Coaxial Cable: These cables carry audio and video
signal to the TV from an antenna, cable, or
cablebox.
CABLE, CABLE BOX, OR ANTENNA
Once you have completed this connection you may skip to Step 3.
This Connection Will Not Allow
You to Use PIP
Your TV is equipped with a single tuner
which means you must connect with a
second video source using Audio/Video
Cables. This TV Only connection will
not enable you to use your PIP,but will
get your TV up and running quickly.
Refer to Advanced Connections for
connecting Audio/Video cables to your
VCR or other video component.
i
YOUr TV May Differ •
Model P527500 does not have an
S-Video jack for INPUT2 nor external
peaker terminals.
