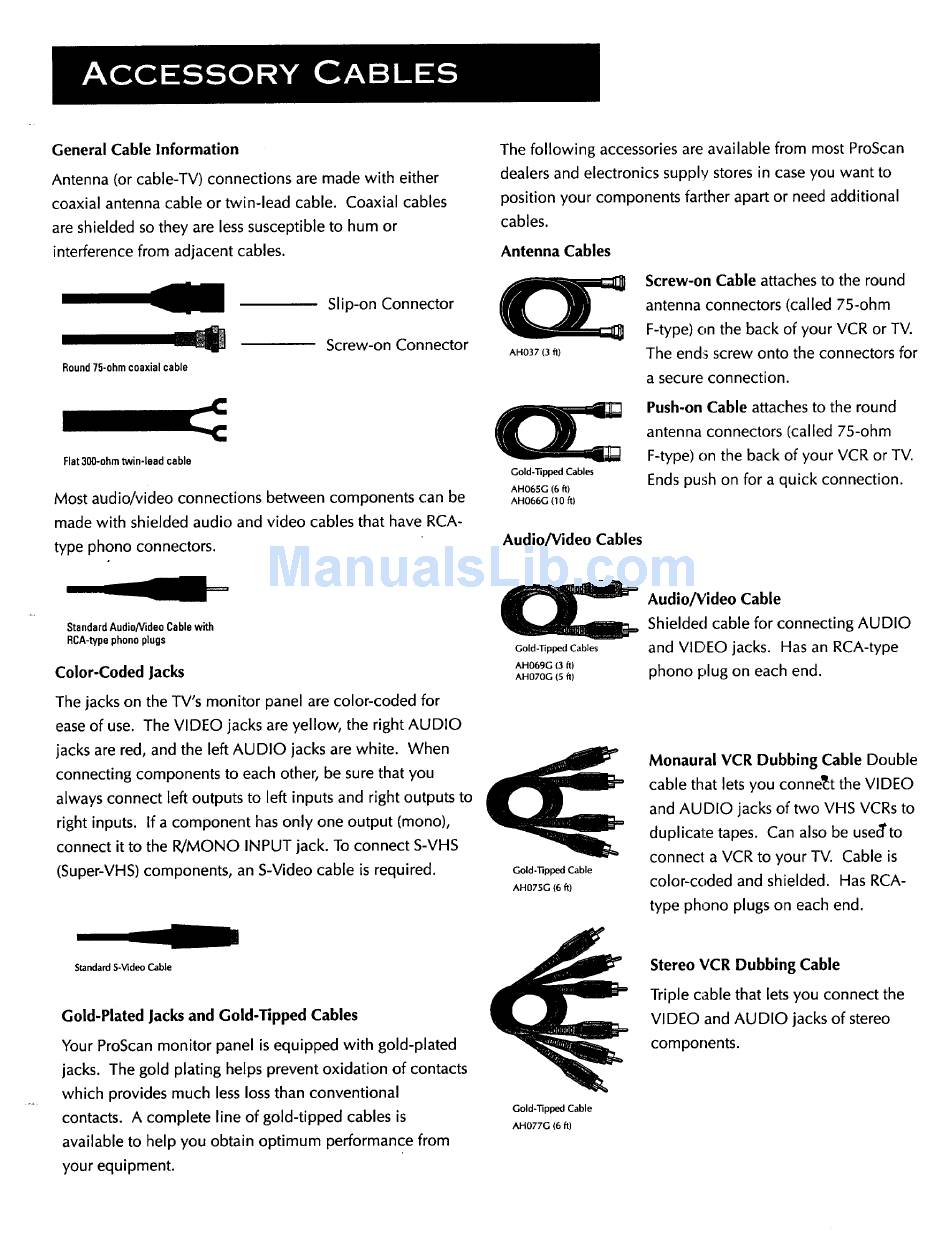

General Cable Information
Antenna (or cable-TV) connections are made with either
coaxial antenna cable or twin-lead cable. Coaxial cables
are shielded so they are less susceptible to hum or
interference from adjacent cables.
Round75-ohm coaxial cable
Slip-on Connector
Screw-on Connector
Flat300-ohmtwin-lead cable
Most audio/video connections between components can be
made with shielded audio and video cables that have RCA-
type phono connectors.
Standard Audio/Video Cable with
RCA-typephono plugs
Color-Coded Jacks
The jacks on the TV's monitor panel are color-coded for
ease of use. The VIDEO jacks are yellow, the right AUDIO
jacks are red, and the left AUDIO jacks are white. When
connecting components to each other, be sure that you
always connect left outputs to left inputs and right outputs to
right inputs. If a component has only one output (mono),
connect it to the R/MONO INPUT jack. To connect S-VHS
(Super-VHS) components, an S-Video cable is required.
The following accessories are available from most ProScan
dealers and electronics supply stores in case you want to
position your components farther apart or need additional
cables.
Antenna Cables
AH037 (3 fl)
Screw-on Cable attaches to the round
antenna connectors (called 75-ohm
F-type) on the back of your VCR or TV.
The end5 screw onto the connectors for
a secure connection.
Gold-Tipped Cables
AH065G (6 ft)
AH066G (10 if)
Push-on Cable attaches to the round
antenna connectors (called 75-ohm
F-type) on the back of your VCR or TV.
Ends push on for a quick connection.
Audio/Video Cables
_ Audio/video Cable
Shielded cable for connecting AUDIO
Gold-TippedCables and VIDEO jacks. Has an RCA-type
AH069G (3ft) phono plug on each end.
AH070G (5 fl)
Gold.'13pped Cable
AH075G (6 ft)
Monaural VCR Dubbing Cable Double
cable that lets you conne_:t the VIDEO
and AUDIO jacks of two VHS VCRs to
duplicate tapes. Can also be usecTto
connect a VCR to your TV. Cable is
color-coded and shielded. Has RCA-
type phono plugs on each end.
Standard S-Video Cable
Gold-Plated Jacks and Gold-Tipped Cables
Your ProScan monitor panel is equipped with gold-plated
jacks. The gold plating helps prevent oxidation of contacts
which provides much less loss than conventional
contacts. A complete line of gold-tipped cables is
available to help you obtain optimum performance from
your equipment.
Gold-Tipped Cable
AH077G (6 ft)
Stereo VCR Dubbing Cable
Triple cable that lets you connect the
VIDEO and AUDIO jacks of stereo
components.
