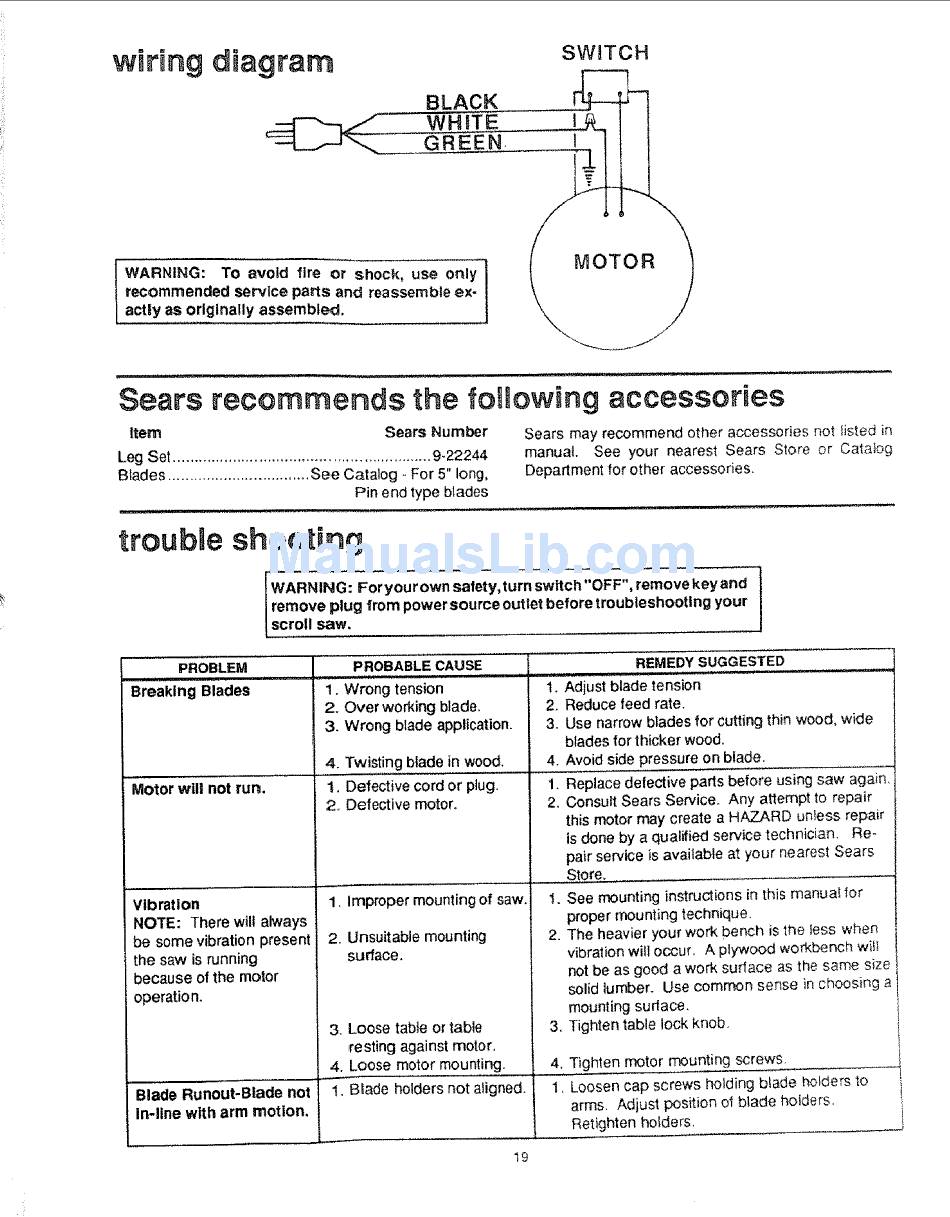

wiring diagram
SWITCH
BLACK
WARNING: To avoid fire or shock, use only
recommended service parts and reassemble ex-
actly as origlna!ly assembled.
I
I
Item Sears Number
Leg Set ............................................................ 9-22244
Biades ................................. See Catalog - For 5" long,
Pin end type blades
L, p_ ,,, i ._
trouble shooting
recommends the following accessories
Sears may recommend other accessories not Iisted in
manual. See your nearest Sears S_ore or Catabg
Department for other accessories,
WARNING: Foryourownsafety, turnswltch"OFF",removekeyand |
remove plug from power source outlet before troubleshooting your
1
scroll saw.
PROBLEM
I,L
Breaking Blades
Motor will not run'
Vibration
NOTE: There will always
be some vibration present
the saw is running
because of the motor
operation,
Blade Runout-Btade not
In-line with arm motion,
P OBABLF: ........................... CAUSE
........................ i, ....
1, Wrong tension
2. Over working blade.
3. Wrong blade application.
4. Twis!ing blade ,!n wood.
1. Defective cord or plug.
2, Defective motor.
1, Improper mounting of saw.
2. Unsuitable mounting
surface.
REMEDY SUGGES]
1. Adjust blade tension
2. Reduce feed rate.
3. Use narrow blades for cutting thin wood, wide
blades for thicker wood,
4. Avoid side pressure on blade
1. Replace detective parts befor _ using saw again,
2. Consult Sears Service. Any attempt to repair
this motor may create a HAZARD untess repair
is done by a qualified service hnician. Re-
pair service is available at yol mr n earest Sears
Store. ,,,
1. See mounting instructions in ! manualfor
proper mounting technique.
2, The heavier your work bench is the tess when
vibration will occur, A plywoc workbench witf
not be as good a work surfao as the same size
solid lumber. Use common s inse in choosing a
mounting surface,
Tighten table lock knob.
Tighten motor rnoun!ing scre____'
Loosen cap screws holding b _de holders to
arms. Adjust position of blad holders.
Retighten holders, _.j
3. Loose table or table
resting against motor,
4. Loose motor mounting.
t, B_ade holders not aligned
,
4.
1L
19
