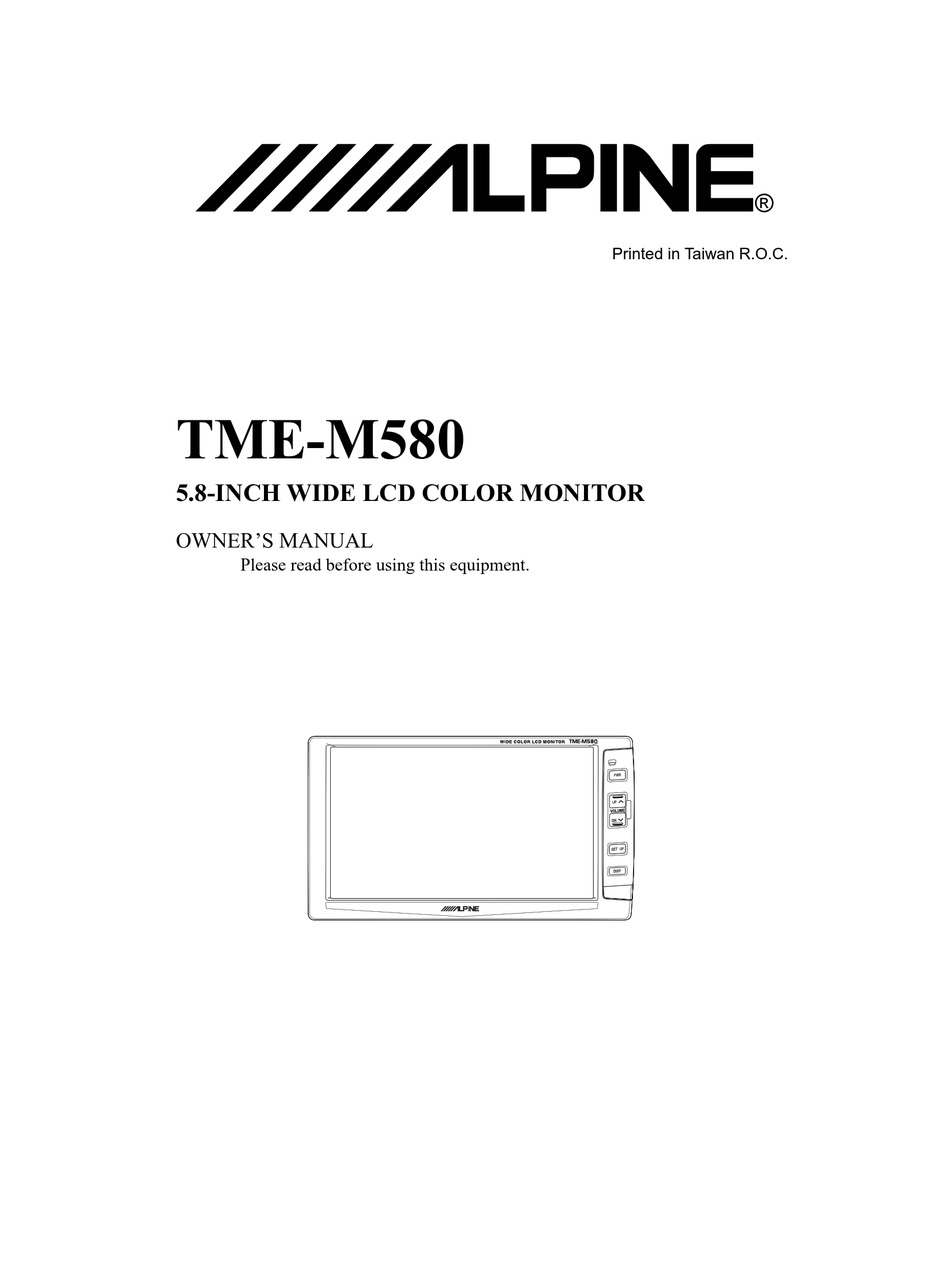

- Page 1 ® Printed in Taiwan R.O.C. TME-M580 5.8-INCH WIDE LCD COLOR MONITOR OWNER’S MANUAL Please read before using this equipment.
-
Page 2: Points To Observe For Safe Usage
Points to Observe for Safe Usage WARNING This symbol means important instructions. Failure to heed them can result in serious injury or death. DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, fire or electric shock. KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. - Page 3 HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.
-
Page 4: Operation
Operation NOTE: Controllable with Remote Control This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer. Point the optional remote control transmitter at the remote control sensor. Screen Display ON/OFF 1. Press the PWR button. - Page 5 Operation Reset the Monitor Settings 1. Press and hold the PWR button for at least 1 second. 2. Press the SEL button. 3. Select the Navigation system by pressing the DN or UP button. : Standard - Navigation for all others (except Europe) : Europe - Navigation for Europe only If no key is pressed within 10 seconds, the On-Screen Display wil turn off.
-
Page 6: In Case Of Difficulty
If you encounter a problem, please review the items in the following check list. This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer. Symptom... -
Page 7: Installation
• Mounting the Interface box near the monitor will reduce the need for additional cable extensions. • This monitor can be mounted in a headrest if desired. A special mounting kit is required and can be purchased from your Authorized Alpine dealer. Ask for model KTE-580V. Page 7... -
Page 8: Specifications
SERVICE CARE • For European Customers Should you have any questions about warranty, please consult your authorized Alpine Dealer. • For Customers in other Countries Customers who purchase the product with which this notice is packaged, and who make this purchase in countries other than the United States of America and Canada, please contact your dealer for information regarding warranty coverage. - Page 9 TME-M580 + Video and Navigation Page 9...
- Page 10 TME-M580 + Navigation Only Page 10...
- Page 11 TME-M580 + Video Only Page 11...
- Page 12 Tel.:1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF CANADA, INC. 7300 Warden Ave., Suite 203, Markham, Ontario L3R 9Z6, Canada Tel.:1-800-ALPINE-1 (1-800-257-4631) ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 6-8 Fiveways Boulevarde Keysborough, Victoria 3173, Australia Tel.: (03) 9769-0000 ALPINE ELECTRONICS GmbH Kreuzerkamp 7, 40878 Ratingen, Germany Tel.: 02102-45 50...
