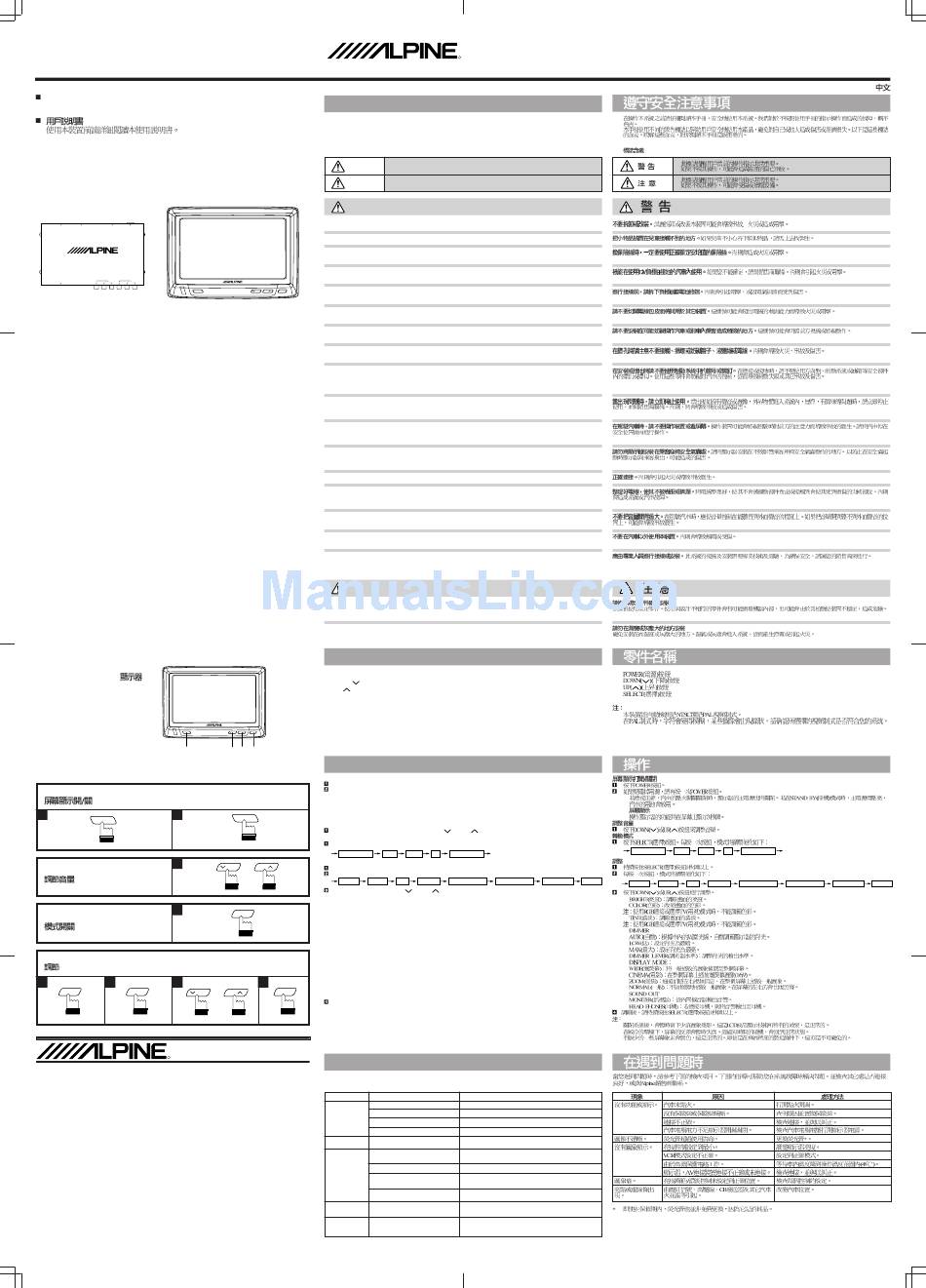

Alpine TME-M750 Owner's Manual

TME-M750
6.5-inch Mobile Color Monitor
OWNER'S MANUAL
• Please read before using this equipment.
•
TV TUNER INPUT NAVIGATION INPUT DISPLAY OUTPUT POWER SUPPLY
MOBILE COLOR MONITOR TME-M750
AUX INPUT 2 AUX INPUT 1
PHONE OUTPUT VIDEO L AUDIO R VIDEO L AUDIO R
POWER
Monitor
POWER
1
Screen Display ON/OFF
1 2
POWER
2
Adjusting the Volume
2
Mode switching
Adjustment
1 2 3
SELECT SELECT DN
R
ALPINE ITALIA S.p.A.
ALPINE ELECTRONICS, INC.
Via C. Colombo 8, 20090 Trezzano Sul
Tokyo office: 1-1-8 Nishi Gotanda,
Naviglio MI, Italy
Shinagawa-ku, Tokyo 141-8501, Japan
Tel.: 02-48 40 16 24
Tel.: (03) 3494-1101
ALPINE ELECTRONICS FRANCE S.A.R.L.
ALPINE ELECTRONICS OF AMERICA, INC.
(RCS PONTOISE B 338 101 280)
19145 Gramercy Place, Torrance,
98, Rue De La Belle Etoile, Z.I. Paris Nord II
California 90501, U.S.A.
B.P. 50016 F-95945, Roissy,
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
Charles de Gaulle Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U. K., LTD.
ALPINE ELECTRONICS OF CANADA, INC.
13 Tanners Drive, Blakelands,
Suite 203, 7300 Warden Ave. Markham,
Milton Keynes MK14 5BU, U.K.
Ontario L3R 9Z6, Canada
Tel.: 01908-61 15 56
Tel.: 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS DE ESPAÑA, S.A.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
Portal De Gamarra 36, Pabellón 32
6-8 Fiveways Boulevarde Keysborough,
01013 Vitoria (Alava) - Apdo. 133, Spain
Victoria 3173, Australia
Tel.: 34-45-283588
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen,
Germany
Tel.: 02102-45 50
Points to Observe for Safe Usage
• Read this manual carefully before starting operation and use this system safely. We cannot be responsible for
problems resulting from failure to observe the instructions in this manual.
• This manual uses various pictorial displays to show how to use this product safely and to avoid harm to yourself and
others and damage to your property. Here is what these pictorial displays mean. Understanding them is important
for reading this manual.
Meaning of displays
Warning
Caution
Warning
WIDE COLOR LCD MONITOR TME-M750
DO NOT DISASSEMBLE OR ALTER. Doing so may lead to accident, fire or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN. If swallowed, consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES. Failure to do so may result in fire or electric
shock.
USE ONLY IN VEHICLES WITH A 12 VOLT NEGATIVE (–) GROUND. Check with your dealer if you are not sure.
Failure to do so may result in fire or electric shock.
VOLUME
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE (–) BATTERY TERMINAL. Failure to do so
DN UP
SELECT
may result in electric shock or injury due to electrical shorts.
DO NOT CUT AWAY THE WIRE SHEATH AND USE POWER FOR OTHER EQUIPMENT. Doing so may exceed the
current carrying capacity of the wire and result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION OR CREATE HAZARDS FOR
VEHICLE OCCUPANTS. Doing so may obstruct forward vision or hamper movement.
DO NOT CONTACT, DAMAGE OR OBSTRUCT PIPES, FLUID LINES OR WIRING WHEN DRILLING HOLES. Failure
to take such precautions may result in fire or cause an accident or injuries.
DO NOT USE NUTS OR BOLTS IN THE BRAKE SYSTEM WHEN MAKING INSTALLATION OR GROUND
CONNECTIONS. Never use safety-related parts such as bolts or nuts in the steering or brake systems or tanks to make
wiring installations or ground connections. Using such parts could disable control of the vehicle and cause brake failure,
other accident or injury.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS. When problems occur such as a lack of sound or video, foreign
objects inside the unit, smoke coming out, or noxious odors, stop use immediately and contact the dealer where you
bought the equipment. Failure to do so may result in an accident or injury.
DO NOT OPERATE THE EQUIPMENT OR LOOK AT THE SCREEN WHILE DRIVING THE VEHICLE. Operating the
equipment may distract the driver from looking ahead of the vehicle and cause accident. Always stop the vehicle in a
safe location before operating this equipment.
DO NOT INSTALL THE MONITOR NEAR THE PASSENGER SEAT AIR BAG. Ensure that the location chosen for the
monitor does not interfere with the operation of the passenger seat air bag. This will prevent the triggered air bag from
launching the display towards passengers, possible causing injury.
MAKE THE CORRECT CONNECTIONS. Failure to do so may cause fire or accident to occur.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED. Route the cables and wiring so as not to be crimped
by moving parts or make contact with sharp or pointed spots which might damage the wiring. Failure to do so may cause
failure of unit or vehicle.
DO NOT RAISE THE VOLUME EXCESSIVELY. Keep the volume at a level where you can still hear outside noises
while driving. Driving while unable to hear outside noises could be the cause of accident.
DO NOT USE THIS EQUIPMENT FOR PURPOSES OTHER THAN STATED FOR THE VEHICLE. Failure to do so may
result in electric shock or injury.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS. The wiring and installation of this unit requires special
technical skill and experience. To ensure safety, always contact the dealer where you purchased this unit to have the
work done.
Caution
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY. Be sure to use only the specified
accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in
place as parts that come loose can create hazards.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST. Avoid installing the unit in locations with high
incidence of moisture or dust. Moisture or dust that penetrates into this unit may cause smoke or fire.
Parts Identification
WIDE COLOR LCD MONITOR TME-M750
1 POWER button
2 DOWN (
) button
3 UP ( ) button
4 SELECT button
Notes:
• This unit will automatically detect the NTSC and PAL video standards.
• In the PAL mode, characters may freeze or banding may occur in some images. Make sure you have selected the
correct video mode for your system.
VOLUME
DN UP SELECT
2 3 4
Operation
Screen Display ON/OFF
Press the POWER button.
To turn off the POWER, press the POWER button again.
Notes:
• If properly connected, the monitors main POWER will turn off when the vehicle's ignition switch is off. If the main
power lamp illuminates in the STAND BY mode, the vehicle's battery may be discharged.
• On Screen Display
Operating the monitor functions will be displayed On Screen for 3 seconds.
Adjusting the Volume
POWER
Adjust the volume level by pressing the DOWN (
Mode switching
Press the SELECT button. Each press of the button will cycle through the modes as follows:
NAVIGATION AUX1
Adjustment
DN UP
Press and hold the SELECT button for at least 1 second.
Each press of the button will cycle through the modes as follows:
BRIGHT COLOR
Adjust by pressing the DOWN (
• BRIGHT: Adjust the brightness of the picture.
• COLOR: Change the color balance of the picture.
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
• TINT: Adjust the tint of the picture.
SELECT
Note: The color adjustment is disabled when using the RGB connection or if TV mode selected.
• DIMMER:
AUTO: Backlighting of the monitor adjusts automatically to the ambient light available inside the vehicle.
LOW: Backlighting is set to its lowest level.
MAX: Backlighting is set to its maximum level.
• DIMMER LEVEL: Adjust the backlighting output level.
• DISPLAY MODE:
WIDE: Expands a normal broadcast picture to fit the entire screen.
CINEMA: Displays a widescreen formatted picture (16:9) to fit the entire screen.
ZOOM: Displays a normal broadcast picture to fit the entire screen by cropping the left and right video information.
NORMAL: Displays a normal broadcast picture without modification. Black stripes will appear at left and right of the
screen.
4
• SOUND OUT
MONITOR: Outputs sound through the built-in speakers.
UP SELECT
HEADPHONES: Outputs sound to headphones if connected.
After completing adjustments, press and hold the SELECT button for at least 1 sec.
Notes:
• After turning the system off, a slight ghost of the image will remain temporarily. This is an effect peculiar to LCD
technology and is normal.
• Under cold temperature conditions, the screen may lose contrast temporarily. After a short warm-up period, it will
return to normal.
• It is normal for a very small number of the screen's pixels to be off. Even under the very high precision manufacturing
conditions, this fact is unavoidable.
In Case of Difficulty
If you encounter a problem, please review the item in the following check list. This guide will help you isolate the problem
if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized
Alpine dealer.
Symptom
No function or Car's ignition is off.
display.
No fuse or blown fuse.
Incorrect connections.
Vehicle's battery is weak.
Unclear picture Fluorescent tube is exhausted.
display.
No picture Brightness control is set for
display. minimum brightness control.
Incorrect setting of the VCR mode.
Protective circuit is on because of
high temperature.
Incorrect or open connection with
the Monitor, AV Interface unit.
Brightness/Colour/Tint control are
Picture colour is
not set to the proper positions.
poor.
Caused by neon signs, high-voltage
Spots or dotted
lines/stripes power lines, CB transmitter, other
vehicle's ignition plugs, etc.
appear.
* The fluorescent tube replacement is not free of charge even within the warranty period, for the tube is an article of
consumption.
R
68P21523Y50-O
Printed in Japan (S)
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions will result in severe injury or death.
This label is intended to alert the user to the presence of important operating instructions.
Failure to heed the instructions can result in injury or material damage.
) or UP ( ) button.
AUX2 TV NAVIGATION
TINT DIMMER DIMMER LEVEL DISPLAY MODE SOUND OUT
) or UP ( ) button.
Cause Solution
Turn the ignition on.
Check the cause and replace the fuse.
Check connection and remedy.
Check the voltage of vehicle's battery.
Replace the fluorescent tube*.
Adjust the brightness.
Switch to the correct mode.
Wait until the temperature inside the vehicle comes down to
the operating temperature range (45°C).
Check the connection and remedy.
Check each control.
Change the location of your vehicle.
English
•
•
1
2
3
4
•
•
•
•
NAVIGATION AUX1 AUX2 TV NAVIGATION
BRIGHT
BRIGHT COLOR TINT DIMMER DIMMER LEVEL
•
•
•
•
•
•
•
•
•
•
(RCS PONTOISE B 338 101 280)
Sankei Kikaku Co., Ltd.
1-13-38, Hinodai,
Hino, Tokyo, Japan
DISPLAY MODE SOUND OUT BRIGHT
