Barco SLM R12 Owner's Manual

Hide thumbs Also See for SLM R12:
Table of Contents

Advertisement

Quick Links

Download this manual

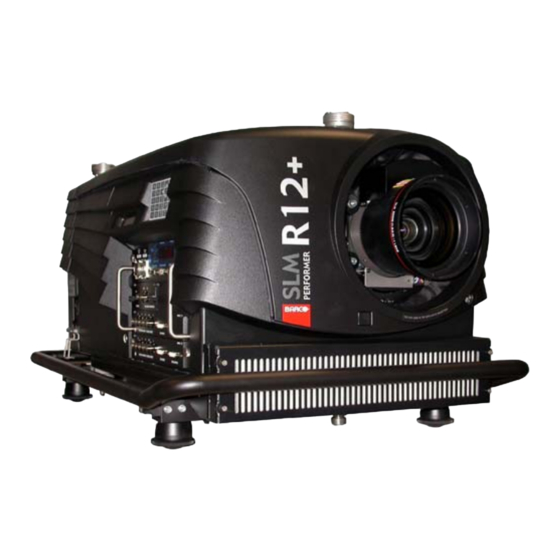

SLM R12+
Owner's manual
R9010171
R5976654/05
27/01/2005

Advertisement

Table of Contents
loading

Related Manuals for Barco SLM R12

Summary of Contents for Barco SLM R12

  • Page 1 SLM R12+ Owner’s manual R9010171 R5976654/05 27/01/2005...
  • Page 2 Barco nv Events Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: events@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Safety Instructions ....................5 Warnings.
  • Page 6 Table of contents Password ..........................59 Menus on Local LCD Display .
  • Page 7 9.11 BARCO Logo ........
  • Page 8 Table of contents R5976654 SLM R12+ 27/01/2005...

  • Page 9: Safety Instructions

    The customer should never attempt to disassemble the lamp casing or to dispose of the lamp casing other than by returning it to BARCO. To prevent injuries and physical damage, always read this manual and all labels on the system before connecting to the wall outlet, or adjusting the projector.
  • Page 10 1. Safety Instructions Extra Safety manual Read also safety instructions in separate manual (R5976125). R5976654 SLM R12+ 27/01/2005...

  • Page 11: Packaging And Dimensions

    2. Packaging and Dimensions 2. PACKAGING AND DIMENSIONS Overview • Projector Packaging • Box Content • Lamp Packaging • Lens Packaging • Projector Dimensions 2.1 Projector Packaging Way of Packaging The projector is packed in a carton box. To provide protection during transportation, the projector is surrounded with foam. The package is secured with banding and fastening clips.

  • Page 12: Lens Packaging

    2. Packaging and Dimensions Save this carton box , it can be used to repack the lamp when you ever have to transport your projector. 2.4 Lens Packaging Way of Packaging Lenses are supplied as an individual item. They are packed in a carton. 2.5 Projector Dimensions Overview •...

  • Page 13: Projector Dimensions (Inclusive Dust Filters)

    2. Packaging and Dimensions Image 2-3 Side view dimensions 2.5.2 Projector Dimensions (Inclusive Dust Filters) Projector Front View The value of the projector dimensions is indicated in mm. Conversion to inches: 24.5 mm = 1 mm IR-receiver Air OUT Image 2-4 Projector front view dimensions Projector Top View The value of the projector dimensions is indicated in mm.

  • Page 14: Projector Side View

    2. Packaging and Dimensions Image 2-5 Projector top view dimensions Projector Side View The value of the projector dimensions is indicated in mm. Conversion to inches: 24.5 mm = 1 mm Image 2-6 Projector side view dimensions R5976654 SLM R12+ 27/01/2005...

  • Page 15: Installation Guidelines

    3. Installation Guidelines 3. INSTALLATION GUIDELINES The engines are non sealed versions. 3.1 General ARNING Before installing the projector, read first the safety instructions. Ambient Temperature Conditions. Careful consideration of things such as image size, ambient light level, projector placement and type of screen to use are critical to the optimum use of the projection system.

  • Page 16: Configuration

    3. Installation Guidelines Screens are rated by how much light they reflect (or transmit in the case of rear projection systems) given a determined amount of light projected toward them. The ‘GAIN’ of a screen is the term used. Front and rear screens are both rated in terms of gain. The gain of screens range from a white matte screen with a gain of 1 (x1) to a brushed aluminized screen with a gain of 10 (x10) or more.
  • Page 17 3. Installation Guidelines Table mounted, front projection, second way. Table/Top side facing floor Projector SIDE VIEW Screen Optical axis projection lens Floor CD = SH/2 + B + A - 554mm Screen TOP VIEW Floor BACK VIEW Image 3-2 Table mounted configuration up side down Ceiling mounted, front projection Ceiling/Top side facing floor Ceiling...

  • Page 18: Safety Area Around Projector

    3. Installation Guidelines Ceiling mounted, front projection, second way. Ceiling/Top side facing ceiling Ceiling Screen Optical axis projection lens Projector SIDE VIEW CD = SH/2 + B + A - 554mm Screen CEILING VIEW Ceiling BACK VIEW Image 3-4 Ceiling mounted projector 3.3 Safety Area around projector Safety area Make sure the projector is located so that the air inlets and outlets for the cooling system are not obstructed.
  • Page 19 3. Installation Guidelines Image 3-5 Safety area around the projector R5976654 SLM R12+ 27/01/2005...

  • Page 20: Projector Tilting

    3. Installation Guidelines 3.4 Projector tilting Turning around the projection axes (E) FRONT VIEW 15° 15° (D)Lamp Axis (C) Start point Image 3-6 Tilting diagram Allowed Projector Tilting Area Forbidden Projector Tilting Area Start point Lamp axis Front view Consider the starting point at the lamp side (input side), the following tilting is possible : •...

  • Page 21: Access To The Lamp Unit

    3. Installation Guidelines 3.5.1 Access to the Lamp Unit. What has to be done To access the lamp casing, a side panel has to be removed. Necessary tools A flatblade screwdriver of 5 mm Removing the side panel 1. Turn with a screwdriver the side panel lock screw (A) a quarter turn counter clockwise. Image 3-7 Unlocking the side cover 2.
  • Page 22 3. Installation Guidelines Installing the lamp unit 1. Remove the lock nut (B) on the 3 spacer screws (A). Image 3-9 2. Line up the lamp unit guides (A) with the guides on the projector base (B) and push the unit into the frame until it fits. Image 3-10 Lamp unit mounting 3.

  • Page 23: Reinstalling The Side Panel

    3. Installation Guidelines Image 3-11 Lamp unit fixation 3.5.3 Reinstalling the Side Panel What has to be done After the new lamp unit has been installed, the side panel has to be remounted. Necessary tools A flatblade screwdriver of 5 mm Reinstalling the side panel 1.

  • Page 24: Realignment Of The Lamp In Its Reflector

    3. Installation Guidelines Image 3-14 Locking side panel 3.6 Realignment of the lamp in its reflector ARNING As the projector has to be opened, this procedure has to be performed by qualified service tech- nician. With higher run times, the light output of the lamp will decrease, which results in a lower light output on the screen. This light output decrease can be compensated by readjusting the position of the lamp.
  • Page 25 3. Installation Guidelines Image 3-15 Lamp adjustment access 3. Start up the adjustment mode and select Service. ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 3-2 4.
  • Page 26 3. Installation Guidelines Image 3-16 Lamp Z-Axis alignment (Former lamp house) Image 3-17 Lamp Z-Axis alignment (Universal lamp house) 6. Slowly turn the screw B (image 3-16, , image 3-17, using an Allen key of 3 mm, a little clockwise until the maximum value of the Z-AXIS indication in the lamp menu is reached.

  • Page 27: Lenses

    3. Installation Guidelines 3.7 Lenses Overview • Lenses • Lens selection • Lens formulas • Lens Installation • Cleaning the lens 3.7.1 Lenses Available lenses TLD(1.6–2.0:1) R9840670 R9840680 TLD(2.0–2.8:1) TLD(2.8–5.0:1) R9840690 TLD(1.2:1) R9840770 TLD(0.8:1) R9840900 TLD(5.0–8.0:1) R9840910 TLD HB(0.8:1) R9842040 TLD HB(1.6–2.0:1) R9842060 TLD HB(2.0–2.8:1)

  • Page 28: Lens Installation

    3. Installation Guidelines Formulas for TLD lenses Metric formulas (meter) Inch formulas (inch) TLD(0.8:1) PD=0.77xSW+0.05 PD=0.77SW+1.97 TLD(1.2:1) PD=1.11xSW-0.01 PD=1.11xSW-0.39 TLD(1.6–2.0:1) =1.47xSW-0.09 =1.47xSW-3.54 =1.85xSW-0.13 =1.85xSW-5.12 TLD(2.0–2.8:1) =1.85xSW-0.17 =1.85xSW-6.69 =2.62xSW-0.24 =2.62xSW-9.45 TLD(2.8–5.0:1) =2.58xSW-0.16 =2.58xSW-6.30 =4.71xSW-0.38 =4.71xSW-14.96 TLD(5.0–8.0:1) =4.52xSW-0.01 =4.52xSW-0.39 =7.53xSW-0.29 =7.53xSW-11.42 3.7.4 Lens Installation How to install ? Follow the next procedure:...

  • Page 29: Cleaning The Lens

    3. Installation Guidelines Image 3-19 Mounted Lens On a table mounted projector, hold the projector when pushing the lens into the lens block to avoid sliding off from Caution: the table. 3.7.5 Cleaning the lens To minimize the possibility of damaging the optical coating or scratching exposed lens surface, we have de- veloped recommendations for cleaning the lens.
  • Page 30 3. Installation Guidelines Image 3-20 Battery cover removal 2. Plug in the battery (9 V battery - type E-block or equivalent) onto the battery contact plate (A). Image 3-21 Battery connection 3. Place the battery into the lower compartment (B) (image 3-21). 4.

  • Page 31: Stacking Projectors

    3. Installation Guidelines 3.9 Stacking Projectors What is possible? Up to 3 projectors can be stacked on each other without using extra tools or accessories. How to stack? Handle as follow: 1. Put the second projector on the first one so that base plate of the second projector matches with the rigging socket of the first projector.
  • Page 32 3. Installation Guidelines Image 3-25 Mounting the security chain 5. Guide hook and cable around the carry handle and guide it around the carry handle of the upper projector. Image 3-26 Mounting the security hook 6. Hook it in the foreseen hole B in the base plate of the upper projector. R5976654 SLM R12+ 27/01/2005...
  • Page 33 3. Installation Guidelines Image 3-27 Mounting the security hook (detail) How to open a secured rigging point? 1. Push the ring (A) of the first projector downwards and hold it in that position. Image 3-28 Opening the rigging sockets 2. Turn the locked part (B) of the second projector a quarter counter clockwise and move it upwards. R5976654 SLM R12+ 27/01/2005...

  • Page 34: Rigging Points And Accessories

    3. Installation Guidelines 3.10 Rigging points and Accessories Clamps Slots are made in the carry handle frame for easy inserting the overlockers and for easy adjusting the clamps position so that this position matches with the rigging points. Consult a professional structural engineer prior to suspending the ceiling mount from a structure not intended for that use. Always ensure the working load limit of the structure supporting the projector.
  • Page 35 3. Installation Guidelines Image 3-32 Opening the rigging clamp 2. Hook the clamp around the tube. The trigger automatically shuts the clamp. 3. Close the fixation handle and secure it by turning the hand screw. Image 3-33 Closing the rigging clamp R5976654 SLM R12+ 27/01/2005...
  • Page 36 3. Installation Guidelines R5976654 SLM R12+ 27/01/2005...

  • Page 37: Connections

    4. Connections 4. CONNECTIONS Overview • Power connection • Switching on • Switching to standby • Switching off • Input Source Connections • Communication Connections 4.1 Power connection AC Power cord connection Use the supplied power cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the left of the projector.
  • Page 38 When ENTER is pressed to go on, the warning will be repeated every 30 min. The total lifetime of the lamp for a safe operation is 1000 hours max. Do not use it longer. Always replace with a same type of lamp. Call a BARCO authorized service technician for lamp replacement. AUTION Using a lamp for more than 1000 hours is dangerous as the lamp could explode.

  • Page 39: Switching To Standby

    4. Connections 4.3 Switching to standby How to switch to standby? 1. Press Standby to switch the projector to standby. 4.4 Switching off How to switch off the projector? 1. Press first Standby. 2. Let cool down the projector until the fans stop blowing, at least 15 min. 3.

  • Page 40: Input Module Insertion

    4. Connections slot 1 RGB/Component slot 2 Video slot 3 not used slot 4 not used When using a RCVDS05, it is recommended to use a 5-cable output module in the RCVDS. The outputs of this module has to be connected to slot 1 of the projector.

  • Page 41: Fixed Slot (Slot 1 & 2)

    4. Connections 4.5.4 Fixed slot (slot 1 & 2) Where to find? Slot 1 & 2 has 5 BNC input terminals for 5 cable input and a DVI plug for DVI input. Slot 1 has also an DVI output for loop through to a second projector.

  • Page 42: Serial Digital Input (Slot 3 & 4)

    4. Connections 3. Press ENTER. 4. Press the cursor key ↑ or ↓ to select Input Slots. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑ or ↓ then <ENTER>...

  • Page 43: Hd Sdi Digital Input (Slot 3 & 4)

    4. Connections How to connect ? 1. Connect the output of your SDI source to the input BNC of the SDI input. Diagnostic Code IR-Receiver Green Operation Red Stand-by Two way hardwired Hardwired remote remote CTRL 2 CTRL 3 Sync OK Hardwired remote RS232/422 IN...

  • Page 44: Digital Video Decoder Input

    4. Connections Diagnostic Code IR-Receiver Green Operation Red Stand-by Two way hardwired Hardwired remote remote CTRL 2 CTRL 3 Sync OK Hardwired remote RS232/422 OUT COMM PORT TRIGGER OUT RS232/422 IN CTRL 1 SDI DIGITAL INPUT HD SDI DIGITAL MODULE High Bandwidth 5 CABLE INPUT DVI INPUT High Bandwidth 5 CABLE INPUT...
  • Page 45 4. Connections Diagnostic Code IR-Receiver Green Operation Red Stand-by Two way Hardwired hardwired remote remote CTRL 2 CTRL 3 Sync OK Hardwired remote RS232/422 IN RS232/422 OUT COMM PORT Ethernet CTRL 1 Y/Vid S-Video HD SDI DIGITAL MODULE DIGITAL VIDEO DECODER High Bandwidth 5 CABLE INPUT DVI INPUT High Bandwidth 5 CABLE INPUT...

  • Page 46: Communication Connections

    How to connect a COM800 Setup Always use the Barco COM 800 Splitter, R9827941 (240V) or R9827948 (110V), when using the COM 800 protocol. 1. Use a data cable with at least 9 cores and 2 DB9 female connectors, just cross the pin 2 and pin 3 connection to make a Custom Null Modem Cable.
  • Page 47 4. Connections Female Connector Pin Number 4 5 6 7 8 9 Pin Number 1 2 3 4 5 6 7 8 9 Female Connector Image 4-8 Make a Custom Null Modem Cable 2. Use the Custom Null Modem Cable to connect the COM 800 port of the master-projector to the ’To Switcher’ port on the frontside of the COM 800 Splitter.
  • Page 48 4. Connections Diagnostic Code IR-Reciever Two Way hardwired Hardwired Green operational remote remote Red Stand-by CTRL 3 CTRL 2 Hardwired Sync OK remote CTRL 1 RS 232/422 IN RS 232/422 OUT COMM PORT 10(/100)BASE-T Read instructionsbefore connecting periphals Custom Null Modem Cable Front TO SWITCHER TO IR RECEIVER...

  • Page 49: Communication With Peripherals

    4. Connections 4.6.3 Communication with peripherals What is possible with an RCVDS05 connected. • Up to 20 inputs with the RCVDS 05 and 90 inputs when RCVDS’s are linked via the expansion module. • Serial communication with the projector. • Remote control buttons on the RCVDS to control the projector (source selection and analog settings).

  • Page 50: Ethernet Connection

    4. Connections Diagnostic Code IR-Receiver Green Operation Red Stand-by Two way hardwired Hardwired remote remote CTRL 2 CTRL 3 Sync OK Hardwired remote RS232/422 OUT COMM PORT TRIGGER OUT RS232/422 IN CTRL 1 SDI DIGITAL INPUT HD SDI DIGITAL MODULE High Bandwidth 5 CABLE INPUT DVI INPUT High Bandwidth 5 CABLE INPUT...

  • Page 51: Getting Started

    5. Getting Started 5. GETTING STARTED 5.1 RCU & Local keypad How controlling the projector ? The projector can be controlled by the local keypad or by the remote control unit. Location of the local keypad ? The local keypad is located on the input side of the projector. Remote control functions.

  • Page 52: Operating The Projector

    5. Getting Started Barco key selection key, to get direct access to the lens adjustment menus. ADJUST key, to enter or exit the adjustment mode. Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with a pencil, followed by pressing one digit button between 0 and 9.

  • Page 53: Switching To Standby

    5. Getting Started The projector mode indication lamp will be green EXIT ENTER STBY TEXT FREEZ PAUSE HELP PHASE SHARPNESS TINT COLOR EXIT STANDBY BRIGHTNESS ENTER CONTRAST TEXT PAUSE TINT SHARPN BRIGHTN CONTRAST PHASE COLOR Image 5-2 Press a digit button to select an input source. Lamp Run time indication see chapter "4.

  • Page 54: Quick Set Up Adjustments

    5. Getting Started ERROR DMD out of operating temperature range Automatic shutdown is activated Menu 5-1 5.4 Quick Set Up Adjustments Overview • Quick Language Change • Quick Lens Adjustment • Quick On Screen Color change 5.4.1 Quick Language Change What can be done? Only if different on screen languages are available, these can be changed in quick way by following the next procedure.

  • Page 55: Quick Lens Adjustment

    Menu 5-4 Note: For the moment, only English is available. 5.4.2 Quick Lens Adjustment Quick zoom/focus adjustment 1. Press the Selection key *, Barco key. The zoom/focus menu will be displayed. LENS ADJUSTMENT ZOOM/FOCUS ZOOM with FOCUS with <ENTER> to shift <EXIT>...

  • Page 56: Quick On Screen Color Change

    5. Getting Started Press the selection key * to switch to another pattern. Different patterns are available. 5.4.3 Quick On Screen Color change What can be done ? For quick change of the on-screen color of the highlighted items. The highlighted items on the menus can be displayed in red, green or yellow. How to change ? 1.

  • Page 57: Using The Rcu

    5. Getting Started 5.5 Using the RCU Pointing to the reflective screen 1. Point the front of the RCU to the reflective screen surface. Ceiling IR sensor Screen Image 5-5 Hardwired Remote Input 1. Plug one end of the remote cable in the connector on the bottom of the RCU. 2.
  • Page 58 5. Getting Started Hardwired to the XLR input 1. Plug one end of the remote cable in the connector on the bottom of the RCU 2. Plug the other end in the connector in the front panel of the projector labelled Hardwired CTRL2. Diagnostic Code IR-Receiver Green Operation...

  • Page 59: Projector Address

    5. Getting Started IR sensor IR sensor Side of projector Table Rear of projector Front of projector 45ø 45ø 45ø 45ø 45ø 45ø EXIT ADDR ENTER STBY MUTE TEXT FREEZ EXIT ENTER ADDR SHARPNESS EXIT STBY MUTE TEXT FREEZ TINT ADDR ENTER COLOR...

  • Page 60: Displaying And Programming Addresses

    5. Getting Started 5.6.2 Displaying and Programming addresses Displaying the Projector Address on the Screen. 1. Press Address key (recessed key on the RCU) with a pencil. The projector’s address will be displayed in a ’Text box’ To continue using the RCU with that specific address, it is necessary to enter the same address with the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key.
  • Page 61 5. Getting Started The Stand-by Key When the Stand-by key is pressed, the image projection is stopped and the projector goes to stand-by. This situation is used when a projection stop is planned for a longer period. R5976654 SLM R12+ 27/01/2005...
  • Page 62 5. Getting Started R5976654 SLM R12+ 27/01/2005...

  • Page 63: Start Up Of The Adjustment Mode

    6. Start up of the Adjustment mode 6. START UP OF THE ADJUSTMENT MODE 6.1 Start up Possible paths There are 3 possible paths to follow once in the Adjustment mode. They are : • Installation - Installation should be selected if a new input module is installed or a new source is connected to an existing input module.

  • Page 64: Menus On Local Lcd Display

    6. Start up of the Adjustment mode When your password is correct, you gain access to the selected item. When your password is wrong. The error message Invalid password is displayed on the screen. Press EXIT to continue and to return to the adjustment menu.

  • Page 65: Random Access Adjustment Mode

    7. Random Access Adjustment Mode 7. RANDOM ACCESS ADJUSTMENT MODE Overview • Overview Flow • Picture Services • Picture Tuning • Geometry • ScenergiX • Picture in Picture (PiP) • Save Changes 7.1 Overview Flow Overview LOAD EDIT RENAME FILE SERVICE COPY DELETE OPTIONS...

  • Page 66: Picture Services

    7. Random Access Adjustment Mode Start up 1. Push the cursor key ↑ or ↓ to highlight Random Access. ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-1 2.

  • Page 67: Start Up

    7. Random Access Adjustment Mode file loading can be done automatically (see "File Options", page 71). Files with a ~ in front of the file name are temporary files. These files will be deleted when switching to another source. Possible file Manipulations The following file manipulations are possible : •...

  • Page 68: The Image Is Not Perfect

    7. Random Access Adjustment Mode The Load menu displays the corresponding files depending on the installed filter. LOAD FILE FILTER LIST [All] Filename resolution video525.s01 1 675x240i video525.c01 1 675x240i video525.c02 1 675x240i ---------------------------- Active file : Video525.c50 Select with ↑ or ↓ , → <ENTER>...

  • Page 69: Edit File

    7. Random Access Adjustment Mode 7.2.5 Edit File 7.2.5.1 Start up How to start up the Edit menu ? To start up the EDIT menu : 1. Push the cursor key ↑ or ↓ to highlight Edit. FILE SERVICE LOAD EDIT RENAME COPY...

  • Page 70: Correct Value

    7. Random Access Adjustment Mode 3. Enter directly with the numeric keys on the RCU or local keypad the new value. How to change a setting with the cursor keys? 1. Push the cursor key ↑ or ↓ to highlight an item. The color of the selected item will change.
  • Page 71 7. Random Access Adjustment Mode How to install the correct settings for the options in the Edit file menu. EDIT FILE OPTIONS Source number Clamp position [leading] Clamp delay Clamp width Field polarity [pos] Field select [both] Vertical refresh [sync] Film Mode Detection [on] Banner Protect...

  • Page 72: Rename

    7. Random Access Adjustment Mode Film mode detection: Detects in the [on] mode if the source is film or video. Use the ENTER key to toggle between [on] or [off] [On] or [Off] When enabled, the hardware looks for tell-tale signs of 3:2 or 2:2 pull-down sequences. These are the result of converting cinema material recorded at 24 frames-per-second to the television frequencies of 60 or 50 interlaced fields per second respectively.

  • Page 73: Copy

    7. Random Access Adjustment Mode The Rename selection menu will be displayed. RENAME FILE Filename resolution video525.s01 1 675x240i video525.c01 1 675x240i video525.c02 1 675x240i ------------------------------- Active file : Video525.c50 Select with ↑ or ↓ , → <ENTER> to accept <EXIT>...
  • Page 74 7. Random Access Adjustment Mode The Copy selection menu will be displayed. COPY FILE Filename resolution video525.s01 1 675x240i video525.c01 1 675x240i video525.c02 1 675x240i ------------------------------- Active file : Video525.c50 Select with ↑ or ↓ , → <ENTER> to accept <EXIT>...

  • Page 75: Delete

    7. Random Access Adjustment Mode 7.2.8 Delete Start up and delete To delete a selected file out of the list of files : 1. Push the cursor key ↑ or ↓ to highlight Delete. FILE SERVICE LOAD EDIT RENAME COPY DELETE OPTIONS Select with ↑...

  • Page 76: Picture Tuning

    7. Random Access Adjustment Mode 2. Press ENTER. The option selection menu will be displayed. FILE OPTIONS FILE SORT [NAME] FILE LOAD [AUTOMATIC] Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-24 File Sort 1. Press ENTER to toggle between [name] and [index]. [name] : the files in the list will be sorted on the file name.

  • Page 77: Color Temperature

    7. Random Access Adjustment Mode 7.3.2 Color Temperature Available Color temperatures • Projector white • Broadcast 3200K • Film 5400K • Video 6500K • Computer 9300K • Custom balance Start Up 1. Push the cursor key ↑ or ↓ to highlight Color Temperature. PICTURE TUNING COLOR TEMPERATURE GAMMA...

  • Page 78: Color Space

    7. Random Access Adjustment Mode Changing the gamma value 1. Push the cursor key ↑ or ↓ to highlight Gamma. PICTURE TUNING COLOR TEMPERATURE GAMMA COLOR SPACE NOISE REDUCTION INPUT BALANCE Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-29 2.

  • Page 79: Noise Reduction

    7. Random Access Adjustment Mode Projector Maximum color space European Broadcasting Union. This organization defines a European standard. SMPTE American standard Custom The use can define the x and y coordinates for red, green and blue which forms the corners of the color space.

  • Page 80: Input Balance For Rgb Input Signals

    7. Random Access Adjustment Mode 7.3.6.1 Input Balance for RGB input signals Step to be taken for RGB input signals To adjust the input balance, the following steps have to be executed in the following order : Start with the black balance. Continue with the white balance.

  • Page 81: Input Balance For Yuv Signals

    7. Random Access Adjustment Mode 4. Adjust the contrast to a maximum value until the green noise becomes visible in the white areas and return one step. 5. Adjust with the cursor keys ↑ or ↓ or ← or → until the red respectively blue noise becomes visible in the white areas and return one step.

  • Page 82: Returning To The Factory Defaults

    7. Random Access Adjustment Mode 7.3.6.3 Returning to the factory defaults How to return to the factory defaults 1. Push the cursor key ↑ or ↓ to highlight Default. INPUT BALANCE BLACK BALANCE WHITE BALANCE DEFAULT Select with ↑ or ↓ then <ENTER>...

  • Page 83: Geometry Start Up

    7. Random Access Adjustment Mode 7.4.2 Geometry start up Start up 1. Push the cursor key ↑ or ↓ to highlight Geometry. ADJUSTMENT MODE Select a path from below : RANDOM ACCESS INSTALLATION SERVICE Select with ↑ or ↓ then <ENTER> <EXIT>...

  • Page 84: Size

    7. Random Access Adjustment Mode How to shift the image ? 1. Push the cursor key ↑ or ↓ to highlight Shift. GEOMETRY SHIFT SIZE SIDE KEYSTONE BLANKING ASPECT RATIO [4:3] OPTIONS Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-41 2.

  • Page 85: Side Keystone

    7. Random Access Adjustment Mode Vertical size adjustment Size adjustment 1. Push the cursor key ↑ or ↓ to highlight Size. GEOMETRY SHIFT SIZE SIDE KEYSTONE BLANKING ASPECT RATIO [4:3] OPTIONS Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-42 2.

  • Page 86: Blanking

    7. Random Access Adjustment Mode While the bar scale window is on the screen, press ENTER to change the value indication to an input field. Enter the desired value with the numeric keys on the RCU. Always 3 digits should be entered. To toggle + to - or vice versa, use the up or down arrow key.

  • Page 87: Aspect Ratio

    7. Random Access Adjustment Mode 2. Press ENTER to display the blanking menu. BLANKING BOTTOM LEFT RIGHT Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 7-45 3. Push the cursor key ↑ or ↓ to highlight the desired blanking. 4.

  • Page 88: Scenergix

    7. Random Access Adjustment Mode The Geometry Options menu will be displayed. GEOMETRY OPTIONS Use the same side keystone correction for all files ? [YES] <ENTER> to toggle <EXIT> to return Menu 7-48 3. Press ENTER to toggle between [YES] or [NO]. Side Keystone will be adjusted for the active file only.

  • Page 89: Preparations

    7. Random Access Adjustment Mode Image 7-8 Why Soft Edge? What is the Basic Principal of ScenergiX ? The principle of edge blending is archived by linear modulation of the light output in the overlap zone so that the light output in that zone equals the light output of the rest of the image.

  • Page 90: Scenergix Overlap Zone (Horizontal Scenergix)

    7. Random Access Adjustment Mode 2. Press ENTER to select. 3. Push the cursor key ↑ or ↓ to highlight Status. SCENERGIX STATUS [ON] - size - BOTTOM LEFT RIGHT - black level - LEVEL Select with ↑ or ↓ then <ENTER>...

  • Page 91: Scenergix Overlap Zone (Vertical Scenergix)

    7. Random Access Adjustment Mode Example Horizontal resolution source : 1600 pixels horizontal resolution projector 1 & 2 : 1024 pixels Overlap : 100 pixels Total horizontal screen size in pixels : 1948 pixels Pact projector 1 = [(1024 / 1948)] x 1600 = 841 pixels Pact projector 2 = [(1024 / 1948)] x 1600 = 841 pixels Pstart projector 2 = Pstart projector 1 + (1600 –...

  • Page 92: Scenergix Size Adjustment

    7. Random Access Adjustment Mode Lstart projector 2 = Lstart projector 1 + (1200 – 620) 7.5.7 ScenergiX size adjustment What can be done with the ScenergiX size menu? Within this menu the width of the blending zone is set up. How to adjust the size? Only accessible when the status is in the ON position.

  • Page 93: Adjusting The Black Level Of The Images

    7. Random Access Adjustment Mode Image 7-13 Width set up for projector 1 Image 7-14 Width set up for projector 2 7.5.8 Adjusting the black level of the images For dark images, the overlap zone will be brighter then the rest of the images. Therefore we can rise the black level of the remaining image (excluding the overlap zone).

  • Page 94: Picture In Picture (Pip)

    7. Random Access Adjustment Mode Image 2 Image 1 Image 7-15 Black level adjustment 7.6 Picture in Picture (PiP) Overview • Introduction to PiP • Picture in Picture activation • Picture in Picture source • Position of Picture in Picture window •...

  • Page 95: Picture In Picture Activation

    7. Random Access Adjustment Mode Image 7-16 Possible position for PiP 7.6.2 Picture in Picture activation How to activate PIP? 1. Push the cursor key ↑ or ↓ to highlight PIP. RANDOM ACCESS ADJUSTMENT MODE FILE SERVICE PICTURE TUNING GEOMETRY SCENERGIX SAVE CHANGES Select with ↑...

  • Page 96: Picture In Picture Source

    7. Random Access Adjustment Mode 7.6.3 Picture in Picture source Which source displayed in PiP 1. Push the cursor key ↑ or ↓ to highlight Source. STATUS [ON] SOURCE 01 POSITION [Top-Left] QUICK SELECT [OFF] Select with ↑ or ↓ then <ENTER>...

  • Page 97: Save Changes

    7. Random Access Adjustment Mode 7.7 Save Changes What can be done The system saves automatically the changes every x minutes. When you want to save it quicker, use the save changes option. How to save 1. Push the cursor key ↑ or ↓ to highlight Save Changes. RANDOM ACCESS ADJUSTMENT MODE FILE SERVICE...
  • Page 98 7. Random Access Adjustment Mode R5976654 SLM R12+ 27/01/2005...

  • Page 99: Installation Mode

    8. Installation Mode 8. INSTALLATION MODE Overview • Start up of the Installation mode • Input Slots • 800 peripheral • Source Switching • No Signal • Contrast Enhancement • Convergence • Configuration • Lens Adjustment • Quick Access Keys •...

  • Page 100: What If A Switcher Is Connected To The Projector

    8. Installation Mode To view or the change the input configuration. 1. Push the cursor key ↑ or ↓ to highlight Input Slots. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑...

  • Page 101: Peripheral

    8. Installation Mode If no 800 peripheral indication is made on the menu, there are still two possibilities, no RCVDS or VS05 connected or RCVDS is switched off. When a 800 peripheral is connected to the projector, the input slots are not accessible with the cursor key to toggle their function. 8.3 800 peripheral Overview •...

  • Page 102: Clo Using Comm 800

    8. Installation Mode Defining the communication protocol. 1. Push the cursor key ↑ or ↓ to highlight 800 Peripheral. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑ or ↓ then <ENTER>...

  • Page 103: Source Switching

    8. Installation Mode 8.4 Source Switching Switching from one source to another. To minimize undesired effects when switching from one source to another one can use the Seamless switching mode, beside Seam- less switching there is a choice between several effects which render the transitions more enjoyable. How to select a switching mode 1.

  • Page 104: Changing The Background Color

    8. Installation Mode 8.5.1 Changing the Background Color How to change ? 1. Push the cursor key ↑ or ↓ to highlight No signal. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑...

  • Page 105: Changing The Shutdown Time

    8. Installation Mode 4. Press ENTER to toggle between [On] or [Off]. 8.5.3 Changing the Shutdown Time Range The shutdown time can be set between 5 min. and 60 min. How to change ? To set up the shutdown time, handle as follow: 1.

  • Page 106: Convergence

    8. Installation Mode To change the Contrast Enhancement value 1. Push the cursor key ↑ or ↓ to highlight Contrast Enhancement. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑...

  • Page 107: Configuration

    8. Installation Mode 2. Press ENTER to select. The following message will be displayed : “Convergence is reserved to qualified service personnel.” WARNING CONVERGENCE is reserved to qualified service personnel <ENTER> to accept <EXIT> to return Menu 8-22 8.8 Configuration What can be done? The way of physical installation of the projector can be defined to the projector.

  • Page 108: How To Zoom/Focus

    8. Installation Mode How to start up. 1. Push the cursor key ↑ or ↓ to highlight Lens. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑ or ↓ then <ENTER>...

  • Page 109: Quick Access Keys

    8. Installation Mode 3. Push the cursor key ↑ or ↓ to shift the image up or down and ← or → to shift the image left or right. 4. When finished, press EXIT to go to the lens adjustment menu or press ENTER to go to the zoom/focus function. Press the selection key * to switch to another pattern.

  • Page 110: Osd

    8. Installation Mode How to get an overview. 1. Push the cursor key ↑ or ↓ to highlight Quick Access Keys. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT CONVERGENCE CONFIGURATION LENS QUICK ACCESS KEYS INTERNAL PATTERNS Select with ↑...

  • Page 111: Menu Position

    8. Installation Mode 3. Push the cursor key ↑ or ↓ to highlight Highlighted item color. HIGHLIGHT ITEM COLOR [red] MENU POSITION [Default] Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 8-33 4. Press ENTER to toggle between Yellow, Red and Blue. 8.11.2 Menu Position How to change 1.

  • Page 112: Available Patterns

    8. Installation Mode Available patterns Outline Hatch Color bars Multiburst Checker board Page Char Alpha numeric char How to select an internal patterns? 1. Push the cursor key ↑ or ↓ to highlight Internal Patterns. INSTALLATION INPUT SLOTS 800 PERIPHERAL SOURCE SWITCHING NO SIGNAL CONTRAST ENHANCEMENT...

  • Page 113: Service Mode

    Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 9-1 2. Press ENTER to display the service mode menu. SERVICE SERVICE IDENTIFICATION BARCO LOGO CHANGE PASSWORD ADD INS CHANGE LANGUAGE PRESET INPUT BALANCE CHANGE PROJ. ADDRESS ADVANCED PROCESSING SERIAL COMMUNICATION...

  • Page 114: Password

    This item is password protected when the password strap is installed. The password function is enabled when the password strap, second switch of S2 on the controller module is installed. Consult an authorized Barco service technician to change the strap position. About password types.
  • Page 115 9. Service Mode The different levels are: • owner • user • guest Depending on your password level some password protected items are accessible and others not. The owner (which has the highest level) can set up via the ’Access control list’ the accessibility of the different items. See ’Access Control List’. Get access to the controller module 1.

  • Page 116: Access Control List

    9. Service Mode 6. Change the position of S2. How to change the password ? 1. Push the cursor key ↑ or ↓ to highlight Change Password. SERVICE IDENTIFICATION CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ. ADDRESS SERIAL COMMUNICATION NETWORK LAMP DIMMING MORE...

  • Page 117: Access Levels

    3. Push the cursor key ↑ or ↓ to highlight Access Control List. 4. Press ENTER to display the Access Control List menu. ACCESS CONTROL LIST Menu Adj mode BARCO LOGO Change add O=owner, U=user, G=Guest E=everybody Select with ↑ or ↓...

  • Page 118: Changing Language

    9. Service Mode 9.5 Changing Language Start up 1. Push the cursor key ↑ or ↓ to highlight Change Language. SERVICE IDENTIFICATION CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ. ADDRESS SERIAL COMMUNICATION NETWORK LAMP DIMMING MORE... Select with ↑ or ↓ then <ENTER>...

  • Page 119: Serial Communication

    9. Service Mode 3. Push the cursor key ↑ or ↓ to highlight Projector address. 4. Press ENTER to activate. The first digit will be highlighted. 5. Reprogram the address with ↑,↓,←,→ keys Use the ↑ or ↓ key to select a new value, use the ← or → key to select a new digit. use the numeric keys on the RCU to enter the new address.

  • Page 120: Start Up Of The Serial Communication

    9. Service Mode 9.7.1 Start Up of the Serial Communication Start up 1. Push the cursor key ↑ or ↓ to highlight Serial communication. SERVICE IDENTIFICATION CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ. ADDRESS SERIAL COMMUNICATION NETWORK LAMP DIMMING MORE... Select with ↑ or ↓ then <ENTER>...

  • Page 121: Setting Up The Interface Standard

    9. Service Mode 9.7.3 Setting up the Interface Standard Set up The communication protocol for the communication between the projector and a computer can be set on RS232 or RS422. To set up the desired protocol, handle as follow : 1.

  • Page 122: Set Up The Network Configuration

    9. Service Mode Set up the network configuration. To set up the network configuration, follow the next procedure : 1. Push the cursor key ↑ or ↓ to highlight Network Configuration. SERVICE IDENTIFICATION CHANGE PASSWORD CHANGE LANGUAGE CHANGE PROJ. ADDRESS SERIAL COMMUNICATION NETWORK LAMP...

  • Page 123: Lamp

    9. Service Mode If a wrong value for an octet is entered, the following error message will be displayed to indicate where the error is located. Example of message : "Invalid octet. The maximum value is 255 for each octet ! " . ERROR Invalid octet the maximum value is...
  • Page 124 9. Service Mode Clo value Time [h] Image 9-6 Linking via the RS232 in/out The constant light output of projectors in a chain (maximum 12 projectors) can be set to the same value by linking the projectors via the RS232 connector. To the RS232in of the first projector, a terminator must be connected (Z3498823).
  • Page 125 9. Service Mode Master Projector Comm port Comm 800 splitter To slave 1 To slave 3 To slave 2 To next Comm 800 splitter "To Switcher" Comm 800 splitter To slave 4 To slave 6 To slave 5 To slave 7 or to next Comm 800 splitter "To Switcher"...

  • Page 126: Dimming

    9. Service Mode The lamp menu will be displayed. LAMP Constant Light output [OFF] Using [RS port] Mode [NORMAL] Serial number : R101111 Article number : R9840xxx Run time : 10 hours Remaining run time : hours Number of strikes : Z_AXIS : 100 Select with ↑...

  • Page 127: Barco Logo

    OFF: no key on the RCU is used to display the BARCO logo. TEXT: the TEXT key on the RCU is used to display or to remove the BARCO logo with one single push on this key (only in operational mode).

  • Page 128: Preset Input Balance

    Scenergix : When activated, soft edging becomes possible in the Random access adjustment mode. How to activate an add-ins? 1. Push the cursor key ↑ or ↓ to highlight Add-Ins. SERVICE BARCO LOGO ADD INS PRESET INPUT BALANCE ADVANCED PROCESSING...

  • Page 129: Advanced Processing

    9. Service Mode Start Up 1. Push the cursor key ↑ or ↓ to highlight Preset Input Balance. SERVICE BARCO LOGO ADD INS PRESET INPUT BALANCE ADVANCED PROCESSING DIAGNOSIS FACTORY DEFAULTS MORE... Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 9-34 2.

  • Page 130: Diagnosis

    The diagnosis menu gives the possibility to select an overview of the I C controlled IC’s and an overview of the working of the formatter. Start up 1. Push the cursor key ↑ or ↓ to highlight Diagnosis. SERVICE BARCO LOGO ADD INS PRESET INPUT BALANCE ADVANCED PROCESSING DIAGNOSIS FACTORY DEFAULTS MORE...

  • Page 131: Dmd

    9. Service Mode Formatter interface board How to select? 1. Push the cursor key ↑ or ↓ to highlight I2C. DIAGNOSIS SMPS LPS1 LPS2 LPS3 VOLTAGES FANSPEED Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 9-40 2. Press ENTER to select. The I2C Diagnosis overview will be displayed.

  • Page 132: Smps

    9. Service Mode 9.15.4 SMPS How to select the overview? 1. Push the cursor key ↑ or ↓ to highlight SMPS. DIAGNOSIS SMPS LPS1 LPS2 LPS3 VOLTAGES FANSPEED Select with ↑ or ↓ then <ENTER> <EXIT> to return Menu 9-44 2.

  • Page 133: Voltages

    The projector will set all settings to the factory defaults which are by default stored in the projector. All custom settings will be deleted and the custom files will be removed. How to return to the factory defaults ? 1. Push the cursor key ↑ or ↓ to highlight Factory defaults. SERVICE BARCO LOGO ADD INS PRESET INPUT BALANCE ADVANCED PROCESSING DIAGNOSIS FACTORY DEFAULTS MORE...
  • Page 134 9. Service Mode 3. Are you sure to restore the factory defaults ? If yes, press the cursor key ↑ or ↓ to highlight Continue. A message will be displayed. Factory defaults Please wait Remaining time : x sec Menu 9-52 If no, press the cursor key ↑...

  • Page 135: Programmable Function Keys

    10. Programmable Function Keys 10. PROGRAMMABLE FUNCTION KEYS 10.1 Function Keys What can be done with these keys? The five function keys on top of an adapted remote control can be programmed as short cut keys (quick access) to almost any adjustment menu.
  • Page 136 10. Programmable Function Keys R5976654 SLM R12+ 27/01/2005...

  • Page 137: Standard Source Set Up Files

    A. Standard Source set up Files A. STANDARD SOURCE SET UP FILES A.1 Table overview Table overview The following standard source files are pre-programmed in the projector. Name Resolu- Fvert FHor Fpix Ptot Pact Ltot Lact tion 1600_48V 1600x600i 48,040 62,500 135,000 2160...
  • Page 138 A. Standard Source set up Files Name Resolu- Fvert FHor Fpix Ptot Pact Ltot Lact tion INTER_GR 1184x886 67,170 61,796 92,941 1504 1184 MAC_2 640x480 66,667 35,000 30,240 MAC_3 512x384 60,147 24,480 15,667 MAC_4 560_384 60,147 24,480 17,234 512x342 60,158 22,259 16,670 MAC_5...
  • Page 139 A. Standard Source set up Files Name Resolu- Fvert FHor Fpix Ptot Pact Ltot Lact tion SUNXGA77 1024x768 77,069 62,040 84,375 1360 1024 SUP_MAC 1024x768 60,000 48,780 63,999 1312 1024 SVGA_56V 800x600 56,250 35,156 36,000 1024 SVGA_60V 800x600 60,317 37,879 40,000 1056 SVGA_72V...
  • Page 140 A. Standard Source set up Files R5976654 SLM R12+ 27/01/2005...

  • Page 141: Built-In Dust Filters

    B. Built-In Dust Filters B. BUILT-IN DUST FILTERS B.1 Built-In Dust Filters first series projectors Overview • Dust filter on the front side • Dust filter on the back side • Dust filter on the bottom side ARNING As the projector has to be opened, this procedure has to be performed by qualified service tech- nician.
  • Page 142 B. Built-In Dust Filters Image B-2 Input box slide out 5. Slide out the input box a little. 6. Loosen the screw on the front side. Image B-3 Front screw top cover removal 7. Remove the back cover, see "Dust filter on the back side", page 139. 8.

  • Page 143: Dust Filter On The Back Side

    B. Built-In Dust Filters How to clean 1. Clean the dust filter with a dry cloth or blow out with compressed air. Reinsert the dust filters and put the cover back on its place by following the opposite procedure. Take care to click the lens light cover into its position.
  • Page 144 B. Built-In Dust Filters Image B-6 Back cover removal 2. Take off the cover. 3. Turn out 2 times 4 screws to remove both dust filters on the back side of the cover. Image B-7 Dust filter removal 4. Take out the dust filters. 5.

  • Page 145: Dust Filter On The Bottom Side

    B. Built-In Dust Filters Image B-8 Dust filter removal How to clean 1. Clean the dust filter with a dry cloth or blow out with compressed air. Reinsert the dust filters and put the cover back on its place by following the opposite procedure. B.1.3 Dust filter on the bottom side Necessary tools No tools.

  • Page 146: Built-In Dust Filters Recent Series Projectors

    B. Built-In Dust Filters B.2 Built-In Dust Filters recent series projectors AUTION Always turn off the projector before proceeding to dust filter cleaning or replacement. To avoid contaminating the projector with its removed dust filters, clean the dust filters far away from the projector or by preference clean the filters in another room.
  • Page 147 B. Built-In Dust Filters Image B-11 Release dust filter at front side 2. Loosen the 4 captive screws (B) securing filter casing to projector front. The dust filter is released and can be removed (C) for cleaning or replacement. Image B-12 Removing dust filter from its casing How to clean! 1.

  • Page 148: Dust Filters On The Rear Side Of The Projector

    B. Built-In Dust Filters Image B-13 2. Secure the position of the air filter in its casing by tightening the 4 captive screws (C). B.2.2.2 Dust filters on the rear side of the projector Access to the air filters To access the air filters on the rear of the projector, first the projector rear cover has to be removed. Necessary tools Allen key of 3 mm Removal of the projector rear cover...
  • Page 149 B. Built-In Dust Filters Image B-15 Removal metal fixation plate 2. Slide the metal fixation plate to the right until the screw head matches the free gap in the plate. 3. Remove metal fixation plate from rear cover. 4. Loosen the 3 hexagon socket screws (C) , securing metal fixation bar (D) to rear cover. Image B-16 Removal metal fixation bar 5.
  • Page 150 B. Built-In Dust Filters 2. Brush most of the dust off with a soft brush and/or blow dust away with compresses air. Always replace damaged and/or too dirty air filters by a new one. Tip: How to reinstall the cleaned or new air filter 1.

  • Page 151: Troubleshooting

    C. Troubleshooting C. TROUBLESHOOTING C.1 Error codes Overview The following table gives an overview of some important error codes displayed on the LED display of the projector. Error code Description Caused by Action 2002 lamp start failed • hot restrike •...
  • Page 152 C. Troubleshooting Error code Description Caused by Action 4111 30V too low Call a qualified service engineer 4112 15V too low Call a qualified service engineer 4113 12V too low Call a qualified service engineer 4114 5V too low Call a qualified service engineer 4115 3V3 too low Call a qualified service engineer...

  • Page 153: Glossary

    Glossary GLOSSARY 2:2 pull-down The process of transferring 24-frames/sec film format into video by repeating each frame (used for PAL DVD’s) as two video fields. ( AD ) 3:2 pull-down Method used to map the 24 fps of film onto the 30 fps (60 fields) or 25 fps (50 fields), so that one film frame occupies three video fields, the next two, etc.
  • Page 154 Glossary R5976654 SLM R12+ 27/01/2005...

  • Page 155: Index

    Index INDEX Edit 65–66 Change settings Address Start up Program Values File options Adjustment 51–52, 60 Input Balance Local LCD Display Default settings Quick set up 51–52 Load Lens Manipulations On screen color Rename Adjustment mode 59, 61–62 start up Random Access 61–62 Function Keys...
  • Page 156 Change Service Mode 109–110, 112, 114–117, 119, 122–127, 129 Entering Add-Ins Protection Advanced Processing Minimum Delay Picture Tuning 72–77 BARCO Logo Color space Color Temperature Change Password Available Temperatures Common address Change Gamma Diagnosis 126–127 Input balance Input Balance 76–77...
  • Page 157 Index Start up Side panel Temperature Installation Ambient source files Troubleshooting standard Error codes Stacking Projectors Standard source files Switching off 35, 49 Switching on Z-axis adjustment Switching to standby 35, 49 R5976654 SLM R12+ 27/01/2005...
  • Page 158 Index R5976654 SLM R12+ 27/01/2005...
  • Page 159 Revision Sheet Barco nv Events/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70, Fax: +32 56.36.88.24 E-mail: antoon.dejaegher@barco.com, Web: www.barco.com From: Date: Please correct the following points in this documentation (R5976654/05): page wrong correct R5976654 SLM R12+ 27/01/2005...

This manual is also suitable for:

Slm r12+

Table of Contents
