3 The transceiver connects to the network using a duplex SC connector.
4 Connect the other end of the cable to a device fitted with an appropriate
5 Check the LEDs on the front of the Switch to ensure that it is operating
Removing a GBIC
Transceiver

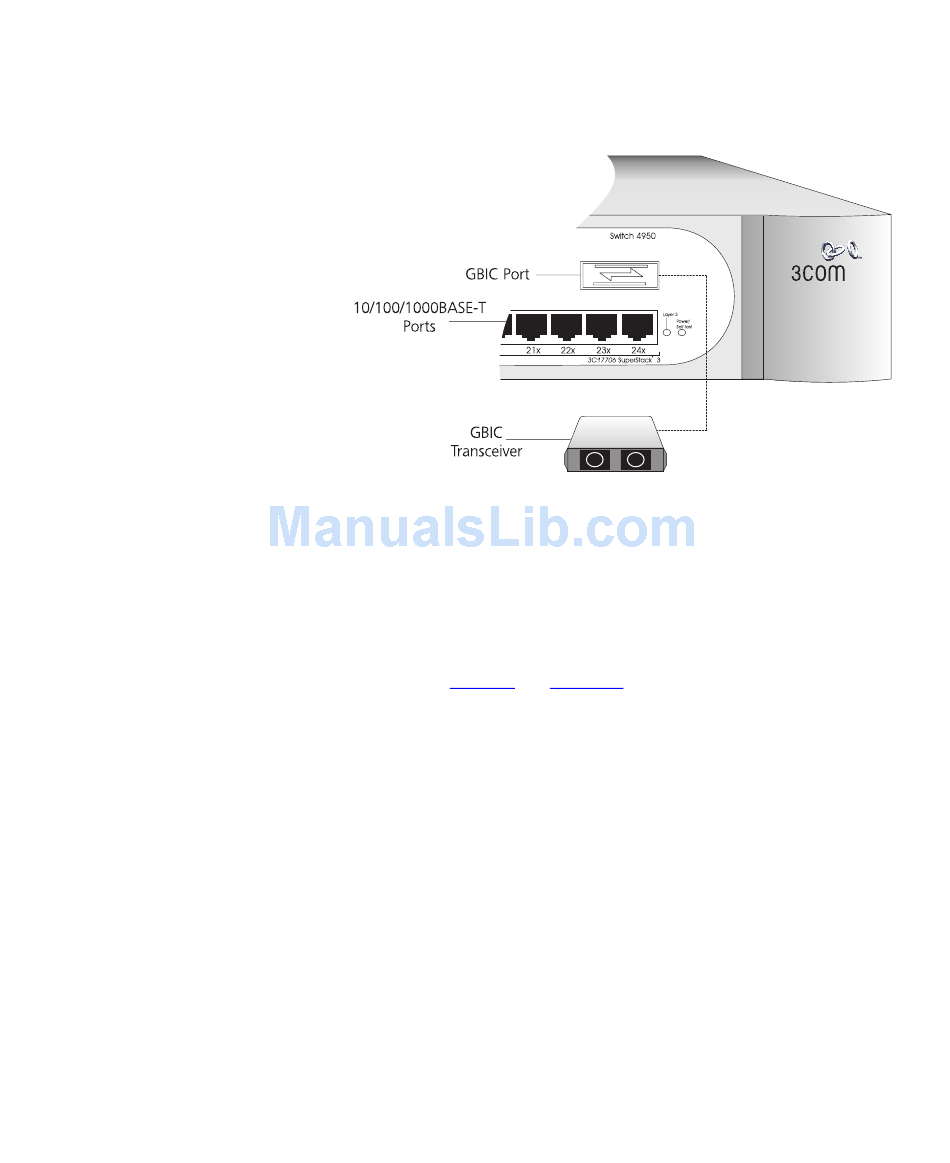

Figure 11 Inserting a GBIC Transceiver into a Switch 4950
Attach a male duplex SC connector on the network cable into the duplex
SC connector on the transceiver.
Gigabit Ethernet connection.
correctly. Refer to "LEDs"
If you wish to remove the transceiver, compress the side tabs and gently
pull the transceiver out of the port.
Switch 4950 — GBIC Operation
on page 17 for more information.
31
