TD-VG3631

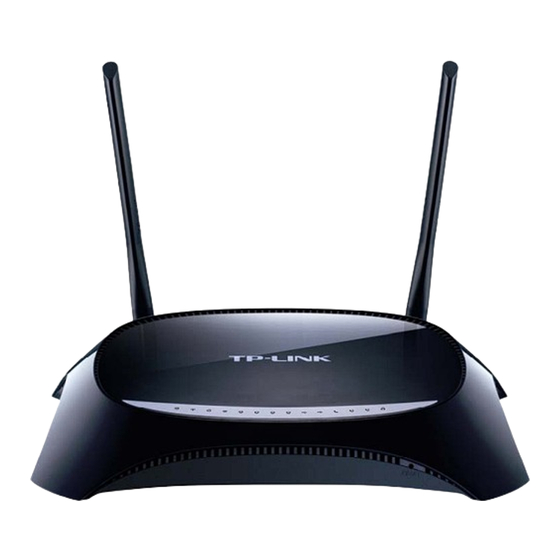

300Mbps Wireless N VoIP ADSL2+ Modem Router
Rev: 1.0.0
1910010643

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-VG3631

Summary of Contents for TP-Link TD-VG3631

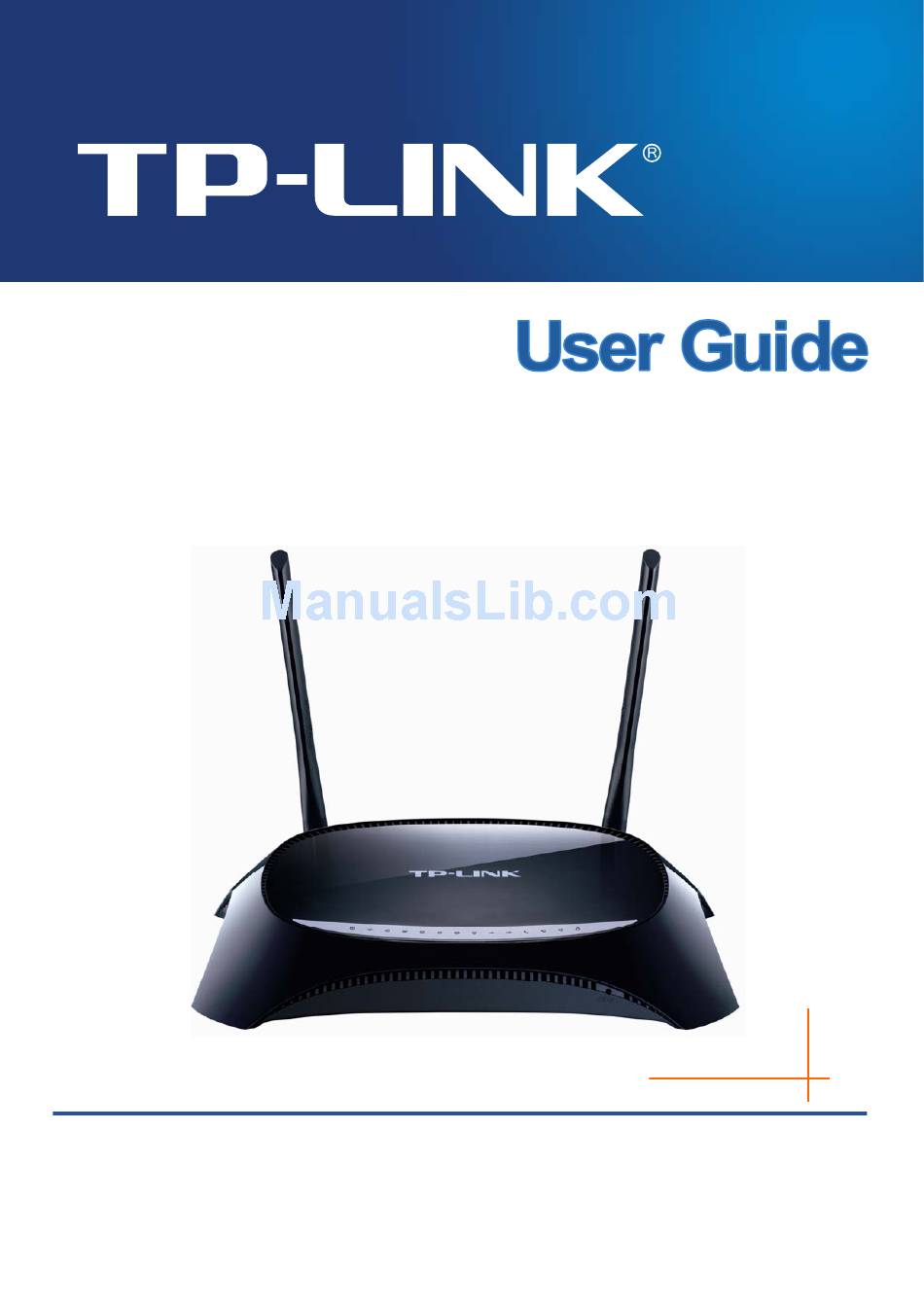

  • Page 1 TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router Rev: 1.0.0 1910010643...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark General authorization required for outdoor use and Bulgaria None public service...

  • Page 5: Industry Canada Statement

    Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 300Mbps Wireless N VoIP ADSL2+ Modem Router Model No.: TD-VG3631 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 7: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Product Overview...................2 1.1 Overview of the Modem Router ..................2 1.2 Main Features......................... 3 1.3 Panel Layout........................4 1.3.1 The Front Panel ........................4 1.3.2 The Back Panel........................6 Chapter 2. Connecting the Modem Router .............8 2.1 System Requirements ....................
  • Page 8 4.6 Wireless ........................43 4.6.1 Basic Settings ........................43 4.6.2 WPS Settings ........................45 4.6.3 Wireless Security ....................... 47 4.6.4 Wireless MAC Filtering ...................... 49 4.6.5 Wireless Advanced ......................50 4.6.6 Wireless Status ........................52 4.7 Voice..........................52 4.7.1 SIP Account ........................52 4.7.2 Dial Plan..........................
  • Page 9 4.12.3 WAN Host ......................... 86 4.12.4 Schedule........................... 88 4.13 Traffic Control ....................... 89 4.13.1 Control Settings ........................ 89 4.13.2 Rules List .......................... 89 4.14 IP&MAC Binding ......................90 4.14.1 Binding Settings........................ 91 4.14.2 ARP List..........................92 4.15 Dynamic DNS ....................... 92 4.16 Diagnostic ........................

  • Page 10: Package Contents

    Package Contents The following contents should be found in your package: One TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router One Power Adapter for TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router Quick Installation Guide One RJ45 cable Three RJ11 cables...

  • Page 11: Chapter 1. Product Overview

    150Mbps Wireless AP/Client Router User Guide Chapter 1. Product Overview Thank you for choosing the TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router. 1.1 Overview of the Modem Router The TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router integrates 4-port Switch, Firewall, NAT-Router and Wireless AP.

  • Page 12: Main Features

    150Mbps Wireless AP/Client Router User Guide 1.2 Main Features Four 10/100Mbps Auto-Negotiation RJ45 LAN ports (Auto MDI/MDIX), four RJ11 ports, two USB 2.0 ports Provides external splitter. Adopts Advanced DMT modulation and demodulation technology. Supports bridge mode and Router function. Multi-user sharing a high-speed Internet connection.

  • Page 13: Panel Layout

    150Mbps Wireless AP/Client Router User Guide 1.3 Panel Layout 1.3.1 The Front Panel Figure 1-1 The Router’s LEDs are located on the front panel (View from left to right). They indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation: Name Status...
  • Page 14 150Mbps Wireless AP/Client Router User Guide A valid PSTN connection. Incoming calls and outgoing calls are transmitted trough PSTN （Line） Flash line. PSTN connection fails. The phone is off hook. （Phone1-2） Flash The phone is ringing. The phone is on hook. A wireless device has been successfully added to the network by WPS function.

  • Page 15: The Back Panel

    150Mbps Wireless AP/Client Router User Guide 1.3.2 The Back Panel The Router's ports, where the cables are connected, and RESET button are located on the front Figure 1-2 POWER: The Power plug is where you will connect the power adapter. USB1/USB2: The USB port connects to a USB storage device or a USB printer.
  • Page 16 150Mbps Wireless AP/Client Router User Guide Figure 1-3 WPS: The switch for the WPS function. For details, please refer to 4.6.2 WPS Settings. WiFi: The switch for the WiFi function. ON/OFF: The switch for the power.

  • Page 17: Chapter 2. Connecting The Modem Router

    150Mbps Wireless AP/Client Router User Guide Chapter 2. Connecting the Modem Router 2.1 System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet). PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors. TCP/IP protocol on each PC. Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari. 2.2 Installation Environment Requirements The Product should not be located where it will be exposed to moisture or excessive heat.
  • Page 18 150Mbps Wireless AP/Client Router User Guide Figure 2-1...

  • Page 19: Chapter 3. Quick Installation Guide

    150Mbps Wireless AP/Client Router User Guide Chapter 3. Quick Installation Guide 3.1 Configuring the PC After you directly connect your PC to the Modem Router or connect your adapter to a Hub/Switch which has connected to the Modem Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 20 150Mbps Wireless AP/Client Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 21 150Mbps Wireless AP/Client Router User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen above. Now, you can run the Ping command in the command prompt to verify the network connection.

  • Page 22: Quick Installation Guide

    192.168.1.2 ~ 192.168.1.254. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 23 150Mbps Wireless AP/Client Router User Guide Figure 3-8 Note: 1) Do not mix up the user name and password with your ADSL account user name and password which are needed for PPP connections. 2) If the above screen does not pop up, it means that your Web-browser has been set to a proxy. Go to Tools menu→Network→LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
  • Page 24 150Mbps Wireless AP/Client Router User Guide Figure 3-9 Change the VPI or VCI values which are used to define a unique path for your connection. If you have been given specific settings for this to configuration, type in the correct values assigned by your ISP.
  • Page 25 150Mbps Wireless AP/Client Router User Guide Figure 3-10 Here we select PPPoE WAN Link Type for example, enter the Username, Password and Confirm Password given by your ISP, and then click Next. Figure 3-11 On the Wireless screen, we use the default SSID, select Region and Mode. Set a Password or select Disable Security(Disable Security is not recommended.), and then click Next to continue.
  • Page 26 150Mbps Wireless AP/Client Router User Guide Basic parameters of Voice can be set on the Voice screen. Please enter a profile name to identify this account and other parameters provided by your ISP. If you don’t want to configure VoIP function now, leave "Profile Name" blank and click Next to skip. Figure 3-13 On this page, please confirm all parameters.
  • Page 27 150Mbps Wireless AP/Client Router User Guide Figure 3-15...

  • Page 28: Chapter 4. Configuring The Modem Router

    150Mbps Wireless AP/Client Router User Guide Chapter 4. Configuring the Modem Router This chapter will show each Web page's key function and the configuration way. 4.1 Login After your successful login, you will see the fifteen main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions.

  • Page 29: Quick Setup

    150Mbps Wireless AP/Client Router User Guide Figure 4-1 4.3 Quick Setup Please refer to Section 3.2 Quick Installation Guide. 4.4 Network Choose “Network”, there are many submenus under the main menu. Click any one of them, and you will be able to configure the corresponding function.

  • Page 30: Wan Settings

    150Mbps Wireless AP/Client Router User Guide 4.4.1 WAN Settings Choose “Network” “WAN Settings”, and you will see the WAN Port Information Table in the screen similar to Figure 4-2, which describes the WAN port settings and the relevant manipulation to each interface. There are five different configurations for the connection types, which are Static IP, Dynamic IP, PPPoE, IPoA, and Bridge.
  • Page 31 150Mbps Wireless AP/Client Router User Guide Figure 4-3 4.4.1.1 Static IP Select this option if your ISP provides static IP information to you. You should set static IP address, IP subnet mask, and gateway address in the screen below.
  • Page 32 150Mbps Wireless AP/Client Router User Guide Figure 4-4 ATM Configuration: VPI (0~255): Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. Please input the value provided by your ISP. VCI (1~65535): Identifies the virtual channel endpoints in an ATM network. The valid range is from 1 to 65535 (1 to 31 is reserved for well-known protocols).
  • Page 33 150Mbps Wireless AP/Client Router User Guide DNS Server/ Secondary DNS Server: Here you can set DNS Server (at least one) manually. The Route will use this DNS Server for priority. Default Gateway: select a WAN Interface from the drop-down list as the IPv4 default gateway.
  • Page 34 150Mbps Wireless AP/Client Router User Guide Figure 4-5 Click Advanced, advanced selections for WAN Service Setup can be shown. MTU (bytes): Maximum Transmission Unit Size. Check this box then you can change the MTU size. The default MTU value is 1500 Bytes. It is not recommended that you change the default value unless required by your ISP.
  • Page 35 150Mbps Wireless AP/Client Router User Guide Get IP Unicast: This is disabled by default. The minority of DHCP Server of ISP will not support to enable this. When the Route is connected right but IP cannot get, you can select this box.
  • Page 36 150Mbps Wireless AP/Client Router User Guide PPP Username/Password/Confirm Password: Enter the User Name, Password and Confirm Password provided by your ISP. These fields are case-sensitive. Authentication Method: Select the Authentication Method from the drop-down list, the default method is AUTO_AUTH, and you can leave it as a default setting. Choose the right connection type according to your needs: For PPPoE connection, you can select Connect on demand or Connect automatically or Connect manually.
  • Page 37 150Mbps Wireless AP/Client Router User Guide Figure 4-7 4.4.1.5 IPoA If your ISP provides an IPoA connection, select IPoA option for the WAN service type on the screen.
  • Page 38 150Mbps Wireless AP/Client Router User Guide Figure 4-8 IP Address/Subnet Mask: Enter the IP Address and Subnet Mask provided by ISP. If you forget, you can ask your ISP. DNS Server/Secondary DNS Server: Type in your preferred DNS server. Default Gateway: select a WAN Interface from the drop-down list as the IPv4 default gateway.

  • Page 39: Ewan

    150Mbps Wireless AP/Client Router User Guide Figure 4-9 Note: After you finish the Internet configuration, please click Save to make the settings take effect. 4.4.2 EWAN Choose “Network” “EWAN”, and you will see the Ethernet WAN Interface screen similar to Figure 4-10.
  • Page 40 150Mbps Wireless AP/Client Router User Guide Figure 4-10 4.4.2.1 Dynamic IP Select this option, the Modem Router will be able to obtain IP network information dynamically from a DHCP server provided by your ISP (as shown Figure 4-10). The next configuration is similar to Dynamic IP over ATM interface (see section 4.4.1.2 Dynamic 4.4.2.2 Static IP...
  • Page 41 150Mbps Wireless AP/Client Router User Guide Figure 4-11 4.4.2.3 PPPoE If your ISP provides a PPPoE connection and you need to use an Ethernet Interface, select PPPoE option for the WAN service type on the screen. The following configuration is similar to PPPoE over ATM interface (see section 4.4.1.3 PPPoE).

  • Page 42: Interface Grouping

    150Mbps Wireless AP/Client Router User Guide Figure 4-12 4.4.3 Interface Grouping Choose “Network” “Interface Grouping”, you can view all the current groups on this page (shown in Figure 4-13). Figure 4-13...

  • Page 43: Lan Settings

    150Mbps Wireless AP/Client Router User Guide VLAN: Enable or disable this function. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.
  • Page 44 150Mbps Wireless AP/Client Router User Guide Figure 4-15 IP Address: You can configure the Modem Router’s IP Address and Subnet Mask for LAN Interface. • IP Address: Enter the Modem Router’s local IP Address, then you can access to the Web-based Utility via the IP Address, the default value is 192.168.1.1.

  • Page 45: Mac Clone

    150Mbps Wireless AP/Client Router User Guide • Leased Time: The Leased Time is the amount of time in which a network user will be allowed connection to the Modem Router with their current dynamic IP address. Enter the amount of time, in hours, then the user will be “leased” this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new dynamic IP address.

  • Page 46: Dsl Settings

    150Mbps Wireless AP/Client Router User Guide Figure 4-17 Virtual Private Network (VPN) - VPN Passthrough must be enabled if you want to allow VPN tunnels using VPN protocols to pass through the Modem Router. PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the •...

  • Page 47: Dhcp Server

    150Mbps Wireless AP/Client Router User Guide Figure 4-18 DSL Modulation Type: Select the DSL operation Modulation Type which your DSL connection uses. Annex Type: Select the DSL operation Annex Type which your DSL connection uses. Click the Save button to save your settings. 4.5 DHCP Server Choose “DHCP Server”, you can see the next submenus: Click any of them, and you will be able to configure the corresponding function.
  • Page 48 150Mbps Wireless AP/Client Router User Guide Figure 4-19 Start IP Address: Enter a value for the DHCP server to start with when issuing IP addresses. Because the default IP address for the Modem Router is 192.168.1.1, the default Start IP Address is 192.168.1.100, and the Start IP Address must be 192.168.1.100 or greater, but smaller than 192.168.1.254.

  • Page 49: Clients List

    150Mbps Wireless AP/Client Router User Guide Note: To use the DHCP server function of the Modem Router, you must configure all computers on the LAN as "Obtain an IP Address automatically". You have to disable NAT of the WAN connections, or the DHCP Relay may not take effect. If you select Disabled, the DHCP function will not take effect.

  • Page 50: Conditional Pool

    150Mbps Wireless AP/Client Router User Guide Figure 4-21 MAC Address: The MAC address of the PC for which you want to reserve an IP address. IP Address: The IP address reserved for the PC by the Modem Router. Status: The status of this entry either Enabled or Disabled. To Reserve an IP address: Click the Add New button.
  • Page 51 150Mbps Wireless AP/Client Router User Guide Figure 4-23 To add a vendor class: Click the Add New button. Then Figure 4-24 will pop up. Enter parameters for the vendor class. Click the Save button. Figure 4-24 To modify or delete an existing entry: Click the Edit in the entry you want to modify.

  • Page 52: Wireless

    150Mbps Wireless AP/Client Router User Guide 4.6 Wireless Choose “Wireless”, there are six submenus to configure Wireless LAN settings. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 4.6.1 Basic Settings Choose “Wireless”...
  • Page 53 150Mbps Wireless AP/Client Router User Guide 11bg mixed: Select if you are using both 802.11b and 802.11g wireless clients. 11bgn mixed: Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless stations can be connected to the Modem Router.

  • Page 54: Wps Settings

    150Mbps Wireless AP/Client Router User Guide WEP Index: This option should be chosen if the key type is WEP(ASCII) or WEP(HEX). It indicates the index of the WEP key. Auth Type: This option should be chosen if the key type is WEP(ASCII) or WEP(HEX). It indicates the authorization type of the Root AP.
  • Page 55 150Mbps Wireless AP/Client Router User Guide You can also keep the default WPS Status as Enabled and click the Add device button in Figure 4-26, then Choose “Press the button of the new device in two minutes” and click Connect. (Shown in the following figure) Figure 4-27 Step 2: Press and hold the WPS button of the client device directly.

  • Page 56: Wireless Security

    150Mbps Wireless AP/Client Router User Guide Step 1: On the client device, enter the PIN number listed on the Modem Router’s Wi-Fi Protected Setup screen. (It is also labeled on the bottom of the Modem Router.) Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process.
  • Page 57 150Mbps Wireless AP/Client Router User Guide WEP: It is based on the IEEE 802.11 standard. If you check this radio button, you will find a notice in red as show in Figure 4-29. Figure 4-30 • Auth Type - you can choose the type for the WEP security on the drop-down list. The default setting is Automatic, which can select Shared Key or Open System authentication type automatically based on the wireless station's capability and request.

  • Page 58: Wireless Mac Filtering

    150Mbps Wireless AP/Client Router User Guide • Group Key Update Period - Specify the group key update interval in seconds. The value should be 30 or above. Enter 0 to disable the update. Be sure to click the Save button to save your settings on this page. 4.6.4 Wireless MAC Filtering Choose menu “Wireless”...

  • Page 59: Wireless Advanced

    150Mbps Wireless AP/Client Router User Guide Click the Save button to save this entry. To edit or delete an existing entry: Click the Edit in the entry you want to modify. Modify the information. Click the Save button. Click the Enable/ Disabled Selected button to make selected entries enabled or disabled. Click the Delete Selected button to selected entries.
  • Page 60 150Mbps Wireless AP/Client Router User Guide Figure 4-33 Transmit Power: Here you can specify the transmit power of Modem Router. You can select High, Middle or Low which you would like. High is the default setting and is recommended. Beacon Interval: Enter a value between 25-1000 milliseconds for Beacon Interval here. The beacons are the packets sent by the Modem Router to synchronize a wireless network.

  • Page 61: Wireless Status

    150Mbps Wireless AP/Client Router User Guide 4.6.6 Wireless Status Choose menu “Wireless” ”Wireless Status”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station. Figure 4-34 MAC Address: The connected wireless station's MAC address Current Status: The connected wireless station's running status, one of STA-AUTH/ STA-ASSOC/ STA-JOINED/ WPA/ WPA-PSK/ WPA2/ WPA2-PSK/ AP-UP/ AP-DOWN/ Disconnected...
  • Page 62 150Mbps Wireless AP/Client Router User Guide Figure 4-35 Profile Name: Displays the profile name of the account. Registrar Address: Displays the IP address of the SIP Registrar server. Phone Number: Displays the phone number of the account. Status/Time: Displays the status and registration time of the account. “Down” means that the account has not been registered.

  • Page 63: Dial Plan

    150Mbps Wireless AP/Client Router User Guide Authentication ID: Enter the name or number used for SIP Authorization with SIP Registrar. This value is provided by your service provider. If it’s not provided, keep the default value. Password: This parameter, given by your service provider, holds the password used for authentication within VoIP SIP registrar.
  • Page 64 150Mbps Wireless AP/Client Router User Guide outgoing calls. 4.7.2.1 Dial Plan List Dial plan List allows the Modem Router to use specific defined account or network to make outgoing calls. Prefix number is the key to making a distinction between VoIP and PSTN call. If actual numbers dialed match prefix number defined in the dial plan, the dialed number will be routed to the specified network according to this plan.
  • Page 65 150Mbps Wireless AP/Client Router User Guide Destination: Both SIP account and PSTN can be selected here. As to which one will be finally used, it depends on not only Destination selected here but also Dial Plan Priority configured on Phone Setup page.

  • Page 66: Phone Setup

    150Mbps Wireless AP/Client Router User Guide you dial. Forbidden: Displays the interface(s) disabled in this plan. Remove: Check the box and then click the Remove button below so that the very plan will be deleted. Edit: Click the Edit button to modify the very plan. To add a dial plan, click the Add button in Figure 4-39.
  • Page 67 150Mbps Wireless AP/Client Router User Guide Figure 4-42 Phone Enable: Check the box behind to enable the function. Dial Settings Dial Plan Priority: Define the priority between VoIP and PSTN dial plan. Dial Plan Priority: The parameters configured here determine which network or SIP account to use when making outgoing calls.
  • Page 68 150Mbps Wireless AP/Client Router User Guide • PSTN Preferred & Account X (a certain account) – The Router will select the network to make calls according to your dial plans set on Dial Plan page. If VoIP network is selected, the account used will be Account X.

  • Page 69: Advanced Setup

    150Mbps Wireless AP/Client Router User Guide enabled by default. Speaker Gain: Sound Volume control of speaker. Mic Gain: Sound Volume control of microphone. 4.7.4 Advanced Setup Choose “Voice” “Advanced Setup”, you will see the next screen in Figure 4-43. Figure 4-43 SIP Advanced Setup: Bound Interface Name: Bound Interface decides where to send/receive the VOIP traffic.
  • Page 70 150Mbps Wireless AP/Client Router User Guide the next Router based on the DSCP value. Select one DSCP for the SIP. If you are unsure, please always keep the default value. DSCP for RIP: RIP(Routing Information Protocol), is used for the Modem Router to exchange routing information with neighboring routers to accomplish IP routing.

  • Page 71: Speed Dial

    150Mbps Wireless AP/Client Router User Guide 4.7.5 Speed Dial Choose “Voice” “Speed Dial”, you will see the screen as shown in Figure 4-44. This section introduces how to configure Speed Dial for your account. Speed Dial comes to store frequently used telephone numbers and to make your dial more convenient.

  • Page 72: Call Firewall

    150Mbps Wireless AP/Client Router User Guide Figure 4-47 Call Log: Check the Enable if you want to make this function take effect, otherwise check the Disable. Start: Beginning time of the call. Source: Caller ID, either phone number or IP address. Dest: Callee ID, either phone number or IP address.
  • Page 73 150Mbps Wireless AP/Client Router User Guide Figure 4-49 Call Firewall Enable: Check the box if you want to make the Call Firewall take effect. Black: Check the Black box to enable Black List mode. Calls from numbers placed in the Black List will be denied.

  • Page 74: Usb Voice Mail

    150Mbps Wireless AP/Client Router User Guide To configure the White List, choose “Call Firewall” ”White List” on the left menu or click the White List button on the screen as shown in, then you will see the screen as shown in Figure 4-52.
  • Page 75 150Mbps Wireless AP/Client Router User Guide Figure 4-54 Phone: Displays the phone that has voice message. Source: Displays the source of the voice message, i.e. the remote caller account. Dest: Displays the destination of the voice message, i.e. the local account. Start Time: Displays when the voice message starts.
  • Page 76 150Mbps Wireless AP/Client Router User Guide Figure 4-55 Enable Local Play Operation Notify: Check this box so there will be sound indication for operation when you listen to the voice messages. This is enabled by default. If you are very familiar with the operations, you can disable it.

  • Page 77: Usb Settings

    150Mbps Wireless AP/Client Router User Guide Input the PIN code according to the notification. You can listen to all the new messages after the PIN code is validated. Click Save to save your configurations. Click Back to go back to the previous page, i.e. Figure 4-54. Note: For details about how to configure USB Voice Mail function, please refer to Quick Installation Guide.

  • Page 78: User Accounts

    150Mbps Wireless AP/Client Router User Guide Figure 4-56 Volume: The volume name of the USB drive the users have access to. File System: The system of the USB drive. Capacity: The storage capacity of the USB driver. Status: Indicates the shared or non-shared status of the volume. Online means volume can be shared, while Offline means volume can not be shared.

  • Page 79: Storage Sharing

    150Mbps Wireless AP/Client Router User Guide Figure 4-57 To add a new user account, please follow the steps below: Choose the index from the drop-down list of Choose Index. Self-define a New User Name. Enter the password in the New Password field. Re-enter the password in the Confirm Password field.
  • Page 80 150Mbps Wireless AP/Client Router User Guide Figure 4-58 Server Status: Indicates the Storage Sharing's current status. Anonymous access to all the volumes: If this function is enabled, users can access all activated volumes of Storage Sharing without accounts. Share Name: This folder's display name. Directory: The real full path of the specified folder.

  • Page 81: Ftp Server

    150Mbps Wireless AP/Client Router User Guide Figure 4-59 Click the Browse button, and then select the Select Volume from the drop-down list. Enter display name of the share folder in Share Name filed. Click the Apply button to apply the settings. You can click the upper button to go to the upper folder Click the Enable/Disable Selected button to enable or disable the selected entries.
  • Page 82 150Mbps Wireless AP/Client Router User Guide Figure 4-60 Server Status: Indicates the FTP Server's current status. Internet Access: Enable or disable this function. Internet Address: If Internet Access is enabled, WAN IP will be displayed here. Service Port: Enter the FTP Port number to use. The default is 21. Share Name: This folder's display name.

  • Page 83: Media Server

    150Mbps Wireless AP/Client Router User Guide Figure 4-61 Click the Browse button, and then select the Select Volume from the drop-down list. Enter display name of the share folder in Share Name filed. Click the Apply button to apply the settings. You can click the upper button to go to the upper folder.

  • Page 84: Print Server

    150Mbps Wireless AP/Client Router User Guide Server Enable: Select this box to enable this function. Server Name: The name of this Media Server. To add a new share folder for your media server, please follow the instructions below: Click Add Content button, and you will see the screen as shown in Figure 4-77. Enter the name of the share folder in Share Name field.

  • Page 85: Route Settings

    150Mbps Wireless AP/Client Router User Guide 4.9 Route Settings Choose “Route Settings”, it includes three menus: Default Gateway, Static Route and RIP Settings. The detailed descriptions are provided below. 4.9.1 Default Gateway Choose “Route Settings” “Default Gateway”, you can see the Default Gateway screen. You can select a WAN Interface from the drop-down list as the system default gateway.

  • Page 86: Rip Settings

    150Mbps Wireless AP/Client Router User Guide Figure 4-67 Enter the following data: Destination IP Address: The Destination IP Address is the address of the network or host that you want to assign to a static route. Subnet Mask: The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion.

  • Page 87: Forwarding

    150Mbps Wireless AP/Client Router User Guide Note: RIP cannot be configured on the WAN Interface which has NAT enabled (such as PPPoE). 4.10 Forwarding There are four submenus under the Forwarding menu: Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function. 4.10.1 Virtual Servers Choose menu “Forwarding”...

  • Page 88: Port Triggering

    150Mbps Wireless AP/Client Router User Guide Service Port menu does not list the service that you want to use, enter the number of the service port or service port range in the Service Port field. Select the service you want to use from the Use Interface list. Enter the IP address of the computer running the service application in the IP Address field.
  • Page 89 150Mbps Wireless AP/Client Router User Guide Figure 4-71 To add a new rule, follow the steps below. Click the Add New button, the next screen will pop-up as shown in Figure 4-72. Select a common application from the Common Service Port drop-down list, then the Trigger Port field and the Open Ports field will be automatically filled.

  • Page 90: Dmz

    150Mbps Wireless AP/Client Router User Guide Open Protocol: The protocol used for Incoming Port, either TCP, UDP, or ALL (all protocols supported by the Modem Router). Status: The status of this entry, Enabled means the Port Triggering entry is enabled. Modify: To modify or delete an existing entry.

  • Page 91: Upnp

    150Mbps Wireless AP/Client Router User Guide Figure 4-73 To assign a computer or server to be a DMZ server: 1. Click the Enable button. 2. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address field.

  • Page 92: Parental Control

    150Mbps Wireless AP/Client Router User Guide Click the Disable button to disable UPnP. Click the Refresh button to update the Current UPnP Settings List. 4.11 Parental Control Choose menu “Parental Control”, and you can configure the parental control in the screen as shown in Figure 4-75.

  • Page 93: Firewall

    150Mbps Wireless AP/Client Router User Guide MAC Address of Current PC: This field displays the MAC address of the PC that is managing this Modem Router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above. Add URL: Here you can input the net addresses which the child is allowed to access.

  • Page 94: Lan Host

    150Mbps Wireless AP/Client Router User Guide Add New: Click the Add New button to add a new rule entry. Enable Selected: Click the Enable Selected button to enable the selected rules in the list. Disable Selected: Click the Disable Selected button to disable the selected rules in the list. Delete Selected: Click the Delete Selected button to delete the selected entries in the table.

  • Page 95: Wan Host

    150Mbps Wireless AP/Client Router User Guide Description: Here displays the description of the host and this description is unique. Address Info: Here displays the information about the host. It can be IP or MAC. Edit: To modify an existing entry. To add a new entry, please follow the steps below.
  • Page 96 150Mbps Wireless AP/Client Router User Guide Figure 4-80 In Description field, create a unique description for the host (e.g. Host_1). In IP Address field, enter the IP address. If you select MAC Address, the screen shown is Figure 4-81. Figure 4-81 In Description field, create a unique description for the host (e.g.

  • Page 97: Schedule

    150Mbps Wireless AP/Client Router User Guide 4.12.4 Schedule Choose menu “Firewall” → “Schedule”, and then you can view and set a Schedule list in the next screen as shown in Figure 4-83. Figure 4-83 Description: Here displays the description of the schedule and this description is unique. Edit: Here you can modify an existing schedule.

  • Page 98: Traffic Control

    150Mbps Wireless AP/Client Router User Guide Click the Delete Selected button to delete the selected entries in the table. 4.13 Traffic Control There are two submenus under the Traffic Control menu: Control Settings and Rules List. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

  • Page 99: Ip&Mac Binding

    150Mbps Wireless AP/Client Router User Guide Figure 4-86 Description: This is the information about the rules such as address range. Upstream Bandwidth: This field displays the max and mix upload bandwidth through the WAN port, the default is 0. Downstream Bandwidth: This field displays the max and mix download bandwidth through the WAN port, the default is 0.

  • Page 100: Binding Settings

    150Mbps Wireless AP/Client Router User Guide There are two submenus under the IP &MAC Binding menu: Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the corresponding function. The detailed explanations for each submenu are provided below. 4.14.1 Binding Settings This page displays the IP &...

  • Page 101: Arp List

    150Mbps Wireless AP/Client Router User Guide To modify or delete an existing entry, follow the steps below. Find the desired entry in the table. Click Edit as desired on the Edit column. Click the Enable/ Disable Selected button to make selected entries enabled or disabled. Click the Delete Selected button to delete selected entries.

  • Page 102: Diagnostic

    150Mbps Wireless AP/Client Router User Guide Figure 4-91 Service Provider: This field displays the service provider of DDNS. Domain Name: Enter the Domain name you received from dynamic DNS service provider. Username & Password: Type the “User Name” and “Password” for your DDNS account. Enable DDNS: Activate the DDNS function or not.

  • Page 103: System Tools

    150Mbps Wireless AP/Client Router User Guide 4.17 System Tools Choose menu “System Tools”, and you can see the submenus under the main menu: System Log, Time Settings, Manage Control, CWMP Settings, SNMP Settings, Backup & Restore, Factory Defaults, Firmware Upgrade, Reboot and Statistics. Click any of them, and you will be able to configure the corresponding function.

  • Page 104: Time Settings

    150Mbps Wireless AP/Client Router User Guide Figure 4-94 Save Locally: If Save Locally is selected, events will be recorded in the local memory. Minimum Level: Select the Minimum level in the drop-down list, for the Minimum Level, all logged events above or equal to the selected level will be displayed. Save Remotely: If Save Remotely is selected, events will be sent to the specified IP address and UDP port of the remote system log server.

  • Page 105: Manage Control

    150Mbps Wireless AP/Client Router User Guide Enter the Time in Hour/Minute/Second format. Click Save. To set time automatically: Select your local time zone. Enter the address or domain of the NTP Server 1 or NTP Server 2. Click the Get GMT button to get system time from Internet if you have connected to the Internet.

  • Page 106: Snmp Settings

    150Mbps Wireless AP/Client Router User Guide Figure 4-97 CWMP: Select enable the CWMP function. Inform: Enable or disable the function. If enabled, the information will be informed to ACS server periodically. Inform Interval: Enter the interval time here. ACS URL: Enter the website of ACS which is provided by your ISP. ACS User Name/Password: Enter the User Name and password to login the ACS server.

  • Page 107: Backup & Restore

    150Mbps Wireless AP/Client Router User Guide Figure 4-98 An SNMP Agent is an application running on the Modem Router that performs the operational role of receiving and processing SNMP messages, sending responses to the SNMP manager, and sending traps when an event occurs. So a router contains SNMP "agent" software can be monitored and/or controlled by SNMP Manager using SNMP messages.

  • Page 108: Firmware Upgrade

    Enter or select the path name where you save the downloaded file on the computer into the File Name blank. Click the Upgrade button. The Modem Router will reboot while the upgrading has been finished. Note: New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.

  • Page 109: Reboot

    150Mbps Wireless AP/Client Router User Guide There is no need to upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the Modem Router rather than the configuration, you can try to upgrade the firmware. When you upgrade the Modem Router's firmware, you may lose its current configurations, so before upgrading the firmware please write down some of your customized settings to avoid losing important settings.
  • Page 110 150Mbps Wireless AP/Client Router User Guide Figure 4-103 Statistics Status: Enable or Disable. The default value is disabled. To enable it, click the Enable. If it is disabled, the function of DoS protection in Security settings will be disabled. Statistics Interval (5-60): The default value is 10. Select a value between 5 and 60 seconds in the drop-down list.

  • Page 111: Appendix A: Specifications

    150Mbps Wireless AP/Client Router User Guide Appendix A: Specifications General ANSI T1.413.I2, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, IEEE802.1p, IEEE 802.11b,IEEE802.11e, IEEE 802.11g, IEEE Standards and Protocols 802.11n, IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT Safety &...

  • Page 112: Appendix B: Troubleshooting

    150Mbps Wireless AP/Client Router User Guide Appendix B: Troubleshooting T1. How do I restore my Modem Router’s configuration to its factory default settings? With the Modem Router powered on, press and hold the RESET button on the front panel for 8 to 10 seconds before releasing it.
  • Page 113 150Mbps Wireless AP/Client Router User Guide Click Change adapter settings Right-click Local Area Connection Click Properties...
  • Page 114 150Mbps Wireless AP/Client Router User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 115 150Mbps Wireless AP/Client Router User Guide For Windows Vista OS Go to Start > Settings >Control Panel, and then you will see the following page. Click View network status and tasks Click View status Click Properties...
  • Page 116 150Mbps Wireless AP/Client Router User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 117 150Mbps Wireless AP/Client Router User Guide For Windows XP OS Go to Start > Control Panel, you will then see the following page. Click Network and Internet Connections Click Network Connections Right-click Local Area Connection Click Properties...
  • Page 118 150Mbps Wireless AP/Client Router User Guide Double-click Internet Protocol (TCP/IP) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 119 150Mbps Wireless AP/Client Router User Guide Click OK 2) Configure your IE browser Open your IE browser, click Tools tab and you will see the following screen. Click Internet Options...
  • Page 120 Modem Router by following the instructions in Login. 5) Please feel free to contact our Technical Support if the problem still exists. Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support...

  • Page 121: Appendix C: Telephony Features

    150Mbps Wireless AP/Client Router User Guide Appendix C: Telephony Features Call Holding This feature allows you to put a call on hold, in which case the call is not ended but no verbal communication is available. To put a call on hold, press the flash button. To return to the original call, press the flash button again.
  • Page 122 150Mbps Wireless AP/Client Router User Guide or not, the incoming call will be redirected to the specified party. With Call Forwarding on Busy enabled, the incoming call will be redirected to the specified party when the called party is engaged. With Call Forward on No Answer enabled, the incoming call will be redirected to the specified party when there is no response for a certain time.

  • Page 123: Appendix D: Telephone Operation

    150Mbps Wireless AP/Client Router User Guide Appendix D: Telephone Operation Code Description Usage Press 0 to listen to new voice messages. Press 1 to listen to the previous message. Press 2 to listen to the current message again. Listen to voice messages stored your Press 3 to listen to the next message.
  • Page 124 150Mbps Wireless AP/Client Router User Guide Pick up the phone to dial this code. After hearing the Enable Call Forwarding confirmation tone, hang up to make the configuration Unconditionally. take effect. Dial the last incoming Pick up the phone to dial this code. The last incoming number.

  • Page 125: Appendix E: Technical Support

    Service time: 24hrs, 7 days a week Indonesia Turkey Tel: (+62) 021 6259 135 Tel: 444 19 25 (Turkish Service） E-mail : support.id@tp-link.com E-mail: support.tr@tp-link.com Service time : Monday to Friday Service time: 9:00 AM to 6:00 PM 9:00 -12:00; 13:00 -18:00...

Table of Contents
