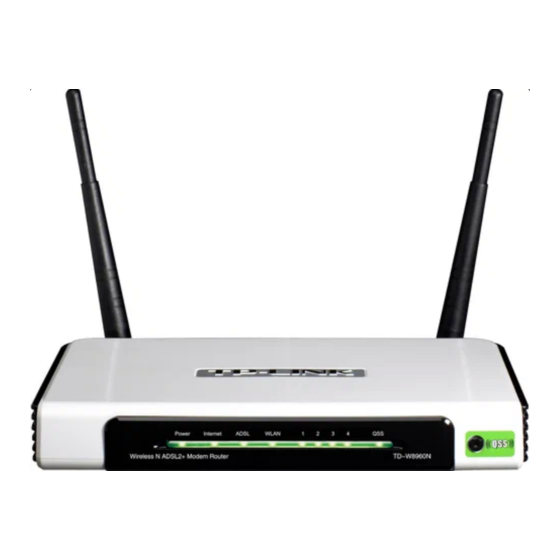

TP-Link TD-W8960N Installation Manual

Note
Please use only wired network connections to configure the Router.
Power down all of your network devices, including your computer(s) and the
Modem Router. If you currently use a modem, disconnect it now - the Modem
Router will replace your current modem.
Connect your computer to the
LAN port on the Modem Router
with an Ethernet cable.
Connect the LINE port of the
splitter to the wall jack using a
telephone line, then connect the
MODEM port of the splitter to the
LINE port of the modem with
another telephone line, also have
the PHONE port of the splitter
connected to a telephone.
If no telephone is needed, please connect the LINE port of the Modem Router
Note
to the wall jack using the telephone line directly.
1
