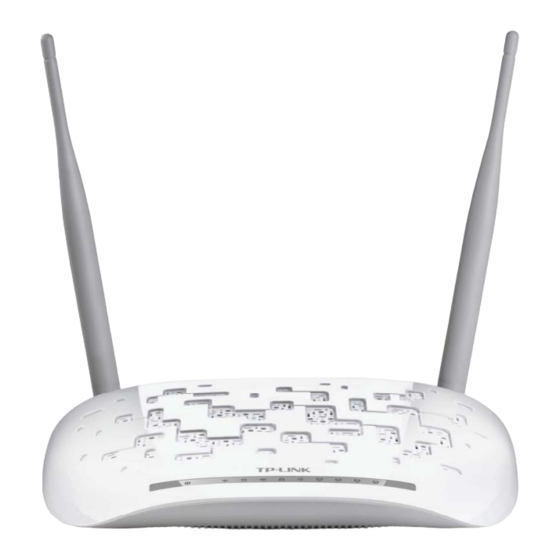

300mbps wireless n adsl2+ modem router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TD-W8962ND
300Mbps Wireless N ADSL2+ Modem Router
Rev: 1.0.0
1910010687

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-W8962ND

Summary of Contents for TP-Link TD-W8962ND

  • Page 1 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router Rev: 1.0.0 1910010687...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Canadian Compliance Statement

    This device has been designed to operate with the antennas listed below, and having a maximum gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.”...

  • Page 5: Safety Information

    Safety Information When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. Don’t disassemble the product, or make repairs yourself.

  • Page 6: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 300Mbps Wireless N ADSL2+ Modem Router Model No.: TD-W8962ND Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 7: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Product Overview...................2 1.1 Overview of the Modem Router ..................2 1.2 Main Features......................... 3 1.3 Panel Layout........................4 1.3.1 The Front Panel ........................4 1.3.2 The Back Panel........................5 Chapter 2. Connecting the Modem Router .............7 2.1 System Requirements ....................
  • Page 8 4.6.3 Address Reservation......................37 4.6.4 Conditional Pool ......................... 38 4.7 Wireless ........................40 4.7.1 Basic Settings ........................40 4.7.2 WPS Settings ........................42 4.7.3 Wireless Security ....................... 44 4.7.4 Wireless MAC Filtering ...................... 46 4.7.5 Wireless Advanced ......................47 4.7.6 Wireless Status ........................48 4.8 Route Settings ......................
  • Page 9 4.16.5 SNMP Settings ......................... 70 4.16.6 Backup & Restore......................71 4.16.7 Factory Defaults........................ 71 4.16.8 Firmware Upgrade......................72 4.16.9 Reboot ..........................73 4.16.10 Statistics........................73 Appendix A: Specifications ...................75 Appendix B: Troubleshooting ................76 Appendix C: Technical Support ................85...

  • Page 10: Package Contents

    One Power Adapter for TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router Quick Installation Guide One RJ45 cable Two RJ11 cables One ADSL splitter One Resource CD for TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router, including: • This User Guide • Other Helpful Information Note: Make sure that the package contains the above items.

  • Page 11: Chapter 1. Product Overview

    300Mbps Wireless N ADSL2+ Modem Router User Guide Chapter 1. Product Overview Thank you for choosing the TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router. 1.1 Overview of the Modem Router The TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router integrates 4-port Switch, Firewall, NAT-Router and Wireless AP.

  • Page 12: Main Features

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 1.2 Main Features Four 10/100Mbps Auto-Negotiation RJ45 LAN ports (Auto MDI/MDIX), one RJ11 port. Provides external splitter. Adopts Advanced DMT modulation and demodulation technology. Supports bridge mode and Router function. Multi-user sharing a high-speed Internet connection.

  • Page 13: Panel Layout

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 1.3 Panel Layout 1.3.1 The Front Panel Figure 1-1 The Modem Router’s LEDs are located on the front panel (View from left to right). They indicate the device’s working status. For details, please refer to LED Explanation.

  • Page 14: The Back Panel

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide There is a device connected to this LAN port. The Modem Router is sending or receiving data over this LAN (LAN1-4) Flash port. There is no device connected to this LAN port.
  • Page 15 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide WPS: The switch for the WPS function. For details, please refer to 4.6.2 WPS Settings. RESET: There are two ways to reset the Modem Router's factory defaults. Method one: With the Modem Router powered on, use a pin to press and hold the Reset button for at least 5 seconds.

  • Page 16: Chapter 2. Connecting The Modem Router

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Chapter 2. Connecting the Modem Router 2.1 System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet). PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors. TCP/IP protocol on each PC.

  • Page 17: Connecting The Modem Router

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Note: The diameter of the screw, 3.5mm<D<7.8mm, and the distance of two screws is 107.5mm. The screw that project from the wall need around 4mm based, and the length of the screw need to be at least 20mm to withstand the weight of the product.
  • Page 18 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 2-2...

  • Page 19: Chapter 3. Quick Installation Guide

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Chapter 3. Quick Installation Guide 3.1 Configuring the PC After you directly connect your PC to the Modem Router or connect your adapter to a Hub/Switch which has connected to the Modem Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 20 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 21 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically”...

  • Page 22: Quick Installation Guide

    192.168.1.2 ~ 192.168.1.254. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 23 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-8 Note: 1) Do not mix up the user name and password with your ADSL account user name and password which are needed for PPP connections. 2) If the above screen does not pop up, it means that your Web-browser has been set to a proxy.

  • Page 24: Wireless Adsl Router

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-9 The Modem Router provides two system mode: Wireless ADSL Router and Wireless Router. Choose the right mode which you need, then click Next. Figure 3-10 3.2.1 Wireless ADSL Router Change the VPI or VCI values which are used to define a unique path for your connection.
  • Page 25 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-11 Please select the connection type given by your ISP. Figure 3-12 A. Configuration for PPPoE/PPPoA Enter the Username, Password given by your ISP, and then click Next. Figure 3-13...
  • Page 26 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide C. Configuration for Static IP or IPoA Enter the Static IP or IPoA information provided by your ISP manually, and then click Next. Figure 3-14 3. The wireless settings page will appear as shown below. You can create a unique and easy-to-remember name for your wireless network or just keep the default SSID.
  • Page 27 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-16 You will see the Complete screen below, click Reboot to complete Quick Setup. Figure 3-17 Note: Now, your Modem Router has been configured and is rebooting. Please do not turn off the Modem...

  • Page 28: Wireless Router

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 3.2.2 Wireless Router Please select the connection type provided by your ISP. Figure 3-18 A. Configuration for PPPoE Enter the Username, Password given by your ISP, and then click Next. Figure 3-19...
  • Page 29 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-20 The wireless settings page will appear as shown below. You can create a unique and easy-to-remember name for your wireless network or just keep the default SSID. Then select Region, Channel, Mode and set a Password for your network (Disable Security is not recommended).
  • Page 30 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 3-22 You will see the Complete screen below, click Reboot to complete Quick Setup. Figure 3-23 Note: Now, your Modem Router has been configured and is rebooting. Please do not turn off the Modem...

  • Page 31: Chapter 4. Configuring The Modem Router

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Chapter 4. Configuring the Modem Router This chapter will show each Web page's key function and the configuration way. 4.1 Login After your successful login, you will see the fifteen main menus on the left of the Web-based utility.

  • Page 32: Quick Setup

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-1 4.3 Quick Setup Please refer to Section 3.2 Quick Installation Guide. 4.4 System Mode The Modem Router provides two system modes: Wireless ADSL Router and Wireless Router. You can choose the right mode which you need, then click Save.

  • Page 33: Network

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-2 4.5 Network Choose “Network”, there are many submenus under the main menu. Click any one of them, and you will be able to configure the corresponding function. 4.5.1 WAN Settings Choose “Network”...
  • Page 34 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-4 4.5.1.1 Static IP Select this option if your ISP provides static IP information to you. You should set static IP address, IP subnet mask, and gateway address in the screen below.
  • Page 35 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-5 ATM Configuration: VPI (0~255): Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. Please input the value provided by your ISP.
  • Page 36 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide MTU (bytes): Maximum Transmission Unit Size. Check this box then you can change the MTU size. The default MTU value is 1500 Bytes. It is not recommended that you change the default value unless required by your ISP.
  • Page 37 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Internet, please select the check box. If another Router exists in your network, you don’t need to select the option. Enable Fullcone NAT: It is a type of NAT, if not enabled, the default NAT will act.
  • Page 38 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Authentication Method: Select the Authentication Method from the drop-down list, the default method is AUTO_AUTH, and you can leave it as a default setting. Choose the right connection type according to your needs: For PPPoE connection, you can select Connect on demand or Connect automatically or Connect manually.

  • Page 39: Bridge

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-9 IP Address/Subnet Mask: Enter the IP Address and Subnet Mask provided by ISP. If you forget, you can ask your ISP. DNS Server/Secondary DNS Server: Type in your preferred DNS server.

  • Page 40: Interface Grouping

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.5.2 Interface Grouping Choose “Network” “Interface Grouping”, you can view all the current groups on this page (shown in Figure 4-11). Figure 4-11 VLAN: Enable or disable this function. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.

  • Page 41: Lan Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-12 Click Save to make the entry effective immediately 4.5.3 LAN Settings Choose “Network” “LAN Settings” menu, and you will see the LAN screen (shown in Figure 4-13). Please configure the parameters for LAN ports according to the descriptions below.

  • Page 42: Mac Clone

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Enable IGMP Snooping: If you select the option, please choose the IGMP Mode: Standard Mode or Blocking Mode. Enable Second IP: You can configure the Modem Router’s second IP Address and Subnet Mask for LAN Interface through which you can also access to the Web-based Utility as the default IP Address and Subnet Mask.

  • Page 43: Alg Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Note: Only the WAN Ports can use MAC Address Clone function. All the clone MAC addresses must not be the same with each other. 4.5.5 ALG Settings Choose menu “Advanced Setup” “ALG Settings”, and then you can configure the basic security in the screen as shown in Figure 4-15.

  • Page 44: Dsl Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.5.6 DSL Settings Choose “Advanced Setup” “DSL Settings”, you can select the DSL Modulation Type and Annex Type in the next screen. The DSL feature can be selected when you meet the physical connection problem.
  • Page 45 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-17 Start IP Address: Enter a value for the DHCP server to start with when issuing IP addresses. Because the default IP address for the Modem Router is 192.168.1.1, the default Start IP Address is 192.168.1.100, and the Start IP Address must be 192.168.1.100 or greater, but...

  • Page 46: Clients List

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Note: To use the DHCP server function of the Modem Router, you must configure all computers on the LAN as "Obtain an IP Address automatically". You have to disable NAT of the WAN connections, or the DHCP Relay may not take effect.

  • Page 47: Conditional Pool

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-19 MAC Address: The MAC address of the PC for which you want to reserve an IP address. IP Address: The IP address reserved for the PC by the Modem Router.
  • Page 48 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-21 To add a vendor class: Click the Add New button. Then Figure 4-22 will pop up. Enter parameters for the vendor class. Click the Save button. Figure 4-22 To modify or delete an existing entry: Click the Edit in the entry you want to modify.

  • Page 49: Wireless

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.7 Wireless Choose “Wireless”, there are six submenus to configure Wireless LAN settings. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.
  • Page 50 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 11bgn mixed: Select if you are using a mix of 802.11b, 11g, and 11n wireless clients. Select the desired wireless mode. When 802.11g mode is selected, only 802.11g wireless stations can be connected to the Modem Router. When 802.11n mode is selected, only 802.11n wireless stations can connect to the Modem Router.

  • Page 51: Wps Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Key type: This option should be chosen according to the AP's security configuration. It is recommended that the security type is the same as your AP's security type WEP Index: This option should be chosen if the key type is WEP(ASCII) or WEP(HEX). It indicates the index of the WEP key.
  • Page 52 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide You can also keep the default WPS Status as Enabled and click the Add device button in Figure 4-24, then Choose “Press the button of the new device in two minutes” and click Connect.

  • Page 53: Wireless Security

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup process. Step 3: When the WPS LED is on, the client device has successfully connected to the Modem Router.
  • Page 54 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-28 • Auth Type - you can choose the type for the WEP security on the drop-down list. The default setting is Automatic, which can select Shared Key or Open System authentication type automatically based on the wireless station's capability and request.

  • Page 55: Wireless Mac Filtering

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.7.4 Wireless MAC Filtering Choose menu “Wireless” ”MAC Filtering”, you can control the wireless access by configuring the Wireless MAC Filtering function, shown in Figure 4-29. Figure 4-29 To filter wireless users by MAC Address, click Enable. The default setting is Disabled.

  • Page 56: Wireless Advanced

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Click the Delete Selected button to selected entries. For example: If you desire that the wireless station A with MAC address 00:1D:0F:11:22:33 and the wireless station B with MAC address 00:0A:EB:00:07:5F are able to access the Modem Router, but...

  • Page 57: Wireless Status

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide beacons are the packets sent by the Modem Router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100. RTS Threshold: Here you can specify the RTS (Request to Send) Threshold. If the packet is larger than the specified RTS Threshold size, the Modem Router will send RTS frames to a particular receiving station and negotiate the sending of a data frame.

  • Page 58: Route Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.8 Route Settings Choose “Route Settings”, it includes three menus: Default Gateway, Static Route and RIP Settings. The detailed descriptions are provided below. 4.8.1 Default Gateway Choose “Route Settings” “Default Gateway”, you can see the Default Gateway screen. You can select a WAN Interface from the drop-down list as the system default gateway.

  • Page 59: Rip Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-35 Enter the following data: Destination IP Address: The Destination IP Address is the address of the network or host that you want to assign to a static route. Subnet Mask: The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion.

  • Page 60: Forwarding

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.9 Forwarding There are four submenus under the Forwarding menu: Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function.

  • Page 61: Port Triggering

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide or All. Select the Enabled option in the Status drop-down list. Click the Save button. Figure 4-38 Note: It is possible that you have a computer or server that has more than one type of available service.
  • Page 62 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Click the Add New button, the next screen will pop-up as shown in Figure 4-40. Select a common application from the Common Service Port drop-down list, then the Trigger Port field and the Open Ports field will be automatically filled. If the Common Service Port do not have the application you need, enter the Trigger Port and the Open Ports manually.

  • Page 63: Dmz

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Click the Delete Selected button to delete selected entries. Once the Modem Router is configured, the operation is as follows: A local host makes an outgoing connection to an external host using a destination port number defined in the Trigger Port field.

  • Page 64: Parent Control

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-42 Current UPnP Status: UPnP can be enabled or disabled by clicking the Enable or Disable button. This feature is enabled by default. Current UPnP Settings List: This table displays the current UPnP information.

  • Page 65: Firewall

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-43 Enable Parental Control: Check the box if you want this function to take effect. This function is disabled by default. MAC Address of Parental PC: In this field, enter the MAC address of the controlling PC, or you can make use of the Copy To Above button below.

  • Page 66: Rule

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide There are four submenus under the Firewall menu: Rule, LAN Host, WAN Host, Schedule and DDoS. Click any of them, and you will be able to configure the corresponding function. 4.11.1 Rule Choose menu “Firewall”...

  • Page 67: Lan Host

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 10. Click the Save button. Figure 4-45 4.11.2 LAN Host Choose menu “Firewall” → “LAN Host”, and then you can view and set a Host list in the screen as shown in Figure 4-46.

  • Page 68: Wan Host

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.11.3 WAN Host Choose menu “Firewall” → “WAN Host”, and then you can view and set a Host list in the screen as shown in Figure 4-47. Figure 4-47 Description: Here displays the description about the WAN and this description is unique.

  • Page 69: Schedule

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-50 In Description field, create a unique description for the host (e.g. Host_1). Enter the URL address in the Add URL Address field, and then click the Add button. The URL address will be shown in the Detail table.

  • Page 70: Ddos

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-52 Click the Delete Selected button to delete the slected entries in the table. 4.11.5 DDoS Choose menu “Firewall” → “DDoS”, and then you can view and set DDoS in the next screen as shown in Figure 4-53.

  • Page 71: Bandwidth Control

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Enable ICMP-Flood Attack Filtering - Enable or Disable the ICMP-Flood Attack Filtering. ICMP-Flood Packets Threshold (5~3600) - The default value is 50. Enter a value between 5 ~ 3600. When the current ICMP-Flood Packets number is beyond the set value, the Modem Router will startup the blocking function immediately.

  • Page 72: Ip&Mac Binding

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Total Downstream Bandwidth - The download speed through the WAN port. In this screen you can also configure the Bandwidth Control rules. Description: This is the information about the rules such as address range.

  • Page 73: Arp List

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-56 MAC Address: The MAC address of the controlled computer in the LAN. IP Address: The assigned IP address of the controlled computer in the LAN. Bound: Check this option to enable ARP binding for a specific device.

  • Page 74: Dynamic Dns

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide items on the ARP list. This page displays the ARP List; it shows all the existing IP & MAC Binding entries (shown in Figure 4-58). Figure 4-58 MAC Address: The MAC address of the controlled computer in the LAN.

  • Page 75: Diagnostic

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Service Provider: This field displays the service provider of DDNS. Domain Name: Enter the Domain name you received from dynamic DNS service provider. Username & Password: Type the “User Name” and “Password” for your DDNS account.

  • Page 76: System Tools

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 4.16 System Tools Choose menu “System Tools”, and you can see the submenus under the main menu: System Log, Time Settings, Manage Control, CWMP Settings, SNMP Settings, Backup & Restore, Factory Defaults, Firmware Upgrade, Reboot and Statistics. Click any of them, and you will be able to configure the corresponding function.

  • Page 77: Time Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-62 Save Locally: If Save Locally is selected, events will be recorded in the local memory. Minimum Level: Select the Minimum level in the drop-down list, for the Minimum Level, all logged events above or equal to the selected level will be displayed.

  • Page 78: Manage Control

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Select your local time zone. Enter the address or domain of the NTP Server 1 or NTP Server 2. Click the Get GMT button to get system time from Internet if you have connected to the Internet.

  • Page 79: Snmp Settings

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Figure 4-65 CWMP: Select enable the CWMP function. Inform: Enable or disable the function. If enabled, the information will be informed to ACS server periodically. Inform Interval: Enter the interval time here.

  • Page 80: Backup & Restore

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide An SNMP Agent is an application running on the Modem Router that performs the operational role of receiving and processing SNMP messages, sending responses to the SNMP manager, and sending traps when an event occurs. So a router contains SNMP "agent" software can be monitored and/or controlled by SNMP Manager using SNMP messages.

  • Page 81: Firmware Upgrade

    The Modem Router will reboot while the upgrading has been finished. Note: New firmware versions are posted at http://www.tp-link.com and can be downloaded for free. There is no need to upgrade the firmware unless the new firmware has a new feature you want to use.

  • Page 82: Reboot

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide when the upgrade is complete. 4.16.9 Reboot Choose menu “System Tools” → “Reboot”, and then you can click the Reboot button to reboot the Modem Router via the next screen. Figure 4-70 Some settings of the Modem Router will take effect only after rebooting, which include •...
  • Page 83 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Click Delete All to delete all entries in the table. Click the Refresh button to refresh immediately. Statistics Table: IP/MAC Address The IP and MAC address are displayed with related statistics.

  • Page 84: Appendix A: Specifications

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Appendix A: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE Standards and Protocols 802.3u, IEEE 802.1p， IEEE802.11e TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT Safety &...

  • Page 85: Appendix B: Troubleshooting

    TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Appendix B: Troubleshooting T1. How do I restore my Modem Router’s configuration to its factory default settings? With the Modem Router powered on, press and hold the RESET button on the rear panel for 8 to 10 seconds before releasing it.
  • Page 86 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Right-click Local Area Connection Click Properties Double-click Internet Protocol (TCP/IP)
  • Page 87 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
  • Page 88 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide For Windows Vista OS Go to Start > Settings >Control Panel, and then you will see the following page. Click View network status and tasks Click View status Click Properties...
  • Page 89 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 90 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide For Windows 7 OS Go to Start > Settings > Control Panel, and then you will see the following page. Click View network status and tasks Click Change adapter settings Right-click Local...
  • Page 91 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 92 TD-W8962ND 300Mbps Wireless N ADSL2+ Modem Router User Guide 2) Configure your IE browser Open your IE browser, click Tools tab and you will see the following screen. Click Internet Options Select Never dial a connection Click OK Now, try to log on to the Web-based configuration page again after the above settings have been configured.
  • Page 93 Modem Router by following the instructions in Login. 5) Please feel free to contact our Technical Support if the problem still exists. Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support...

  • Page 94: Appendix C: Technical Support

    Tel: AU 1300 87 5465 E-mail: support.tr@tp-link.com NZ 0800 87 5465 Service time: 9:00 AM to 9:00 PM E-mail: support.au@tp-link.com(Australia) 7 days a week support.nz@tp-link.com (New Zealand) Service time: 24hrs, 7 days a week Ukraine Tel: 0-800-505-508 Italy E-mail: support.ua@tp-link.com...
