6 front-panel connector (FRONT PANEL)
7 CD/DVD drive connector (IDE)
8 serial ATA drive 0 connector (SATA0)
9 standby power light (AUX_PWR)
10 memory module connectors (DIMM1, DIMM2, DIMM3, DIMM4)
11 PCI Express x16 connector (PEG)
12 PCI riser connector (PCI2)
13 CD drive analog audio cable connector for optional analog audio cable (CD_IN) 26 password jumper (PSWD)

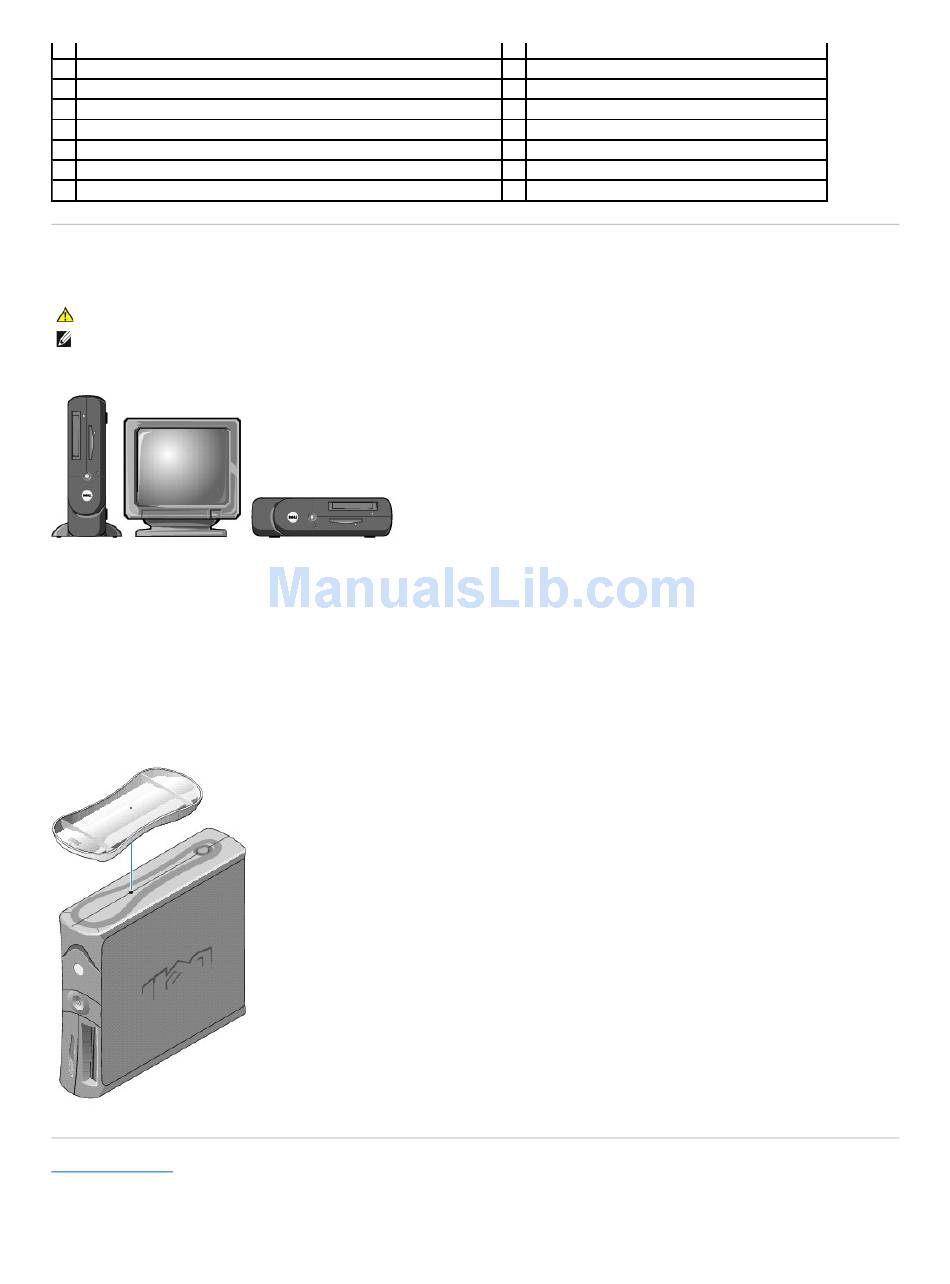

Attaching and Removing the Computer Stand
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTE: Place your computer on a soft surface to prevent scratching the top cover.
Your computer can be used in either a vertical or horizontal position.
To use the computer in a vertical position, you must attach the computer stand:
1. Place the computer on its right side so that the drive bays are at the bottom.
2. Fit the stand onto what was the left side of the computer:
a. Position the stand as shown in the following illustration by aligning the large round hole in the stand with the securing button on the side of the
cover and aligning the captive screw in the stand with the screw hole in the cover.
b. When the stand is in place, tighten the thumbscrew.
3. Rotate the computer so that the stand is at the bottom and the drives are at the top.
Back to Contents Page
19 serial port connector (SER1) and video connector (VGA)
20 parallel port connector (PAR)
21 power connector (12VPOWER)
22 processor connector (CPU)
23 heat-sink/blower retention pad
24 fan connector (FAN)
25 serial port 2 connector (SER_PS2)
