Chapter 5

Line Graph

Clicking the Line Graph tab in the Statistics View dialog box opens the Line
Graph data page. See Figure 5-20.

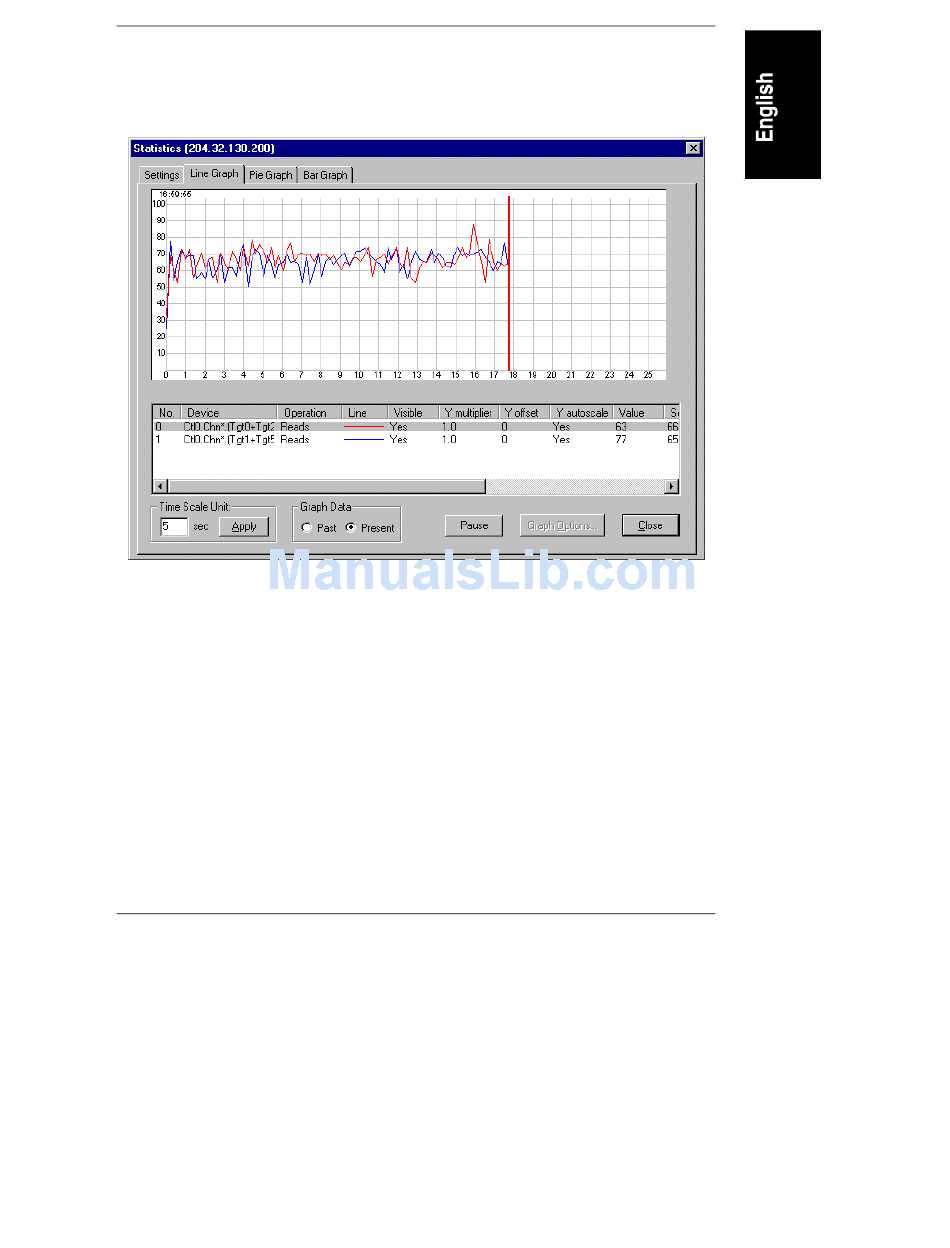

Figure 5-20. Statistics View: Line Graph Display
The Line Graph page displays data for the analysis strings specified in the display
window in the form of lines generated on a grid with time units along the
horizontal axis and percentage points along the vertical axis.
Setting the Time Scale Unit
To set the Time Scale Unit, refer to the following procedure (see Figure 5-20).
1. Enter a number of seconds in the text box.
2. Click the Apply button.
Each horizontal grid mark's value (for example, from 0 to 1, 1 to 2, etc.)
will equal the interval in seconds you have specified.
Monitoring
117
