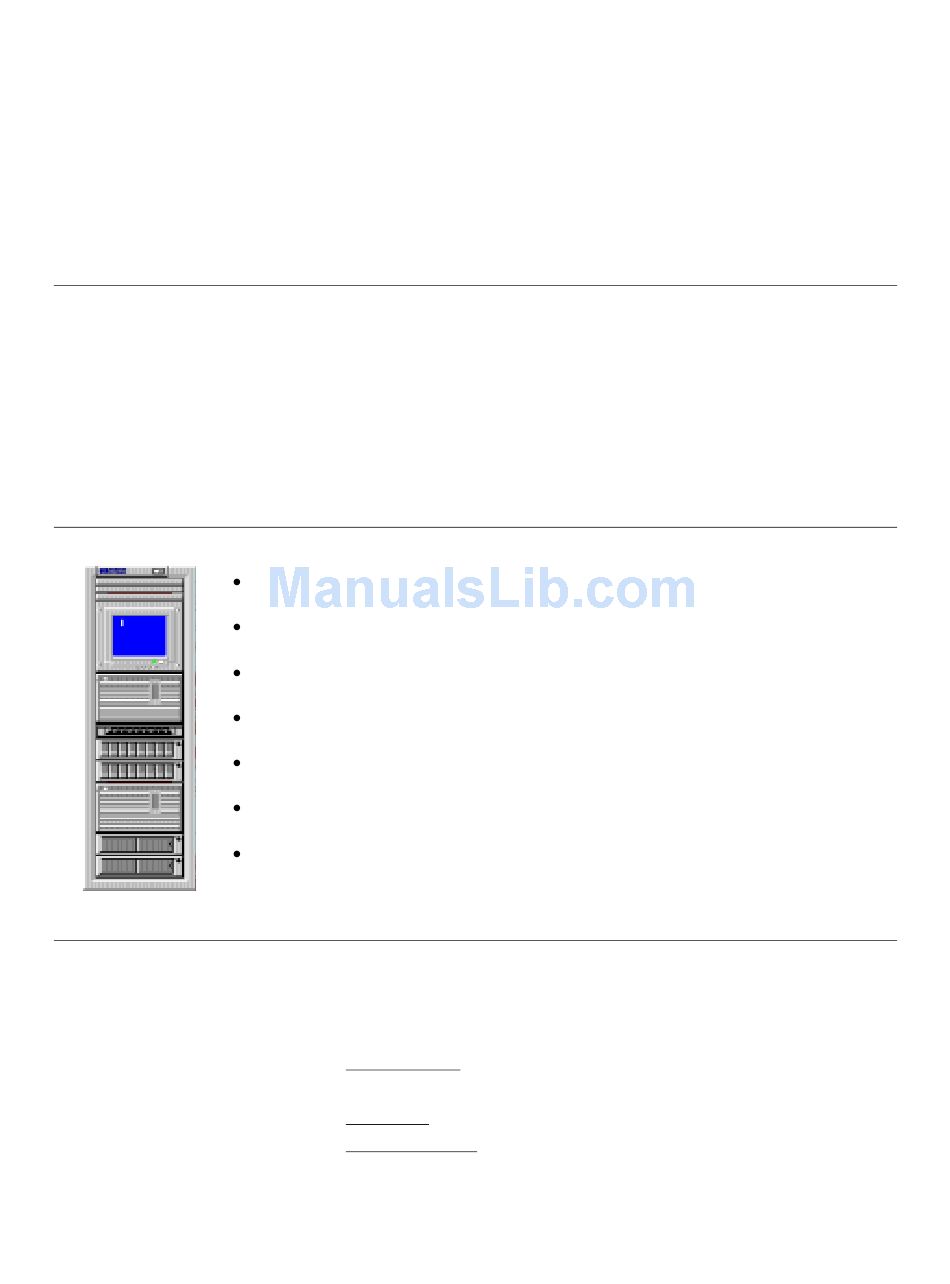

A3661B High Availability Disk Array Model 30/FC
Introduction
This document defines the supported HP NetServer LXr Pro with HP A3661B High Availability Disk Array
Model 30/FC (LXr Pro/ Model 30-FC) configurations for Microsoft Cluster Server. These configurations
minimize single points of failure and provide maximum availability. They have been certified by Hewlett-
Packard and Microsoft.
This guide is prescriptive; it describes the configurations supported by HP. If you create any configuration not
expressly allowed by this guide it will not be supported by HP. HP NetServer clusters have been carefully
designed and tested to allow as much configuration flexibility as possible consistent with high-availability.
What's Defined
Cluster
Type of SPUs
Number of nodes
Shared Storage
LANs:
Client
Intra-cluster
Power source
HP NetServer LXr Pro
Cluster Configuration Guide
July 31, 1998
Cluster
SPUs
LANs
Local Storage
Shared Storage
Shared Storage Cables
Shared Storage Configurations
HP NetServer LXr Pro Model 1
Each node must be the same model SPU, but may have different size main
memory, cache, and number of CPUs.
2
See
Shared Storage
See
Client LAN
below.
See
Intra-cluster LAN
Direct from power mains, power conditioner or uninterruptible power supply
(UPS) using any power conditioner or UPS.
with
below.
below.
Advertisement
Related Manuals for HP D7171A - NetServer - LPr
Summary of Contents for HP D7171A - NetServer - LPr
-
Page 1: Hp Netserver Lxr Pro
HP NetServer LXr Pro with A3661B High Availability Disk Array Model 30/FC Cluster Configuration Guide July 31, 1998 Introduction This document defines the supported HP NetServer LXr Pro with HP A3661B High Availability Disk Array Model 30/FC (LXr Pro/ Model 30-FC) configurations for Microsoft Cluster Server. These configurations minimize single points of failure and provide maximum availability. -
Page 2: Local Storage
System software: Navigator version G.01.00 or later Operating System Microsoft Windows NT Server 4.0, Enterprise Edition or later Service pack SP 3 and hotfix "clusfixi", or later Model HP NetServer LXr Pro Model 1 Clock speed 200 MHz. or faster No. -
Page 3: Shared Storage
Shared Storage Host Bus Adapter: Model A5246A HP Fibre Channel Adapter Kit for NT No. of HBA 1-2 (See Shared Storage Configurations.) Driver version 2.09.B.038.020 SPU I/O slot P6 (1 HBA) and P5 (2 HBA) Disk Array Controller: Model SP630/FC Storage Processor (ordered with A3661B or A3662B) No. - Page 4 Disk Arrays (See Shared Storage: No. of Disk Arrays No. of Controllers 1 per Disk Array for Basic Configuration. 2 per Disk Array for Redundant Configuration.
- Page 5 See Shared Storage Cables for a list of cables that can be connected to the Short Wave Ports of the hub. Port connections to this hub are for example only. You can use any port, except for port 10 on Long Wave Hubs. The remaining ports can be used for connection of additional Disk Arrays.
- Page 6 See Shared Storage Cables for a list of cables that can be connected to the Short Wave Ports of the hub. See Shared Storage Cables for a list of cables that can be Port connections to connected between these hubs are for hubs.
- Page 7 See Shared Storage Cables for a list of cables that can be connected to the Short Wave Ports of the hub. Port connections to these hubs are for example only. You can use any port, except for port 10 on Long Wave Hubs.
- Page 8 See Shared Storage Cables for a list of cables that can be connected to the Short Wave Ports of the hub. See Shared Storage Cables for a list of cables that can be connected Port connections to between hubs. these hubs are for Port 10 is used example only.
