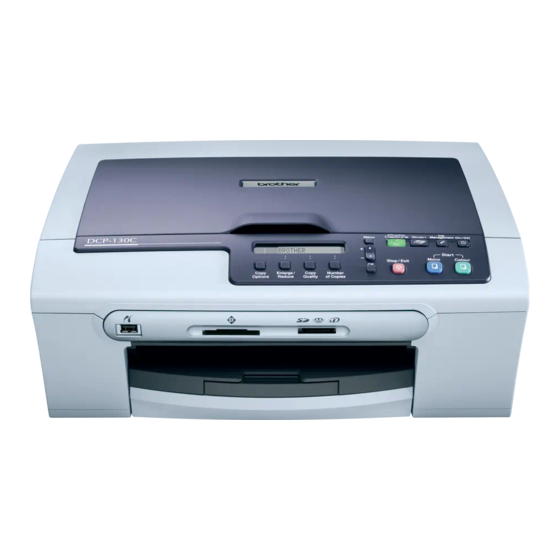

DCP-130C
Before you can use the machine, you must set up the hardware and install the software.
Please read this Quick Setup Guide for the correct setup procedure and installation instructions.
Installing the Driver & Software
Keep this Quick Setup Guide, the User's Guide and the supplied CD-ROM in a convenient place for
quick and easy reference at all times.
STEP 1
Setting Up the Machine
STEP 2
Setup is Complete!
Version A

Advertisement

Table of Contents
loading

Related Manuals for Brother DCP-130C - Color Inkjet - All-in-One

Summary of Contents for Brother DCP-130C - Color Inkjet - All-in-One

  • Page 1 DCP-130C Before you can use the machine, you must set up the hardware and install the software. Please read this Quick Setup Guide for the correct setup procedure and installation instructions. STEP 1 Setting Up the Machine STEP 2 Installing the Driver & Software Setup is Complete! Keep this Quick Setup Guide, the User’s Guide and the supplied CD-ROM in a convenient place for quick and easy reference at all times.

  • Page 2: Symbols Used In This Guide

    Symbols used in this guide Caution Improper Setup Warning Warnings tell you what to do to prevent Cautions specify procedures you must Improper Setup icons alert you to possible personal injury. follow or avoid to prevent possible devices and operations that are not damage to the machine or other objects.

  • Page 3: Table Of Contents

    Table of Contents Getting Started Carton components ............................2 Control panel..............................3 STEP1 – Setting Up the Machine Removing the protective parts ........................4 Loading paper .............................. 4 Connecting the power cord .......................... 5 Installing the ink cartridges........................... 6 Print quality check ............................8 Choosing your language (Canada only).......................

  • Page 4: Getting Started

    Getting Started Carton components Carton components may vary from one country to another. Save all packing materials and the carton in case for any reason you must ship your machine. Quick Setup Guide CD-ROM User’s Guide Accessory Order Form Yellow (LC51Y) Cyan (LC51C) Magenta (LC51M) Black (LC51BK)

  • Page 5: Control Panel

    Getting Started Control panel 1 Copy keys 7 Ink key 2 OK key 8 Scan key 3 Navigation keys 9 PhotoCapture key 4 Stop/Exit key 10 Menu key 5 Start keys 11 LCD (Liquid Crystal Display) 6 On/Off key 12 Warning LED For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

  • Page 6: Step1 Setting Up The Machine

    STEP1 Setting Up the Machine Press and slide the paper side guides (1) and Removing the protective paper length guide (2) to fit the paper size. parts Remove the protective tape and film covering the scanner glass. Improper Setup DO NOT connect the USB cable. Connecting the USB cable is done during the software installation process.

  • Page 7: Connecting The Power Cord

    Setting Up the Machine Slowly push the paper tray completely into the Note machine. When you use Legal size paper, press and hold the universal guide release button as you slide out the front of the paper tray. While holding the paper tray in place, pull out the paper support ( ) until it clicks, and then unfold the paper support flap ( ).

  • Page 8: Installing The Ink Cartridges

    STEP1 Setting Up the Machine Take out the ink cartridge. Installing the ink cartridges Warning If ink gets in your eyes, wash them out with water at once, and if irritation occurs consult a doctor. Make sure that the power is turned on. The LCD shows: No Cartridge Open the ink cartridge cover (1).
  • Page 9 Setting Up the Machine Install each ink cartridge in the direction of the The machine will clean the ink tube system for arrow on the label. use for the first time. This process will occur Take care to match the color of the lock release only once, the first time ink cartridges are lever (1) with the cartridge color (2), as shown installed.

  • Page 10: Print Quality Check

    STEP1 Setting Up the Machine Do one of the following: Print quality check If all lines are clear and visible, press a (Yes) to finish the quality check. If you can see missing short lines, press b After the cleaning cycle is finished, the LCD (No) and go to step 6.

  • Page 11: Setting The Lcd Contrast

    Setting Up the Machine Press a repeatedly to enter the last two digits Setting the LCD contrast of the year, and then press OK. Year:2006 You can adjust the LCD contrast for a sharper and more vivid display. If you are having difficulty seeing (e.g.
  • Page 12 Supplied CD-ROM ‘MFL-Pro Suite’ Supplied CD-ROM ‘MFL-Pro Suite’ ® ® Windows Macintosh Install MFL-Pro Suite Start Here OSX You can install the MFL-Pro Suite software and You can install the MFL-Pro Suite that includes the multifunction drivers. printer driver, scanner driver and the Brother ®...

  • Page 13: Step2 Installing The Driver & Software

    STEP2 Installing the Driver & Software Follow the instructions on this page for your operating system and interface. For the latest drivers and documentations and to find the best solution for your problem or question, access the Brother Solutions Center directly from the driver or visit http://solutions.brother.com ®...

  • Page 14: (For Windows ® 98/98Se/Me/2000 Professional/Xp/Xp Professional X64 Edition)

    STEP2 Installing the Driver & Software ® Windows For USB Interface Users ® (For Windows 98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) The CD-ROM main menu will appear. Click Important Install MFL-Pro Suite. Make sure that you have finished the instructions from Step 1 Setting Up the Machine on pages 4 through 9.
  • Page 15 Installing the Driver & Software ® Windows ® After reading and accepting the ScanSoft Using both hands, use the plastic tabs on both ® PaperPort SE License Agreement, click Yes. sides of the machine to lift the scanner cover until it locks securely into the open position. ®...
  • Page 16 STEP2 Installing the Driver & Software ® Windows Lift the scanner cover to release the lock ( ). Click Finish to restart your computer. ® Gently push the scanner cover support down (After restarting the computer, for Windows 2000 Professional/XP/XP Professional x64 ( ) and close the scanner cover ( ).

  • Page 17: For Usb Interface Users (For Mac Os ® X 10.2.4 Or Greater)

    Installing the Driver & Software ® Macintosh For USB Interface Users ® (For Mac OS X 10.2.4 or greater) Carefully route the USB cable through the Important trench and out the back of the machine as Make sure that you have finished the shown below.
  • Page 18 STEP2 Installing the Driver & Software ® Macintosh ® Turn on your Macintosh Choose USB. Put the supplied CD-ROM into your CD-ROM drive. Double-click the Start Here OSX icon to install. Follow the on-screen instructions Choose DCP-XXXX (where XXXX is your model name), and then click Add.
  • Page 19 Installing the Driver & Software ® Macintosh ® ® To install Presto! PageManager , click the Presto! PageManager icon and follow the on-screen instructions. Note ® ® When Presto! PageManager is installed OCR capability is added to the Brother ControlCenter2. You can easily scan, share and organize photos ®...

  • Page 20: Consumables

    Consumables Replacement consumables When the time comes to replace ink cartridges, an error message will be indicated on the LCD. For more information about the ink cartridges for your machine, visit http://solutions.brother.com or contact your local Brother re-seller. Ink cartridge Black Yellow Cyan...
  • Page 21 The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. Windows and Microsoft are registered trademarks of Microsoft in the U.S. and other countries.
