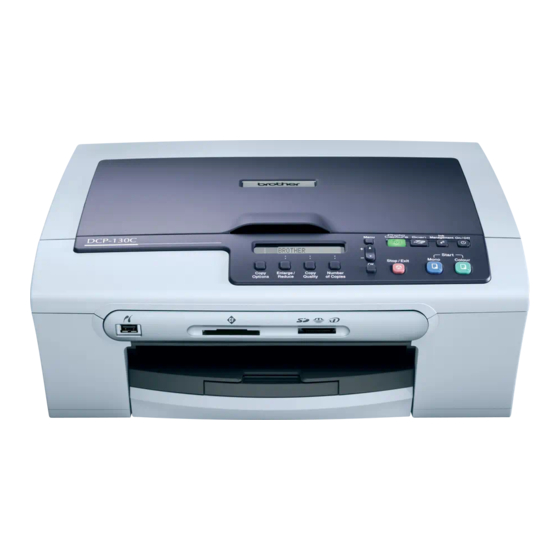

Brother DCP-130C User Manual
Brother DCP-130C User Manual

Brother DCP-130C User Manual

Multifunction center/facsimile machine
Hide thumbs Also See for DCP-130C:
Table of Contents

Advertisement

USER'S GUIDE
DCP-130C
Version A

Advertisement

Table of Contents
loading

Summary of Contents for Brother DCP-130C

  • Page 1 USER’S GUIDE DCP-130C Version A...
  • Page 2 Register your product on-line at http://www.brother.com/registration/ By registering your product with Brother, you will be recorded as the original owner of the product. Your registration with Brother: may serve as confirmation of the purchase date of your product should you lose your receipt;...
  • Page 3: Brother Numbers

    Register your product By registering your product with Brother International Corporation, you will be recorded as the original owner of the product. Your registration with Brother: may serve as confirmation of the purchase date of your product should you lose your receipt;...
  • Page 4: For Customer Service

    For the location of a Brother authorized service center, call 1-877-BROTHER. Brother fax back system (USA only) Brother has installed an easy-to-use fax back system, so you can get instant answers to common technical questions and product information for all Brother products. This system is available 24 hours a day, 7 days a week.
  • Page 5: Ordering Accessories And Supplies

    If you cannot find the accessory you need and you have a Visa, MasterCard, Discover, or American Express credit card, you can order accessories directly from Brother. (In the USA, you can visit us online for a complete selection of the Brother accessories and supplies that are available for purchase.)
  • Page 6: Usa And Canada

    LIABILITY OR OTHERWISE), WILL BE LIMITED TO $50. Compilation and Publication Notice Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications. The contents of this manual and the specifications of this product are subject to change without notice.
  • Page 7 Consumable and Accessory Items at no charge to you for parts or labor. The decision as to whether to repair or replace the Machine and/or accompanying Accessory Items is made by Brother in its sole ® -brand parts and serial Brother...
  • Page 8 PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. This Limited Warranty is the only warranty that Brother is giving for this Product. It is the final expression and the exclusive and only statement of Brother's obligations to you. It replaces all other agreements and understandings that you may have with Brother or its representatives.
  • Page 9 This warranty states Brother's entire liability and your exclusive remedy against Brother for any failure of the MFC/Facsimile machine to operate properly. Neither Brother nor anyone else involved in the development, production, or delivery of this MFC/Facsimile machine shall be liable for any indirect, incidental, special, consequential, exemplary, or punitive damages, including lost profits, arising from the use of or inability to use the product, even if advised by the end user/purchaser of the possibility of such damages.
  • Page 10 viii...
  • Page 11: Table Of Contents

    Using the documentation ... 2 Symbols and conventions used in the documentation ... 2 Accessing the Software User’s Guide ... 2 Viewing Documentation ... 2 Accessing Brother Support (For Windows Control panel overview ... 6 Warning LED indications ... 7 Printing Reports... 8 Loading documents and paper Loading documents ...
  • Page 12 Section III Walk-up Photo Printing PhotoCapture Center PhotoCapture Center Printing from a media card without a PC ...26 Scanning to a media card without a PC ...26 Using PhotoCapture Center Using media cards ...26 Media card folder structure ...27 How to print from a media card...28 Printing the thumbnail index ...28 Printing Images...29 DPOF printing ...30...
  • Page 13 Section V Appendixes Safety and Legal Choosing a location ... 42 To use the machine safely... 43 Important safety instructions... 46 Federal Communications Commission (FCC) Declaration of Conformity (USA only) ... 48 Industry Canada Compliance Statement (Canada only) ...49 Legal limitations for copying ... 50 Trademarks ...51 Troubleshooting and Routine Maintenance Troubleshooting ...
  • Page 14 Specifications General ...74 Print media...76 Copy ...77 PhotoCapture Center Pictbridge ...78 Scanner ...79 Printer ...80 Interfaces ...81 Computer requirements ...82 Consumable items ...83 Glossary Index ® ...78...
  • Page 15: Section I General

    Section I General General Information Loading documents and paper...
  • Page 16: General Information

    Viewing Documentation ® (For Windows To view the documentation, from the Start menu, point to Brother, DCP-130C from the programs group, and then select User’s Guide. If you have not installed the software, you can find the documentation by following the instructions below: Turn on your PC.
  • Page 17 PaperPort SE application. Viewing Documentation (For Macintosh Turn on your Macintosh Brother CD-ROM labeled Macintosh into your CD-ROM drive. The following window will appear. Double-click the Documentation icon. Double-click your language folder. Double-click the top page file to view the Software User’s Guide in HTML format.
  • Page 18 Chapter 1 How to find Scanning instructions There are several ways you can scan documents. You can find the instructions as follows: Software User’s Guide Scanning ® (For Mac OS X 10.2.4 or greater) ControlCenter2 ® (For Mac OS X 10.2.4 or greater) ®...
  • Page 19: Accessing Brother Support (For Windows ® )

    Web support (Brother Solutions Center), Customer Service and Brother Authorized Service Centers on page i and on the Brother CD-ROM. Click Brother Support on the main menu. The following screen will appear: To access our web site (www.brother.com), click Brother Home Page.
  • Page 20: Control Panel Overview

    Chapter 1 Control panel overview 1 Copy keys Lets you temporarily change the copy settings when in copy mode. Copy Options You can quickly and easily select temporary settings for copying. Enlarge/Reduce Lets you enlarge or reduce copies depending on the ratio you select. Copy Quality Use this key to temporarily change the quality of your copies.
  • Page 21: Warning Led Indications

    Scan Lets you access Scan mode. PhotoCapture Lets you access PhotoCapture Center 9 LCD (liquid crystal display) Displays messages on the screen to help you set up and use your machine. Warning LED Turns red when the LCD displays an error or an important status message.
  • Page 22: Printing Reports

    Chapter 1 Printing Reports The following reports are available: Help List A help list about how to quickly program your machine. User Settings Lists your settings. How to print a report Press Menu. Press a or b to choose Print Reports. Press OK.
  • Page 23: Loading Documents And Paper

    Loading documents and paper Loading documents You can make copies and scan from the scanner glass. Using the scanner glass You can use the scanner glass to copy or scan pages of a book or one page at a time. Document Sizes Supported Size: Up to Letter size [8.5 to 11.7 in.
  • Page 24: Scanning Area

    We recommend testing various paper types before buying large quantities. For best results, use the Brother paper. When you print on inkjet paper (coated paper), transparencies and photo paper, Left (3) be sure to choose the proper media in the ‘Basic’...
  • Page 25: Recommended Media

    Recommended media To get the best print quality, we suggest using Brother paper. (See table below.) We recommend using ‘3M Transparency Film’ when you print on transparencies. Brother paper Paper Type Item Letter Plain BP60PL Letter Glossy Photo BP61GLL Letter Inkjet (Matte) BP60ML 4 ×...
  • Page 26: Choosing The Right Media

    Chapter 2 Choosing the right media Paper type and size for each operation Paper Type Paper Size 8 1/2 × 11 in. (216 × 279 mm) Cut Sheet Letter 8.3 × 11.7 in. (210 × 297 mm) 8 1/2 × 14 in. (216 × 356 mm) Legal 7 1/4 ×...
  • Page 27 Paper weight, thickness and capacity Paper Type Weight Plain Paper 17 to 32 lb (64 to 120 g/m Sheet Inkjet Paper 17 to 53 lb (64 to 200 g/m Glossy Paper Up to 58 lb (Up to 220 g/m Cards Photo 4”x6”...
  • Page 28: Loading Paper, Envelopes And Other Media

    Chapter 2 Loading paper, envelopes and other media Loading paper and other media Pull the paper tray completely out of the machine. If the paper support flap is open, close it and lift the output paper tray cover (1). Press and slide the paper side guides (1) and paper length guide (2) to fit the paper size.
  • Page 29 Note When you use Legal size paper, press and hold the universal guide release button as you slide out the front of the paper tray. Gently adjust the paper side guides with both hands and the paper length guide to the paper. Make sure the paper side guides touch the sides of the paper.
  • Page 30: Loading Envelopes And Post Cards

    Chapter 2 Loading envelopes and post cards Loading envelopes Use envelopes that weigh from 20 to 25 lb (75 to 95 g/m Some envelopes need margin settings to be set in the application. Make sure you do a test print first. CAUTION Do not use any of the following types of envelopes, as they will cause paper feed...
  • Page 31 Adjust the size and margin in your application. Note When the machine ejects small paper onto the output paper tray, you may not be able to reach it. Make sure printing has finished, and then pull the tray completely out of the machine. Loading documents and paper...
  • Page 32: Printable Area

    Chapter 2 Printable Area The printable area depends on the settings in the application you are using. The figures below show the unprintable areas on cut sheet paper and envelopes. The machine can only print in the shaded areas when the Borderless print feature is available and turned on. Cut Sheet Paper Top (1) Cut Sheet...
  • Page 33: Section Ii Copy

    Section II Copy Making copies...
  • Page 34: Making Copies

    Making copies How to copy You can use your machine as a copier, making up to 99 copies at a time. Making a single copy Load your document. Press Black Start or Color Start. Making multiple copies Load your document. Press Number of Copies repeatedly until the number of copies you want appears (up to 99).
  • Page 35: Enlarging Or Reducing The Image Copied

    To temporarily change the quality setting, follow the instruction below: Load your document. Press Copy Quality repeatedly to choose Fast, Normal or Best. Press Black Start or Color Start. To change the default setting, follow the instruction below: Press Menu. Press a or b to choose 1.Copy.
  • Page 36: Making N In 1 Copies Or A Poster

    Chapter 3 Making N in 1 copies or a poster You can reduce the number of pages for copies by using the N in 1 copy feature. This allows you to copy two or four pages onto one page, which allows you to save paper. You can also produce a poster.
  • Page 37: Adjusting Brightness, Contrast And Color

    Poster (3×3) You can make a poster size copy of a photograph. Adjusting Brightness, Contrast and Color Brightness To temporarily change the brightness setting, follow the instruction below: Press Copy Options -nnonn+ and then a or b to choose Brightness Load your document.
  • Page 38: Paper Options

    Press OK. Press a or b to choose 1.Paper Type. Press OK. Press a or b to choose Plain Paper, Inkjet Paper, Brother Photo, Other Photo or Transparency. Press OK. Press Stop/Exit. Paper size If copying on paper other than Letter size, you will need to change the paper size setting.
  • Page 39: Section Iii Walk-Up Photo Printing

    Section III Walk-up Photo Printing ® PhotoCapture Center PictBridge...
  • Page 40: Photocapture Center

    Remote Setup & PhotoCapture Center ® Macintosh in the Software User's Guide on the CD-ROM.) Using media cards Your Brother machine includes media drives (slots) for use with popular digital camera ® media: CompactFlash , Memory Stick Memory Stick Pro™, SecureDigital™, MultiMediaCard™...
  • Page 41: Media Card Folder Structure

    The PhotoCapture key will light to show the media card status. It can be on, off or blinking. See the table below for what the light means. A media card is inserted correctly. No media card is present, or it is incorrectly inserted.
  • Page 42: How To Print From A Media Card

    Chapter 4 How to print from a media card Before printing a photo you must first print a thumbnail index to choose the number of the photo you want to print. Follow the instructions below to start printing directly from your media card: Make sure you have put the media card in the proper slot.
  • Page 43: Printing Images

    If you have already chosen your settings, press Color Start. Press a or b to choose the type of paper you are using, Plain Paper, Inkjet Paper, Brother Photo, or Other Photo. Press OK. PhotoCapture Center Press a or b to choose the paper size you are using, Letter, A4, 4”×6”...
  • Page 44: Dpof Printing

    Press a or b to choose DPOF Print:Yes. Press OK. Press a or b to choose the type of paper you are using, Plain Paper, Inkjet Paper, Brother Photo, or Other Photo. Press OK. Press a or b to choose the paper size you are using, Letter, A4, 4”×6”...
  • Page 45: Photocapture Center ® Print Settings

    Press a or b to choose 2.PhotoCapture. Press OK. Press a or b to choose 2.Paper Type. Press OK. Press a or b to choose Plain Paper, Inkjet Paper, Brother Photo or Other Photo. Press OK. Press Stop/Exit. ® Paper Size Press Menu.
  • Page 46: Adjusting Brightness, Contrast And Color

    Chapter 4 Adjusting Brightness, Contrast and Color Brightness Press Menu. Press a or b to choose 2.PhotoCapture. Press OK. Press a or b to choose 5.Brightness. Press OK. Press a or b to make a darker or lighter copy. Press OK. Press Stop/Exit.
  • Page 47: Cropping

    Cropping If your photo is too long or wide to fit the available space on your chosen layout, part of the image will be automatically cropped. The default setting is On. If you want to print the whole image, turn this setting to Off. Press Menu.
  • Page 48: Scan To Card

    Chapter 4 Scan to Card You can scan black & white and color documents into a media card. Black & white documents will be stored in PDF (*.PDF) or TIFF file formats (*.TIF). Color documents may be stored in PDF (*.PDF) or JPEG (*.JPG) file formats.
  • Page 49: Changing The Black & White File Format

    Changing the black & white file format Press Menu. Press a or b to choose 2.PhotoCapture. Press OK. Press a or b to choose 0.Scan to Card. Press OK. Press a or b to choose 2.B/W File Type. Press OK. Press a or b to choose TIFF or PDF.
  • Page 50: Pictbridge

    PictBridge Your Brother machine supports the PictBridge standard, allowing you to connect to and print photos directly from any PictBridge compatible digital camera. Before Using PictBridge PictBridge requirements To avoid errors, remember the following points: The machine and the digital camera must be connected using a suitable USB cable.
  • Page 51: Printing Images

    Printing Images Make sure that your camera is turned off. Connect your camera to the PictBridge port on the machine using the USB cable. 1 PictBridge port Note Remove any media cards from the machine before connecting the digital camera. Turn on the camera.
  • Page 52: Understanding The Error Messages

    Chapter 5 Understanding the Error Messages Once you are familiar with the types of errors that can occur while you are using the PictBridge, you can easily identify and troubleshoot any problems. Out of Memory This message will appear if you are working with images that are too large for the machine's memory.
  • Page 53: Section Iv Software

    Section IV Software Software features...
  • Page 54: Software Features

    (For Windows Note If you have not installed the software, see Viewing Documentation on page 2. From the Start menu, point to Brother, DCP-130C from the programs group, then click User’s Guide. Click SOFTWARE USER’S GUIDE from the top menu.
  • Page 55 Section V Appendixes Safety and Legal Troubleshooting and Routine Maintenance Menu and Features Specifications Glossary...
  • Page 56: Safety And Legal

    Safety and Legal Choosing a location Put your machine on a flat, stable surface that is free of vibration and shocks, such as a desk. Put the machine near a standard, AC power outlet. Choose a location where the temperature remains between 50°...
  • Page 57: To Use The Machine Safely

    To use the machine safely Please keep these instructions for later reference and read them before attempting any maintenance. WARNING There are high voltage electrodes inside the machine. Before you clean the inside of the machine, make sure you have unplugged the power cord from the AC power outlet. Doing this will prevent an electrical shock.
  • Page 58 DO NOT touch the paper feed roller. Doing this may cause injury. DO NOT touch the area shaded in the illustration. Doing this may cause injury. When moving the machine you must lift it from the base, by placing a hand at each side of the unit as shown in the illustration.
  • Page 59 If the machine becomes hot, releases smoke, or generates any strong smells, immediately turn off the power switch and unplug the machine from the AC power outlet. Call Brother Customer Service. If metal objects, water or other liquids get inside the machine, immediately turn off the power switch and unplug the machine from the AC power outlet.
  • Page 60: Important Safety Instructions

    Refer all servicing to a Brother Authorized Service Center. For the location of your nearest Brother Authorized Service Center, please call the following:...
  • Page 61 15 Unplug this product from the AC power outlet and refer all servicing to Brother Authorized Service Personnel under the following conditions: When the power cord is damaged or frayed. If liquid has been spilled into the product. If the product has been exposed to rain or water.
  • Page 62: Federal Communications Commission (Fcc) Declaration Of Conformity (Usa Only)

    TEL: (908) 704-1700 declares, that the products Product Name: DCP-130C comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 63: Industry Canada Compliance Statement (Canada Only)

    For protection against the risk of electrical shock, always disconnect all cables from the wall outlet before servicing, modifying or installing the equipment. Brother cannot accept any financial or other responsibilities that may be the result of your use of this information, including direct, special or consequential damages. There are no warranties extended or granted by this document.
  • Page 64: Legal Limitations For Copying

    Legal limitations for copying Color reproductions of certain documents are illegal and may result in either criminal or civil liability. This memorandum is intended to be a guide rather than a complete listing of every possible prohibition. In case of doubt, we suggest that you check with counsel as to any particular questionable documents.
  • Page 65: Trademarks

    Safety and Legal Trademarks The Brother logo is a registered trademark of Brother Industries, Ltd. Brother is a registered trademark of Brother Industries, Ltd. Multi-Function Link is a registered trademark of Brother International Corporation. © 2006 Brother Industries, Ltd. All rights reserved.
  • Page 66: B Troubleshooting And Routine Maintenance

    If you think there is a problem with your machine, check the chart below and follow the troubleshooting tips. Most problems can be easily resolved by yourself. If you need additional help, the Brother Solutions Center offers latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com.
  • Page 67 Printing (Continued) Difficulty White horizontal lines appear in text or graphics. The machine prints blank pages. Characters and lines are stacked. Printed text or images are skewed. Smudged stain at the top center of the printed page. Printing appears dirty or ink seems to run.
  • Page 68 If you see vertical streaks on copies, clean the scanner. (See Cleaning the scanner on page 62.) Suggestions Make sure the Brother TWAIN/WIA driver is chosen as the primary source. In ® PaperPort SE with OCR, click File, Scan and choose the Brother TWAIN/WIA driver.
  • Page 69: Error Messages

    As with any sophisticated office product, errors may occur. If this happens, your machine identifies the error and shows an error message. The most common error messages are shown below. You can correct most errors by yourself. If you need more help, the Brother Solutions Center offers the latest FAQs and troubleshooting tips.
  • Page 70 Error Message Cause An ink cartridge is not installed No Cartridge properly. The media card in the media drive No File does not contain a .JPG file. The machine is out of paper or No Paper Fed paper is not properly loaded in the paper tray.
  • Page 71: Improving The Lcd Viewing

    Improving the LCD viewing You can adjust the LCD contrast for a sharper and more vivid display. If you are having difficulty reading the LCD, try changing the contrast setting. Press Menu. Press a or b to choose 0.Initial Setup. Press OK.
  • Page 72 Put the Jam Clear Cover back on. Make sure the cover is set properly. Lift the scanner cover (1) from the front side of the machine until it locks securely into the open position. Make sure that there is no jammed paper left inside the machine.
  • Page 73: Routine Maintenance

    Routine maintenance Replacing the ink cartridges Your machine is equipped with an ink dot counter. The ink dot counter automatically monitors the level of ink in each of the 4 cartridges. When the machine detects an ink cartridge is running out of ink, the machine will tell you with a message on the LCD.
  • Page 74 Each color has its own correct position. Insert the ink cartridge in the direction of the arrow on the label. brother Lift each lock release lever and push it until it clicks, and then close the ink cartridge cover. If you replaced an ink cartridge while the...
  • Page 75: Cleaning The Outside Of The Machine

    Brother strongly recommends that you do not refill the ink cartridges provided with your machine. We also strongly recommend that you continue to use only Genuine Brother Brand replacement ink cartridges. Use or attempted use of potentially incompatible ink and/or...
  • Page 76: Cleaning The Scanner

    Cleaning the scanner Lift the document cover (1). Clean the scanner glass (2) and white plastic (3) with isopropyl alcohol on a soft lint-free cloth. Cleaning the machine printer platen WARNING Unplug the machine from the AC power outlet before cleaning the printer platen (1). If ink is scattered on or around the printer platen, wipe it off with a soft, dry, lint-free cloth.
  • Page 77: Cleaning The Paper Pick-Up Roller

    When cleaning is finished, the machine will go back to standby mode automatically. Note If you clean the print head at least five times and the print has not improved, call Brother Customer Service (See Brother numbers on page i).
  • Page 78: Checking The Print Quality

    If ink is still missing, call Brother Customer Service (see Brother numbers on page i). CAUTION DO NOT touch the print head. Touching the print head may cause permanent damage and may void the print head's warranty.
  • Page 79: Checking The Printing Alignment

    Checking the printing alignment You may need to adjust the printing alignment. However, if after transporting the machine your printed text becomes blurred or images become faded then adjustments may need to be made. Press Ink. Press a or b to choose Test Print. Press OK.
  • Page 80: Machine Information

    Machine Information Checking the serial number You can see the machine’s serial number on the LCD. Press Menu. Press a or b to choose 4.Machine Info.. Press OK. Press a or b to choose 1.Serial No.. Press OK. XXXXXXX Press Stop/Exit. Packing and shipping the machine When you transport the machine, use the...
  • Page 81 Do not pack the used ink cartridges in the carton. Note If you are returning your machine to Brother as part of the Exchange Service, pack only the machine. Keep all separate parts and printed materials to use with your ‘Exchange’ machine.
  • Page 82: C Menu And Features

    Menu and Features On-screen programming Your machine is designed to be easy to use with LCD on-screen programming using the menu keys. User-friendly programming helps you take full advantage of all the menu selections your machine has to offer. Since your programming is done on the LCD, we have created step-by-step on-screen instructions to help you program your machine.
  • Page 83 To access the menu mode: Press Menu. Choose an option. You can scroll more quickly through each menu level by pressing a or b for the direction you want. 1.Copy 2.PhotoCapture 3.Print Reports 4.Machine Info. 0.Initial Setup Press OK when that option appears on the LCD.
  • Page 84: Menu Table

    Choose & OK to accept Options Descriptions Sets the type of paper in Plain Paper* the paper tray. Inkjet Paper Brother Photo Other Photo Transparency Sets the size of the paper Letter* in the paper tray. Legal 4”x 6” Choose the Copy...
  • Page 85 B:- nnnon + B:- nnonn +* B:- nonnn + B:- onnnn + Choose the print quality. Normal Photo* Choose the paper type. Plain Paper Inkjet Paper Brother Photo Other Photo* Choose the paper size. Letter 4"x 6"* 5"× 7" Page...
  • Page 86 Main Menu Submenu Menu Selections — 2.Photo 4.Print Size Capture (continued) — 5.Brightness — 6.Contrast 7.True2Life True2Life:On True2Life:Off* The factory settings are shown in Bold with an asterisk. Options Descriptions Choose the print size. 4"× 3" (Appears when A4 or 5"×...
  • Page 87 Main Menu Submenu Menu Selections — 2.Photo 8.Cropping Capture (continued) — 9.Borderless 0.Scan to 1.Quality Card 2.B/W File Type 3.ColorFile Type — 3.Print 1.Help List Reports — 2.User Settings — 4.Machine 1.Serial No. Info. — 0.Initial 1.Date/Time Setup — 2.LCD Contrast —...
  • Page 88: Specifications

    Specifications General Memory Capacity Paper Tray Printer Type Print Method LCD (Liquid Crystal Display) 16 characters × 1line Power Source Power Consumption 16 MB 100 Sheets [20 lb (80 g/m Ink Jet Piezo with 94 × 1 nozzles Black: Piezo with 94 × 3 nozzles Color: AC 120V 50/60Hz Off Mode:...
  • Page 89 Dimensions Weight Noise Temperature Humidity This depends on printing conditions. 5.9 in. (150 mm) 14.2 in. (360 mm) 13.8 in. (351 mm) 17.4 in. (443 mm) 15.4 lb (7 kg) Operating: 50 dB or less Operating: 50° F to 95° F (10 to 35° C) Best Print Quality: 68°...
  • Page 90: Print Media

    Print media Paper Input Paper Output Use only transparencies recommended for inkjet printing. For glossy paper or transparencies, we recommend removing printed pages from the output paper tray immediately after they exit the machine to avoid smudging. See Paper type and size for each operation on page 12. Paper Tray Paper type: Plain paper, inkjet paper (coated paper), glossy paper...
  • Page 91: Copy

    Copy Speed Multiple Copies Enlarge/Reduce Resolution Based on Brother standard pattern. (Fast mode/Stack Copy) Copy speeds vary with the complexity of the document. Yes/Yes Scanner Glass Width: Max. 8.5 in. (215.9 mm) Scanner Glass Height: Max. 11.7 in. (297 mm)
  • Page 92: Photocapture Center

    PhotoCapture Center Available Media File Extension (Media Format) (Image Format) Color Enhancement Number of Files Folder Borderless xD-Picture Card™ Conventional Card from 16MB to 512MB xD-Picture Card™ Type M from 256MB to 1GB xD-Picture Card™ Type H from 256MB to 1GB Progressive JPEG format is not supported.
  • Page 93: Scanner

    Resolution Scanning Speed Document Size Scanning Width Gray Scale Maximum 1200 × 1200 dpi scanning when using the WIA Driver for Windows can be selected by using the Brother scanner utility) Yes/Yes ® Yes (Windows 98/98SE/Me/2000 Professional/XP) ® Mac OS X 10.2.4 or greater...
  • Page 94: Printer

    When you set the Borderless feature to On. See Paper type and size for each operation on page 12. ® Windows 98/98SE/Me/2000 Professional/XP/Windows XP Professional x64 Edition driver supporting Brother Native Compression mode and bi-directional capability Brother Ink Driver ® For Mac OS X 10.2.4 or greater...
  • Page 95: Interfaces

    Interfaces Your machine has a USB 2.0 Full-speed interface. This interface is compatible with USB 2.0 Hi-Speed; however, the maximum data transfer rate will be 12 Mbits/s. The machine can also be connected to a computer that has a USB 1.1 interface.
  • Page 96: Computer Requirements

    Pentium™ ® 4 with Intel EM64T PowerPC G3 128 MB 256 MB 80 MB 350MHz For the latest driver updates, access the Brother Solutions Center at http://solutions.brother.com Recommended Available Hard Disk Space Drivers Applications 128 MB 120 MB 130 MB...
  • Page 97: Consumable Items

    Consumable items The machine uses individual Black, Yellow, Cyan and Magenta ink cartridges that are separate from the print head assembly. Service Life of Ink Starter Ink Cartridges Cartridge Standard Black - Approximately 370 pages at 5% coverage Yellow, Cyan and Magenta - Approximately 240 pages at 5% coverage Replacement Ink Cartridges Standard Black - Approximately 500 pages at 5% coverage...
  • Page 98: Glossary

    Glossary This is a comprehensive list of features and terms that appear in Brother manuals. Availability of these features depends on the model you purchased. Brightness Changing the Brightness makes the whole image lighter or darker. Contrast Setting to compensate for dark or light...
  • Page 99: Index

    Macintosh See Software User's Guide on the CD-ROM..Brother accessories and supplies ... iii Brother numbers ... i Customer Service ... ii FAQs (frequently asked questions) ... i fax back system ... ii product support ... ii warranties ... iv Cleaning paper pick-up roller ...63...
  • Page 100 Paper ... 10 capacity ...13 loading ...14 size ...12 type ...12 ® PhotoCapture Center Borderless ...33 ® CompactFlash ...26 Cropping ...33 DPOF printing ...30 from PC See Software User's Guide on the CD-ROM..Memory Stick Pro™ ...26 ® Memory Stick ...26 MultiMediaCard™...
  • Page 101 Warranties ... iv Canada ... vii Notice-Disclaimer ... iv USA ... v World Wide Web ... i...
  • Page 102 EQUIPMENT ATTACHMENT LIMITATIONS (Canada only) NOTICE This product meets the applicable Industry Canada technical specifications.
  • Page 103 Brother International Corporation (Canada) Ltd. Visit us on the World Wide Web These machines are made for use in the USA and Canada only. We cannot recommend using them overseas because the power requirement of your Digital Copier/Printer may not be compatible with the power available in foreign countries.
