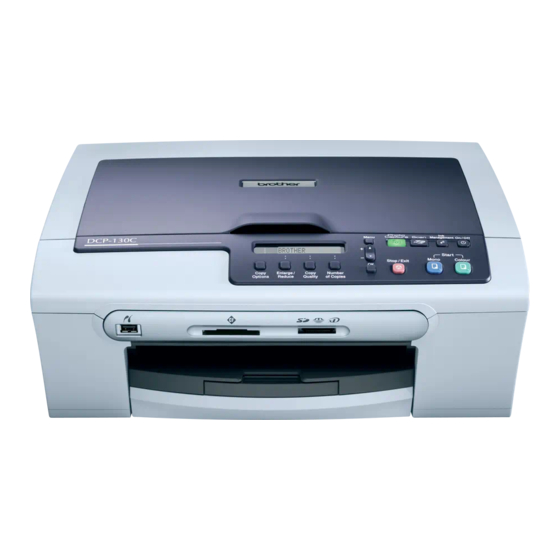

DCP-130C
Before you can use the machine, you must set up the hardware and install the software.
Please read this Quick Setup Guide for the correct setup procedure and installation instructions.
Installing the Driver & Software
Keep this Quick Setup Guide, the User's Guide and the supplied CD-ROM in a convenient place for
quick and easy reference at all times.
STEP 1
Setting Up the Machine
STEP 2
Setup is Complete!
