Removing and Installing the SA-VAM2+
•
Online insertion and removal (OIR) is not supported on the Port Adapter Jacket Card; however, OIR is
Note
supported on the SA-VAM2+. You must have the chassis powered off for the installation or removal
process for the Port Adapter Jacket Card.
After powering off the router, wait at least 30 seconds before powering it on again.
When performing the following procedures, wear a grounding wrist strap to avoid ESD damage to the
Warning
card. Some platforms have an ESD connector for attaching the wrist strap. Do not directly touch the
midplane or backplane with your hand or any metal tool, or you could shock yourself.
Cisco 7200VXR Router Port Adapter Jacket Card
The I/O controller slot of the Cisco 7200VXR router with an NPE-G1 or NPE-G2 processor supports the
Port Adapter Jacket Card with a SA-VAM2+ installed in it. The NPE-G1 or NPE-G2, with a third
dedicated peripheral component interconnect (PCI) bus, provides additional bandwidth to the chassis.
Use the following information to install a SA-VAM2+ into an installed Port Adapter Jacket Card. For
information on installing the Port Adapter Jacket Card into a Cisco 7200VXR router, see the Port
Adapter Jacket Card Installation Guide.
Step 1
Remove any port adapter blank panel that may be in place (see
a.
b.
Figure 3-2
1
OL-5979-03
Cisco 7301 Router, page 3-6
Move the lock lever on the top left corner of the Port Adapter Jacket Card until the port adapter blank
panel releases.
Pull the port adapter blank panel from the Port Adapter Jacket Card.

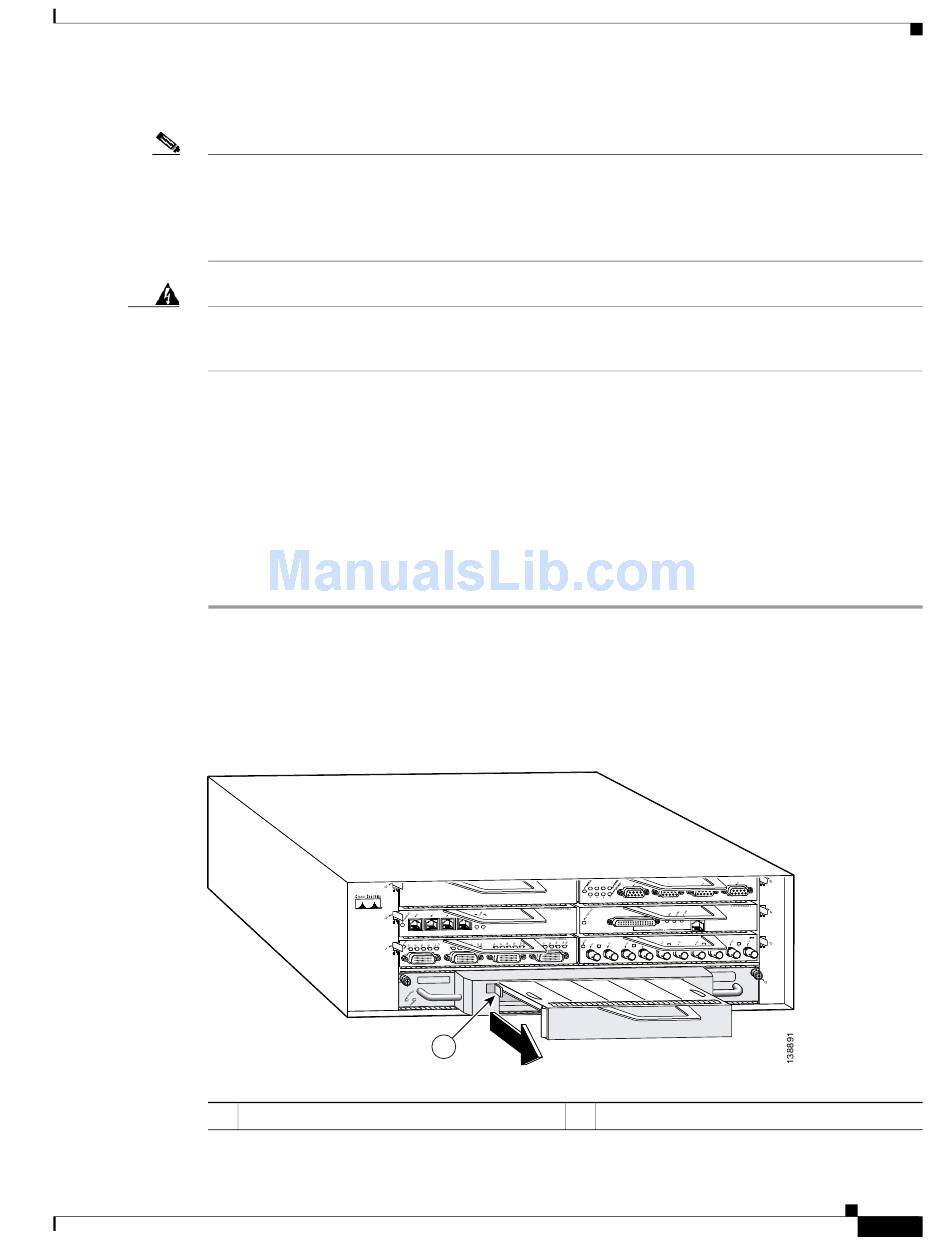

Removing the Port Adapter Blank Panel
Cisco 7200
Series VXR
Port adapter lock lever
1
VPN Acceleration Module 2+ (VAM2+) Installation and Configuration Guide
SA-VAM2+ Removal and Installation
Figure
3-2).
ETHERNET-10BFL
PORT ADAPTER JACKET CARD
3-3
