Dual XDVD710 Installation & Owner's Manual page 7

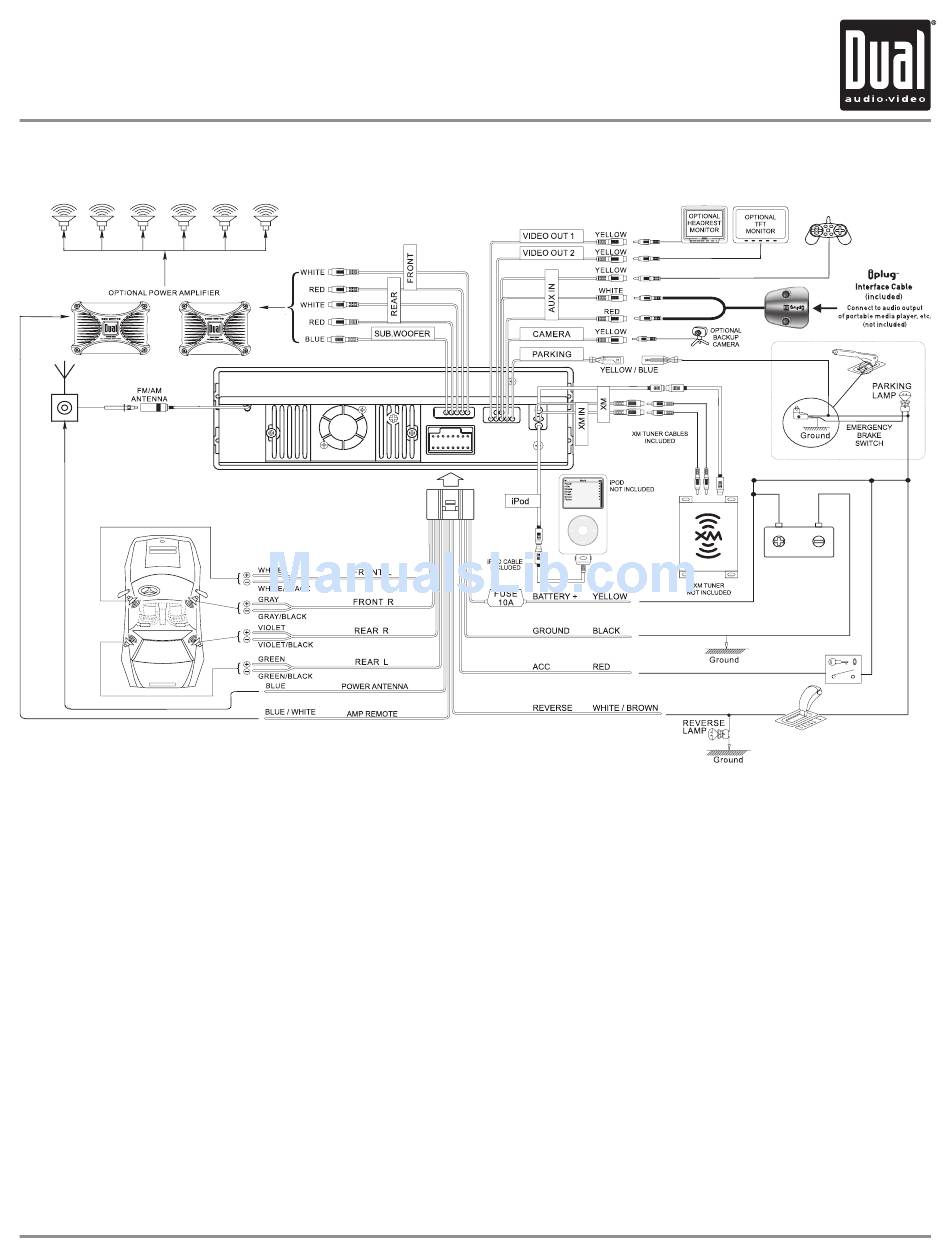

Expanded Wiring Diagram - Inputs/Outputs
Wiring Notes:
Subwoofer output
The SUBWOOFER audio output (Blue RCA) is active in all audio modes and must be connected to an external
amplifier.
Rear view camera
A rear view camera (not included) can be used with the CAMERA input.
NEED HELP??
Call our Technical Service Hotline, 1-866-38-5476.
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to
prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the parking
brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion. Altering or
defeating this safety feature is a violation of law and is prohibited.
XDVD710 INSTALLATION
6
