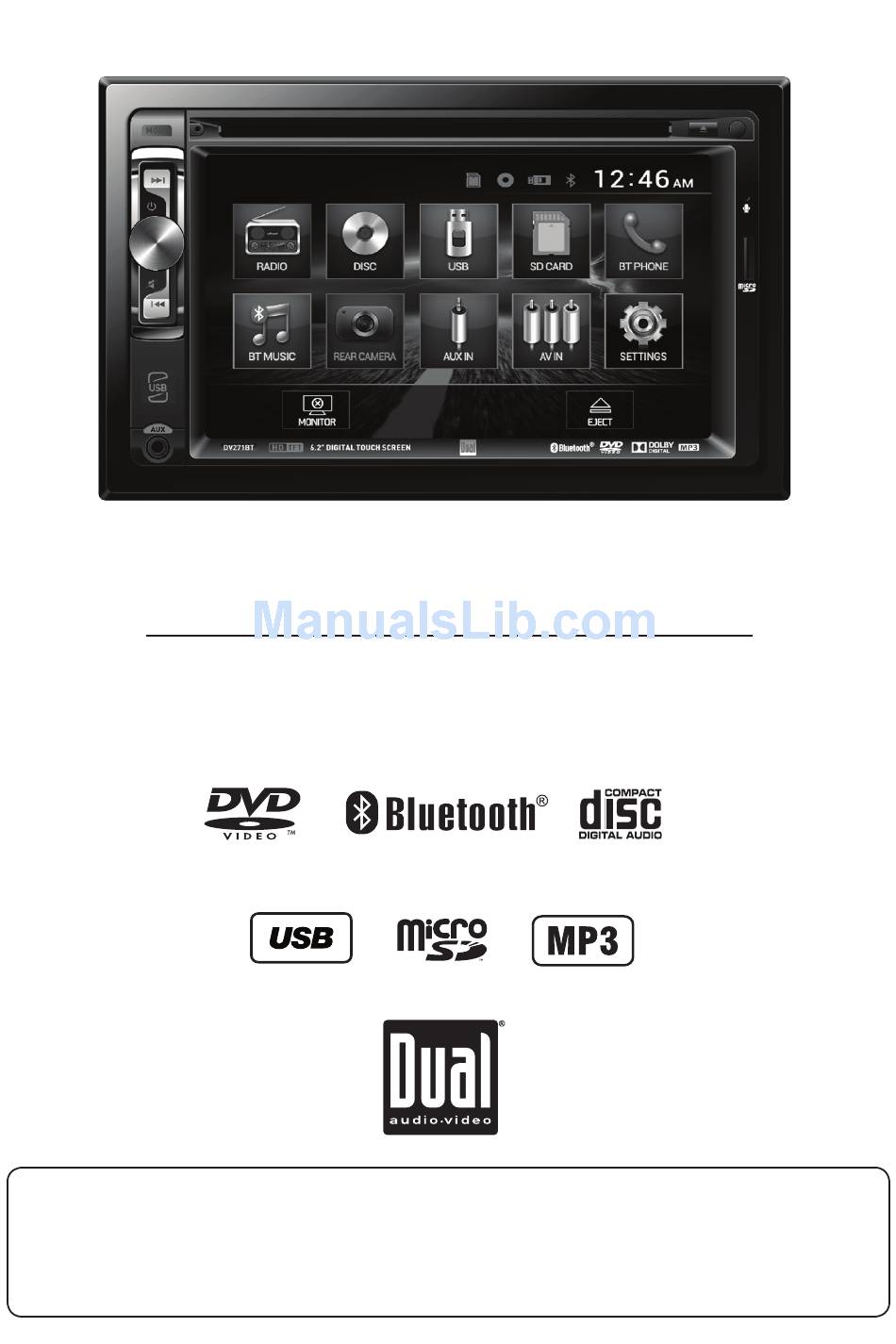

DV271BT
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
6.2"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.
Advertisement
Table of Contents
Related Manuals for Dual DV271BT
Summary of Contents for Dual DV271BT
- Page 1 DV271BT INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth ® featuring a 6.2" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
DV271BT PREPARATION Table of Contents Page Warning Statement .......... - Page 4 DV271BT PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL DV271BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
DV271BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Wiring Diagram
DV271BT INSTALLATION Wiring Diagram - Inputs/Outputs ACC (B+) Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box. -
Page 8: Control Locations
DV271BT OPERATION Control Locations Mode Auxiliary Input Tune / Track Up Eject Volume / Power / Mute Microphone Tune / Track Down SD Card Slot USB Port Goto/* Power Mode Loud / End call Play / Pause Number Keys Mute... -
Page 9: Remote Control Preparation
DV271BT OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 10: General Operation
DV271BT OPERATION General Operation Momentarily press to turn the unit on. Press and hold to turn Power On/Off the unit off. Rotate the volume knob to increase or decrease the volume level. Volume Momentarily press the volume knob to silence the audio. Momentarily... - Page 11 DV271BT OPERATION General Operation Setup Menu From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from six categories across the bottom: General, Time, Video, Language, Calibration and SWC. General: • Key Beep - Select a OFF or ON to select whether or not the unit beeps each time a key is pressed.
- Page 12 DV271BT OPERATION General Operation Setup Menu Time: • Hour - Press < or > to adjust the hour down or up. • Minute - Press < or > to adjust the minutes down or up. • Format - Select between a 12HR or 24HR clock display.
-
Page 13: Am/Fm Tuner Operation
DV271BT OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Tune Frequency Down Press << to tune radio to a lower frequency. Press < to tune the unit down one step at a time. -
Page 14: Am/Fm Tuner Operation
DV271BT OPERATION AM/FM Tuner Operation Monitor On/Off Press to put the monitor into standby mode. Eject Press to eject the disc. Audio Press to access the Audio menu. Setting Press to access the Setup menu. -
Page 15: Cd/Usb/Sd Card Operation
DV271BT OPERATION CD/USB/SD Card Operation To play audio files from a disc or MP3 files from a disc, USB device or SD CD/USB or SD Operation card, insert disc or device and playback will begin automatically. To return to disc, USB or SD card playback from another mode of operation, select the corresponding icon from the Main Menu. -
Page 16: Cd/Usb/Sd Card Operation
DV271BT OPERATION CD/USB/SD Card Operation Press to go back to the previous file or track. Previous File/Track Play / Pause Press to pause or resume playback. Next File/Track Press to advance to the next file or track. Direct File Access Press to access the directory of folders and files. - Page 17 DV271BT OPERATION Media Compatibility - CD/DVD File Type Level 1, Level 2 ISO9660 Level 3 Playback ISO9660 JOLIET File System Extension Filename 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 ...
- Page 18 DV271BT OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5...
- Page 19 DV271BT OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps The following types of discs/files are not compatible: •...
-
Page 20: Dvd Operation
DV271BT OPERATION DVD Operation Inserting a Disc Insert disc into the slot, and playback will begin automatically. Sub- menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features. -
Page 21: Dvd Operation
DV271BT OPERATION DVD Operation Screen Setup Press to adjust screen color settings. Zoom Press to zoom in and out on an image. Subtitle Press to access subtitle options. Audio Press to adjust Audio options. Monitor On/Off Press to put the monitor in standby mode. -
Page 22: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Dual Multimedia Receiver". The Bluetooth passcode "0000". - Page 23 DV271BT OPERATION Bluetooth Operation Monitor On/Off Press to put the monitor in standby mode. Eject Press to eject the disc. Audio Press to adjust Audio options. Setup Press to access the Setup menu. Bluetooth Music Select this option from the Main Menu to access Bluetooth Music features.
-
Page 24: Auxiliary Inputs/Rear Camera Operation
DV271BT OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). -
Page 25: Limited One Year Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •... -
Page 26: Specifications
DV271BT OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:... -
Page 27: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name... - Page 28 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2016 Dual Electronics Corp. All rights reserved. NSA0916-V01 Printed in China...
