Dual XDVD710 Installation & Owner's Manual

Dual XDVD710 Installation & Owner's Manual

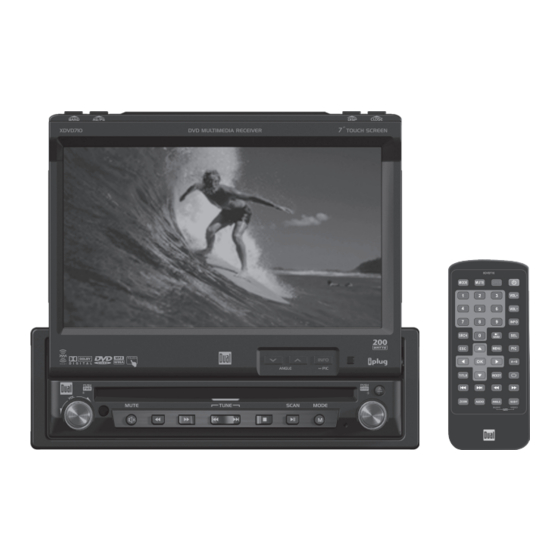

Dvd multimedia receiver with 7" touch screen display
Hide thumbs Also See for XDVD710:

Advertisement

Quick Links

Download this manual See also: Installation & Owner's Manual
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to
prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the parking
brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Advertisement

loading

Related Manuals for Dual XDVD710

Summary of Contents for Dual XDVD710

  • Page 1 The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the parking brake is engaged.
  • Page 2 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the XDVD710 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc. This player has been designed to play back DVD software that has been encoded for specific region areas.
  • Page 5 Due to its technical nature, it is highly recommended that your DUAL XDVD710 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction.
  • Page 6 Please read entire manual before installation. would be subject to dust, dirt or excessive vibration. screws. Mounting sleeve opening dimensions 7-3/16” x 2-1/16” (183 mm x 53 mm)
  • Page 7 audio output (Blue RCA) is active in all audio modes and must be connected to an external amplifier. A rear view camera (not included) can be used with the input. Call our Technical Service Hotline, 1-866-382-5476. The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction.
  • Page 10 Band Play/Pause/Scan Auto Store/Preset Scan Stop Secondary LCD Chapter/Track Up Display Chapter/Track Down Open/Close Monitor Fast Forward Eject Fast Reverse Rotary Encoder/Enter Mute Mode Power/Volume • This model incorporates a motorized moving monitor. Before final installation, make sure the monitor will not obstruct the dash, shifter or any other controls.
  • Page 11 Press to increment from FM1, FM2, FM3, AM1@ FM1. Press momentarily to start station function, Press for 2 seconds to start station preset function in current Additional for system information while monitor is closed. Press the button to display various information on the secondary Press to open or close the monitor.
  • Page 12 Disc-in indicator - Red = Disc inserted, White = No disc. ANGLE T - Press to decrease the monitor view angle. ANGLE S - Press to increase the monitor view angle. INFO - Press to select DVD and press and hold for Press to system.
  • Page 13 White = No disc Red = Disc inserted S to increase the monitor view angle. Press T to decrease the monitor view angle. Press occur. Use the front panel buttons or the remote control only. with the most optimum view for your location. return to its last position automatically the next time it is opened.
  • Page 14 Mode Info Root Mute Search Repeat Chapter/Track Down Open/Close Power Band/Stop Chapter/Track Up Audio Select Fast Rewind Escape Fast Forward 4-Way - Up Zoom Volume Up Menu Audio Picture Angle 4-Way - Left Sub-Title 4-Way - Right Volume Down Repeat A-B Title Menu 4-Way - Down * The remote control uses one 3 volt Lithium CR2025 battery.
  • Page 15 Mode Press once to incrementally select desired source. Mute Press once to audio, press again to return audio. Open/Close Press once to open monitor, press again to close the monitor. Power Press once to turn the unit on, press again to turn unit off. Keys 0-9 Direct access chapter/track/preset station for current Volume Up...
  • Page 16 Press momentarily to turn the unit on, the unit will beep 2 times. Press and hold for more than 2 seconds, unit will beep 1 time, then turn off. will still function even if is off. Press to open or close the monitor. The unit will emit 1 confirmation beep when opening, 3 beeps when closing.
  • Page 17 Press to select between , and inputs. Modes of operation are indicated in the (On Screen Display) and secondary With the monitor open, press the top left corner of the screen to display the menu. Press icon to select the desired source.
  • Page 18 Press button for 1 second to display DVD disc information. Press and hold for 2 seconds to change TFT LCD S to increase, T to decrease, or use Press rotary to adjust the level up or down. (0 minimum/20 maximum) 10 is default. While in mode Press and hold...
  • Page 19 Press to increment from FM1, FM2, FM3, AM1@ FM1. Press momentarily to start station function. The unit will now scan your program presets for 10 seconds for each preset in that band. Press again to stop scanning. Press for 2 seconds to start station preset function in current Press the...
  • Page 20 Note: Secondary LCD only functions when monitor is closed. indicator, icon will be off when (DX) is selected radio station indicator Displays time, frequency, info, & , etc selection indicator...
  • Page 21 There are three methods to access the MAIN menu • Press the ENTER button on the right ROTARY knob • Press the MENU button on the remote control • Touch the upper left corner of the touch screen Touch to access mode Touch to access mode, (...

  • Page 22: General Setup Menu

    • Press the GENERAL button to access the GENERAL setup mode • Select desired parameter you wish to change • Page will return back to previous screen after 10 seconds of inactivity or by pressing the RETURN button GENERAL Setup Menu matrix Settings Default Options...
  • Page 23 1) Touch top left corner of screen 2) Touch GENERAL setup button 3) Touch USA 4) Touch the setting for your region Touch RETURN to exit...
  • Page 24 1) Touch top left corner of screen 2) Touch GENERAL setup button 3) Touch 00:00 area in the CLOCK row 4) Keypad should now appear 5) Enter HOURS, touch ok 6) Enter MINUTES, touch ok 7) Touch AM or PM to set 8) Touch to exit If you desire 24Hr format, select 24Hr from CLOCK MODE, then follow steps 1-8.
  • Page 25 1) Touch top left corner of screen 2) Touch GENERAL Setup button 3) Touch down arrow button 4) Touch ---- 5) Enter 0000, then press ok 6) Touch OFF 7) Touch ON 8) Touch ---- again 9) Enter your new 4-digit password, then press ok.

  • Page 26: Screen Setup

    • Press the SCREEN button to access the SCREEN setup mode • Select desired parameter you wish to change • Page will return back to previous screen after 10 seconds of inactivity or by pressing the RETURN button SCREEN Setup Menu matrix Settings Default Options...

  • Page 27: Screen Setup

    1) Touch top left corner of screen 2) Touch SCREEN setup button 3) Touch [-] to dim TFT 4) Touch [+] to brighten TFT 0 - 20 is possible Default = 10 5) Touch RETURN to exit...
  • Page 28 1) Touch top left corner of screen 2) Touch SCREEN setup button 3) Touch a number displayed in SCREEN TILT row 4) Touch desired angle for best viewing angle 1 - 6 is possible Default = 4 5) Touch RETURN to exit...
  • Page 29 1) Touch top left corner of screen 2) Touch SCREEN setup button 3) Touch No in TS Calibration row 4) Then touch Yes 5) Touch and hold the pointers as indicated on the screen for 2 seconds each 6) Screen will automatically return to MAIN MENU, touch RETURN to exit...
  • Page 30 Current information, touch upper left area to return to Current station indicator broadcast indicator page up selection page down Auto station button MANUAL TUNE up MANUAL TUNE down SEEK TUNE up SEEK TUNE down (AUTO STORE/PRESET SCAN) selection, FM1, FM2, FM3, AM indicator indicator Equalizer indicator, touch to access...
  • Page 31 Press the button to auto up the next strongest station. Press the button to auto down the next strongest station. Press the button to manually tune up one step at a time. Press the button to manually tune down one step at a time. Press and hold for more than 2 seconds to automatically store the twelve strongest stations in the current band.
  • Page 33 Follow these two initialization procedures carefully to allow video playback on XDVD710 front panel TFT: There are two situations that start the PARKING BRAKE sequence. 1) Stop vehicle, put in Park, make sure PARKING BRAKE is off/released...
  • Page 34 Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the XDVD710 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc. This player has been designed to play back DVD software that has been encoded for specific region areas.
  • Page 35 Eject button When inserting a DVD disc, usually it will play automatically. Other sub-menus may have to be pressed to access the DVD movie/music content. Read the directions of your specific DVD disc for other features. Note: If PARENTAL Lock is activated and the disc inserted is not authorized, a 4-digit code must be entered and/or the disc be authorized.
  • Page 36 There are several hidden areas outlined below: "A" area can be used in any mode to access menu "A-F" areas can be used in mode to access: A - Displays menu B - Displays track information C - Selects chapter D - Selects chapter E - Displays the full...
  • Page 37 A - Displays menu B - Displays track information C - Selects chapter D - Selects chapter E - Displays the full transport controls search menu...
  • Page 38 Touch the button or on the front panel to resume disc playback Touch the button again to suspend the disc playback Touch button to playback, touch or ok on the remote to resume playback Touch the button to FAST REVERSE on DVD, 2x, 4x, 8x to 20x Touch the button to FAST FORWARD on DVD, 2x, 4x, 8x to 20x Touch the...
  • Page 39 3) Press ok Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the XDVD710 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc.
  • Page 40 During DVD and CD playback, you can use the numeric keypad on the remote control to access tracks directly. Some DVD's contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, press the ANGLE button on the remote control to toggle between available angles.

  • Page 41: Dvd Setup

    With the monitor open in DVD mode, press the AREA A (top left screen) to display the MAIN menu. Press to access the DVD setup menu. Press icon to select setup page Press to select desired disc subtitle language English French Spanish Auto...

  • Page 42: Dvd Setup

    With the monitor open in DVD mode, press the AREA A (top left screen) to display the MAIN menu. Press to access the DVD setup menu. Press icon to select Press to select desired TV shape 16:9 = DEFAULT Select On to activate angle mark On = DEFAULT Press to select desired view mode FILL...
  • Page 43 With the monitor open in DVD mode, press the AREA A (top left screen) to display the MAIN menu. Press to access the DVD setup menu. Press icon to select Press ---- to enter a password, then press Ok 1. Enter a 4-digit code 2.
  • Page 44 Current information, touch upper left area to return to Disc title Track title Current TIME Touch to PLAY/PAUSE disc playback Touch to STOP disc playback Touch to PAGE down Touch to PAGE up Touch to FAST REVERSE current track Touch to FAST FORWARD current track Touch to SCAN CD tracks for 10 seconds each track, touch again to deactivate Touch to activate/deactivate REPEAT: Single mode Touch to activate/deactivate RANDOM mode...
  • Page 45 After inserting a CD disc, files will play in numerical order in the directory. Touch to display keypad. Enter desired track number and press ok. Touch desired track for DIRECT TRACK access. Touch to view UP/DOWN pages of available TRACKS.
  • Page 46 Current information, touch upper left area to return to Disc title Track title Current TIME Touch to PLAY/PAUSE disc playback Touch to STOP disc playback Touch to PAGE down Touch to PAGE up Touch to PREVIOUS FOLDER Touch to NEXT FOLDER Touch to FAST FORWARD MP3 tracks, touch PLAY to deactivate Touch to activate/deactivate REPEAT: Single mode Touch to activate/deactivate RANDOM mode...
  • Page 47 After inserting an MP3/WMA disc, files will play in numerical order in the directory. Touch to display keypad. Enter desired track number and press ok. Touch desired track for DIRECT TRACK access. Touch to view UP/DOWN pages of available TRACKS.
  • Page 48 The following types of discs/files are compatible: The following types of discs/files are not compatible: Some recordable DVDs and CDs may be incompatible with this unit, depending on media type and recording method. MP3/WMA playback sequence is based on recorded order of files and begins in the root folder of the disc.
  • Page 49 An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only. Only MP3 files with filename extension (.mp3) can be played. Only WMA files with filename extension (.wma) can be played.

  • Page 50: Warranty

    1. Before you call for service, check the troubleshooting guide in your owner’s manual. A slight adjustment of Dual Electronics Corp. warrants this product to the any custom controls may save you a service call. original purchaser to be free from defects in material and workmanship for a period of one year from the date 2.
  • Page 51 Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Red wire not connected or incorrect voltage Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers One or more speaker wires touching each Insulate all bare speaker wires from each other and chassis other or touching chassis ground...

  • Page 52: Specifications

    Frequency response: Channel separation @ 1kHz: D/A converter: Tuning range: Usable sensitivity: 50dB quieting sensitivity: Stereo separation @ 1kHz: Frequency response: Tuning range: Usable sensitivity: Frequency response: Panel size: 7” View angle (up/down/left/right): Resolution: Brightness (cd/m 2 ): Contrast ratio: Elements: Operating voltage: Speaker output impedance:...
  • Page 53 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. NSA0509-V03 Printed in China...
