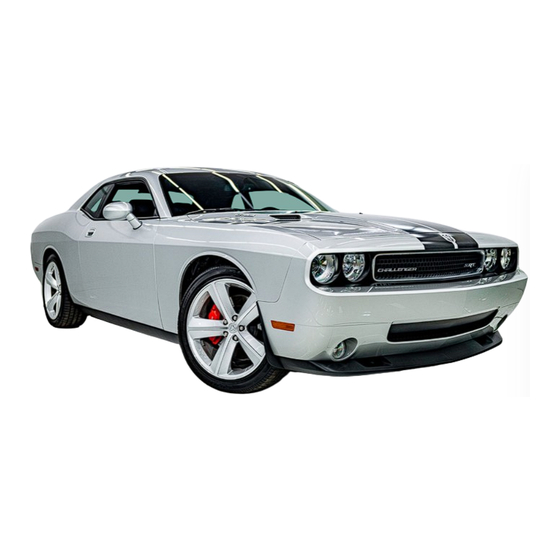

Dodge 2009 Challenger SRT8 Owner's Manual

Dodge 2009 truck owner's manual

Table of Contents

Quick Links

2009

OWNER'S MANUAL

Table of Contents

Chapters

Table of Contents

Summary of Contents for Dodge 2009 Challenger SRT8

Page 1 2009 OWNER’S MANUAL...
Page 2 VEHICLES SOLD IN CANADA With respect to any Vehicles Sold in Canada, the name Chrysler LLC shall be deemed to be deleted and the name Chrysler Canada Inc. used in substitution there- fore. DRIVING AND ALCOHOL Drunken driving is one of the most frequent causes of accidents.
Page 3: Introduction
TABLE OF CONTENTS SECTION ............. 3 INTRODUCTION THINGS TO KNOW BEFORE STARTING YOUR VEHICLE UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 5: Table Of Contents
CONTENTS Introduction ......4 How To Use This Manual ....4 Warnings And Cautions .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION This Owner’s Manual has been prepared with the assis- tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle. It is supplemented by a Warranty Information Booklet and various customer-oriented documents. You are urged to read these publications carefully.
Page 7 INTRODUCTION 5...
Page 8: Vehicle Identification Number
This number also appears on the Automobile Information Disclosure Label affixed to a window on your vehicle, the vehicle registration, and the title.
Page 9: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to an accident resulting in serious injury or death. VIN Location NOTE: It is illegal to remove the VIN.
Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 Wireless Ignition Node (WIN) FOB With Integrated Key ....13 Ignition Key Removal .
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Open The Trunk ....23 Using The Panic Alarm ....24 Programming Additional Transmitters Transmitter Battery Service General Information...
Page 13 Event Data Recorder (EDR) ... . . 54 Child Restraint ..... . 56 Engine Break-In Recommendations Safety Tips .
Page 14: Things To Know Before Starting Your Vehicle 9
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS Your vehicle uses a keyless ignition system. This system consists of a Fob with Integrated Key and a Wireless Ignition Node (WIN) with an integral ignition switch. You can insert the double-sided integrated key into the ignition switch with either side up.
Page 15: Fob With Integrated Key
Fob With Integrated Key The Fob with Integrated Key operates the ignition switch. It also contains the Remote Keyless Entry (RKE) trans- mitter and a valet key, which stores in the rear of the Fob. The valet key allows for entry into the vehicle should the battery in the vehicle or the Fob go dead.
Page 16: Key-In-Ignition Reminder
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The power window switches, radio, power sunroof (if equipped), and ignition-powered power out- lets will remain active for up to 60 minutes after the ignition switch is turned to the LOCK position. Opening either door will cancel this feature.
Page 17 is automatic, regardless of whether the vehicle is locked or unlocked. The system uses the factory-mated Remote Keyless Entry (RKE) transmitter with integrated key and Wireless Igni- tion Node (WIN) to prevent unauthorized vehicle opera- tion. Therefore, only RKE transmitters that are pro- grammed to the vehicle can be used to start and operate the vehicle.
Page 18: Replacement Keys
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE All of the RKE transmitters provided with your new vehicle have been programmed to the vehicle electronics. Replacement Keys NOTE: Only RKE transmitters that are programmed to the vehicle electronics can be used to start and operate the vehicle.
Page 19: General Information
2. Insert the second valid integrated key and turn the ignition switch to the ON position within 15 seconds. After 10 seconds, a chime will sound and the Vehicle Security Light will begin to flash. Turn the ignition switch to the LOCK position and remove the second key. 3.
Page 20: Vehicle Security Alarm
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE VEHICLE SECURITY ALARM The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the ignition switch for unau- thorized operation. If something triggers the alarm, the Vehicle Security Alarm will prevent the vehicle from starting and provide the following audible and visible signals: the horn will pulse, the headlights will flash, the park lights will flash, and the Vehicle Security Light in...
Page 21: Illuminated Entry System
NOTE: • The driver’s door key cylinder and the trunk button on the RKE transmitter cannot arm or disarm the Vehicle Security Alarm. • The Vehicle Security Alarm remains armed during trunk entry. Pressing the TRUNK button will not disarm the Vehicle Security Alarm. If someone enters the vehicle through the trunk, and opens any door, the alarm will sound.
Page 22: Remote Keyless Entry (Rke)
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The lights will fade to off after about 30 seconds or they will immediately fade to off once the ignition switch is turned ON from the LOCK position. NOTE: • None of the courtesy lights will operate if the dimmer control is in the “defeat”...
Page 23 seconds, to unlock both doors. The turn signal lights will flash to acknowledge the unlock signal. The illuminated entry system will also turn on. Remote Key Unlock, Driver Door/All Doors First This feature lets you program the system to unlock either the driver’s door or both doors on the first press of the UNLOCK button on the transmitter.
Page 24: To Lock The Doors
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Settings (Customer-Programmable Features),” under “Electronic Vehicle Information Center (EVIC)” in Sec- tion 4. • When not using the EVIC, perform the following steps: 1. Press and hold the UNLOCK button on a programmed transmitter for at least 4 seconds, but no longer than 10 seconds.
Page 25: Express Down Window Feature
Sound Horn with Remote Key Lock This feature will cause the horn to chirp when the doors are locked with the transmitter. This feature can be turned on or turned off. Refer to “Sound Horn with Remote Key Lock,” under “Personal Settings (Customer- Programmable Features),”...
Page 26: Using The Panic Alarm
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm To turn the Panic Alarm feature ON or OFF, press and hold the PANIC button on the transmitter for at least one second and release. When the Panic Alarm is on, the headlights and park lights will flash, the horn will pulse on and off, and the interior lights will turn on.
Page 27: General Information
2. Remove and replace the battery. When replacing the battery, match the + sign on the battery to the + sign on the inside of the battery clip, located on the back cover. Avoid touching the new battery with your fingers. Skin oils may cause battery deterioration.
Page 28: Remote Starting System
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE REMOTE STARTING SYSTEM This system uses the Remote Keyless Entry (RKE) transmitter to start the engine conve- niently from outside the vehicle while still maintaining security. The system has a range of 328 ft (100 m).
Page 29 • For security, power window and power sunroof op- eration (if equipped) are disabled when the vehicle is in the Remote Start mode. • The engine can be started two consecutive times with the RKE transmitter. However, the ignition switch must be cycled to the ON position before you can repeat the start sequence for a third cycle.
Page 30: Door Locks
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE DOOR LOCKS Manual Door Locks To lock each door, push the door lock plunger on each door trim panel downward. To unlock each door, pull the door lock plunger on each door trim panel upward. Door Lock Plunger If the door lock plunger is down when you shut the door, the door will lock.
Page 31: Power Door Locks
Power Door Locks The power door lock switch is located on each door trim panel. Use this switch to lock or unlock the doors. Power Door Lock Switch If you press the power door lock switch while the key is in the ignition, and either door is open, the power locks will not operate.
Page 32 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Automatic Door Locks — If Equipped The auto door lock feature can be enabled or disabled by your authorized dealer. See your authorized dealer for programming. Automatic Unlock Doors on Exit The doors will unlock automatically if: 1.
Page 33: Windows
5. A single chime will indicate the completion of the programming. NOTE: If you do not hear the chime, it means that the system did not enter the programming mode and you will need to repeat the procedure. 6. Repeat these steps if you want to return this feature to its previous setting.
Page 34 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: • The door window will lower slightly if it is closed completely when opening the door. The window will return to its fully closed position after closing the door. This action allows the door to open without resistance and prevents window and seal damage.
Page 35: Wind Buffeting
Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter-type sound in the ears. Your vehicle may exhibit wind buffeting with the windows down, or the sunroof (if equipped) in certain open or partially open positions. This is a normal occur- rence and can be minimized.
Page 36: Trunk Safety Warning
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE TRUNK SAFETY WARNING WARNING! Do not allow children to have access to the trunk, either by climbing into the trunk from outside, or through the inside of the vehicle. Always close the trunk lid when your vehicle is unattended.
Page 37: Occupant Restraints
OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems. These include the front and rear seat belts for the driver and all passengers, the front airbags for both the driver and front passenger, and the supplemental side curtain airbags for the driver and passengers seated next to a window.
Page 38: Lap/Shoulder Belts
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Research has shown that seat belts save lives, and they can reduce the seriousness of injuries in a collision. Some of the worst injuries happen when people are thrown from the vehicle. Seat belts reduce the possibility of ejection and the risk of injury caused by striking the inside of the vehicle.
Page 39 WARNING! (Continued) • Wearing your belt in the wrong place could make your injuries in a collision much worse. You might suffer internal injuries, or you could even slide out of part of the belt. Follow these instructions to wear your seat belt safely and to keep your pas- sengers safe, too.
Page 40 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. When the belt is long enough to fit, insert the latch plate into the buckle until you hear a “click.” Latch Plate To Buckle WARNING! • A belt that is buckled into the wrong buckle will not protect you properly.
Page 41 WARNING! (Continued) • A shoulder belt placed behind you will not protect you from injury during a collision. You are more likely to hit your head in a collision if you do not wear your shoulder belt. The lap and shoulder belt are meant to be used together.
Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 5. Position the shoulder belt on your chest so that it is comfortable and not resting on your neck. The retractor will withdraw any slack in the belt. Removing Slack From Belt 6.
Page 43: Lap/Shoulder Belt Untwisting Procedure
Lap/Shoulder Belt Untwisting Procedure Use the following procedure to untwist a twisted lap/ shoulder belt. 1. Position the latch plate as close as possible to the anchor point. 2. At about 6 to 12 in (15 to 30 cm) above the latch plate, grasp and twist the belt webbing 180 degrees to create a fold that begins immediately above the latch plate.
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Use Reminder System (BeltAlert ) will alert the driver to buckle the seat belt. The driver should also instruct all other occupants to buckle their seat belts. Once the warning is triggered, the BeltAlert chime and flash the Seat Belt Reminder Light for 96 sec- onds or until the driver’s seat belt is buckled.
Page 45: Automatic Locking Mode - If Equipped
The BeltAlert can be reactivated by repeating this pro- cedure. NOTE: When the BeltAlert is deactivated, the Seat Belt Reminder Light will continue to illuminate as long as the driver’s seat belt is unbuckled. Automatic Locking Mode — If Equipped In this mode, the shoulder belt is automatically pre- locked.
Page 46: Seat Belt Extender
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat Belt Extender If a seat belt is too short even when fully extended your authorized dealer can provide you with a seat belt extender. This extender should be used only if the existing belt is not long enough.
Page 47 NOTE: The front airbags are certified to the Federal regulations that allow less forceful deployment. The front airbags have a multistage inflator design. This allows the airbag to have different rates of inflation that are based on collision severity. THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 WARNING! •...
Page 48 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE This vehicle is also equipped with supplemental side curtain airbags (located above the side windows) to protect the driver and passenger sitting next to a window. Their covers are also labeled SRS AIRBAG. Side Window Airbag NOTE: Airbag covers may not be obvious in the interior trim, but they will open to allow airbag deployment.
Page 49 protection for the driver and front passenger. Side curtain airbags also work with seat belts to improve occupant protection. While the seat belts are designed to protect you in many types of collisions, the front airbags will deploy in moderate-to-severe frontal collisions. The supplemental side curtain airbag on the crash side of the vehicle will also trigger in moderate-to-severe side collisions.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE seat as far back as possible and use the proper child restraint. (Refer to information on Child Restraint in this section.) 5. You should read the instructions provided with your child restraint to make sure that you are using it properly. 6.
Page 51 Airbag System Components The airbag system consists of the following: • Occupant Restraint Controller (ORC) • Side Remote Acceleration Sensors • Side Door Pressure Sensors • Airbag Warning Light • Driver Airbag • Front Passenger Airbag • Supplemental Side Curtain Airbags above Side Win- dows •...
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The ORC also monitors the readiness of the electronic parts of the system whenever the ignition switch is in the START or ON position. These include all of the items listed above except the knee bolster, the instru- ment panel, and the steering wheel and column.
Page 53 their full size. The bags fully inflate in about 50 to 70 milliseconds. This is about half of the time that it takes to blink your eyes. The bags then quickly deflate while helping to restrain the driver and front passenger. The driver front airbag gas is vented through vent holes in the sides of the airbag.
Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you do have a collision that deploys the airbags, any or all of the following may occur: • The nylon airbag material may sometimes cause abra- sions and/or skin reddening to the driver and front passenger as the airbags deploy and unfold.
Page 55 Enhanced Accident Response System In the event of an impact that causes airbag deployment, with the vehicle stopped, the vehicle communication network intact, and the power intact, the Enhanced Accident Response System performs the following func- tions: • Cuts off fuel to the engine. •...
Page 56: Event Data Recorder (Edr)
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Perchlorate Material — special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. Airbag Warning Light You will want to have the airbags ready to inflate for your protection in an impact. While the airbag system is designed to be mainte- nance free, if any of the following occurs, have an authorized dealer service the system promptly: •...
Page 57 In conjunction with other data gathered during a com- plete accident investigation, the electronic data may be used by Chrysler LLC and others to learn more about the possible causes of crashes and associated injuries in order to assess and improve vehicle performance. In addition to crash investigations initiated by Chrysler LLC, such investigations may be requested by customers, insurance carriers, government officials, and professional crash...
Page 58: Child Restraint
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Data Parameters that May Be Recorded: • Diagnostic trouble code(s) and warning light status for electronically-controlled safety systems, including the airbag system • Airbag disable light status (if equipped) • Time of airbag deployment (in terms of ignition cycles and vehicle mileage) •...
Page 59 WARNING! In a collision, an unrestrained child, even a tiny baby, can become a missile inside the vehicle. The force required to hold even an infant on your lap could become so great that you could not hold the child, no matter how strong you are.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Rearward-facing child seats must NEVER be used in the front seat of a vehicle with the front passenger airbag unless the airbag is turned off. An airbag deployment could cause severe injury or death to infants in this position.
Page 61 • Check belt fit periodically. A child’s squirming or slouching can move the belt out of position. • If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back.
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Carefully follow the instructions that come with the restraint. If you install the restraint improperly, it may not work when you need it. • Buckle the child into the seat according to the child restraint manufacturer’s directions.
Page 63 child seats. You should NEVER install LATCH-compat- ible child seats so that two seats share a common lower anchorage. If installing child seats in adjacent rear- seating positions, or if your child restraints are not LATCH-compatible, install the restraints using the vehi- cle’s seat belts.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE window. These tether strap anchorages are under a plastic cover with this symbol on it. Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a means of adjusting the tension in the strap.
Page 65 the child restraint belt path and then buckle it. This should stow the seat belt out of the reach of an inquisitive child. Remind all children in the vehicle that the seat belts are not toys and should not be played with, and never leave your child unattended in the vehicle.
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE In the rear seat, you may have trouble tightening the lap/shoulder belt on the child restraint because the buckle or latch plate is too close to the belt path opening on the restraint. Disconnect the latch plate from the buckle and twist the short buckle end belt several times to shorten it.
Page 67: Engine Break-In Recommendations
NOTE: Ensure that the tether strap does not slip into the opening between the seatbacks as you remove slack in the strap. WARNING! An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap.
Page 68: Safety Tips
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CAUTION! Never use Non-Detergent Oil or Straight Mineral Oil in the engine or damage may result. NOTE: A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered a normal part of the break-in and not interpreted as an indication of difficulty.
Page 69: Exhaust Gas
Exhaust Gas WARNING! Exhaust gases can injure or kill. They contain carbon monoxide (CO), which is colorless and odorless. Breathing it can make you unconscious and can eventually poison you. To avoid breathing (CO) follow these safety tips: Do not run the engine in a closed garage or in confined areas any longer than needed to move your vehicle in or out of the area.
Page 70: Safety Checks You Should Make Inside The Vehicle
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Safety Checks You Should Make Inside the Vehicle Seat Belts Inspect the belt system periodically, checking for cuts, frays, and loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system. Front seat belt assemblies must be replaced after a collision.
Page 71: Periodic Safety Checks You Should Make Outside The Vehicle
Periodic Safety Checks You Should Make Outside the Vehicle Tires Examine tires for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread. Inspect the tread and sidewall for cuts and cracks. Check the wheel nuts for tightness. Check the tires (including spare) for proper pressure.
Page 73 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......75 Automatic Dimming Mirror .
Page 74 72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Recognition (VR) System — If Equipped ......107 Voice Recognition (VR) System Operation Commands .
Page 75 Windshield Wipers And Washers Intermittent Wiper System ... . . 126 Mist Feature ..... . . 127 Windshield Washers .
Page 76 74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power Sunroof — If Equipped Opening Sunroof — Partially Opening Sunroof — Express Closing Sunroof — Partially Closing Sunroof — Express Pinch Protect Feature ....141 Pinch Protect Override .
Page 77: Mirrors
MIRRORS Automatic Dimming Mirror This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pressing the button at the base of the mirror. A light next to the button will illuminate to indicate when the dimming feature is activated.
Page 78: Outside Mirrors
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Mirrors To receive maximum benefit, adjust the outside mirror(s) to center on the adjacent lane of traffic and a slight overlap of the view obtained from the inside mirror. NOTE: The passenger-side convex outside mirror will give a much wider view to the rear, and especially of the lane next to your vehicle.
Page 79: Power Mirrors
Power Mirrors The power mirror switch is located on the driver’s door trim panel next to the power door lock switch. A rotary knob selects the left mirror, right mirror or off position. Power Mirror Control UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77 After selecting a mirror, move the knob in the same direction you want the mirror to move.
Page 80: Illuminated Vanity Mirrors
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Illuminated Vanity Mirrors An illuminated vanity mirror is located on the sun visor. To use the mirror, rotate the sun visor downward and swing the mirror cover upward. The light turns on automatically. Close the mirror cover to turn off the light. Illuminated Vanity Mirror Slide-On-Rod and Extender Features of Sun Visor To use the slide-on-rod feature of the sun visor, rotate the...
Page 81: Uconnect Phone - If Equipped
NOTE: The uconnect phone requires a cellular phone equipped with the Bluetooth Hands-Free Profile, Ver- sion 0.96 or higher. See the uconnect website for sup- ported phones. For uconnect customer support, visit the following websites: • www.chrysler.com/uconnect • www.dodge.com/uconnect • www.jeep.com/uconnect • or call 1–877–855–8400...
Page 82 80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE uconnect allows you to transfer calls between the sys- tem and your cellular phone as you enter or exit your vehicle and enables you to mute the system’s microphone for private conversation. The uconnect phone is driven through your Bluetooth “Hands-Free Profile”...
Page 83: Operation
The uconnect phone is fully integrated with the vehi- cle’s audio system. The volume of the uconnect phone can be adjusted either from the radio volume control knob or from the steering wheel radio control (right switch), if so equipped. The radio display will be used for visual prompts from the uconnect phone such as CELL or caller ID on certain radios.
Page 84 82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Help Command If you need assistance at any prompt, or if you want to know your options at any prompt, say Help following the beep. The uconnect phone will play all the options at any prompt if you ask for help.
Page 85 • For identification purposes, you will be prompted to give the uconnect phone a name for your cellular phone. Each cellular phone that is paired should be given a unique phone name. • You will then be asked to give your cellular phone a priority level between one and seven, with one being the highest priority.
Page 86 84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The system will prompt you to say the name of the person you want to call. • After the Ready prompt and the following beep, say the name of the person you want to call. For example, you can say John Doe, where John Doe is a previ- ously stored name entry in the uconnect phonebook or downloaded phonebook.
Page 87 The uconnect phone will allow you to enter up to 32 names in the phonebook with each name having up to four associated phone numbers and designations. Each language has a separate 32-name phonebook accessible only in that language. In addition, if equipped and supported by your phone, uconnect phone automati- cally downloads your cellular phone’s phonebook.
Page 88 86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • This downloaded phonebook cannot be edited or deleted on the uconnect phone. These can only be edited on the cellular phone. The changes are trans- ferred and updated to uconnect phone on the next phone connection.
Page 89 Edit uconnect Phonebook Entries NOTE: • Editing names in the phonebook is recommended when the vehicle is not in motion. • Automatic downloaded phonebook entries cannot be deleted or edited. • Press the PHONE button to begin. • After the Ready prompt and the following beep, say Phonebook Edit.
Page 90 88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After you enter the Phonebook Delete menu, you will then be asked for the name of the entry that you wish to delete. You can either say the name of a phonebook entry that you wish to delete or you can say List Names to hear a list of the entries in the phonebook from which you choose.
Page 91: Phone Call Features
List All Names in the uconnect Phonebook • Press the PHONE button to begin. • After the Ready prompt and the following beep, say Phonebook List Names. • The uconnect phone will play the names of all the phonebook entries, including the downloaded phone- book entries, if available.
Page 92 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Answer or Reject an Incoming Call - Call Currently in Progress If a call is currently in progress and you have another incoming call, you will hear the same network tones for call waiting that you normally hear when using your cellular phone.
Page 93 Conference Call When two calls are in progress (one active and one on hold), press and hold the PHONE button until you hear a double beep indicating that the two calls have been joined into one conference call. Three-Way Calling To initiate three-way calling, press the VOICE RECOG- NITION button while a call is in progress, and make a second phone call, as described under Making a Second...
Page 94: Uconnect Phone Features
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Call Continuation Call continuation is the progression of a phone call on the uconnect phone after the vehicle ignition key has been switched to OFF. Call continuation functionality avail- able on the vehicle can be any one of three types: •...
Page 95 Emergency Assistance If you are in an emergency and the cellular phone is reachable: • Pick up the phone and manually dial the emergency number for your area. If the phone is not reachable and the uconnect phone is operational, you may reach the emergency number as follows: •...
Page 96 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Towing Assistance If you need towing assistance: • Press the PHONE button to begin. • After the Ready prompt and the following beep, say Towing Assistance. NOTE: • The towing assistance number dialed is based on the country where the vehicle is purchased (1-800-528- 2069 for the U.S., 1-877-213-4525 for Canada, 55-14- 3454 for Mexico City and 1-800-712-3040 for outside...
Page 97 When calling a number with your uconnect phone that normally requires you to enter in a touch-tone sequence on your cellular phone keypad, you can press the VOICE RECOGNITION button and say the sequence you wish to enter, followed by the word Send. For example, if required to enter your PIN followed with a pound, (3 7 4 6 #), you can press the VOICE RECOGNITION button and say, 3 7 4 6 # Send.
Page 98 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Turning Confirmation Prompts ON/OFF Turning confirmation prompts off will stop the system from confirming your choices (e.g., the uconnect phone will not repeat a phone number before you dial it). • Press the PHONE button to begin. •...
Page 99: Advanced Phone Connectivity
Mute/Un-Mute (Mute OFF) When you mute the uconnect phone, you will still be able to hear the conversation coming from the other party, but the other party will not be able to hear you. In order to mute the uconnect phone: •...
Page 100 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The uconnect phone will play the phone names of all paired cellular phones in order from the highest to the lowest priority. To “select” or “delete” a paired phone being announced, press the VOICE RECOGNITION button and say “Select”...
Page 101: Things You Should Know About Your Uconnect Phone
Things You Should Know About Your uconnect phone uconnect phone Tutorial To hear a brief tutorial of the system features, press the PHONE button and say “uconnect Tutorial.” Voice Training For users experiencing difficulty with the system recog- nizing their voice commands or numbers, the uconnect phone Voice Training feature may be used.
Page 102 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Speak normally, without pausing, just as you would speak to a person sitting a few feet/meters away from you. • Make sure that no one other than you is speaking during a voice recognition period. •...
Page 103 Far End Audio Performance • Audio quality is maximized under: • low-to-medium blower setting, • low-to-medium vehicle speed, • low road noise, • smooth road surface, • fully closed windows, • dry weather conditions, and • operation from the driver’s seat. •...
Page 104 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 105 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103...
Page 106 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 107 Voice Commands Primary Alternate(s) zero three four five seven eight nine star (*) plus (+) pound (#) add location UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 Voice Commands Primary Alternate(s) call cancel confirmation prompts continue delete dial download edit emergency English erase all Espanol...
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Primary Alternate(s) language list names list phones mobile mute mute off new entry pager pair a phone phone pairing pairing phonebook phone book previous record again redial Voice Commands Primary Alternate(s) return to main menu return or main menu select phone...
Page 109: General Information
General Information This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE When you press the VR button, you will hear a beep. The beep is your signal to give a command. NOTE: If you do not say a command within a few seconds, the system will present you with a list of options.
Page 111: Commands
Commands The Voice Recognition (VR) system understands two types of commands. Universal commands are available at all times. Local commands are available if the supported radio mode is active. Changing the Volume 1. Start a dialogue by pressing the VR button. 2.
Page 112 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Radio FM To switch to the FM band, say “FM” or “Radio FM”. In this mode, you may say the following commands: • “Frequency” (to change the frequency) • “Next Station” (to select the next station) •...
Page 113 Memo To switch to the voice recorder mode, say “Memo”. In this mode, you may say the following commands: • “New Memo” (to record a new memo) — During the recording, you may press the VR button to stop recording. You proceed by saying one of the following commands: −...
Page 114: Voice Training
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Keep in mind that you have to press the VR button first and wait for the beep before speaking the “Barge In” commands. Voice Training For users experiencing difficulty with the system recog- nizing their voice commands or numbers, uconnect phone Voice Training feature may be used.
Page 115: Power Seats
Easy Entry Seats Power Seats The power seat switches are on the outboard side of the front seat cushions. The power seat switch can be moved forward and backward as well as up and down to control the position of the seat. The power seatback switch is UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 used to adjust the angle of the seatback.
Page 116: Manual Front Seatback Recline
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted and you could be injured. Adjust the seat only while the vehicle is parked.
Page 117: Lumbar Support
Lumbar Support This feature allows you to increase or decrease the amount of lumbar support. Turn the control lever for- ward to increase and rearward to decrease the desired amount of lumbar support. Lumbar Support UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 Head Restraints Head restraints can reduce the risk of whiplash injury in the event of a rear impact.
Page 118: Heated Seats
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Heated Seats The driver seat and front passenger seat are heated. The heaters provide the same heat level for both cushion and seatback. The controls for each heater are located near the bottom center of the instrument panel. Heated Seat Switch After turning the ignition ON, you can choose from High, Low, or Off heat settings.
Page 119: Folding Rear Seat
WARNING! • Persons who are unable to feel pain to the skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, ex- haustion, or other physical conditions must exer- cise care when using the seat heater. It may cause burns even at low temperatures, especially if used for long periods.
Page 120: To Open And Close The Hood
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Be certain that the seatback is securely locked into position. If the seatback is not securely locked into position, the seat will not provide the proper stability for child seats and/or passengers. An improperly latched seat could cause serious injury.
Page 121 2. Move to the outside of the vehicle and push the safety catch to the left. The safety catch is located under the center front edge of the hood. Hood Safety Catch UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 CAUTION! To prevent possible damage, do not slam the hood to close it.
Page 122: Lights
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Headlight Switch The headlight switch is located on the left side of the instrument panel. This switch controls the operation of the headlights, parking lights, instrument panel lights, instru- ment panel light dimming, interior lights and fog lights. Headlight Switch Rotate the headlight switch clockwise to the first detent for parking light and instrument panel light operation.
Page 123: Headlights On With Wipers (Available With Auto Headlights Only)
Headlights On with Wipers (Available with Auto Headlights Only) When this feature is active, the headlights will turn on approximately 10 seconds after the wipers are turned on if the headlight switch is placed in the AUTO (A) position. In addition, the headlights will turn off when the wipers are turned off if they were turned on by this feature.
Page 124: Daytime Running Lights - If Equipped
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Running Lights — If Equipped The high beam headlights will come on as Daytime Running Lights whenever the ignition switch is ON, the headlights are off, and the parking brake is off. The headlight switch must be used for normal nighttime driving.
Page 125: Multifunction Lever
Multifunction Lever The multifunction lever controls the operation of the turn signals, headlight beam selection, and passing lights. The multifunction lever is located on the left side of the steering column. Multifunction Lever UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 Turn Signals Move the multifunction lever up or down and the corresponding turn signal indicator in the instrument...
Page 126: Overhead Console Map/Reading Lights
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE High Beam/Low Beam Select Switch Push the multifunction lever away from you to switch the headlights to high beam. Pull the multifunction lever toward you to switch the headlights back to low beam. Flash-to-Pass You can signal another vehicle with your headlights by lightly pulling the multifunction lever toward you.
Page 127: Windshield Wipers And Washers
because a door is open. This includes the glove box light, but not the trunk light. To restore interior light operation, either turn the ignition switch ON or cycle the light switch. Dimmer Control The dimmer control is part of the headlight switch and is located on the left side of the instrument panel.
Page 128: Intermittent Wiper System
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE the ON position. The multifunction lever is located on the left side of the steering column. Windshield Wiper/Washer Control Rotate the end of the multifunction lever to the first detent past the intermittent settings for low-speed wiper operation, or to the second detent past the intermittent settings for high-speed wiper operation.
Page 129: Mist Feature
WARNING! Sudden loss of visibility through the windshield could lead to an accident. You might not see other vehicles or other obstacles. To avoid sudden icing of the windshield during freezing weather, warm the windshield with the defroster before and during windshield washer use.
Page 130: Tilt/Telescoping Steering Column
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Headlights On with Wipers feature can be enabled or disabled. Refer to ”Headlights On with Wipers,” under “Personal Settings (Customer-Programmable Features)” under “Electronic Vehicle Information Center (EVIC)” in Section 4. TILT/TELESCOPING STEERING COLUMN This feature allows you to tilt the steering column upward or downward.
Page 131: Electronic Speed Control
outward or push it inward as desired. To lock the steering column in position, push the control handle inward until fully engaged. WARNING! Do not adjust the steering wheel while driving. The telescoping adjustment must be locked while driv- ing. Adjusting the steering wheel while driving or driving without the telescoping adjustment locked could cause the driver to lose control of the vehicle.
Page 132: To Activate
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Activate Push and release the ON/OFF button located on the end of the Electronic Speed Control lever. The indicator light in the instrument cluster will illuminate to show that the speed control system is on. To turn the system off, push and release the ON/OFF button again.
Page 133: To Resume Speed
• Press the brake pedal, or press the clutch pedal to the floor (manual transmission). • Pull the speed control lever toward you (CANCEL). Pushing and releasing the ON/OFF button or turning the ignition OFF erases the set speed from memory. To Resume Speed If you deactivated the Electronic Speed Control without erasing the set speed from memory and your vehicle...
Page 134: Overhead Console
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Using Electronic Speed Control on Hills NOTE: The Electronic Speed Control system maintains speed up and down hills. A slight speed change on moderate hills is normal. The automatic transmission will downshift while climb- ing uphill or descending downhill.
Page 135: Courtesy/Reading Lights
Overhead Console Courtesy/Reading Lights At the forward end of the console are two courtesy/ reading lights. Press the lens to turn on the light. Press it a second time to turn off the light. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 These lights also turn on when a door is opened, when the UNLOCK button on the Remote Keyless Entry (RKE) transmitter is pressed, or when the dimmer control is...
Page 136 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The HomeLink buttons are located in the overhead console, and contain one, two, or three dots/lines desig- nating the different HomeLink channels. HomeLink Buttons NOTE: HomeLink is disabled when the Vehicle Secu- rity Alarm is active. WARNING! •...
Page 137: Programming Homelink
Programming HomeLink Before You Begin If you have not trained any of the HomeLink buttons, erase all channels before you begin training. To do this, press and hold the two outside buttons for up to 20 seconds. The EVIC will display “CLEARING CHANNELS.”...
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Some gate operators and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator/Canadian Programming” section. 4. Press and hold the just-trained HomeLink button. If the channel has been trained, the EVIC display will now state “CHANNEL # TRANSMIT.”...
Page 139: Gate Operator/Canadian Programming
6. Firmly press and release the “learn” or “training” button. The name and color of the button may vary by manufacturer. NOTE: There are 30 seconds in which to initiate the next step after the “Learn” button has been pressed. 7.
Page 140: Using Homelink
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE has successfully accepted the frequency signal. The EVIC display will change from “CHANNEL # TRAIN- ING” to “CHANNEL # TRAINED.” If you unplugged the device for training, plug it back in at this time. Then proceed with Step 4 under “Programming HomeLink ”...
Page 141: Troubleshooting Tips
The HomeLink Universal Transceiver is disabled when the Vehicle Security Alarm is active. Troubleshooting Tips If you are having trouble programming HomeLink , here are some of the most common solutions: • Replace the battery in the original transmitter. • Press the learn button on the garage door opener to complete the training for rolling code.
Page 142: Power Sunroof - If Equipped
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE POWER SUNROOF — IF EQUIPPED The power sunroof switch is located between the sun visors on the overhead console. Power Sunroof Switch WARNING! • Never leave children in a vehicle with the key in the ignition switch.
Page 143: Opening Sunroof - Partially
Opening Sunroof — Partially Press and hold the switch in the rearward position. Release the switch when the sunroof is in the position desired and it will stop moving. If you continue to hold the switch in the rearward position, the sunroof will open fully and then stop automatically.
Page 144: Pinch Protect Override
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Pinch Protect Override If a known obstruction (ice, debris, etc.) prevents closing, press the switch forward and hold for two seconds after the reversal occurs. This allows the sunroof to move towards the closed position. NOTE: Pinch protection is disabled while the switch is pressed.
Page 145: Sunroof Fully Closed
this feature is programmable. Refer to “Delay Power Off to Accessories Until Exit,” under “Personal Settings (Customer-Programmable Features)” under “Electronic Vehicle Information Center (EVIC)” in Section 4. Sunroof Fully Closed Press the switch forward and release to ensure that the sunroof is fully closed.
Page 146 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! To avoid serious injury or death: • Do not use a three-prong adapter. • Do not insert any objects into the receptacles. • Do not touch with wet hands. • Close the lid when not in use and while driving the vehicle.
Page 147: Cupholders
CAUTION! (Continued) • After the use of high power draw accessories or long periods of the vehicle not being started (with accessories still plugged in), the vehicle must be driven a sufficient length of time to allow the alternator to recharge the vehicle’s battery. •...
Page 148: Rear Cupholders
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Illuminated Front Cupholders — If Equipped The front cupholders are illuminated with LEDs. They are turned on with the headlights or parking lights. Refer to “Interior Lights” under “Lights” in Section 3. Rear Cupholders The rear seat cupholders are located in the center armrest between the rear seats.
Page 149: Console Storage
Sliding Console Armrest Console Storage The center console has a storage compartment located underneath the armrest, and also contains a 12-Volt power outlet, a molded-in coin holder (designed to hold various size coins). The center console may also be equipped with a Universal Consumer Interface (UCI). UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 UCI supports Mini, 4G, Photo, Nano, 5G iPod iPhone devices.
Page 150: Rear Window Features
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE REAR WINDOW FEATURES Rear Window Defroster The rear window defroster button is located on the climate control (Mode) knob. Press this button to turn on the rear window defroster and the heated outside mirrors (if equipped).
Page 151 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....153 Instrument Cluster ....154 Instrument Cluster Description Electronic Vehicle Information Center (EVIC) .
Page 152 150 UNDERSTANDING YOUR INSTRUMENT PANEL Sales Code REQ — AM/FM Stereo Radio And 6–Disc CD Changer (MP3/WMA AUX Jack) . . . 182 Operating Instructions - Radio Mode Operation Instructions - (Disc Mode For CD And MP3/WMA Audio Play) ... . 187 Notes On Playing MP3/WMA Files List Button (Disc Mode For MP3/WMA Play) .
Page 153 Operation Instructions — CD Mode For CD And MP3 Audio Play ....211 Notes On Playing MP3 Files ... 213 List Button (CD Mode For MP3 Play) Info Button (CD Mode For MP3 Play) Universal Consumer Interface (UCI) —...
Page 154 152 UNDERSTANDING YOUR INSTRUMENT PANEL Kicker High Performance Sound System With Driver-Selectable Surround (DSS) – If Equipped ......227 Remote Sound System Controls CD/DVD Disc Maintenance Radio Operation And Cellular Phones...
Page 155: Instrument Panel Features
INSTRUMENT PANEL FEATURES 1 — Air Outlets 2 — Instrument Cluster 3 — Glove Compartment 4 — Radio UNDERSTANDING YOUR INSTRUMENT PANEL 153 5 — Heated Seat Switch 6 — ESP OFF Switch 7 — Hazard Warning Switch 8 — Climate Control 9 —...
Page 156: Instrument Cluster
154 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER...
Page 157: Instrument Cluster Description
INSTRUMENT CLUSTER DESCRIPTION 1. Fuel Gauge The pointer shows the level of fuel in the fuel tank when the ignition switch is in the ON position. 2. Trip Odometer Button Press this button to change the display from odometer to either of two trip odometer settings.
Page 158 156 UNDERSTANDING YOUR INSTRUMENT PANEL 7. Electronic Throttle Control (ETC) Warning Light This light will turn on briefly as a bulb check when the ignition switch is turned ON. This light will also turn on while the engine is running if there is a problem with the Elec- tronic Throttle Control (ETC) system.
Page 159 CAUTION! Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads 240°F (116°C) or greater, pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range 200– 230°F (93–110°C).
Page 160 158 UNDERSTANDING YOUR INSTRUMENT PANEL 10. Airbag Warning Light This light will turn on for six to eight seconds as a bulb check when the ignition switch is first turned ON. If the light is either not on during starting, or stays on, or turns on while driving, have the system inspected at an authorized dealer as soon as possible.
Page 161 14. Oil Pressure Warning Light This light indicates low engine oil pressure. The light should turn on momentarily when the engine is started. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound for four minutes when this light turns Do not operate the vehicle until the cause is corrected.
Page 162 160 UNDERSTANDING YOUR INSTRUMENT PANEL 19. Odometer / Electronic Vehicle Information Center (EVIC) Display The odometer shows the total distance the vehicle has been driven. The trip odometer shows individual trip mileage. Refer to “Trip Odometer Button” for additional information. NOTE: U.S.
Page 163 If the light remains on when the parking brake has been disengaged, and the fluid level is at the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system malfunction or that a problem with the Brake Booster has been detected by the Anti-Lock Brake System (ABS) / Electronic Stability Program (ESP) sys- tem.
Page 164 162 UNDERSTANDING YOUR INSTRUMENT PANEL Operation of the Brake Warning Light can be checked by turning the ignition switch from the OFF position to the ON position. The light should illuminate for approxi- mately two seconds. The light should then turn off unless the parking brake is applied or a brake fault is detected.
Page 165 reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Page 166 164 UNDERSTANDING YOUR INSTRUMENT PANEL CAUTION! The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warning have been established for the tire size equipped on your vehicle. Undesirable system opera- tion or sensor damage may result when using re- placement equipment that is not of the same size, type, and/or style.
Page 167: Electronic Vehicle Information Center (Evic)
the key is in the ON position before engine start. If the MIL does not come on when turning the key from LOCK to ON, have the condition checked promptly. Certain conditions such as a loose or missing gas cap, poor fuel quality, etc., may illuminate the MIL after engine start.
Page 168 166 UNDERSTANDING YOUR INSTRUMENT PANEL • Tire Pressure Monitor System • Personal Settings (Customer-Programmable Features) • Compass Display • Outside Temperature Display • Trip Computer Functions • uconnect phone Displays (If Equipped) • uconnect gps Screens (If Equipped) • Audio Mode Display •...
Page 169: Electronic Vehicle Information Center (Evic) Displays
SCROLL Button Press the SCROLL button to scroll through Trip Functions, Performance Pages, uconnect gps (If Equipped), System Status Messages, and Personal Settings (Customer-Programmable Features). The SCROLL button also functions as a remote sound system control. Refer to “Remote Sound System Controls”...
Page 170 168 UNDERSTANDING YOUR INSTRUMENT PANEL • Trunk Ajar (with a single chime) • Oil Change Required • Low Washer Fluid (with a single chime) • Channel # Transmit • Channel # Training • Channel # Trained • Clearing Channels • Channels Cleared •...
Page 171: Engine Oil Change Indicator System
• Braking Distance • 1/8 Mile • 1/4 Mile • Instantaneous G-Force • Peak G-Force • Digital Speedometer Engine Oil Change Indicator System Oil Change Required Your vehicle is equipped with an engine oil change indicator system. The “Oil Change Required” message will flash in the EVIC display for approximately 10 sec- onds after a single chime has sounded, to indicate the next scheduled oil change interval.
Page 172: Trip Functions
170 UNDERSTANDING YOUR INSTRUMENT PANEL Trip Functions Press and release the MENU button until one of the following Trip Functions displays in the EVIC: • Average Fuel Economy • Distance To Empty • Trip A • Trip B • Elapsed Time •...
Page 173 When the DTE value is less than 30 miles (48 km) estimated driving distance, the DTE display will change to a text display of LOW FUEL. This display will continue until the vehicle runs out of fuel. Adding a significant amount of fuel to the vehicle will turn off the LOW FUEL text and a new DTE value will display.
Page 174: Performance Features
172 UNDERSTANDING YOUR INSTRUMENT PANEL Performance Features WARNING! Measurement of vehicle statistics with the Perfor- mance Features is intended for off-highway or off- road use only and should not be done on any public roadways. It is recommended that these features be used in a controlled environment and within the limits of the law.
Page 175 • The feature will “ready” when the vehicle speed is at 0 mph (0 km/h). The word “READY” will flash when conditions are met for the event to begin. • Dashes will display if the vehicle fails to reach 60 mph (100 km/h) in less then 10 seconds.
Page 176 174 UNDERSTANDING YOUR INSTRUMENT PANEL 1/8 Mile, 1/4 Mile When selected, this screen displays the time it takes the vehicle to travel 1/8 mile (1/4 mile) within 30 seconds and the vehicle’s speed when it reaches 1/8 mile (1/ 4 mile). •...
Page 177: Keyless Go Display - If Equipped
Digital Speedometer When selected, this screen displays vehicle speed and records top speed. • Press and hold the FUNCTION SELECT button for three seconds to toggle between current speed and top speed. • To reset top speed, quickly press and release the FUNCTION SELECT button when top speed is displayed.
Page 178: Compass Display
176 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: Under certain conditions, the display may be superseded by another display of higher priority. But when the ignition switch position is changed, the display always re-appears. Compass Display COMPASS Button The compass readings indicate the direction the vehicle is facing.
Page 179 5. Complete one or more 360–degree turns (in an area free from large metal or metallic objects) until the “CAL” indicator turns off. The compass will now function normally. Compass Variance Compass Variance is the difference between Magnetic North and Geographic North. To compensate for the differences, the variance should be set for the zone where the vehicle is driven, per the zone map.
Page 180: Driver-Selectable Surround Sound (Dss) - If Equipped
178 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Press and release the FUNCTION SELECT button until the proper variance zone is selected, according to the map. 5. Press and release the compass button to exit. Driver-Selectable Surround Sound (DSS) – If Equipped Press and release the MENU button until “Surround Sound”...
Page 181 Press and release the MENU button until Personal Set- tings displays in the EVIC. Use the SCROLL button to display one of the following choices. Language When in this display, you may select one of three languages for all display nomenclature, including the trip functions and the uconnect gps (if equipped).
Page 182 180 UNDERSTANDING YOUR INSTRUMENT PANEL the doors will unlock on the first press of the RKE transmitter UNLOCK button. To make your selection, press and release the FUNCTION SELECT button until “Driver Door 1st Press” or “All Doors 1st Press” appears. Sound Horn with Remote Key Lock When ON is selected, a short horn sound will occur when the RKE transmitter LOCK button is pressed.
Page 183 Hill Start Assist (HSA) — If Equipped When on is selected, the HSA system is active. Refer to “HSA (Hill Start Assistance)” under “Electronic Brake Control System” in Section 5 of this manual for system function and operating information. To make your selec- tion, press and release the FUNCTION SELECT button until “ON”...
Page 184: Sales Code Req - Am/Fm Stereo Radio And 6-Disc Cd Changer (Mp3/Wma Aux Jack)
182 UNDERSTANDING YOUR INSTRUMENT PANEL SALES CODE REQ — AM/FM STEREO RADIO AND 6–DISC CD CHANGER (MP3/WMA AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. REQ Radio Operating Instructions - Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 185 to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection. Holding either button will bypass stations without stopping until you release it. SCAN Button Pressing the SCAN button causes the tuner to search for the next listenable station in AM, FM or Satellite (if equipped) frequencies, pausing for five seconds at each listenable station before continuing to the next.
Page 186 184 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Adjust the minutes using the right side TUNE/ SCROLL control knob. Press the TUNE/SCROLL control knob to save the time change. 5. To exit, press any button/knob or wait five seconds. The clock can also be set by pressing the SETUP button and selecting the “SET HOME CLOCK”...
Page 187 Push the rotary TUNE/SCROLL control knob a fourth time and BALANCE will display. Turn the TUNE/ SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers. Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display.
Page 188 186 UNDERSTANDING YOUR INSTRUMENT PANEL Program Type Personality Public Rhythm and Blues Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name.
Page 189: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play)
You may add a second station to each pushbutton by repeating the above procedure with this exception: Press the SET button twice and SET 2 will show in the display window. Each button can be set for SET 1 and SET 2 in both AM and FM.
Page 190 188 UNDERSTANDING YOUR INSTRUMENT PANEL CAUTION! This CD player will accept 4–3/4 in (12 cm) discs only. The use of other sized discs may damage the CD player mechanism. Eject Button — Ejecting Compact Disc(s) Press the EJECT button and the pushbutton with the corresponding number (1-6) where the CD was loaded and the disc will unload and move to the entrance for easy removal.
Page 191: Notes On Playing Mp3/Wma Files
RW/FF (CD MODE) Press and hold FF (Fast Forward) and the CD player will begin to fast forward until FF is released, or RW or another CD button is pressed. The RW (Rewind) button works in a similar manner. AM or FM Button (CD MODE) Switches the radio to the radio mode.
Page 192 190 UNDERSTANDING YOUR INSTRUMENT PANEL Multisession disc formats are supported by the radio. Multisession discs may contain combinations of normal CD audio tracks and computer files (including MP3/ WMA files). Discs created with an option such as keep disc open after writing are most likely multisession discs.
Page 193: List Button (Disc Mode For Mp3/Wma Play)
ID3 Tag information for artist, song title, and album title are supported for ID3 version 1 tags. ID3 version 2 is not supported by the radios. Playlist files are not supported. MP3 Pro files are not supported. Playback of MP3/WMA Files When a medium containing MP3/WMA data is loaded, the radio checks all files on the medium.
Page 194: Info Button (Disc Mode For Mp3/Wma Play)
192 UNDERSTANDING YOUR INSTRUMENT PANEL INFO Button (DISC Mode for MP3/WMA Play) Pressing the INFO button repeatedly will scroll through the following TAG information: Song Title, Artist, File Name, and Folder Name (if available). Press the INFO button once more to return to elapsed time priority mode.
Page 195 TIME Button (Auxiliary Mode) Press the TIME button to change the display from elapsed playing time to time of day. The time of day will display for five seconds. RW/FF (Auxiliary Mode) No function. SET Button (Auxiliary Mode) No function. Operating Instructions —...
Page 196: Am/Fm/Cd/Dvd Radio (Rer/Ren) - If
194 UNDERSTANDING YOUR INSTRUMENT PANEL AM/FM/CD/DVD RADIO (RER/REN) – IF EQUIPPED NOTE: The sales code is located on the lower right side of the unit’s faceplate. The REN and RER radios contain a CD/DVD player, USB port, and a 30-gigabyte hard drive (HDD). Sirius Satellite Radio is optional.
Page 197 To Manually Set the Clock — RER/REN 1. Turn on the radio. 2. Touch the screen where the time is displayed. 3. Touch the screen where “User Clock” is displayed. The clock setting menu will appear on the screen. 4. To move the hour forward, touch the screen where the word “Hour”...
Page 198 196 UNDERSTANDING YOUR INSTRUMENT PANEL Show Time if Radio is Off When selected, this feature will display the time of day on the touch screen when the radio is turned off. Proceed as follows to change the current setting: 1. Turn on the radio. 2.
Page 199: Sales Code Res - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack)
SALES CODE RES — AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) NOTE: The radio sales code is located on the lower right side of the radio faceplate. RES Radio UNDERSTANDING YOUR INSTRUMENT PANEL 197 Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 200 198 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons Press and release the SEEK buttons to search for the next listenable station in AM/FM mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection.
Page 201 Push the rotary TUNE/SCROLL control knob a second time and MID will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the mid-range tones. Push the rotary TUNE/SCROLL control knob a third time and TREBLE will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the treble tones.
Page 202: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
200 UNDERSTANDING YOUR INSTRUMENT PANEL SET 2 in both AM and FM. This allows a total of 12 AM and 12 FM stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by pressing the pushbutton twice.
Page 203 If you insert a disc with the ignition ON and the radio ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will show the track number, and index time in minutes and seconds.
Page 204: Notes On Playing Mp3 Files
202 UNDERSTANDING YOUR INSTRUMENT PANEL the current selection. Pressing and holding the SEEK button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD playing time display to a small CD playing time display. RW/FF Press and hold the FF (Fast Forward) button and the CD player will begin to fast forward until FF is released, or...
Page 205 Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 Level 1 and Level 2 and includes the Joliet extension. When reading discs recorded using formats other than ISO 9660 Level 1 and Level 2, the radio may fail to read files properly and may be unable to play the file nor- mally.
Page 206 204 UNDERSTANDING YOUR INSTRUMENT PANEL Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files. Non-MP3 files named with the *.MP3 extension may cause playback problems. The radio is designed to recognize the file as an invalid MP3 and will not play the file.
Page 207: Operation Instructions - Auxiliary Mode
Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files. Loading times for playback of MP3 files may be affected by the following: •...
Page 208: Sales Code Res/Rsc - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack) And Sirius Radio
206 UNDERSTANDING YOUR INSTRUMENT PANEL SALES CODE RES/RSC — AM/FM STEREO RADIO WITH CD PLAYER (MP3 AUX JACK) AND SIRIUS RADIO NOTE: The radio sales code is located on the lower right side of the radio faceplate. RES/RSC Radio Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON or ACC position to operate the radio.
Page 209 to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection. Holding either button will bypass stations without stopping until you release it. Voice Recognition System (Radio) — If Equipped Refer to “Voice Recognition System (VR)”...
Page 210 208 UNDERSTANDING YOUR INSTRUMENT PANEL 5. To exit, press any button/knob or wait five seconds. The clock can also be set by pressing the SETUP button. For vehicles equipped with satellite radio, press the SETUP button, use the TUNE/SCROLL control to select SET CLOCK, and then follow the above procedure, starting at Step 2.
Page 211 Push the rotary TUNE/SCROLL control knob a fourth time and BALANCE will display. Turn the TUNE/ SCROLL control knob to the right or left to adjust the sound level from the right or left side speakers. Push the rotary TUNE/SCROLL control knob a fifth time and FADE will display.
Page 212 210 UNDERSTANDING YOUR INSTRUMENT PANEL Program Type Personality Public Rhythm and Blues Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name.
Page 213: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
SET/RND Button — To Set the Pushbutton Memory When you are receiving a station that you wish to commit to pushbutton memory, press the SET/RND button. The symbol SET 1 will now show in the display window. Select the button (1 to 6) you wish to lock onto this station and press and release that button.
Page 214 212 UNDERSTANDING YOUR INSTRUMENT PANEL Inserting Compact Disc(s) Gently insert one CD into the CD player with the CD label facing up. The CD will automatically be pulled into the CD player and the CD icon will illuminate on the radio display.
Page 215: Notes On Playing Mp3 Files
NOTE: Ejecting with the ignition OFF is not allowed on convertible or soft-top models (if equipped). SEEK Button Press the right SEEK button for the next selection on the CD. Press the left SEEK button to return to the beginning of the current selection, or return to the beginning of the previous selection if the CD is within the first second of the current selection.
Page 216 214 UNDERSTANDING YOUR INSTRUMENT PANEL Supported Media (Disc Types) The MP3 file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3, and CDDA+MP3. Supported Medium Formats (File Systems) The medium formats supported by the radio are ISO 9660 Level 1 and Level 2 and includes the Joliet extension.
Page 217 Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files. Non-MP3 files named with the *.MP3 extension may cause playback problems. The radio is designed to recognize the file as an invalid MP3 and will not play the file.
Page 218: List Button (Cd Mode For Mp3 Play)
216 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files.
Page 219: Universal Consumer Interface (Uci) - If Equipped
Operation Instructions - Auxiliary Mode The auxiliary (AUX) jack is an audio input jack which allows the user to plug in a portable device such as an MP3 player or cassette player and utilize the vehicle’s audio system to amplify the source and play through the vehicle speakers.
Page 220: Connecting The Ipod
218 UNDERSTANDING YOUR INSTRUMENT PANEL UCI supports Mini, 4G, Photo, Nano, 5G iPod iPhone devices. Some iPod software versions may not fully support the UCI features. Please visit Apple’s website for software updates. NOTE: • If the radio has a USB port, connecting an iPod to this port does not play the media.
Page 221: Controlling The Ipod Using Radio Buttons
• The iPod can be controlled using the radio buttons to Play, Browse, and List the iPod contents. • The iPod battery charges when plugged into the UCI connector. Controlling The iPod Using Radio Buttons To get into the UCI (iPod ) mode and access a connected iPod , press the “AUX”...
Page 222: List Or Browse Mode
220 UNDERSTANDING YOUR INSTRUMENT PANEL • Use the << SEEK and SEEK >> buttons to jump to the previous or next track. If the << SEEK button is pressed during the first two seconds of the track, it will jump to the previous track in the list; if you press this button at any other time in the track, it will jump to the beginning of the track.
Page 223 • Turning it clockwise (forward) and counterclock- wise (backward) scrolls through the lists, displaying the track detail on the radio display. Once you have the track to be played highlighted on the radio display, press the TUNE control knob to select and start playing the track.
Page 224: Uconnect Studios (Satellite Radio) - If Equipped (Ren/Req/Rer/Res Radios Only)
222 UNDERSTANDING YOUR INSTRUMENT PANEL the same steps to go to the desired track in that list. Not all iPod sub-menu levels are available on this system. • MUSIC TYPE button: The MUSIC TYPE button is another shortcut button to the genre listing on your iPod .
Page 225: System Activation
System Activation Sirius Satellite Radio service is pre-activated, and you may begin listening immediately to the one year of audio service that is included with the factory-installed satellite radio system in your vehicle. Sirius will supply a wel- come kit that contains general information, including how to setup your on-line listening account at no addi- tional charge.
Page 226: Selecting Uconnect Studios (Satellite) Mode
224 UNDERSTANDING YOUR INSTRUMENT PANEL Selecting uconnect studios (Satellite) Mode Press the SAT button until SAT appears in the display. A CD may remain in the radio while in the Satellite radio mode. Satellite Antenna To ensure optimum reception, do not place items on the roof around the rooftop antenna location.
Page 227 SCAN Button Pressing the SCAN button causes the tuner to search for the next channel, pausing for eight seconds before con- tinuing to the next. To stop the search, press the SCAN button a second time. INFO Button Pressing the INFO button will cycle the display informa- tion between Artist, Song Title, and Composer (if avail- able).
Page 228: Operating Instructions - Uconnect Phone (If Equipped)
226 UNDERSTANDING YOUR INSTRUMENT PANEL SETUP Button Pressing the SETUP button allows you to select the following items: • Display Sirius ID number — Press the AUDIO/ SELECT button to display the Sirius ID number. This number is used to activate, deactivate, or change the Sirius subscription.
Page 229: Understanding Your Instrument Panel 227
KICKER HIGH PERFORMANCE SOUND SYSTEM WITH DRIVER-SELECTABLE SURROUND (DSS) – IF EQUIPPED Your vehicle is equipped with a state of the art audio amplifier that provides 5.1-channel surround sound from UNDERSTANDING YOUR INSTRUMENT PANEL 227 any stereo audio source. A new feature of the Kicker audio system offers the ability to choose surround sound for any audio source.
Page 230: Remote Sound System Controls
228 UNDERSTANDING YOUR INSTRUMENT PANEL REMOTE SOUND SYSTEM CONTROLS Remote Sound System Controls The remote sound system controls are located on the surface of the steering wheel at the three and nine o’clock positions. Vehicles equipped with steering wheel-mounted buttons are also equipped with the Electronic Vehicle Information Center (EVIC).
Page 231: Cd/Dvd Disc Maintenance
FUNCTION SELECT Button When the EVIC is in the Compass/Temp/ Audio screen, press the FUNCTION SELECT button to operate various radio, media, and Universal Customer Interface (UCI) functions (i.e., advance presets, select next folder, jump to or start playing songs in playlists, etc., depending on which radio is in the vehicle and if equipped with UCI).
Page 232: Radio Operation And Cellular Phones
230 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: If you experience difficulty in playing a particu- lar disc, it may be damaged (i.e., scratched, reflective coating removed, a hair, moisture or dew on the disc) oversized, or have copyright encoding. Try a known good disc before considering disc player service.
Page 233 Blower Control Use this control to regulate the amount of air forced through the ven- tilation system in any mode. The blower speed increases as you move the control to the right from the “O” (Off) position. There are four blower speeds.
Page 234 232 UNDERSTANDING YOUR INSTRUMENT PANEL Mode Control Use this control to choose from several patterns of air distribution. You can select either a primary mode as iden- tified by the symbols on the control, or a blend of two of these modes. •...
Page 235: System
• Defrost Air is directed through the windshield and side window demist outlets. Use this mode with maxi- mum blower and temperature settings for best wind- shield and side window defrosting. NOTE: The air conditioning compressor operates in Mix, Defrost, and Floor or a blend of these modes, even if the Air Conditioning Snowflake button is not pressed.
Page 236 234 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: The air conditioning compressor will not engage until the engine has been running for a few seconds. • MAX A/C For maximum cooling use the A/C and recirculation buttons at the same time and set the temperature control to full cool by rotating the temperature control knob full counterclockwise.
Page 237: Operating Tips
If Outside Ambient Mode Overrides To Temperature Is Less than 40°F Between 40°F and 80°F No Override More than 80°F Bi-Level NOTE: • The feature can be disable by parking the vehicle with the blower control set to the “O” (or OFF) position. •...
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL Vacation Storage Anytime you store your vehicle, or keep it out of service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes in the fresh air and high blower settings. This will ensure adequate system lubrication to minimize the possibility of compressor damage when the system is started again.
Page 239 Outside Air Intake Make sure the air intake, located directly in front of the windshield, is free of obstructions such as leaves. Leaves collected in the air intake may reduce airflow, and if they enter the plenum, they could plug the water drains. In winter months, make sure the air intake is clear of ice, slush, and snow.
Page 240 238 UNDERSTANDING YOUR INSTRUMENT PANEL Control Setting Suggestions for Various Weather Conditions...
Page 241: Starting And Operating
STARTING AND OPERATING CONTENTS Starting Procedures ....243 Manual Transmission — If Equipped Automatic Transmission — If Equipped Keyless Go ..... . . 245 Normal Starting .
Page 242 240 STARTING AND OPERATING AutoStick ......263 AutoStick Operation ....263 AutoStick General Information Driving On Slippery Surfaces Acceleration...
Page 243 Tire Safety Information ....285 Tire Markings ..... 285 Tire Loading And Tire Pressure Tires —...
Page 244 242 STARTING AND OPERATING Fuel System Cautions ....311 Carbon Monoxide Warnings Adding Fuel ......313 Fuel Filler Cap (Gas Cap) Loose Fuel Filler Cap Message Vehicle Loading...
Page 245: Starting Procedures
STARTING PROCEDURES Before starting your vehicle, adjust your seat, adjust the inside and outside mirrors, fasten your seat belt, and if present, instruct all other occupants to buckle their seat belts. WARNING! • Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons.
Page 246: Automatic Transmission - If Equipped
244 STARTING AND OPERATING WARNING! Do not attempt to push or tow your vehicle to get it started. Unburned fuel could enter the catalytic con- verter and once the engine has started, ignite and damage the converter and vehicle. If the vehicle has a discharged battery, booster cables may be used to obtain a start from another vehicle.
Page 247: Keyless Go
Do not press the accelerator. Use the Fob with Integrated Key to briefly turn the ignition switch to the START position and release it as soon as the starter engages. The starter motor will continue to run, and it will disengage automatically when the engine is running.
Page 248: Normal Starting
246 STARTING AND OPERATING NOTE: The ENGINE START/STOP button should only be removed or inserted with the ignition in the OFF position. Normal Starting Using the ENGINE START/STOP Button — Automatic Transmission Only NOTE: Normal starting of either a cold or a warm engine is obtained without pumping or pressing the accelerator pedal.
Page 249 2. The ignition switch will return to the OFF position. 3. If the shift lever is not in PARK, the ENGINE START/ STOP button must be held for two seconds before the engine will shut off. The ignition switch position will remain in the ACC position until the shift lever is in PARK and the button is pressed twice to the OFF position.
Page 250: Extreme Cold Weather (Below 20°F Or 29°C)
248 STARTING AND OPERATING switch position will remain in the ACC position until the vehicle is stopped and the button is pressed twice to the OFF position. Keyless Go Functions – With Driver’s Foot OFF the Brake Pedal/Clutch Pedal (In PARK or NEUTRAL Position) The Keyless Go feature operates similar to an ignition switch.
Page 251: If Engine Fails To Start
If Engine Fails To Start WARNING! • Never pour fuel or other flammable liquids into the throttle body air inlet opening in an attempt to start the vehicle. This could result in a flash fire causing serious personal injury. WARNING! (Continued) •...
Page 252 250 STARTING AND OPERATING Clearing a Flooded Engine (Using ENGINE START/STOP Button) — Automatic Transmission Only If the engine fails to start after you have followed the “Normal Starting” or “Extreme Cold Weather proce- dures, it may be flooded. To clear any excess fuel, press and hold the brake pedal, push the accelerator pedal all the way to the floor and hold it, then press and release the ENGINE START/STOP button once.
Page 253: After Starting
CAUTION! To prevent damage to the starter, wait 10 to 15 sec- onds before trying again. After Starting The idle speed is controlled automatically and it will decrease as the engine warms up. ENGINE BLOCK HEATER — IF EQUIPPED The engine block heater warms the engine, and permits quicker starts in cold weather.
Page 254 252 STARTING AND OPERATING CAUTION! • Never drive with your foot resting on the clutch pedal, or try to hold the vehicle on a hill with the clutch pedal partially engaged, as this will cause abnormal wear on the clutch. Refer to “Electronic Brake Control System/Hill Start Assist in this section.
Page 255 The six-speed manual transmission has a spring that centers the shift lever near third and fourth gear. This spring helps you know which gear you are in when you are shifting. Be careful when shifting from first to second or downshifting from sixth to fifth. The spring will try to pull the shift lever toward third and fourth gear.
Page 256 254 STARTING AND OPERATING prevent shifts into REVERSE. When at a complete stop, you may notice light shift efforts into REVERSE with the ignition key ON, and increased shift efforts into REVERSE with the ignition key OFF. This is normal operation of the transmission reverse inhibitor system.
Page 257: Automatic Transmission - If Equipped
WARNING! Skipping more than one gear while downshifting, could cause you to lose control of your vehicle. You could have an accident. CAUTION! • If you skip more than one gear while downshift- ing or downshift at too high an engine speed, you could damage the engine, transmission, or clutch.
Page 258: General Information
256 STARTING AND OPERATING WARNING! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle speed. If your foot is not firmly on the brake pedal, the vehicle could accelerate quickly forward or in reverse.
Page 259 • The electronically-controlled transmission provides a precise shift schedule. The transmission electronics are self-calibrating. Therefore, the first few shifts on a new vehicle may be somewhat abrupt or soft until after the break-in period. This is a normal condition, and pre- cision shifts will develop within a few shift cycles.
Page 260: Brake/Transmission Shift Interlock System
258 STARTING AND OPERATING This may result in a slightly different feeling or response during normal operation in DRIVE position. After the transmission cools down, it will return to normal operation. Brake/Transmission Shift Interlock System This vehicle is equipped with a Brake Transmission Shift Interlock (BTSI) system that holds the shift lever in the PARK position when the ignition switch is in the LOCK position.
Page 261: Five-Speed Automatic Transmission
With Keyless Go To activate the override, with a valid keyfob (FOBIK) inside of the vehicle, and without the brake pedal pressed, press the START/STOP button once to go to the ACC position, or twice to go to the ON position. Then, press the pink-colored tab through the access port with a small flat-bladed screwdriver or alike.
Page 262 260 STARTING AND OPERATING When parking on a flat surface, place the shift lever in the PARK position first, and then apply the parking brake. When parking on a hill, it is important to set the parking brake before placing the shift lever in PARK, otherwise the load on the transmission locking mechanism may make it difficult to move the shift lever out of PARK.
Page 263 NEUTRAL This range is used when the vehicle is standing for prolonged periods with the engine running. The engine may be started in this range. Set the parking brake if you must leave the vehicle. CAUTION! Coasting the vehicle or driving for any other reason with the shift lever in NEUTRAL can result in transmission damage.
Page 264 262 STARTING AND OPERATING Delayed Shifts in Cold Temperatures During cold temperature operation, you may notice delayed upshifts depending on engine and transmission temperature as well as vehicle speed. This feature im- proves warm up time of the engine and transmission to achieve maximum efficiency.
Page 265: Autostick
Have the transmission checked at your authorized dealer as soon as possible. If the problem has been momentary, the transmission can be reset to regain all forward gears. AUTOSTICK Autostick is a driver-interactive transmission that offers manual gear shifting to provide you with more control of the vehicle.
Page 266: Autostick General Information
264 STARTING AND OPERATING until an upshift or downshift is chosen. When you wish to disengage Autostick , hold the shift lever to the right for at least two seconds. The transmission will now operate automatically, shifting between the five available gears.
Page 267: Traction
WARNING! Rapid acceleration on slippery surfaces is dangerous. Unequal traction can cause sudden pulling of the rear wheels. You could lose control of the vehicle and possibly have an accident. Accelerate slowly and carefully whenever there is likely to be poor traction (ice, snow, wet mud, loose sand, etc.).
Page 268: Flowing/Rising Water
266 STARTING AND OPERATING CAUTION! • Due to lower ground clearance, driving your ve- hicle up steep driveways, approach ramps or near parking blocks may cause vehicle damage to the front fascia and ground effects. • Driving through snow more than 4 inches (100 mm) deep may cause vehicle damage to the front fascia and ground effects.
Page 269 CAUTION! • Always check the depth of the standing water before driving through it. Never drive through standing water that is deeper than the bottom of the tire rims mounted on the vehicle. • Determine the condition of the road or the path that is under water, and if there are any obstacles in the way, before driving through the standing water.
Page 270: Power Steering
268 STARTING AND OPERATING WARNING! • Driving through standing water limits your vehi- cle’s traction capabilities. Do not exceed 5 mph (8 km/h) when driving through standing water. • Driving through standing water limits your vehi- cle’s braking capabilities, which increases stop- ping distances.
Page 271: Power Steering Fluid Check
WARNING! Continued operation with reduced power steering assist could pose a safety risk to yourself and others. Service should be obtained as soon as possible. CAUTION! Prolonged operation of the steering system at the end of the steering wheel travel will increase the steering fluid temperature and it should be avoided when possible.
Page 272: Parking Brake
270 STARTING AND OPERATING PARKING BRAKE The parking brake should always be applied when the driver is not in the vehicle. The “Brake Warning Light” in the instrument cluster will turn on when the parking brake is applied and the ignition switch is ON.
Page 273: Manual Transmission - If Equipped
Manual Transmission — If Equipped The foot operated parking brake is positioned below the lower left corner of the instrument panel. To release the parking brake, pull the parking brake release handle. Parking Brake Release STARTING AND OPERATING 271 Automatic Transmission — If Equipped The foot operated parking brake is positioned below the lower left corner of the instrument panel.
Page 274: Brake System
272 STARTING AND OPERATING WARNING! Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage. Parking Brake WARNING! • Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons.
Page 275: Anti-Lock Brake System (Abs)
pedal force required to slow or stop, and potential activation of the “Brake Warning Light.” In the event power assist is lost for any reason (for example, repeated brake applications with the engine OFF) the brakes will still function. The effort required to brake the vehicle will be much greater than that required with the power system operating.
Page 276 274 STARTING AND OPERATING • A slight drop or fall away of the brake pedal at the end of the stop. These are all normal characteristics of ABS. WARNING! • The Anti-Lock Brake System (ABS) contains so- phisticated electronic equipment that may be sus- ceptible to interference caused by improperly in- stalled high...
Page 277 WARNING! (Continued) • The capabilities of an Anti-Lock Brake System (ABS) equipped vehicle must never be exploited in a reckless or dangerous manner, that could jeopardize the user’s safety or the safety of others. All vehicle wheels and tires must be the same size and type and tires must be properly inflated to produce accurate signals for the computer.
Page 278: Electronic Brake Control System
276 STARTING AND OPERATING ELECTRONIC BRAKE CONTROL SYSTEM Your vehicle is equipped with an advanced electronic brake control system commonly referred to as ESP. This system includes the Anti-Lock Brake System (ABS), the Traction Control System (TCS), the Brake Assist System (BAS), and the Electronic Stability Program (ESP).
Page 279: Brake Assist System (Bas)
A feature of the TCS system functions similar to a limited-slip differential and controls the wheel spin across a driven axle. If one wheel on a driven axle is spinning faster than the other, the system will apply the brake of the spinning wheel. This will allow more engine torque to be applied to the wheel that is not spinning.
Page 280: Hill Start Assist (Hsa) - Manual Transmission Only
278 STARTING AND OPERATING WARNING! The BAS cannot prevent the natural laws of physics from acting on the vehicle, nor can it increase the traction afforded by prevailing road conditions. The BAS cannot prevent accidents, including those re- sulting from excessive speed in turns, driving on very slippery surfaces, or hydroplaning.
Page 281 WARNING! There may be situations on minor hills (i.e., less than 8%), with a loaded vehicle, or while pulling a trailer, when the system will not activate and slight rolling may occur. This could cause a collision with another vehicle or object. Always remember the driver is responsible for braking the vehicle.
Page 282: Electronic Stability Program (Esp)
280 STARTING AND OPERATING 8. Rotate the steering wheel back to center and then an additional half-turn to the right. 9. Turn the ignition switch to the OFF position and then back to the ON position. If the sequence was completed properly, the “ESP/TCS Indicator Light”...
Page 283 WARNING! The ESP cannot prevent the natural laws of physics from acting on the vehicle, nor can it increase the traction afforded by prevailing road conditions. The ESP cannot prevent accidents, including those result- ing from excessive speed in turns, driving on very slippery surfaces, or hydroplaning.
Page 284 282 STARTING AND OPERATING switch and the “ESP/TCS Indicator Light” will illumi- nate. To turn the ESP ON again, momentarily press the ESP OFF switch and the “ESP/TCS Indicator Light” will turn off. ESP OFF Switch NOTE: To improve the vehicle’s traction when driving with snow chains, or when starting off in deep snow, sand, or gravel, it may be desirable to switch to the “Partial Off”...
Page 285 “Electronic Vehicle Information Center (EVIC)” in Sec- tion 4. To turn ESP ON again, momentarily press the ESP OFF switch. NOTE: The ESP OFF message will display and the audible chime will sound when the shift lever is moved into the PARK position from any position other than PARK and then moved out of the PARK position.
Page 286: Synchronizing Esp
284 STARTING AND OPERATING Synchronizing ESP The Malfunction Indicator Light for the ESP is combined with BAS indicator. If the power supply is interrupted (battery disconnected or discharged), the “ESP/BAS Malfunction Indi- cator Light” may illuminate with the engine running. If this should occur, turn the steering wheel completely to the left and then to the right.
Page 287: Tire Safety Information
NOTE: • The “ESP/TCS Indicator Light” and the “ESP/BAS Malfunction Indicator Light” will turn on momen- tarily each time the ignition switch is turned ON. • Each time the ignition is turned ON, the ESP System will be ON even if it was turned OFF previously. •...
Page 288 286 STARTING AND OPERATING NOTE: • P (Passenger) - Metric tire sizing is based on U.S. design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. • European-Metric tire sizing is based on European design standards.
Page 289 Tire Sizing Chart Size Designation: P = Passenger Car tire size based on U.S. design standards ...blank... = Passenger Car tire based on European design standards LT = Light Truck tire based on U.S. design standards T = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm) 65 = Aspect ratio in percent (%)
Page 290 288 STARTING AND OPERATING Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 291 Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire, however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire. EXAMPLE: DOT MA L9 ABCD 0301 DOT = Department of Transportation —...
Page 292: Tire Loading And Tire Pressure
290 STARTING AND OPERATING Tire Loading and Tire Pressure Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry...
Page 293 Loading The vehicle maximum load on the tire must not exceed the load carrying capacity of the tire on your vehicle. You will not exceed the tire’s load carrying capacity if you adhere to the loading conditions, tire size, and cold tire inflation pressures specified on the Tire and Loading Information placard and in the “Vehicle Loading”...
Page 294 292 STARTING AND OPERATING available cargo and luggage load capacity is 650 lbs (295 kg) (since 5 x 150 = 750, and 1400 – 750 = 650 lbs [295 kg]). 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4.
Page 295 STARTING AND OPERATING 293...
Page 296: Tires - General Information
294 STARTING AND OPERATING WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle.
Page 297: Tire Inflation Pressures
WARNING! (Continued) • Over-inflation reduces a tire’s ability to cushion shock. Objects on the road and chuckholes can cause damage that result in tire failure. • Unequal tire pressures can cause steering prob- lems. You could lose control of your vehicle. •...
Page 298 296 STARTING AND OPERATING The pressure should be checked and adjusted as well as inspected for signs of tire wear or visible damage at least once a month. Use a good quality pocket-type gauge to check tire pressure. Do not make a visual judgement when determining proper inflation.
Page 299: Radial Ply Tires
Tire Pressures for High Speed Operation The manufacturer advocates driving at safe speeds within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high speeds, maintaining correct tire inflation pressure is very important.
Page 300: Tread Wear Indicators
298 STARTING AND OPERATING WARNING! Fast spinning tires can be dangerous. Forces gener- ated by excessive wheel speeds may cause tire dam- age or failure. A tire could explode and injure some- one. Do not spin your vehicle’s wheels faster than 30 mph (48 km/h) for more than 30 seconds continu- ously when you are stuck, and do not let anyone near a spinning wheel, no matter what the speed.
Page 301: Life Of Tire
Life Of Tire The service life of a tire is dependent upon varying factors including, but not limited to: • Driving style • Tire pressure • Distance driven WARNING! Tires and the spare tire should be replaced after six years, regardless of the remaining tread. Failure to follow this warning can result in sudden tire failure.
Page 302: Tire Chains
300 STARTING AND OPERATING WARNING! • Do not use a tire, wheel size or rating other than that specified for your vehicle. Some combinations of unapproved tires and wheels may change sus- pension dimensions and performance characteris- tics, resulting in changes to steering, handling, and braking of your vehicle.
Page 303: Snow Tires
CAUTION! Damage to the vehicle may result if tire chains are used. SNOW TIRES Some areas of the country require the use of snow tires during the winter. Standard tires are of the all season type and satisfy this requirement as indicated by the M+S designation on the tire sidewall.
Page 304: Tire Rotation - Four Season/Rsa Tires
302 STARTING AND OPERATING Tire Rotation — Four Season/RSA Tires The suggested rotation method for vehicles equipped with all season tires is the “forward-cross” as shown in the following diagram. Tire Rotation Tire Rotation — F1 Three Season Tires The suggested rotation method is the “side-to-side” as shown in the following diagram.
Page 305: Tire Pressure Monitor System (Tpms)
TIRE PRESSURE MONITOR SYSTEM (TPMS) The Tire Pressure Monitor System (TPMS) will warn the driver of a low tire pressure based on the vehicle recom- mended cold placard pressure. The tire pressure will vary with temperature by about 1 psi (6.9 kPa) for every 12°F (6.5°C). This means that when the outside temperature decreases, the tire pressure will decrease.
Page 306 304 STARTING AND OPERATING For example, your vehicle may have a recommended cold (parked for more than three hours) placard pressure of 30 psi (207 kPa). If the ambient temperature is 68°F (20°C) and the measured tire pressure is 27 psi (186 kPa), a temperature drop to 20°F (-7°C) will decrease the tire pressure to approximately 23 psi (158 kPa).
Page 307: Premium System
NOTE: • The TPMS is not intended to replace normal tire care and maintenance or to provide warning of a tire failure or condition. • The TPMS should not be used as a tire pressure gauge while adjusting your tire pressure. •...
Page 308 306 STARTING AND OPERATING The TPMS consists of the following components: • Receiver module, • Four TPM sensors, • CORAX Receiver module, • Various TPMS messages, which display in the Elec- tronic Vehicle Information Center (EVIC), and • TPM Telltale Light Tire Pressure Monitoring Low Pressure Warnings The TPM Telltale Light will illuminate in the instrument cluster and a chime will sound when...
Page 309 turn off. The vehicle may need to be driven for up to 20 minutes above 15 mph (25 km/h) in order for the TPMS to receive this information. Check TPMS Warning If a system fault is detected, the TPM Telltale Light will flash on and off for 75 seconds and then remain on solid.
Page 310: General Information
308 STARTING AND OPERATING of the dashes. A system fault can occur due to any of the following: 1. Signal interference due to electronic devices or driving next to facilities emitting the same radio frequencies as the TPM sensors. 2. Installing aftermarket window tinting that contains materials that may block radio wave signals.
Page 311: Reformulated Gasoline
Light spark knock at low engine speeds is not harmful to your engine. However, continued heavy spark knock at high speeds can cause damage and immediate service is required. Poor quality gasoline can cause problems such as hard starting, stalling, and hesitations. If you experi- ence these symptoms, try another brand of gasoline before considering service for the vehicle.
Page 312: E-85 Usage In Non-Flex Fuel Vehicles
310 STARTING AND OPERATING CAUTION! DO NOT use gasolines containing Methanol or E85 Ethanol. Use of these blends may result in starting and driveability problems and may damage critical fuel system components. Problems that result from using methanol/gasoline or E85 ethanol blends are not the responsibility of the manufacturer.
Page 313: Mmt In Gasoline
MMT In Gasoline MMT is a manganese-containing metallic additive that is blended into some gasoline to increase octane. Gasoline blended with MMT provides no performance advantage beyond gasoline of the same octane number without MMT. Gasoline blended with MMT reduces spark plug life and reduces emissions system performance in some vehicles.
Page 314: Carbon Monoxide Warnings
312 STARTING AND OPERATING • An out-of-tune engine or certain fuel or ignition mal- functions can cause the catalytic converter to overheat. If you notice a pungent burning odor or some light smoke, your engine may be out of tune or malfunc- tioning and may require immediate service.
Page 315: Adding Fuel
• Guard against carbon monoxide with proper mainte- nance. Have the exhaust system inspected every time the vehicle is raised. Have any abnormal conditions repaired promptly. Until repaired, drive with all side windows fully open. • Keep the trunk/liftgate closed when driving your vehicle to prevent carbon monoxide and other poison- ous exhaust gases from entering the vehicle.
Page 316 314 STARTING AND OPERATING CAUTION! • Damage to the fuel system or emissions control system could result from using an improper fuel tank filler tube cap (gas cap). • A poorly fitting gas cap could let impurities into the fuel system. •...
Page 317: Loose Fuel Filler Cap Message
Loose Fuel Filler Cap Message If the vehicle diagnostic system determines that the fuel filler cap is loose, improperly installed, or damaged, a “Check Gascap” message will display in the Electronic Vehicle Information Center (EVIC). If this occurs, tighten the fuel filler cap properly and press the TRIP ODOM- ETER button to turn off the message.
Page 318: Gross Vehicle Weight Rating (Gvwr)
316 STARTING AND OPERATING Gross Vehicle Weight Rating (GVWR) The GVWR is the total allowable weight of your vehicle. This includes driver, passengers, and cargo. The total load must be limited so that you do not exceed the GVWR. Gross Axle Weight Rating (GAWR) The GAWR is the maximum capacity of the front and rear axles.
Page 319: Loading
Loading To load your vehicle properly, first figure out its empty weight, axle-by-axle and side-by-side. Store heavier items down low and be sure you distribute their weight as evenly as possible. Stow all loose items securely before driving. If weighing the loaded vehicle shows that you have exceeded either GAWR, but the total load is within the specified GVWR, you must redistribute the weight.
Page 321: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flasher ....320 If Your Engine Overheats ....320 TIREFIT Tire Repair .
Page 322: Hazard Warning Flasher
320 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER The Hazard Warning flasher switch is located in the switch bank near the bottom center of the instrument panel. Press the switch to turn on the Hazard Warning flasher. When the switch is activated, all directional turn signals will flash on and off to warn oncoming traffic of an emergency.
Page 323: Tirefit Tire Repair
CAUTION! Driving with a hot cooling system could damage your vehicle. If the temperature gauge reads 240°F (116 °C) or greater pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range 200– 230°F (93–110°C).
Page 324 322 WHAT TO DO IN EMERGENCIES The TIREFIT system is located under an access panel in the trunk. TIREFIT Location TIREFIT Kit 1. Air pump hose 2. Power plug and cable 3. AIR PUMP switch 4. Pressure gauge 5. TIREFIT sealant bottle 6.
Page 325 WARNING! • Do not attempt to repair a tire on the side of the vehicle close to traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or repairing a tire. • Cuts or punctures larger than approximately 0.16 in (4 mm), tire damage caused by driving with extremely low tire pressure or on a flat tire, or a damaged wheel can pose a hazard while driving.
Page 326 324 WHAT TO DO IN EMERGENCIES Sealing Tire with TIREFIT 1. Turn on the Hazard Warning flashers. 2. Move the shift lever into PARK (automatic transmis- sion) or in gear (manual transmission), turn OFF the engine and set the parking brake. 3.
Page 327 13. Turn on the Hazard Warning Flashers. 14. Move the shift lever into PARK (automatic transmis- sion) or in gear (manual transmission), turn OFF the engine and set the parking brake. 15. Disconnect the air pump hose 1 from the underside of the sealant bottle 5 by flipping the hose valve open.
Page 328 326 WHAT TO DO IN EMERGENCIES 24. Connect the air pump hose valve to the tire valve and flip the hose valve closed. 25. Check the pressure in the tire by reading the pressure gauge 4. If the pressure is 19 psi (1.3 bar) or greater, proceed to the following step.
Page 329: Jump-Starting
• If TIREFIT is liquid, clean water and a damp cloth will remove the material from the vehicle or tire and wheel components. Once TIREFIT sealing material has dried, it can easily be peeled off and properly discarded. • Do not exceed 55 mph (90 km/h) until the tire has been inspected.
Page 330 328 WHAT TO DO IN EMERGENCIES WARNING! (Continued) • Battery fluid is a corrosive acid solution; do not allow battery fluid to contact eyes, skin, or cloth- ing. Don’t lean over battery when attaching clamps or allow the clamps to touch each other. If acid splashes in eyes or on skin, flush contami- nated area immediately with large quantities of water.
Page 331 3. Set the parking brake, place the automatic transmis- sion in PARK (manual transmission in NEUTRAL), and turn the ignition switch to the LOCK position on both vehicles. 4. Turn off the heater, radio, and all unnecessary electri- cal loads. 5.
Page 332: Freeing A Stuck Vehicle
330 WHAT TO DO IN EMERGENCIES the instrument cluster) remains on continuously after starting the engine of the vehicle with the discharged battery. 8. When removing the jumper cables, reverse the above sequence exactly. Be careful of the moving belts and fan. WARNING! •...
Page 333: Towing A Disabled Vehicle
NOTE: Turn off the Electronic Stability Program (ESP) before rocking the vehicle. Refer to “Electronic Stability Program,” or “Traction Control” in Section 5. CAUTION! • When “rocking” a stuck vehicle by moving be- tween “1st” and REVERSE, do not spin the wheels faster than 15 mph (24 km/h), or drivetrain damage may result.
Page 334: Towing This Vehicle Behind Another Vehicle (Flat Towing With All Four Wheels On The Ground)
332 WHAT TO DO IN EMERGENCIES Towing This Vehicle Behind Another Vehicle (Flat Towing With All Four Wheels On The Ground) Flat towing of vehicles is permitted within the following limitations: With The Ignition Key Your vehicle may be towed under the following condi- tions: •...
Page 335: Towing This Vehicle Behind Another Vehicle With A Tow Dolly
CAUTION! • Do not attempt to tow this vehicle from the front with sling-type towing equipment. Damage to the front fascia will result. • If the transmission is not operative or if the vehicle is to be towed more than 30 miles (48 km), then the only approved method of towing is with a flatbed truck.
