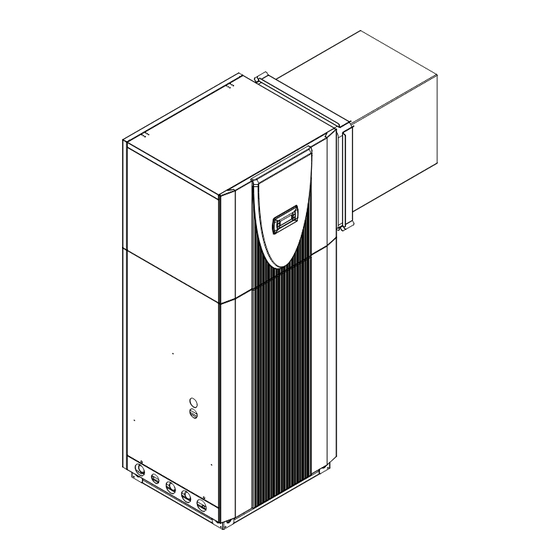

LIK 8MER
Reversible
Luft/Wasser-
Wärmepumpe für
Innenaufstellung
Bestell-Nr. / Order no. / N
Reversible
Air-to-Water
Heat Pump for
Indoor Installation
o
de commande : 452160.66.23
Montage- und
Gebrauchsanweisung
Installation and
Operating Instructions
Instructions d'installation
et d'utilisation
Pompe à chaleur
air-eau réversible
pour installation
intérieure
FD 8611
