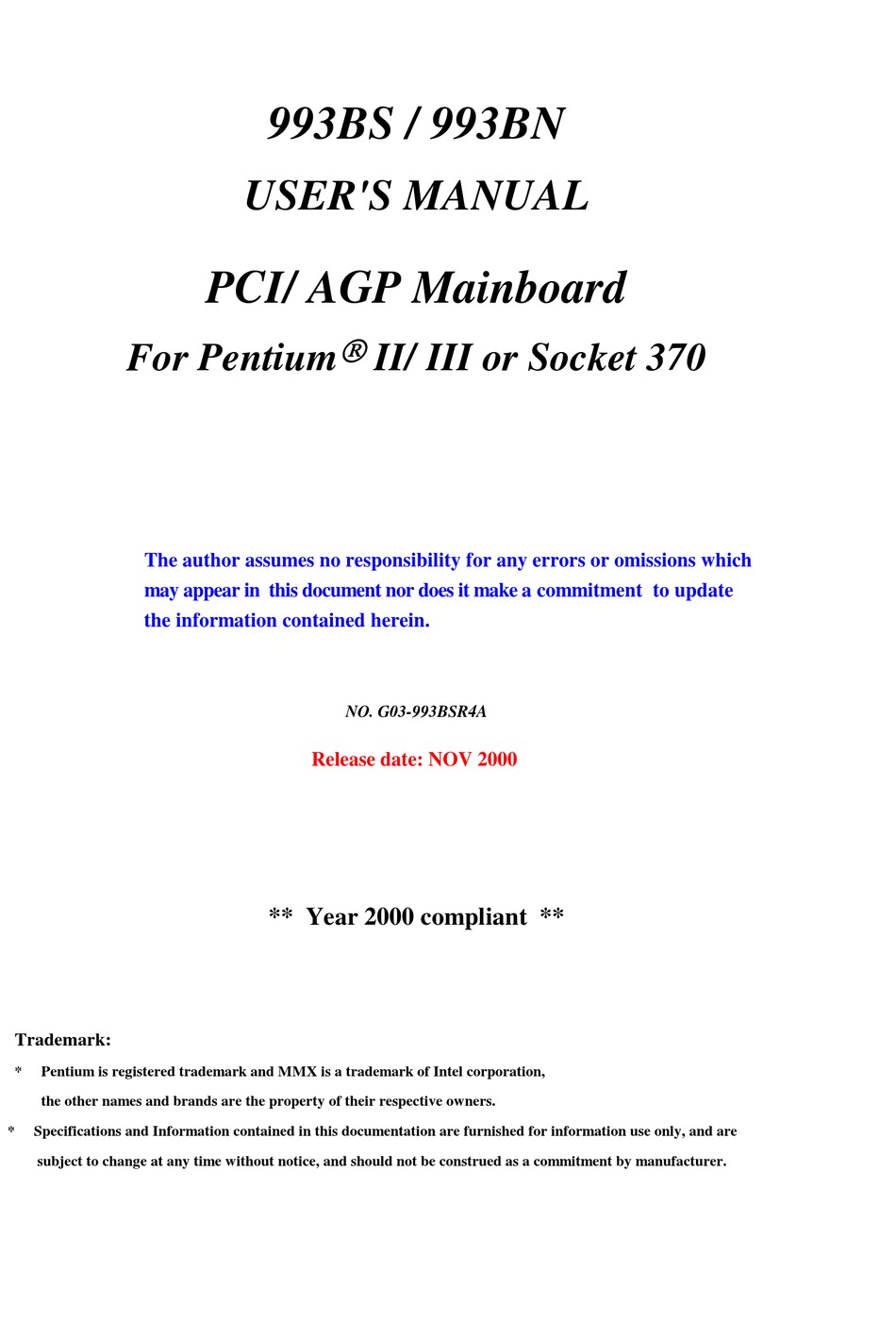

993BS / 993BN
USER'S MANUAL
PCI/ AGP Mainboard
NO. G03-993BSR4A
Release date: NOV 2000
** Year 2000 compliant **
II/ III or Socket 370
Advertisement
Table of Contents
Related Manuals for JETWAY 993BSR4A
Summary of Contents for JETWAY 993BSR4A
- Page 1 The author assumes no responsibility for any errors or omissions which may appear in this document nor does it make a commitment to update the information contained herein. NO. G03-993BSR4A Release date: NOV 2000 ** Year 2000 compliant ** Trademark: Pentium is registered trademark and MMX is a trademark of Intel corporation, the other names and brands are the property of their respective owners.
-
Page 2: Table Of Contents
TABLE OF CONTENT Chapter 1 1-1 Preface......................1 1-2 Feature of motherboard ................... 1 1-2-1 Overview....................1 1-2-2 Key Feature ..................1 Chapter 2 Hardware Installation .................. 3 2-1 Unpacking ......................3 2-2 Mainboard Diagram..................4 2-3 Quick Reference for Jumpers, Connectors & Expansion Socket ....... 5 2-4 Installation Steps.................... -
Page 3: Preface
Chapter 1 1-1 Preface Thank you for purchasing this multifunction motherboard. It has the most flexibility that you can find in today’s computer market. The motherboard integrate both Intel Pentium®II/Pentium®III & Celeron (Slot 1 ) / Coppermine processor and Celeron (Socket 370) PPGA / Coppermine FC-PGA processor interface into a compact PC/AT compatible system along with PCI local bus and many other new feature that meets future specification. - Page 4 • DRAM Memory Support ¡ G Support 2 x 168-pin DIMM sockets (3.3V) for memory from 8M Byte to 1.0GB Byte in either EDO (66MHz only) or SDRAM (66MHz/100MHz) type module. • AGP, ISA, and PCI expansion Slots ¡ G Provide an AGP slot, one 16-bit ISA slot, and three 32-bit PCI master slots.
-
Page 5: Hardware Installation
Chapter 2 Hardware Installation 2-1 Unpacking This mainboard package should contain the following: • The mainboard • USER’S MANUAL for mainboard • Cable set for Ultra DMA 66 IDE x1, Floppy x1, Com1 & Com2 x 1,PS/2 Mouse x1, LPT x1, Audio &... -
Page 6: Mainboard Diagram
2-2 Mainboard Diagram S LO T 1 M S -P I N S LO T -1 K B & M S D I M M 1 D I M M 2 C P U F A N P W 2 P W 1 Z I F S O C K E T 3 7 0 C P U... -
Page 7: Expansion Sockets
Jumpers Jumper Name Description Page CPU Bus Frequency Selection 1-2 : 100MHz ; 2-3: 66MHz p. 6 CPU Ratio Selector Refer to page 6 p. 6 JP11 CMOS RAM Clear 1-2 Normal ,2-3 Clear CMOS p. 7 Connectors Connector Name Description Page ATX PWR1... -
Page 8: Jumper Settings
Before using your computer, you must follow the steps as follows: 1. Set Jumpers on the Mainboard 2. Install the CPU 3. Install DRAM Modules 4. Install Expansion card 5. Connect Cables, Wires, and Power Supply 2-5 Jumper Settings 1. CPU Bus Frequency Selection : CPU External Frequency¡... -
Page 9: System Memory (Dram)
WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS. Connect a jumper Cap over this jumper for a few seconds, will clears information stored in the CMOS RAM Chip that input by user, such as hard disk information and passwords. After CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL>... -
Page 10: Expansion Cards
the end of the level. The CPU has a corner pin for three of the four corners, the CPU will only fit in the one orientation as shown as follow. With the added weight of the CPU fan, no force is required to insert the CPU. - Page 11 This connector connects to a standard AT power supply. To connect the leads from the power supply, ensure first that the power supply is not plugged. Most power supplies provide two plugs (P8 and P9), each containing six wires, two of which are black. Orient the connectors so that the black wires are located in the middle.
- Page 12 PRINT Pin 1 Parallel Printer Connector 6. Serial port COMA and COMB Connector (Two 10-pin blocks): COM1, COM2 These connectors support the provided serial port ribbon cables with mounting bracket. Connect the ribbon cables to these connectors and mount the bracket to the case on an open slot.
- Page 13 Pin 1 Secondary IDE Connector 10. IDE activity LED: HDLED This connector connects to the hard disk activity indicator light on the case. HDLED IDE (Hard Drive) LED 11. Front Panel connector: This 16-pin connector to connect to case front panel switch. A.
- Page 14 13. USB Port connector: USB G ND Pin 1 G ND USB Port Connector 14. FAN connector: CPUFAN , SYSFAN CPUFAN SYSFAN FAN Connector 15. ATX Power button: PS-ON When using ATX power, the system power can be controlled by a momentary switch connected to PS-ON Pushing the button once will switch ON/OFF the system.
- Page 15 18. Auxiliary Input connector: JP5 19. CD Audio in connector : JP7,JP8 JP2 and JP3 are the connectors for CD-Audio Input signal, Please connect it to CD-ROM CD-Audio output connector JP3 :CD-Audio/Sony JP2 :CD-Adio/Panasonic 20. Audio connector: Audio Port This Connector are 3 phone Jack for LINE-OUT,LINE-IN,MIC and a 15-pin D-Subminiature Receptacle Connector for joystick/MIDI Device.
- Page 16 23. SPDIF (Sony / Philips Digital Interface) Input / Output Connectors: SPDIFIN / SPDIFOUT SPDIFOUT SPDIFIN SPDIFOUT SPDIFIN 1 24. Optical kit connector: JP4 This connector is for user that has Optical kit(optional) to provide other set of SPDIF INPUT and SPDIF OUTPUT function. Optical kit Connector Chapter 3...
-
Page 17: Award Bios Setup
AWARD BIOS SETUP This mainboard has previously set to its best stable status. If you are not an experienced user, please do not change the default setting. When you are encounter any problem, please choice “LOAD STANDARD DEFAULTS” to restore best setting. Award’s ROM BIOS provides a built-in Setup program which allows user modify the basic system configuration and hardware parameters. -
Page 18: Bios Features Setup
STANDARD CMOS SETUP (Figure 3-2) allows user to configure system setting such as current date and time, type of hard disk drive installed in the system, floppy drive type, and the type of display monitor. Memory size is auto-detected by the BIOS and displayed for your reference. When a field is highlighted (direction keys to move cursor and <Enter>... -
Page 19: Chipset Features Setup
Select the “BIOS FEATURES SETUP” option in the CMOS SETUP UTILITY menu allows user to change system related parameters in the displayed menu. This menu shows all of the manufacturer’s default values of this mainboard. Again, user can move the cursor by pressing direction keys and <PgDn>... -
Page 20: Power Management Setup
This section describes features of the VIA Apollo Pro-Plus AGPset. If your system contains a different chipset, this section will bear little resemblance to what you see on your screen. ADVANCED OPTIONS. The parameters in this screen are for system designers, service personnel, and technically competent users only. - Page 21 The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use. ROM PCI/ISA BIOS (2A6LGJ1F) POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ACPI function : Enabled Primary INTR : ON...
-
Page 22: Pnp/Pci Configuration Setup
Monitor will remain on during power saving modes. Suspend Monitor blanked when the systems enters the Suspend mode. Standby Monitor blanked when the system enters Standby mode. Doze Monitor blanked when the system enters any power saving mode. • MODEM Use IRQ: Name the interrupt request (IRQ) line assigned to the modem (if any) on your system. -
Page 23: Load Standard Defaults
when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings. ROM PCI/ISA BIOS (2A6LGJ1F) PNP/PCI CONFIGURATION SETUP AWARD SOFTWARE, INC. PNP OS Installed : No CPU to PCI Write Buffer : Enabled... -
Page 24: Integrated Peripherals Setup
The “LOAD STANDARD DEFAULTS” function loads the system Standard default data directly from ROM and initialize associated hardware properly. This function will be necessary only when the system CMOS data is corrupted. ROM PCI/ISA BIOS (2A6LGJ1F) CMOS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP... -
Page 25: Supervisor/User Password
3-9 SUPERVISOR/USER PASSWORD This item lets you configure the system so that a password is required each time the system boots or an attempt is made to enter the Setup program (Refer to Figure 3-3 for the details). Supervisor Password allows you to change all CMOS settings but the User Password setting doesn’t have this function. -
Page 26: Mainboard Driver Install In Win9X,Winnt
4-1 Mainboard Driver Install in Win9X,WinNT To install the mainboard driver please run X:\VIA\Driver\SETUP.EXE After execute Setup .EXE the screen will depend on the OS (Operating System) to show the necessary Driver which you have to install in your system, such like IDE Driver, AGP VXD Driver, VIA chipset Feature Registry and IRQ Routing Miniport Driver . - Page 27 Special Features for CMI8738 audio chip PCI Plug and Play (PnP) bus interface, 32 bit PCI bus master. Full duplex playback and recording, built-in 16 bits CODEC. HRTF 3D positional audio, supports both Direct Sound 3D ® & A3D® interfaces, supports earphones, two and four channel speakers mode.
- Page 28 7. Now, system is installing device drivers automatically. After a while, the system will finish the installation includes the following device drivers. CMI8738/C3DX PCI Audio Device CMI8738/C3DX PCI Audio Joystick Device CMI8738/C3DX PCI Audio Legacy Device DOS mode MPU-401 Emulator 8.
- Page 29 “X:\CMI8738\NT40\APP\SETUP.EXE” 14. Click “OK” to start the installation procedure, and follow the on-screen instructions to finish the installation. When all of application softwares have been installed, shut down the Windows NT system, and then reboot your system. Windows Appc. (The Audio Rack) Introduction By means of a user-friendly interface(as easy as operating your home stereo system), this PCI audio rack provides you with the control over your PC’s audio functions, including the advantage...
- Page 30 Current Time field: displays the current time of files or tracks in minutes and seconds when playback or recording. Please refer to the help screen for more detail button function descriptions. (click on help “ ” button on the player) System Mixer System Mixer allows you to control all the audio output and input levels.
- Page 31 Mute Buttons: Toggle between muting and enabling the signal. A button with a lit LED is enabled, and when it is not lit, it means it is mute. Several output signals can usually be enabled at once. MP3 Player : MP3 player can play both wave files and MP3 files. MP3 player while the loop function enables.
- Page 32 audio result. 3. The mixer setup There is a 4 speakers option in the volume control of the mixer, and when you enable this option, it means the rear speakers are connected to Line-in/Rear jack. When Line-in/Rear jack is connected to other external Line-in sources, please DO NOT enable this option in order to avoid hardware conflicts.
- Page 33 The application program setup(please install CMI8738 application program first) When the connection is done, please go to the Start menu and select PCI Audio Applications\Audio Environment Setting...
- Page 34 When all the procedures have been completed, there will be an infrared signal coming from the SPDIF/OUT of the optical fiber of the sound card. Please note that signal beam may cause severe damage to the eyes. For your safety, please point the output end to a piece of white paper to check if thebeam is in function.
- Page 35 Please note that in playback, if there is no gap longer than three seconds between each track, the MD can not recognize the tracks and will record all of them into one. It is recommended that you set the gap time to 3~5 seconds to meet all type of MD requirements.
- Page 36 About Recording 24bit Audio Setting...
- Page 37 24-bit audio can only be applied to SPDIF IN/OUT mode; it does not apply to other modes such as the four channels or the analog. No sound will be heard while in playback, yet it can be recorded. The un-selected area will be gray out. The un-selected area will be gray out.
- Page 38 The un-selected area will be gray out. You can double-click this circuit icon to have the following setting box. By means of this setting box, you can also complete the above-mentioned setting procedures.
- Page 39 SPDIF/IN for motherboard that embedded Audio chip An example of Portable CD Player(Output) to Main Board (Optical Input)Setup When the connection is done, please go to the Start menu and select PCI Audio Applications\Audio Environment Setting...
- Page 40 Loopback(bypass)mode setup CD ROM(Digital Output) to SPDIF/IN Setup...
- Page 41 When the connection is done, please go to the Start menu and select PCI Audio Applications\Audio Environment Setting...
- Page 42 Please follow these setting procedures. Now you can insert the CD into the CD ROM drive, then activate C-MEDIA CD player and push the ”play” button to do the recording job. Please note that you have to set the MD in the simultaneous-recording mode.
-
Page 43: Quick Troubleshooting Guide
Chapter 5 Quick Troubleshooting Guide If the result of your diagnostic is “call service”, please have the following information ready before you contact for any technical support. 1. The CPU (Central Processing Unit) you are using along with its require setting. 2. -
Page 44: Frequently Asked Questions And Answers
1. You must have CBROM.EXE file (You can find it from Driver Pack CD or download it from our website at www.jetway.com.tw). 2. Make your own logo file by “Bitmap” format. The dimension limit is 640 x 464 x 16 color.
