Panel Programming/Operation

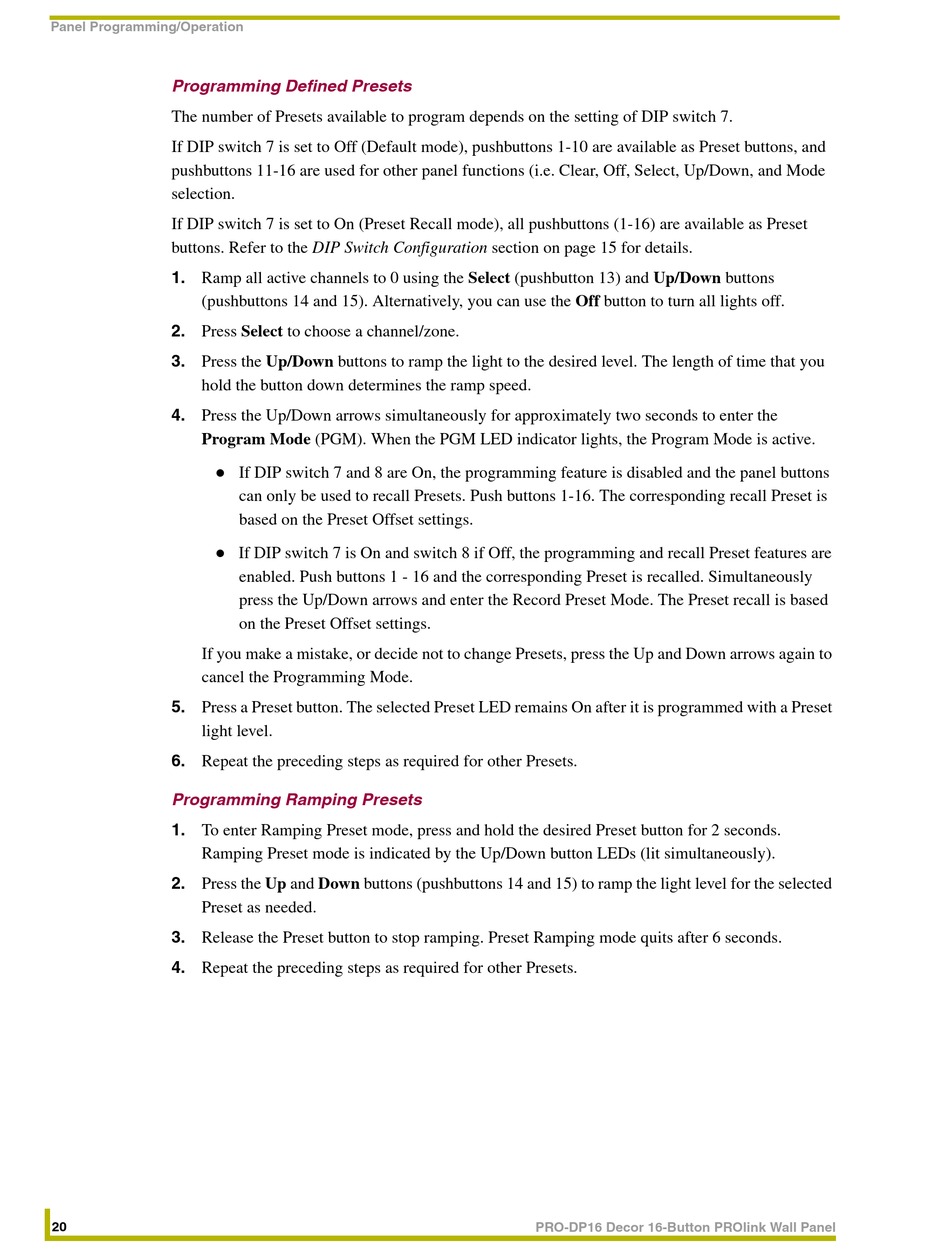

Programming Defined Presets

The number of Presets available to program depends on the setting of DIP switch 7.
If DIP switch 7 is set to Off (Default mode), pushbuttons 1-10 are available as Preset buttons, and
pushbuttons 11-16 are used for other panel functions (i.e. Clear, Off, Select, Up/Down, and Mode
selection.
If DIP switch 7 is set to On (Preset Recall mode), all pushbuttons (1-16) are available as Preset
buttons. Refer to the DIP Switch Configuration section on page 15 for details.
1. Ramp all active channels to 0 using the Select (pushbutton 13) and Up/Down buttons
(pushbuttons 14 and 15). Alternatively, you can use the Off button to turn all lights off.
2. Press Select to choose a channel/zone.
3. Press the Up/Down buttons to ramp the light to the desired level. The length of time that you
hold the button down determines the ramp speed.
4. Press the Up/Down arrows simultaneously for approximately two seconds to enter the
Program Mode (PGM). When the PGM LED indicator lights, the Program Mode is active.
!
!
If you make a mistake, or decide not to change Presets, press the Up and Down arrows again to
cancel the Programming Mode.
5. Press a Preset button. The selected Preset LED remains On after it is programmed with a Preset
light level.
6. Repeat the preceding steps as required for other Presets.

Programming Ramping Presets

1. To enter Ramping Preset mode, press and hold the desired Preset button for 2 seconds.
Ramping Preset mode is indicated by the Up/Down button LEDs (lit simultaneously).
2. Press the Up and Down buttons (pushbuttons 14 and 15) to ramp the light level for the selected
Preset as needed.
3. Release the Preset button to stop ramping. Preset Ramping mode quits after 6 seconds.
4. Repeat the preceding steps as required for other Presets.
20
If DIP switch 7 and 8 are On, the programming feature is disabled and the panel buttons
can only be used to recall Presets. Push buttons 1-16. The corresponding recall Preset is
based on the Preset Offset settings.
If DIP switch 7 is On and switch 8 if Off, the programming and recall Preset features are
enabled. Push buttons 1 - 16 and the corresponding Preset is recalled. Simultaneously
press the Up/Down arrows and enter the Record Preset Mode. The Preset recall is based
on the Preset Offset settings.
