Installing a CSS 11501 as a Rackmounted Unit

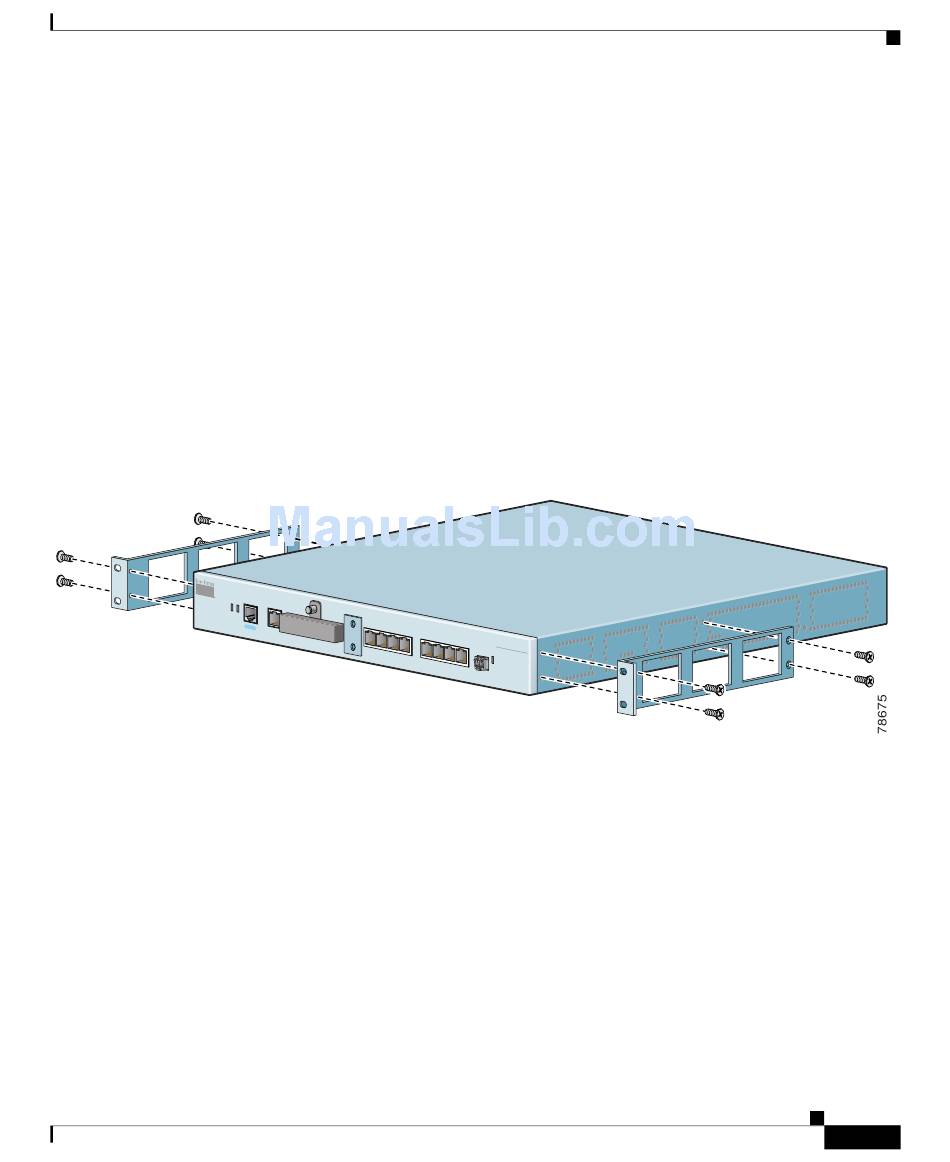

Figure 1-1 Front-Mounting the Mounting Brackets on the CSS 11501
78-13884-06
Before you begin, you need the mounting brackets and the eight Phillips screws
shipped in the accessory kit accompanying the CSS 11501, and a #2 Phillips
screwdriver.
To install the mounting brackets on the CSS 11501 chassis:
1. Position the CSS with its front panel facing you. On the left and right sides
of its chassis, note the screw holes for installing the mounting brackets.
Position a mounting bracket on one side of the chassis. Align it with the
2.
appropriate screw holes for front-mounting.
Figure 1-1 illustrates front-mounting the mounting brackets.
STA TUS
LINK /AC T
DUP LEX
LINK DPL X
CO NS OLE LINK DPL X
LINK DPL X
LINK DPL X
PCM CIA
1
2
3
4
10 /1 00
Secure the mounting bracket to the CSS with four screws provided.
3.
4. Repeat steps 2 and 3 to install a mounting bracket on the other side of the
CSS.
You are ready to install the CSS in the rack.To install the CSS 11501 into an
equipment rack:
Raise the CSS to the installation height and align the screw holes on the
1.
mounting bracket with the holes on the equipment rack.
Secure each mounting bracket to each side of the rack.
2.
