Remove Top Cover from Storage Controller
3. Place the storage controller sideways on a work surface so that it's largest surface area
is touching the work surface and the extraction lever is on the top.
4. With a Phillips* screwdriver, remove the single screw located at the front edge of the
top cover (see letter "A" in the following figure). Slide top cover towards rear of
storage controller (see letter "B") and lift upward to remove (see letter "C").
B
Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S
A

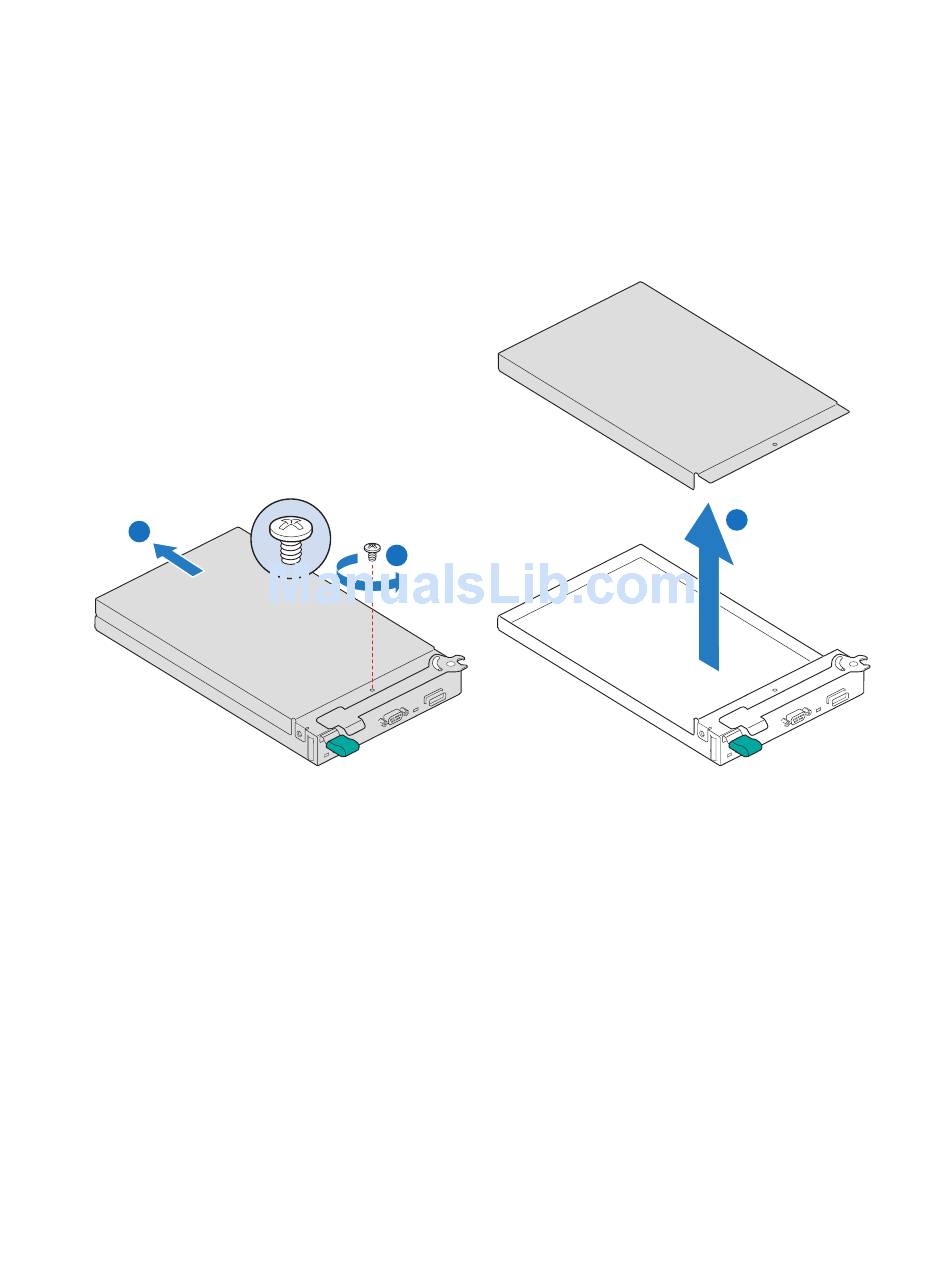

Figure 2. Removing Top Cover from Storage Controller
C
AF002563
