Install New Backup Battery

6. Install the backup battery in the black plastic battery holder (see letter "A" in the
following figure). Connect the battery cable to the battery connector on the printed
circuit board (see letter "B").

Re-install Top Cover

7. Align notches in top cover with corresponding tabs on storage controller. Slide top
cover forward to close.
8. Secure top cover to storage controller with the single screw previously removed.
Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S

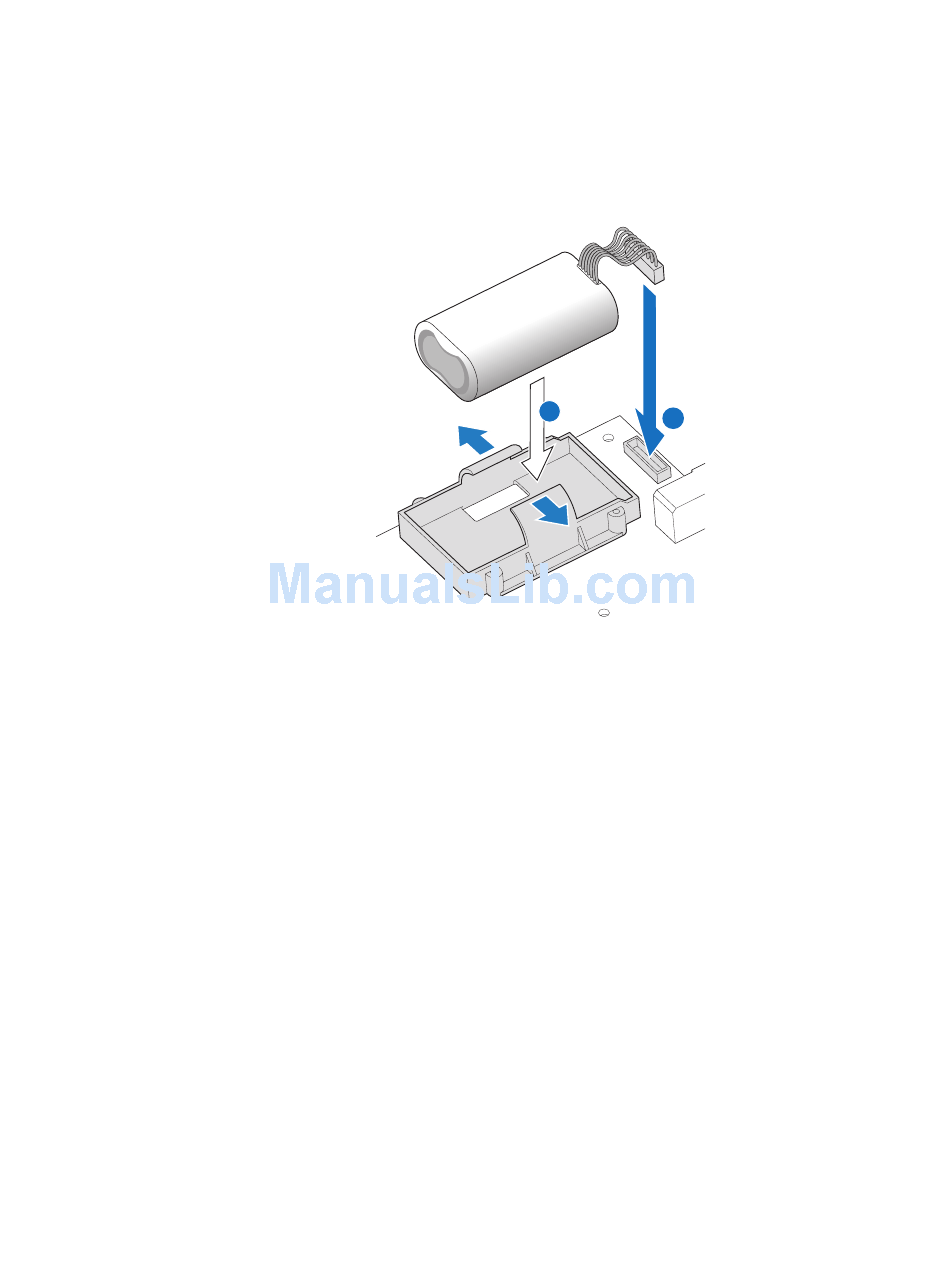

Figure 4. Installing New Backup Battery
A
B
AF002440
