Remove Storage Controller from System
2. Press the retention lever latch button to release the retention lever (see letter "A" in
the following figure). Rotate the lever out and away from the module bay (see letter
"B") and pull the storage controller straight out the back of the chassis (see letter
"C").
Warning: You must replace the storage controller with a filler panel or another
2
temporary storage controller within two minutes.
A
B

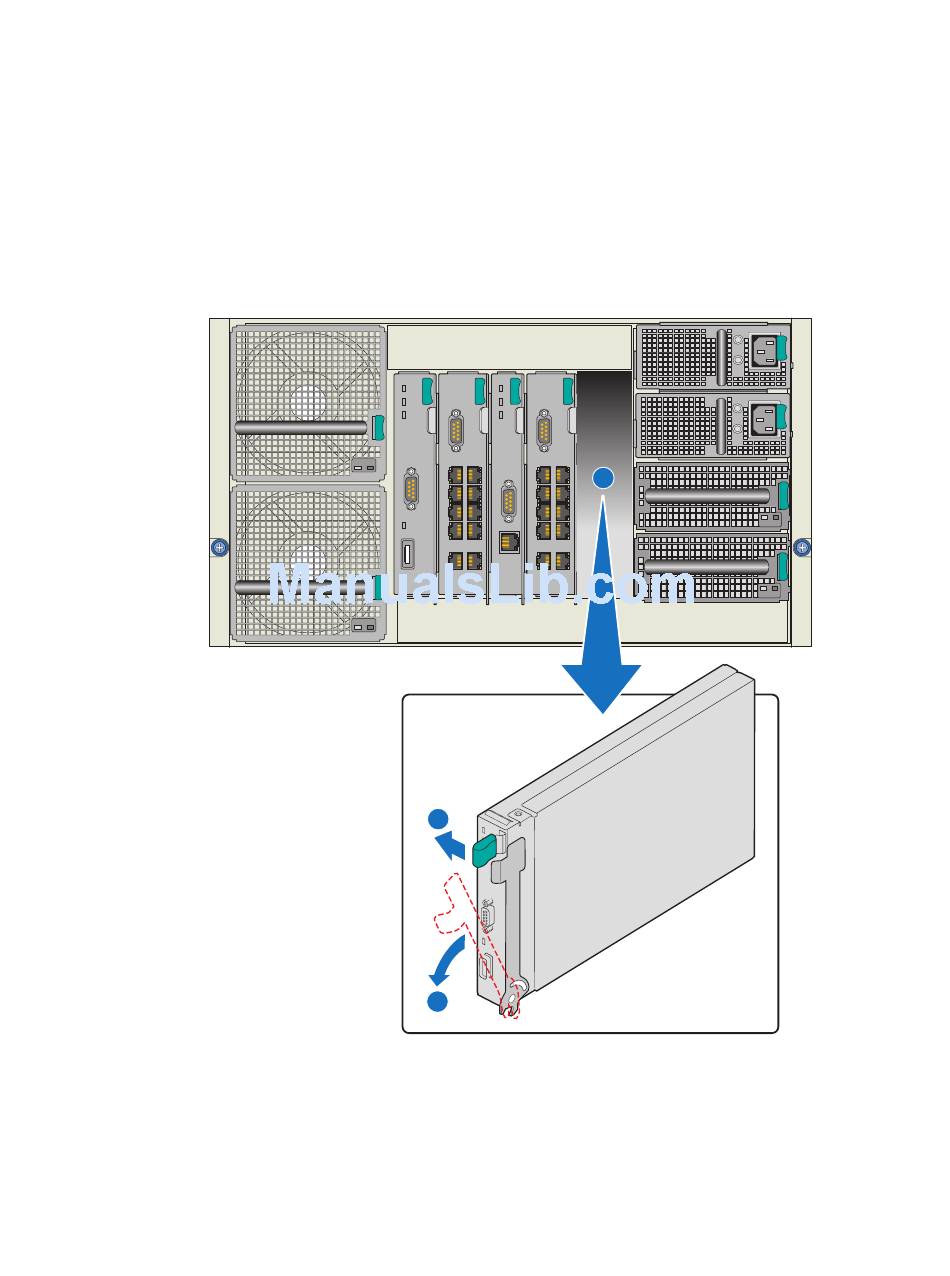

Figure 1. Removing Storage Controller from System
Backup Battery Kit Install Guide: Intel® Storage Controller AXXSCM3S
C
AF002430
