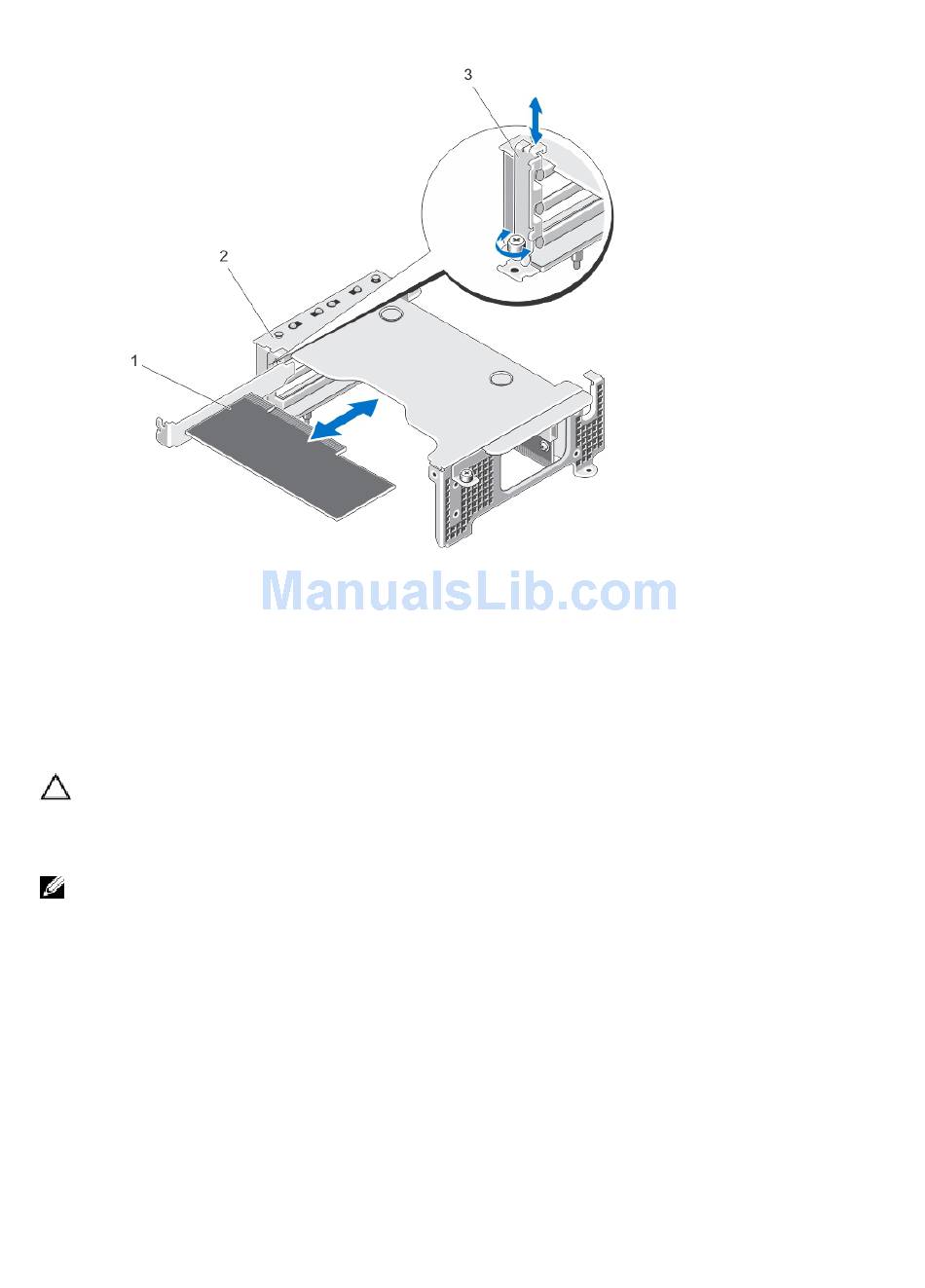

Figure 23. Removing and Installing the Expansion Card
1. expansion card
2. expansion-card cage
3. expansion-card latch

Installing The Expansion-Card Riser Cage And Expansion Cards

CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
NOTE: This is a service only procedure.
1. Unpack the expansion card and prepare it for installation.
For instructions, see the documentation accompanying the card.
2. Holding the card by its edges, position the card so that the card-edge connector aligns with the expansion-card
connector on the expansion-card riser.
3. Insert the card-edge connector firmly into the expansion-card connector until the card is fully seated.
4. Slide the expansion-card latch into position and using a #2 Philips screwdriver, tighten the captive screw that
secures the expansion-card latch to the expansion-card cage.
5. Install the expansion-card holder.
6. Align the expansion-card riser cage with the connector guides on the controller chassis side walls and the riser
guide pin on the controller system board.
7. Lower the expansion-card riser into place until the expansion-card riser is fully seated in the connector.
