7 RECORDING

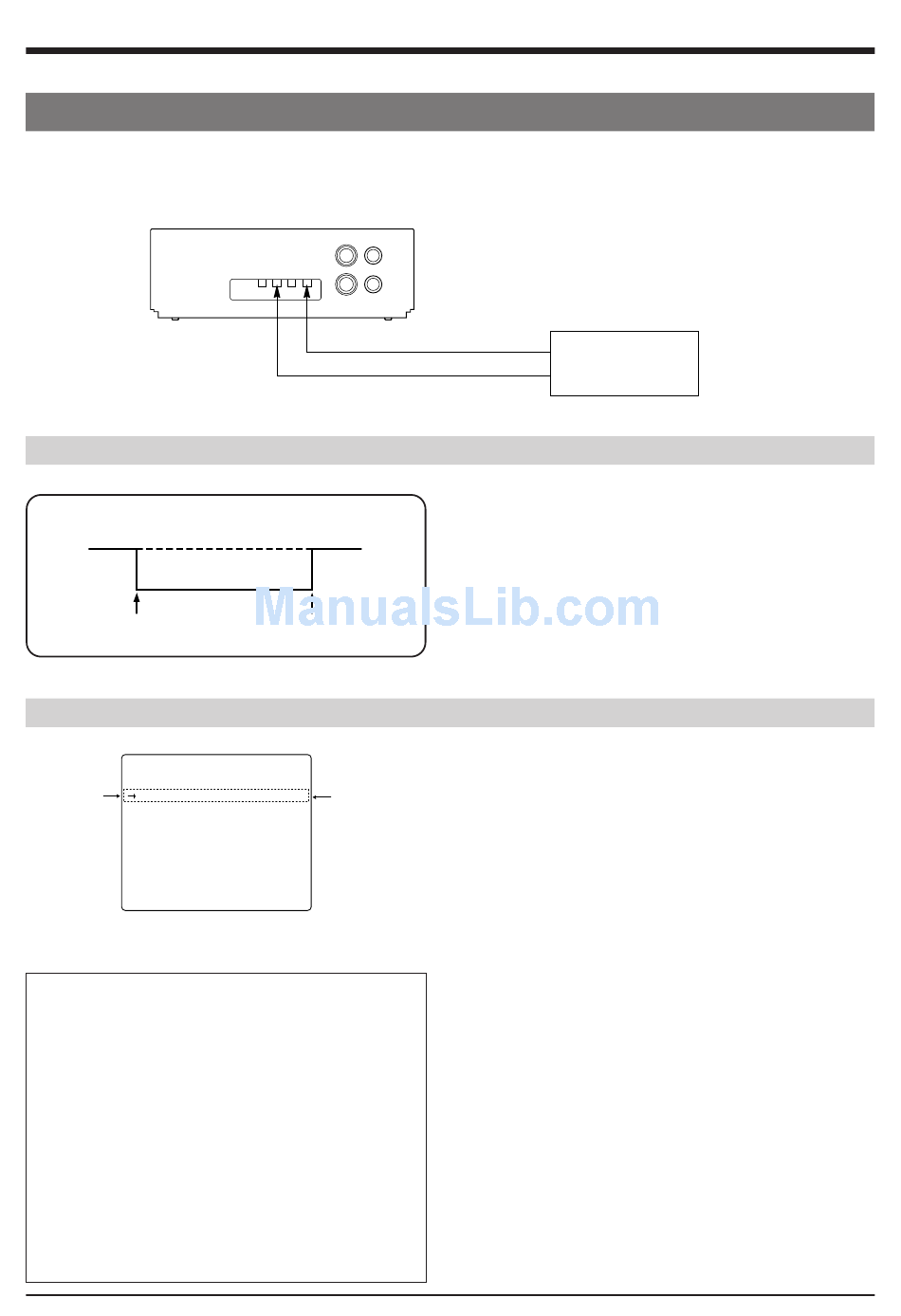

7-8 Recording with External VCR Activation Signal

Recording start/stop can be controlled externally by inputting a VCR activation signal to the [SERIES/CLOCK IN] terminal on
the SR-L910UA's rear panel.
To [COM] terminal
Connection
VCR control signal (ground signal)
Start of recording
Operation
VTR MODE 2
(SUMMER TIME)
TERMINAL
(TERMINAL SEL 1)
(TERMINAL SEL 2)
SEL 1
(REC REMAIN))
PRESS (SHIFT, SET)
PRESS (MENU)
VTR mode 2 setting screen
• When the [TIMER] indication is lit or the function is lit
or the function menu switch [TAPE END MODE] on
the VTR mode 1 setting screen is set to "REPEAT",
this function is disabled.
• If a VCR activation signal is input while the unit is
already recording (started with the [REC] button),
recording continues and stops when the activation
signal is no longer input.
• The mechanism of the SR-L910UA cannot be
guaranteed if the Recording with External VCR
Activation Signal function is used frequently (100 times
/day or more).
• During playback, there may be some noise or picture
distortion at the point where one recording with external
VCR activation signal stops and another starts. This is
not a malfunction.
38
Rear panel
To [SERIES/CLOCK IN] terminal
LV: 0 V
Stop
OFF
EXT Set to EXT.
WARN
(External
OFF
recording
function)
TO END
External control
equipment
Connect the [SERIES/CLOCK IN] terminal and [COM]
terminal on the SR-L910UA's rear panel to the external
control equipment.
1
Set the function menu switch <TERMINAL SEL 1> to
"EXT" to use the external recording function.
2
Press the MENU button to switch the on-screen display
to the time/date display.
3
Load a cassette with a safety tab in place and engage
the Stop mode, the Pause mode or turn the operating
mode off.
• When a VCR activation signal (ground input) is input to
the rear panel's [SERIES/CLOCK IN] terminal,
recording starts automatically and continues for as
long as the activation signal is input.
When the activation signal stops, the Stop mode is
engaged.
• When the activation signal is input again, recording
starts.
