Tutorial
Edit the Preset
The next step to creating our example Preset is to enter the Effect Edit mode.To do this, press the Edit Button once.
At this point only the Wah-Pickup LED should light.The Display will briefly show EDIT and then cycle between show-
ing the status of the Pickup simulator Effect.

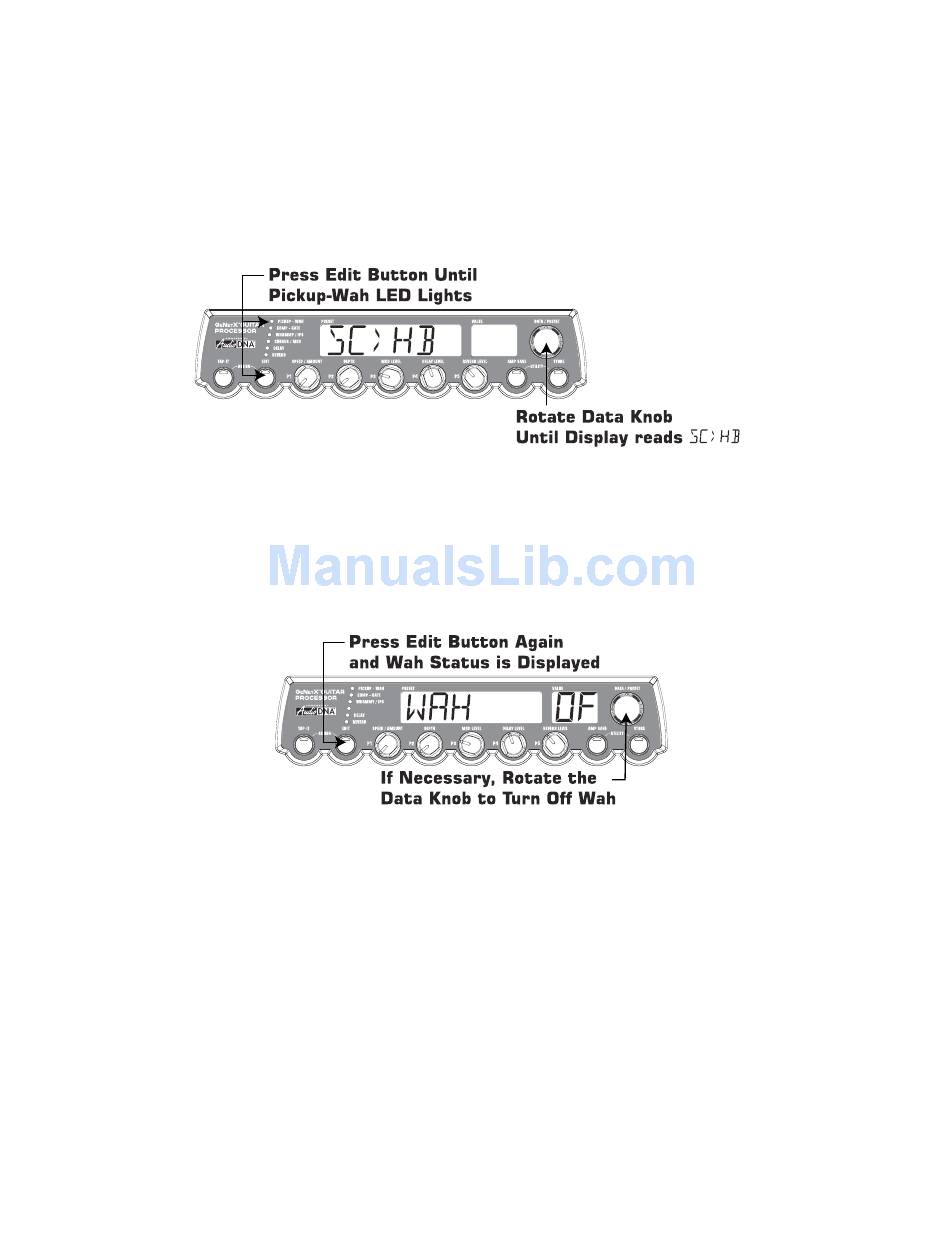

Select the Pickup Type
In our example Preset we were assuming that we were using a single coil pickup, but wanted it to sound like a double
coil humbucker.With the Wah-Pickup LED lit, rotate the DATA knob until the Display shows SC>HB.This means that a
single coil will sound like a Humbucker.
Turn the Wah Off
Our example Preset was not going to use a Wah.To access the Wah parameters, press the EDIT button again.The
Pickup-Wah LED will remain lit and the status of the Wah will be shown in the display. If the display shows that the
On), rotate the DATA knob counterclockwise to turn it off (since our example is not using a
Wah is on (WAH
Wah).
CHORUS / MOD
Turn the Compressor Off
Next, we didn't want to use compression in our Preset so, we need to turn the compressor off. Press the EDIT but-
ton again.The Compressor LED in the Effect Matrix will light and the Display will show the current status of the
Compressor. If the Compressor is on, rotate the DATA knob until the Display shows CMPRs OF.The Compressor
will then be disengaged.
Turn the Whammy™/IPS Off
We didn't want to use any Whammy™ or IPS effects in this Preset. Press the EDIT button again and the LED on the
Whammy/IPS row will light. If the Display indicates that either one of these effects is active, turn the DATA knob until
the Display reads WHMIPS OF (IPS Off).
25
