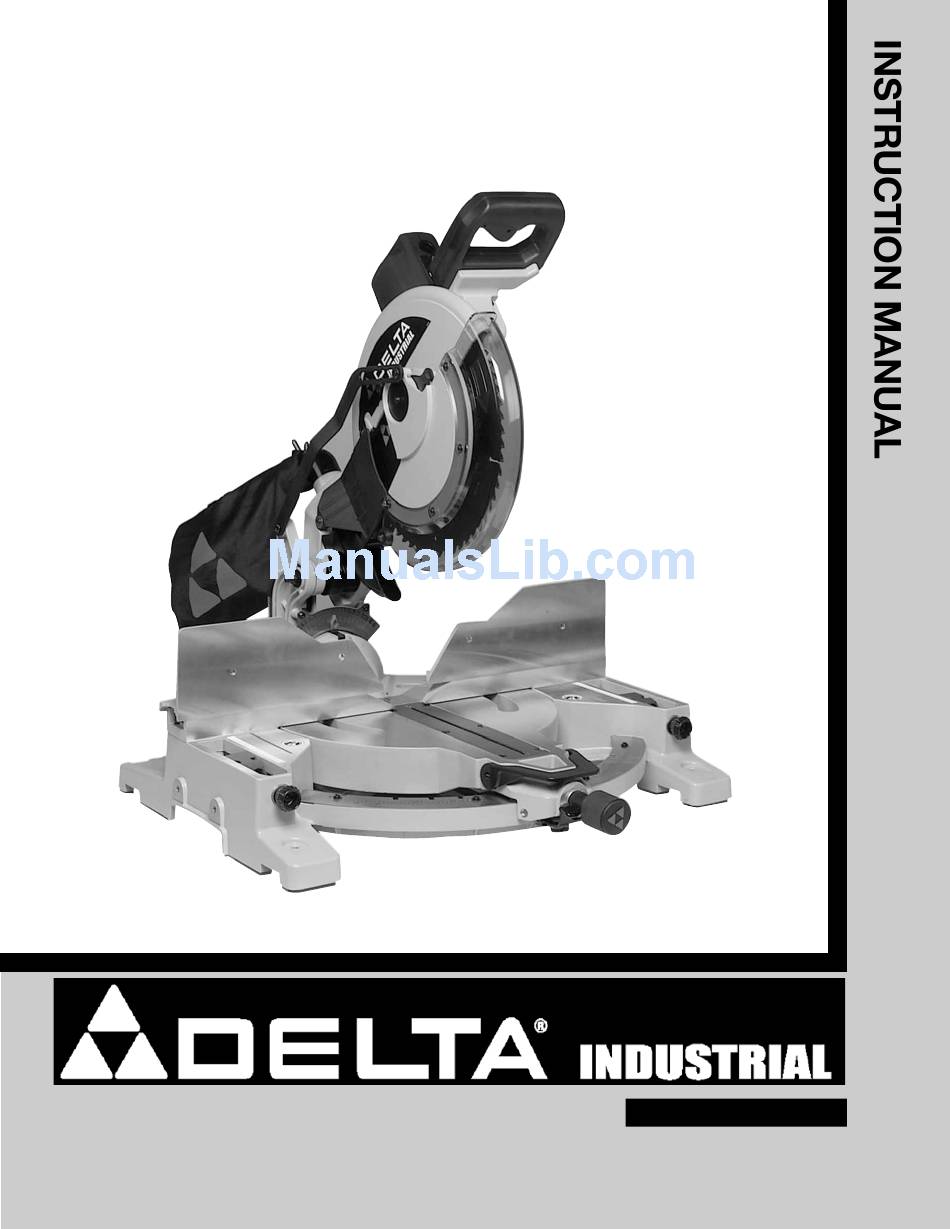

12" Dual-Bevel Compound
Miter Saw
(Model 36-412)
PART NO. A05726 - 10-21-04
Copyright © 2004 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 23
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call
Advertisement
Table of Contents
Related Manuals for Delta 36-412
Summary of Contents for Delta 36-412
- Page 1 12" Dual-Bevel Compound Miter Saw (Model 36-412) PART NO. A05726 - 10-21-04 Copyright © 2004 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 23 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582).
-
Page 2: Table Of Contents
NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the product until you have written Delta Machinery and we have advised you. -
Page 3: Safety Guidelines
SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 4: General Safety Rules
USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommend- ed by Delta may cause damage to the machine or injury to the user. USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. -
Page 5: Additional Specific Safety Rules
WHEN CUTTING WITH A COMPOUND SLIDING MITER SAW, PUSH THE SAW FORWARD (AWAY FROM YOU) and toward the fence. Pulling the saw toward you can cause the saw to kick upward and toward you. WHEN USING A SLIDING MITER SAW AS A REGULAR MITER SAW, LOCK THE SLIDE MECHANISM IN PLACE. -
Page 6: Power Connections
POWER CONNECTIONS A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3- prong grounding type plugs and matching receptacle which will accept the machine’s plug. -
Page 7: Functional Description
FOREWORD Delta Model 36-412 is a high capacity 12" dual-bevel compound miter saw designed to cut wood and non-ferrous metals. This machine is supplied with new design features that increase the cutting capacity, including built-in stops to make cutting crown moulding easier. This machine can crosscut 2"x10" workpieces, miter 2"x6" workpieces at 45° both left and right, bevel 2"x10"... -
Page 8: Assembly
2. Place the machine on a firm, level surface with proper support of the workpiece. 3. The 36-412 is shipped with the cuttinghead beveled right to 45° and locked in the down position, and the table rotated 45° left. To release the head and move it to the operating position, see “MOVING CUTTINGHEAD TO THE UP POSITION”... - Page 9 FENCE OPERATION The saw is supplied with left and right fence segments (A) Fig. 7 that incorporate a squeeze clamp feature. To operate the fence segment(s) or to slide to another location, squeeze the clamp (B) Fig. 7A & 8A to disengage the lock. Slide the fence to desired location and release to lock the fence.
-
Page 10: Operations
When frequently moving the saw from place to place, mount the saw to a 3/4” piece of plywood. The saw can then be easily moved from place to place and the plywood can be clamped to the supporting surface using “C”... - Page 11 Fig. 13 The compound miter saw will cut any angle from a straight 0° cut to 48° right and left. Turn the locking knob (A) Fig. 13 counterclockwise, depress the lock lever (B), and rotate the table to the desired position.
-
Page 12: Tilting Cuttinghead For Bevel Cutting
(A) Fig. 22. Positive stops (A) Fig. 23 are provided to rapidly position the saw blade at 0°, 33.9° and 45°. Refer to the section of this manual titled “ADJUSTING 0°, 33.9° AND 45° BEVEL POSITIVE STOPS.” The bevel angle of the cutting head is determined by the position of the pointer (B) on the scale (C). - Page 13 NOTE: To perform a bevel cut of more than 45°, pull the bevel pin (B) out to bypass the bevel detent plate. 48° left or right is possible. MAKE SURE THAT THE FENCES ARE CLEAR OF THE GUARD AND BLADE BEFORE USING SAW. Fig. 25 ADJUSTING 0°, 33.9°, AND 45°...
- Page 14 Correct adjustment provides a snug sliding fit between these two parts. This adjustment should not be so tight that it restricts the tilting movement of the trunnion when bevel cutting, or so loose that it affects the accuracy of the saw cut.
- Page 15 ADJUSTING LOWER BLADE GUARD The 36-412 incorporates an moveable lower blade guard (C) Fig. 36, and it also has a secondary blade guard (B) to cover the rear section of the blade. After an extended period of use, the moveable lower blade guard (C) Fig. 36 may not operate smoothly when the cuttinghead is lowered.
- Page 16 Aluminum extrusions (aluminum screens and storm windows) can easily be cut with your miter saw. When cutting aluminum extrusions, or other sections that can be cut with a saw blade and are within the capacity of the machine, position the material so that the blade is cutting through the smallest cross-section, as shown in Fig. 39. The wrong way to cut aluminum angles is illustrated in Fig.
- Page 17 Then if necessary turn knob(s) (A) Fig. 45 to fine adjust the stop. A recessed slot (D) Fig. 44 is provided for the user to add pencil markings to establish various quick reference stop positions. MAKE SURE THAT THE FENCES ARE CLEAR OF THE GUARD AND BLADE BEFORE USING SAW. Fig. 43 Fig.
-
Page 18: Cutting Crown Moulding
A NEW FEATURE FOR THIS TOOL IS CROWN MOULDING STOPS BUILT INTO THE BASE. DELTA DOES NOT CONSIDER THE CROWN MOULDING STOPS TO BE WORK CLAMPS AND THEY ARE NOT TO BE USED IN THIS MANNER. MAKE SURE THAT THE FENCES ARE CLEAR OF THE GUARD AND BLADE BEFORE OPERATING THE SAW. -
Page 19: Troubleshooting
For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582). KEEP MACHINE CLEAN Periodically blow out all air passages with dry compressed air. - Page 20 CHANGING THE BLADE The 36-412 incorporates a moveable lower blade guard, and it also has a secondary blade guard to cover the rear section of the blade. Make sure there is minimal gap between the two guards when the cuttinghead is in its uppermost position.
-
Page 21: Service
Fig. 54 PARTS, SERVICE OR WARRANTY ASSISTANCE All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network • of Porter-Cable Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582). -
Page 22: Warranty
Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. -
Page 23: Español
Phone: (604) 420-0102 Fax: (604) 420-3522 The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE • DELTA): Auto-Set Contractor’s Saw II™, Delta ®...
